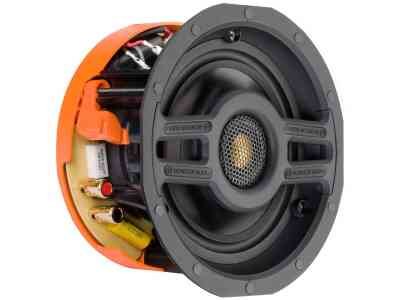

Monitor Audio CS140 In-Ceiling Speaker

Monitor Audio CS140 in-ceiling speaker

The Monitor Audio CS140 is a compact in-ceiling and in-wall loudspeaker designed to provide high-quality audio performance where installation space is limited. Featuring a slim mounting depth and reduced overall dimensions, the CS140 is ideal for distributed audio systems, stereo listening environments, and overhead surround channels in home theater installations. Its compact design allows easy integration into ceilings and walls without compromising acoustic performance.

The speaker utilizes a two-way driver configuration consisting of a pivoting 1-inch C-CAM gold dome tweeter and a proprietary 4-inch MMP II woofer. The tweeter is constructed from ceramic-coated aluminum and magnesium alloy, providing exceptional rigidity and low mass for accurate high-frequency reproduction. Its pivoting design allows sound to be directed toward the listening area, improving imaging and detail while maintaining a wide and natural soundstage.

Complementing the tweeter, the 4-inch Metal Matrix Polymer woofer employs a polypropylene cone reinforced with metallic particles for increased stiffness and responsiveness. This advanced driver design delivers controlled bass output, smooth midrange performance, and consistent tonal balance across a broad frequency range of 75 Hz to 30 kHz.

The CS140 incorporates Monitor Audio’s innovative Tri-Grip mounting system, which provides a secure installation while creating an enhanced surface seal that improves bass performance and midrange clarity. A trimless magnetic steel-mesh grille offers a discreet appearance and can be painted to blend seamlessly with surrounding décor. Additional features such as gold-plated spring-post terminals and a protective dust cover enhance installation flexibility and long-term reliability. With efficient performance, compact dimensions, and premium driver technology, the CS140 is an excellent solution for high-quality architectural audio systems.

Features of CS140

• Two-way in-ceiling speaker design
• Suitable for in-ceiling and in-wall installations
• Ideal for distributed audio systems
• Designed for overhead surround applications
• Slim mounting depth for restricted spaces

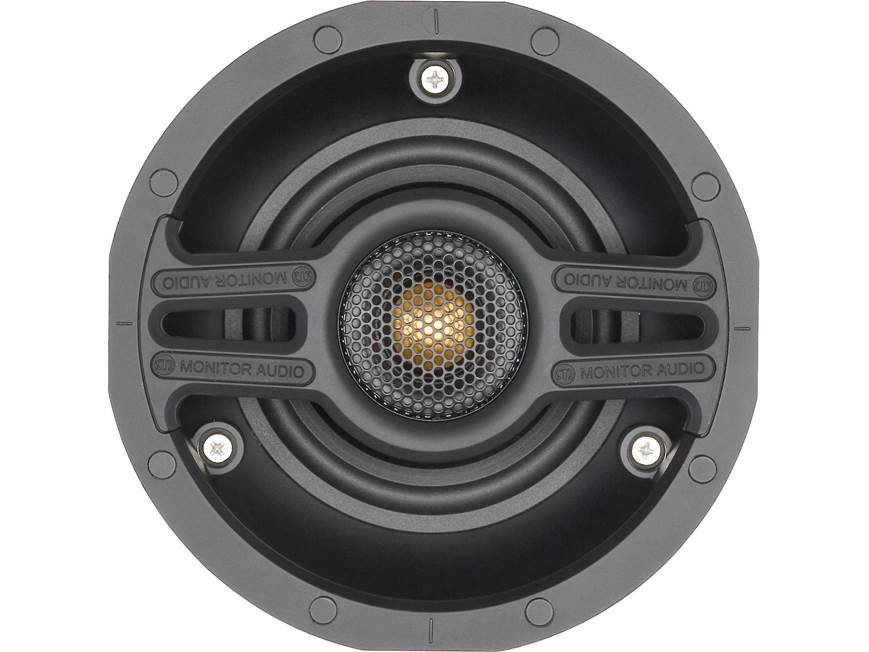

• Pivoting 1-inch C-CAM gold dome tweeter
• Ceramic-coated aluminum/magnesium tweeter construction
• Extended high-frequency response
• 4-inch MMP II woofer
• Metal Matrix Polymer cone technology
• Accurate and detailed sound reproduction
• Wide bandwidth audio performance
• Improved bass and midrange clarity
• Patented Tri-Grip mounting system
• Secure installation mechanism

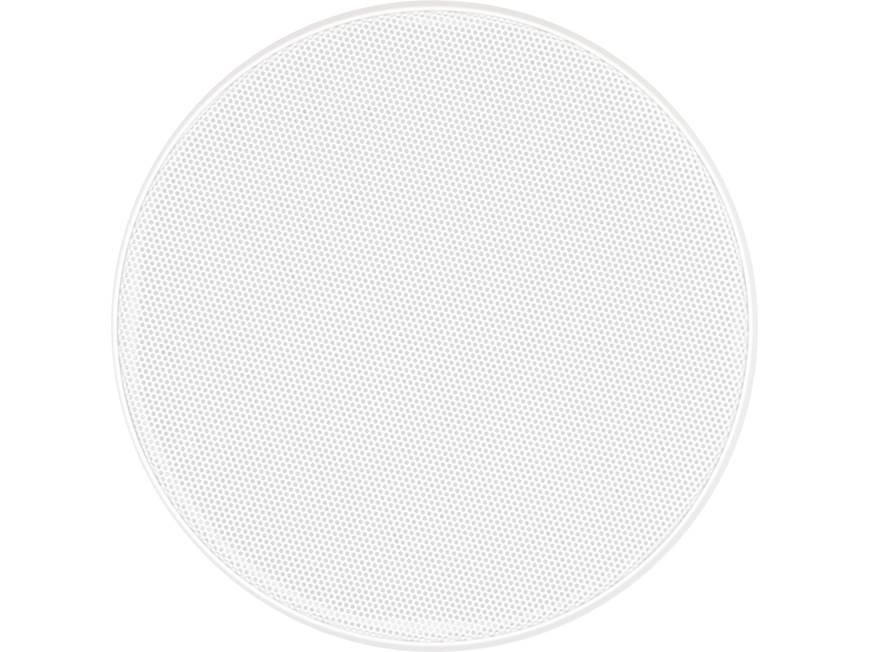

• Trimless magnetic steel-mesh grille
• Paintable grille for seamless integration

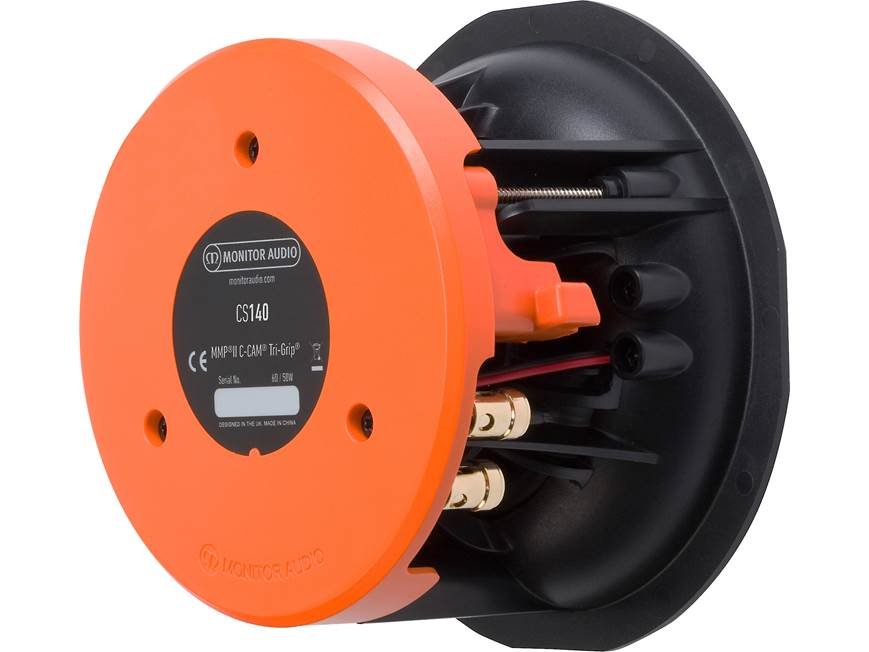

• Gold-plated spring-post terminals
• Dust protection cover included
• Compact architectural speaker design

Specifications of CS140
