Monitor Audio CS160 In-Ceiling Speaker

Monitor Audio CS160 in-ceiling speaker

The Monitor Audio CS160 is a high-performance architectural loudspeaker designed for in-ceiling and in-wall audio installations where space is limited but sound quality remains a priority. Its slim-profile construction enables installation in restricted ceiling and wall cavities, making it suitable for distributed audio systems, stereo listening environments, and overhead surround channels in home theater applications.

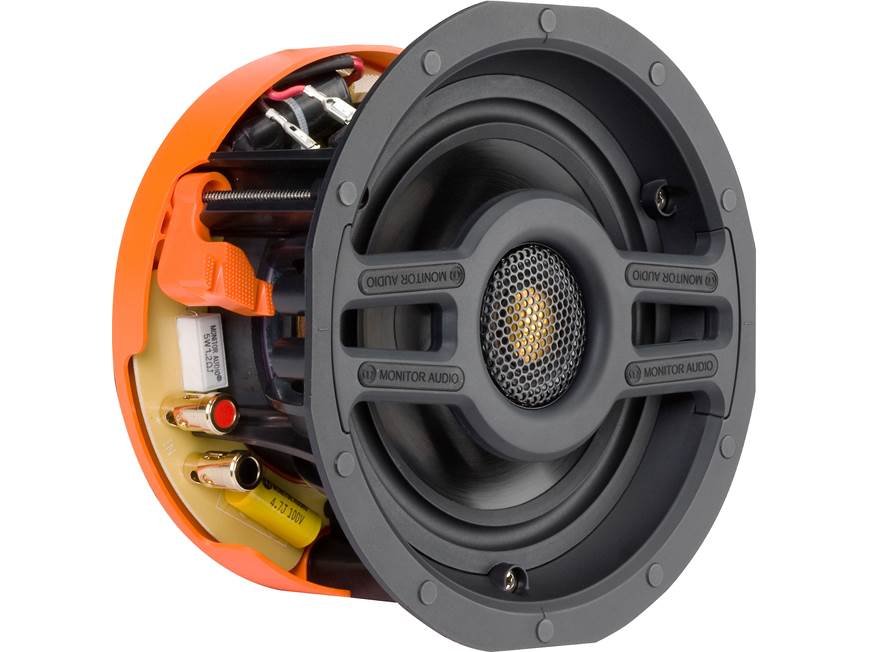

The CS160 employs a two-way driver configuration featuring a pivoting 1-inch C-CAM gold dome tweeter and a proprietary 6-inch MMP II woofer. The tweeter is constructed from ceramic-coated aluminum and magnesium alloy, offering exceptional rigidity, low mass, and high efficiency. Its pivoting mechanism allows precise sound direction toward the listening area, enhancing imaging accuracy and delivering clear, detailed high-frequency performance. The advanced tweeter design extends response well beyond the audible spectrum, ensuring accurate reproduction of high-resolution music and cinematic soundtracks.

The 6-inch MMP II woofer utilizes Metal Matrix Polymer cone technology with metallic particle reinforcement to provide a rigid and responsive structure. This design delivers controlled bass response, smooth midrange reproduction, and balanced tonal performance across a wide frequency range of 60 Hz to 30 kHz. The larger woofer size contributes to fuller low-frequency output while maintaining excellent clarity and detail.

Monitor Audio’s patented Tri-Grip fixing system simplifies installation while providing an enhanced surface seal for improved bass performance and midrange definition. The trimless magnetic steel-mesh grille creates a discreet appearance and can be painted to blend seamlessly into any interior environment. Gold-plated spring-post terminals ensure secure connectivity, while the integrated dust protection cover helps safeguard the drivers and crossover components. Combining compact dimensions, flexible installation, and advanced driver technology, the CS160 delivers premium architectural audio performance for residential entertainment systems.

Features of CS160

• Two-way in-ceiling speaker design
• Suitable for in-ceiling and in-wall applications
• Ideal for distributed audio systems
• Optimized for home theater surround channels
• Slim-profile installation design

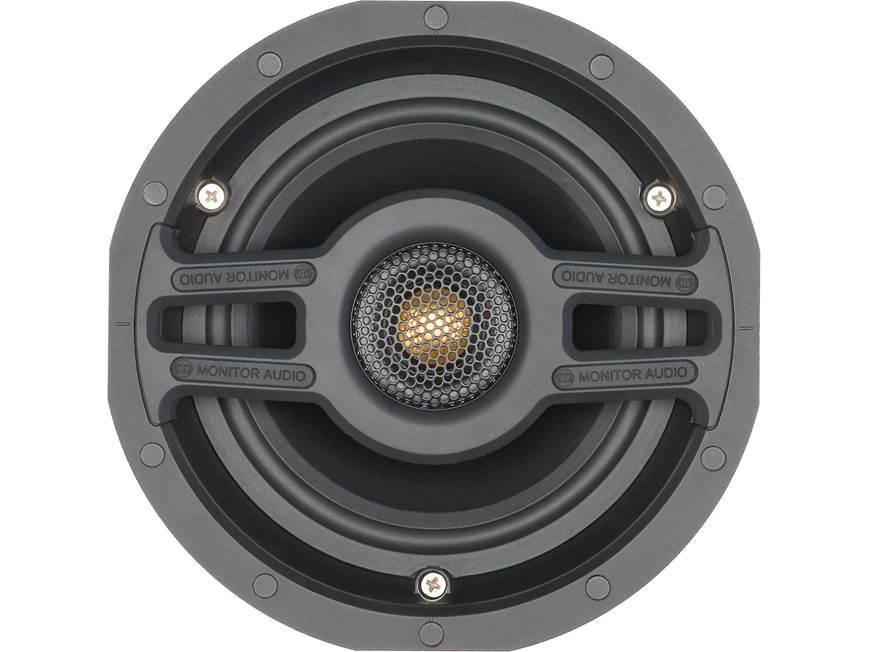

• Pivoting 1-inch C-CAM gold dome tweeter
• Ceramic-coated aluminum/magnesium tweeter construction
• Extended high-frequency performance
• 6-inch MMP II woofer
• Metal Matrix Polymer cone technology
• Full-range sound reproduction
• Accurate detail and imaging
• Enhanced bass and midrange clarity

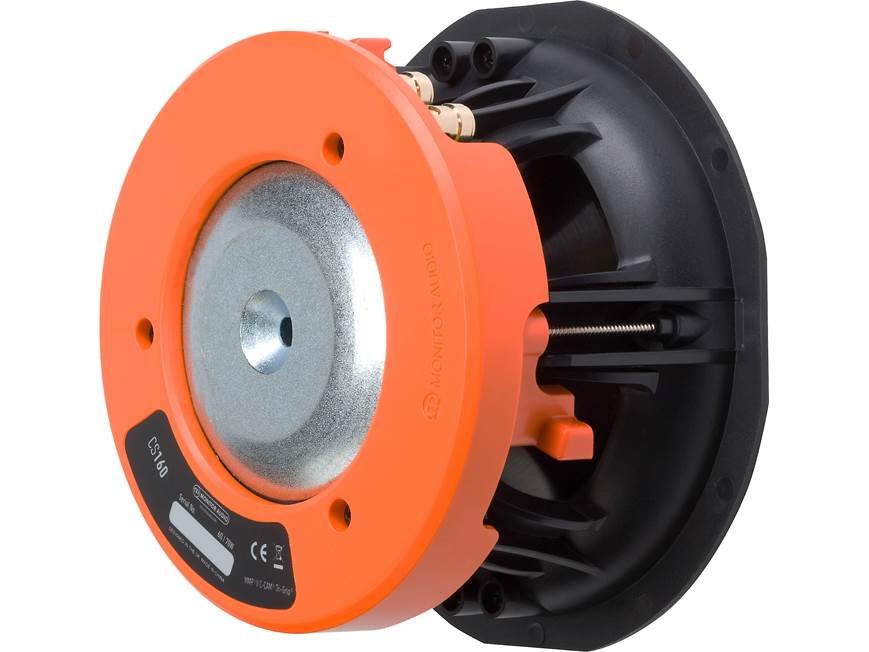

• Patented Tri-Grip fixing system
• Secure and simplified installation

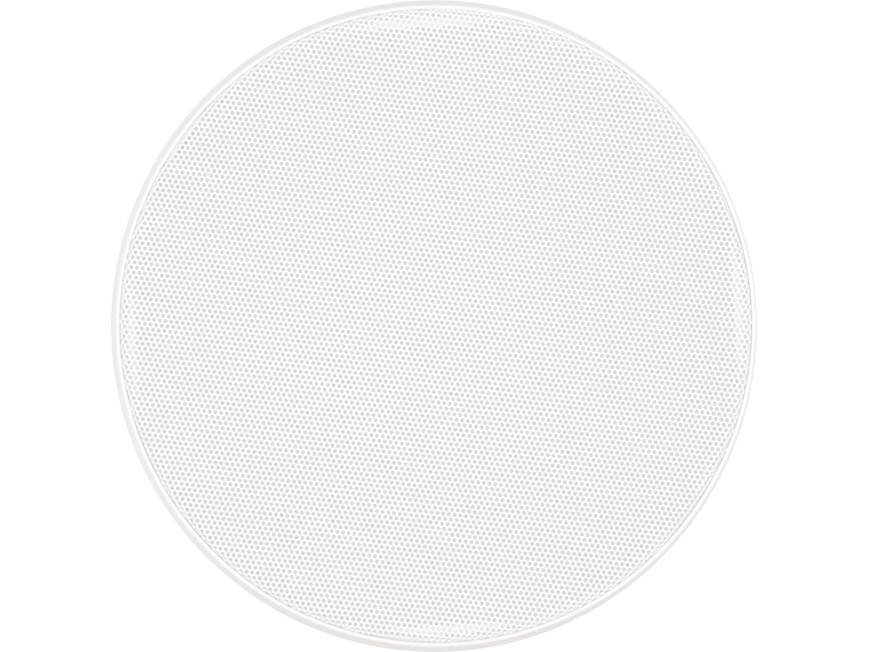

• Trimless magnetic steel-mesh grille
• Paintable grille for seamless integration
• Gold-plated spring-post terminals
• Dust protection cover included
• Designed for high-resolution audio playback

Specifications of CS160
