Monitor Audio CS180 In-Ceiling Speaker

Monitor Audio CS180 in-ceiling speaker

The Monitor Audio CS180 is a high-performance in-ceiling loudspeaker designed to deliver powerful, full-range sound while maintaining a compact installation profile. Ideal for distributed audio systems, stereo listening environments, and overhead surround channels in home theater applications, the CS180 provides exceptional acoustic performance in spaces where installation depth is limited.

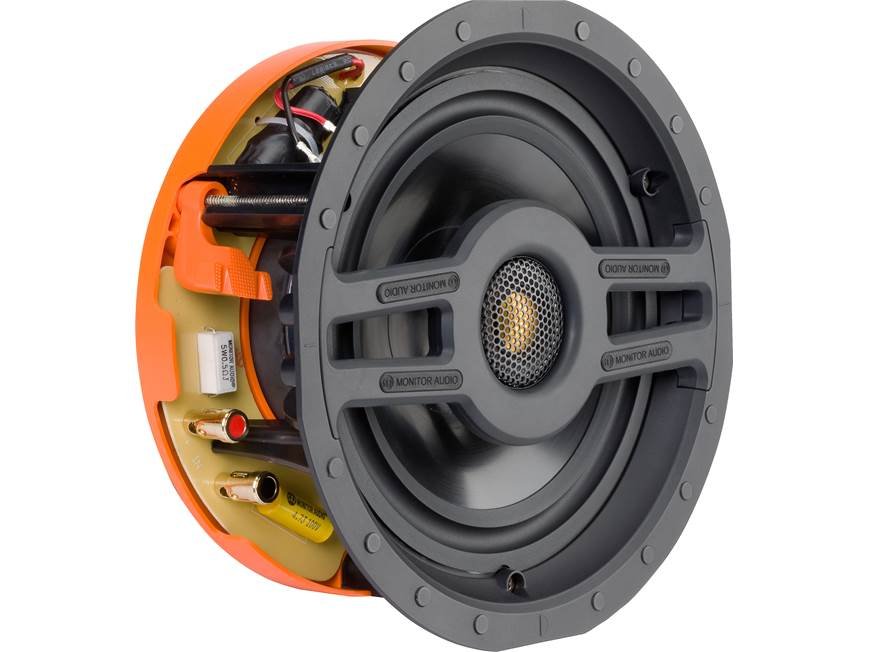

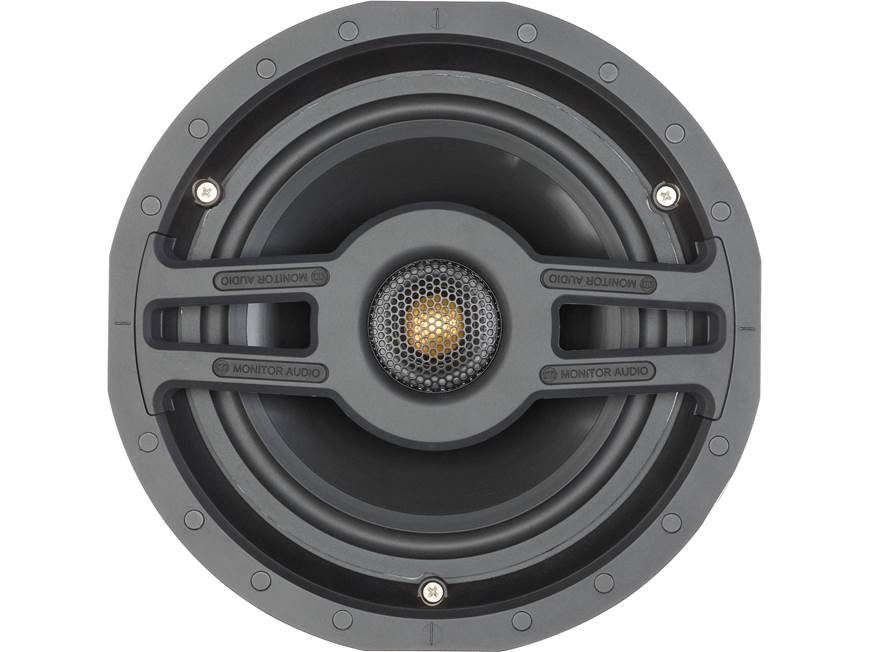

Its advanced two-way driver configuration incorporates a pivoting 1-inch C-CAM gold dome tweeter paired with a proprietary 8-inch MMP II woofer. The tweeter is constructed from ceramic-coated aluminum and magnesium alloy, offering a lightweight yet highly rigid structure that minimizes distortion and enhances efficiency. The pivoting design allows installers to direct high frequencies toward the listening position, improving imaging, detail retrieval, and overall sound accuracy. Its extended high-frequency performance supports modern high-resolution music and cinema sound formats with exceptional clarity.

The 8-inch MMP II woofer utilizes Metal Matrix Polymer technology, combining a polypropylene cone with metallic particle reinforcement for superior rigidity and responsiveness. Manufactured using a precision injection molding process, the woofer delivers deep bass, smooth midrange reproduction, and excellent dynamic performance. With a frequency response extending from 48 Hz to 30 kHz, the CS180 provides impressive full-range audio suitable for both music and movie playback.

Monitor Audio’s patented Tri-Grip fixing system simplifies installation while creating a superior surface seal that enhances bass output and midrange clarity. The trimless magnetic steel-mesh grille offers a discreet appearance and can be painted to blend seamlessly with surrounding décor. Gold-plated spring-post terminals provide secure speaker connections, while the integrated dust protection cover helps protect internal components. Combining high sensitivity, flexible installation, and advanced driver technology, the CS180 is an excellent solution for premium architectural audio applications.

Features of CS180

• Two-way in-ceiling speaker design
• Suitable for in-ceiling and in-wall applications
• Ideal for distributed audio systems
• Optimized for home theater surround channels
• Slim-profile installation design
• Pivoting 1-inch C-CAM gold dome tweeter
• Ceramic-coated aluminum/magnesium tweeter construction
• Extended high-frequency response
• 8-inch MMP II woofer
• Metal Matrix Polymer cone technology
• Deep bass and detailed midrange performance
• Full-range sound reproduction
• High-efficiency driver design
• Patented Tri-Grip fixing system
• Enhanced bass and midrange clarity
• Secure and simplified installation

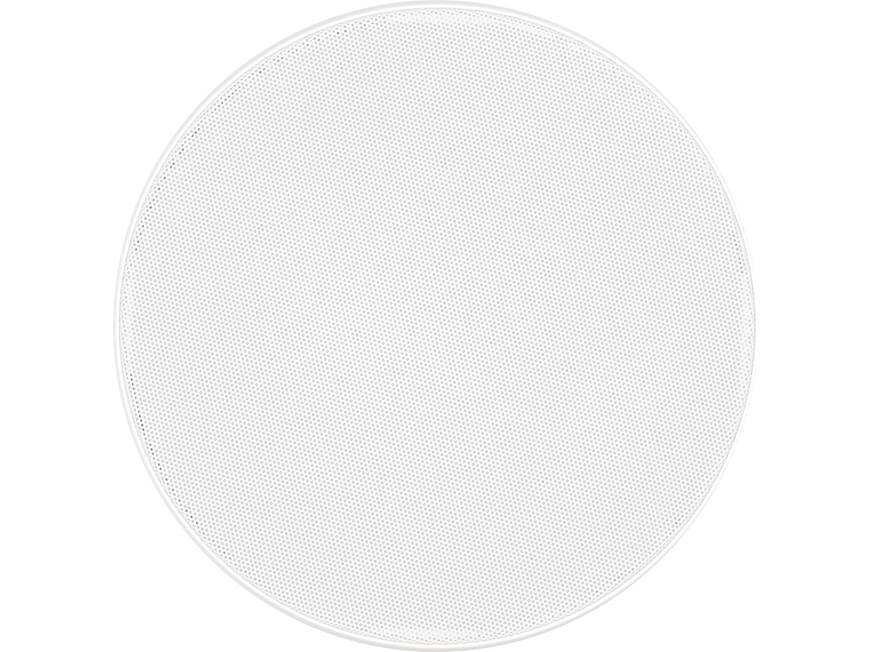

• Trimless magnetic steel-mesh grille
• Paintable grille for seamless integration
• Gold-plated spring-post terminals
• Dust protection cover included

Specifications of CS180
