RCF IE 3008 DXT 3000 Interlink Board

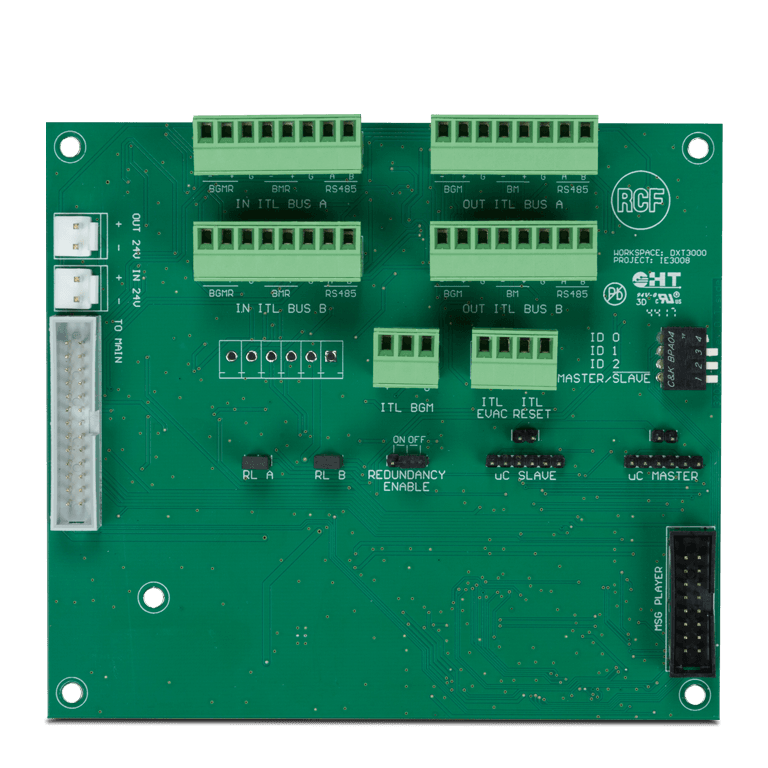

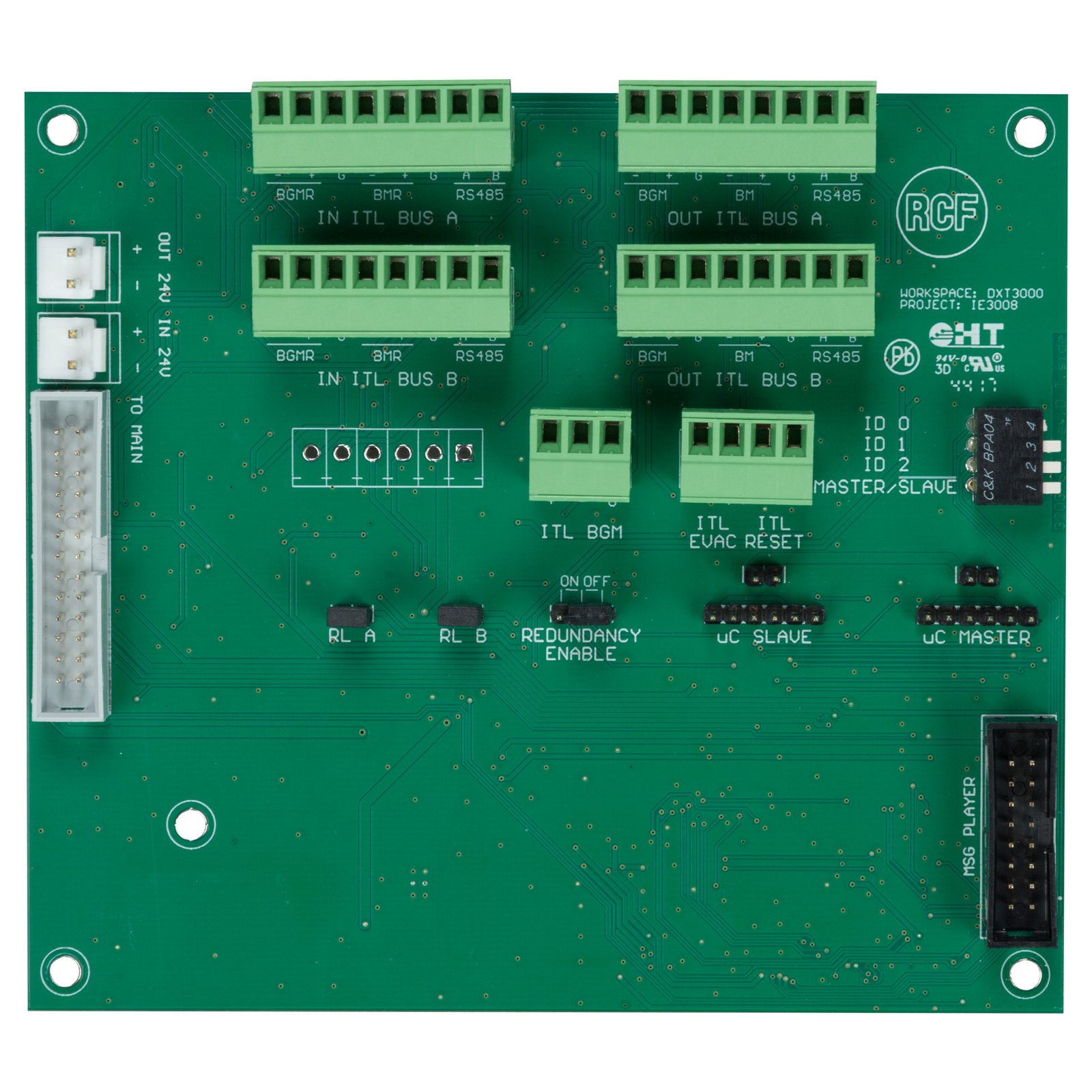

The RCF IE 3008 is a dedicated System interlink board for compatible installed audio equipment. This interlink board extends a compatible DXT 3000 system by connecting up to eight units in a master-slave arrangement. It installs inside each device cabinet and provides the communication path used to exchange system commands and two audio channels.
The communication bus is redundant and uses serial RS485 operation. Euroblock connectors provide the stated input and output interface, while power comes from the compatible MX 3250 or MX 3500 unit at 24 V DC. General and zone alarm functions and global or local background-music inputs are supported.
The width is 130 mm. The depth is 115 mm. The specified weight is 0.15 kg. The stated finish is black. These physical characteristics establish the componentÂ’s format within the installation and help determine its position relative to the other system equipment and cable paths.
The component has a defined function within the supported audio system, with its operating role determined by the compatible master unit, console or rack arrangement. Planning the connections and physical placement together helps maintain the relationship between the local device and the rest of the installation throughout configuration and operation.
Use the installation instructions for the exact component and the equipment with which it is connected. The available space, connection routes and access to the relevant controls or mounting points should be considered as one arrangement. This keeps the system layout consistent with the specified application and supports a clear, organized installation. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.
Features of IE 3008
- Connects up to 8 units
- Master/slave architecture
- Fully redundant communication bus
- Powered by master unit
- General and zone alarm activation
- Global and local BGM inputs
Specifications of IE 3008
| Product Type | System interlink board |
| Brand | RCF |
| Model | IE 3008 |
| Manufacturer Part Number | 12399015 |
| Max number of units connectable: | 8 |
| Max number of consoles: | 4 |
| Number of console buses: | 1 |
| Number of audio channels: | 2 |
| Communication bus: | Serial RS485 |
| General Purpose Inputs (GPI): | 2 (EVAC / RESET) |
| Photo-coupled GPI: | 2 |
| Max distance between first-last unit: | 800 m |
| Inputs / Outputs Connectors: | Euroblock |
| Operating voltage: | 24 V DC (from MX 3250 / MX 3500) |
| EN54-16 certified | Yes |
| CPR number | 0068-CPR-007/2015 |
| Color | Black |
| Width | 130 mm / 5.12 inches |
| Depth | 115 mm / 4.53 inches |
| Weight | 0.15 kg / 0.33 lbs |
