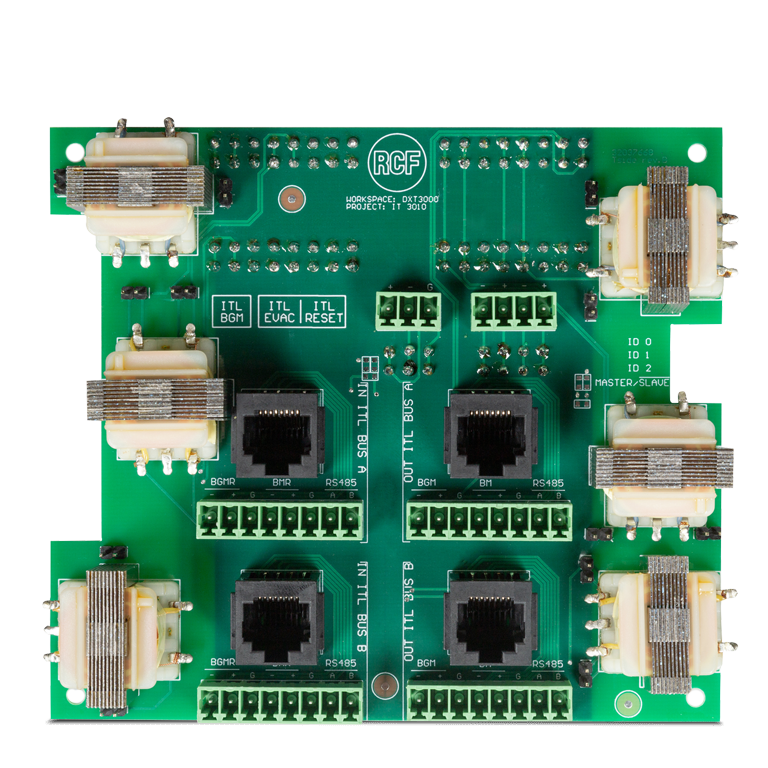

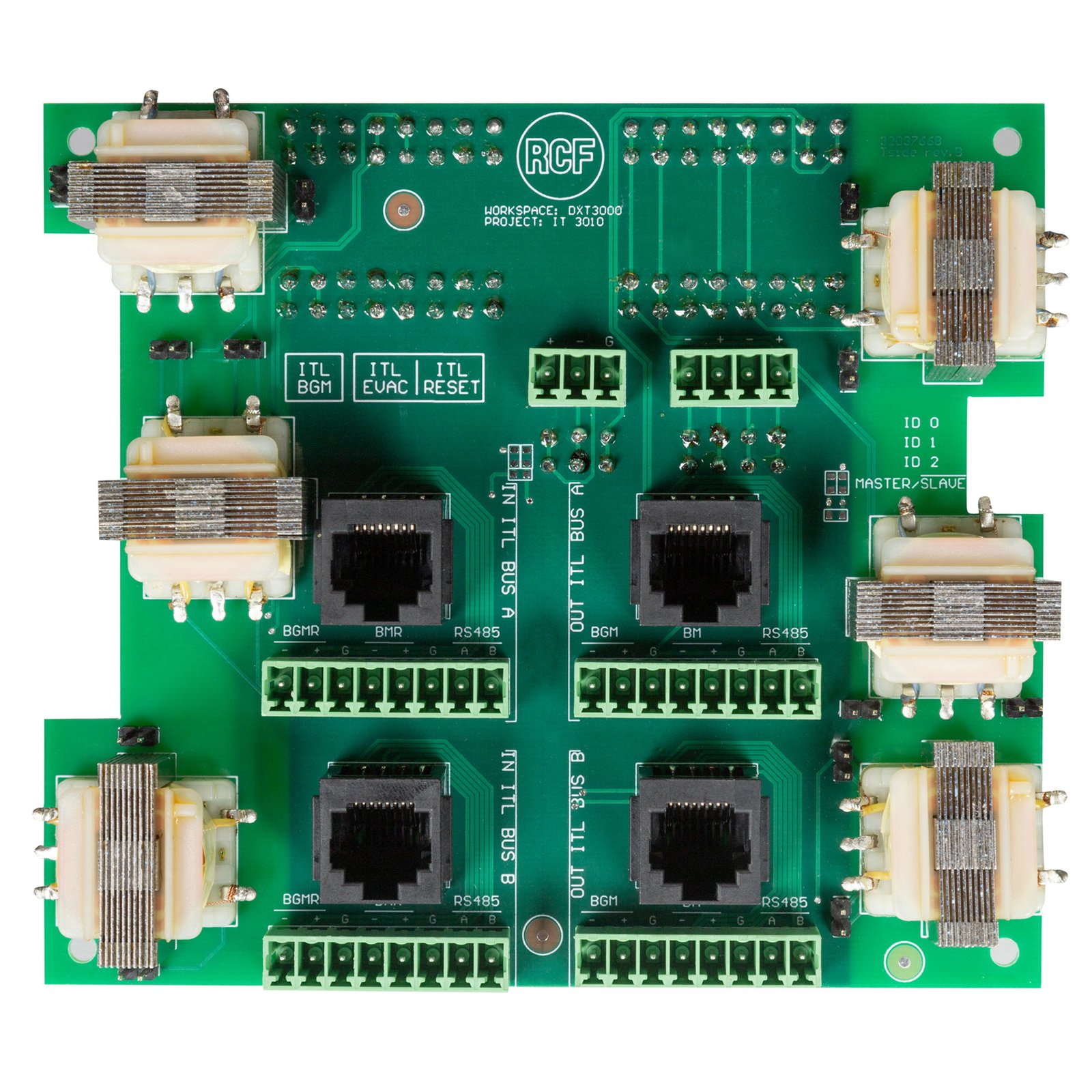

RCF IT 3010 DXT 3000 Line Transformer Board
The RCF IT 3010 is a dedicated Audio transformer board for compatible installed audio equipment. This transformer board is an additional DXT 3000 component used only with the IE 3008 interlink board. Its six line transformers address installations where noise may affect the audio signal along the connections between the systemÂ’s units.
The board allows compatible DXT 3000 units to be connected through removable screw terminals or RJ45 plugs. It requires no separate power supply and carries two audio channels in the specified arrangement. The combination with IE 3008 is essential to its intended installation and connection role.
The width is 130 mm. The depth is 115 mm. The specified weight is 0.28 kg. The stated finish is black. These physical characteristics establish the componentÂ’s format within the installation and help determine its position relative to the other system equipment and cable paths.
The component has a defined function within the supported audio system, with its operating role determined by the compatible master unit, console or rack arrangement. Planning the connections and physical placement together helps maintain the relationship between the local device and the rest of the installation throughout configuration and operation.
Use the installation instructions for the exact component and the equipment with which it is connected. The available space, connection routes and access to the relevant controls or mounting points should be considered as one arrangement. This keeps the system layout consistent with the specified application and supports a clear, organized installation. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.
Features of IT 3010
- Installation on IE 3008
- 6 line transformers
- Screw or RJ 45 connectors
- Power supply not required
Specifications of IT 3010
| Product Type | Audio transformer board |
| Brand | RCF |
| Model | IT 3010 |
| Manufacturer Part Number | 12399049 |
| Number of audio channels: | 2 |
| General Purpose Inputs (GPI): | 2 (EVAC / RESET) |
| Photo-coupled GPI: | 2 |
| Max distance between first-last unit: | 800 m |
| Inputs / Outputs Connectors: | Euroblock or RJ 45 |
| Color | Black |
| Width | 130 mm / 5.12 inches |
| Depth | 115 mm / 4.53 inches |
| Weight | 0.28 kg / 0.62 lbs |
