RCF KX 32-A 3200W 12″ 2-Way Point-Source Active Speaker – Black

RCF KX 32-A compact high-power active speaker system

The RCF KX 32-A is a professional-grade, high-output 2-way active loudspeaker designed for demanding live sound, installation, and touring applications where extreme clarity, high SPL capability, and flexible deployment are essential. Despite its compact form factor, it delivers powerful performance driven by a 3200W peak Class-D dual-channel amplifier system, ensuring exceptional headroom and dynamic accuracy.

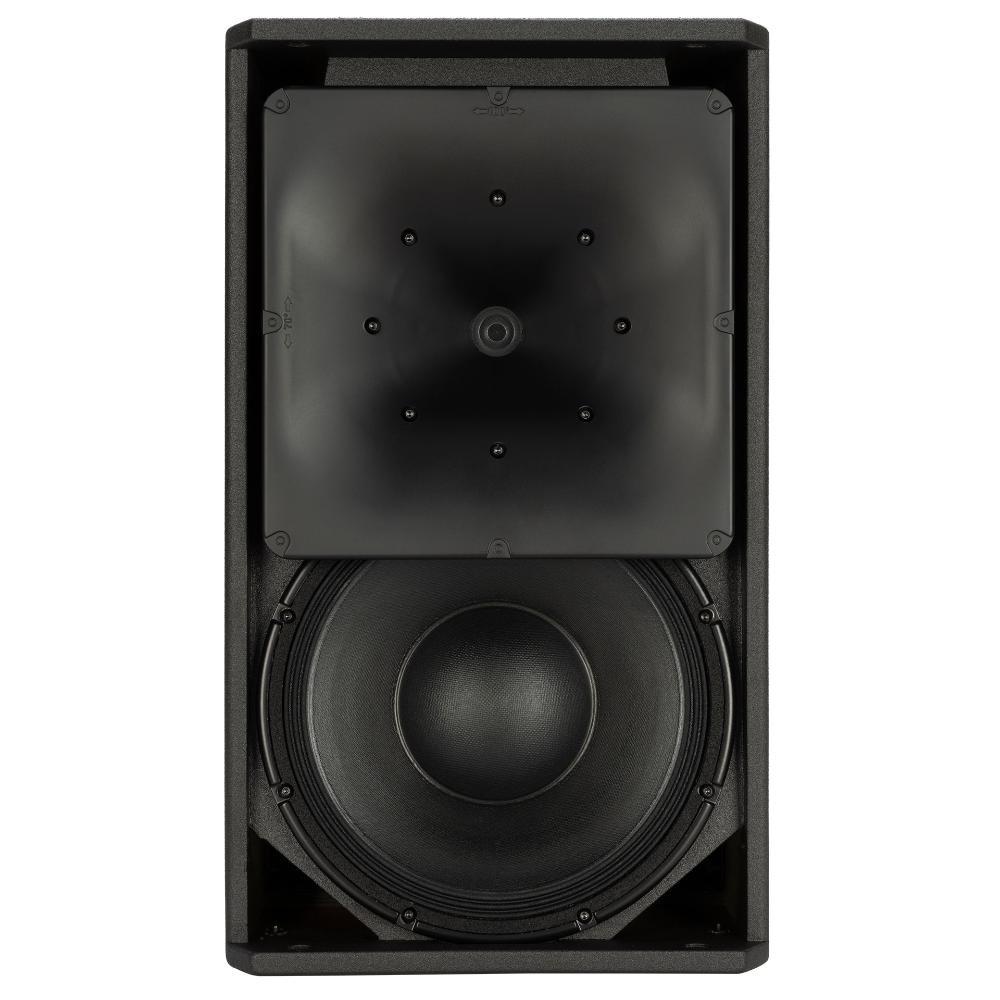

The low-frequency section is built around a 12-inch neodymium woofer with a 3.5-inch voice coil, engineered for strong bass response, high efficiency, and excellent transient behavior. The high-frequency section uses a 3-inch titanium dome compression driver mounted on a 100° × 70° True Resistive Waveguide (TRW), which can be rotated to optimize coverage in different installation orientations. With a frequency response of 50 Hz to 20 kHz and a maximum SPL of 134 dB, the system delivers powerful, balanced, and highly detailed sound reproduction.

Advanced DSP processing includes FiRPHASE for phase-linear response and Bass Motion Control (BMC) for controlled low-frequency excursion and improved woofer stability. These technologies ensure coherent sound distribution, reduced distortion, and consistent tonal balance across the coverage area. Integrated RDNet networking allows full remote monitoring, control, and system optimization in real time.

The enclosure is constructed from rugged Baltic birch plywood with a weather-resistant polyurea coating for durability in professional environments. With Quick Lock rigging hardware, M10 mounting points, pole-mount compatibility, and ergonomic handles, the KX 32-A supports flexible configurations including ground-stacked, flown, or installed setups. It is engineered for precision, power, and reliability in any professional audio environment.

Features of KX 32-A

• 3200W peak Class-D dual-channel amplification
• 134 dB maximum SPL output
• 50 Hz to 20 kHz frequency response
• 12-inch neodymium woofer with 3.5-inch voice coil
• 3-inch titanium dome compression driver
• Rotatable 100° × 70° TRW waveguide
• FiRPHASE phase-linear DSP processing
• Bass Motion Control (BMC) technology
• 750 Hz crossover frequency
• RDNet networked remote management system
• Fast limiter and advanced protection circuits
• High-efficiency convection cooling design
• Weather-resistant polyurea-coated birch enclosure
• Rugged Baltic birch plywood cabinet
• Quick Lock rigging system for fast deployment
• M10 flying points and pole-mount support
• XLR and EtherCON connectivity
• Ergonomic side handles for portability
• Suitable for flown, stacked, or installed use

Specifications of KX 32-A
