RCF KX 515-A 2000W Dual 5″ 2-Way Point-Source Active Speaker – Black

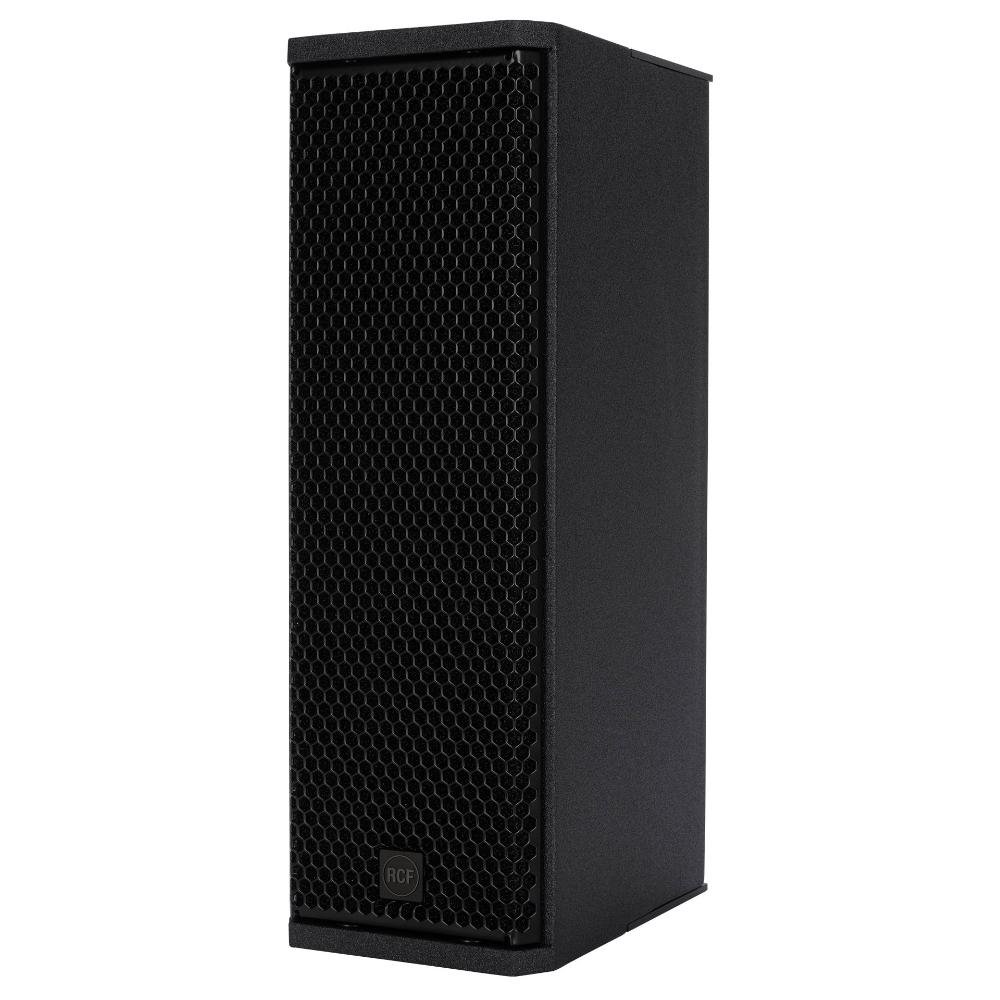

RCF KX 515-A active two-way compact speaker system

The RCF KX 515-A active two-way speaker is a professional-grade compact audio solution engineered for installed, portable, and immersive sound applications where space, weight, and precision are critical. Despite its extremely small footprint, it delivers powerful output with a 2000W peak Class-D amplification system, providing high efficiency, clarity, and dynamic headroom for demanding environments.

The system features a dual 5-inch neodymium woofer configuration designed to deliver accurate mid-bass response with extended horizontal dispersion. A 1.75-inch titanium dome compression driver is mounted on a rotatable 100° × 70° constant directivity CMD waveguide, ensuring controlled coverage that can be adapted to different installation requirements. With a frequency response of 70 Hz to 20 kHz and a maximum SPL of 127 dB, it delivers impressive performance for its compact size.

Advanced DSP processing includes FiRPHASE technology for phase-coherent audio reproduction and Bass Motion Control (BMC) for optimized low-frequency excursion and improved woofer protection. Together, these technologies ensure natural sound, tight bass response, and distortion-free output even at high volumes.

The enclosure is constructed from durable Baltic birch plywood with weather-resistant polyurea coating, making it suitable for both indoor and outdoor use. Integrated RDNet remote management enables real-time monitoring, configuration, and control across complex audio systems. With flexible rigging options, rotatable waveguide design, and ultra-compact form factor, the KX 515-A is ideal as a main speaker, fill, or surround in professional sound installations requiring precision and scalability.

Features of KX 515-A

• 2000W peak Class-D amplifier system
• 127 dB maximum SPL output
• 70 Hz to 20 kHz frequency response
• Dual 5-inch neodymium high-efficiency woofers
• 1.75-inch titanium dome compression driver
• Rotatable 100° × 70° CMD waveguide
• FiRPHASE phase-linear DSP processing
• Bass Motion Control (BMC) technology
• 1200 Hz crossover frequency
• RDNet networked remote control system
• Fast limiter and protection algorithms
• Weather-resistant polyurea-coated enclosure
• Baltic birch plywood cabinet construction
• Compact ultra-lightweight design
• Flexible rigging and mounting system
• PowerCON TRUE1 TOP connectivity
• XLR and EtherCON signal interfaces
• Ergonomic aluminum handles and heat sink design
• Suitable for portable and installed applications

Specifications of KX 515-A
