RCF LT 7208EN MKII Eight-Channel Line Transformer Interface

RCF LT 7208EN MKII Eight-Channel Line Transformer Interface

The RCF LT 7208EN MKII is a line-transformer interface for the DXT 7000 system. It connects to the eight-ohm loudspeaker outputs of a compatible MU 7100EN master unit and converts them into constant-voltage lines for loudspeakers fitted with line transformers, providing a defined interface within the installation.

Eight internal transformers are rated at 80 W each. The arrangement supports several power configurations, including eight channels at 80 W, four channels at 160 W or two channels at 320 W. This grouping flexibility allows the output arrangement to follow the intended zone and loudspeaker-line design.

The standard output voltage is 100 V, with 70 V and 50 V settings available on request. Total power output at 100 V is specified at 640 W RMS. The selected line voltage and transformer grouping must be considered together with the connected loudspeaker taps and the amplifier arrangement.

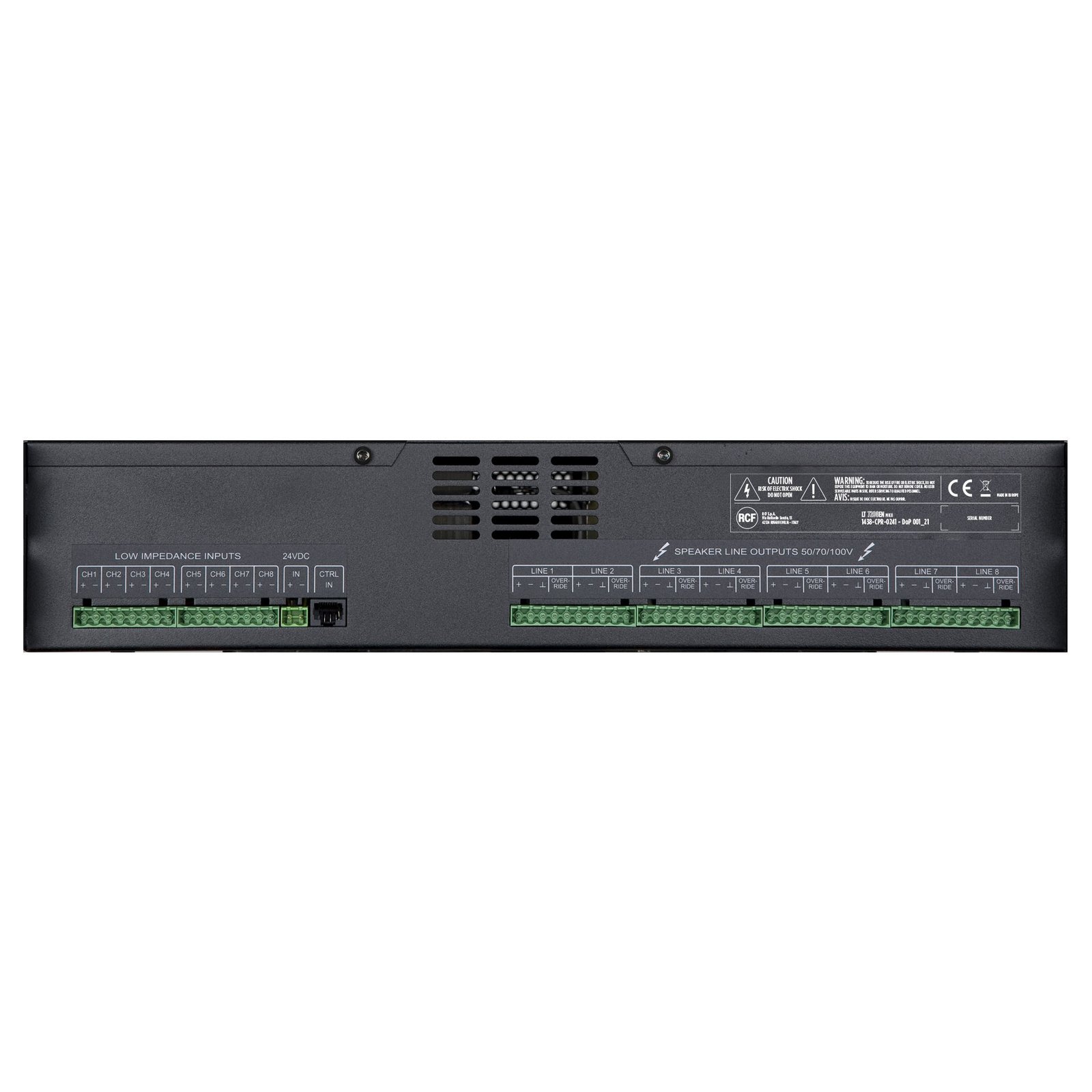

The interface supports speaker-line monitoring and uses a serial communication bus with FTP CAT5 or CAT6 connections. Euroblock connectors provide the power-output interfaces. The product is certified to EN 54-16 and forms part of the supported DXT 7000 architecture rather than operating as an independent programme-source or microphone device.

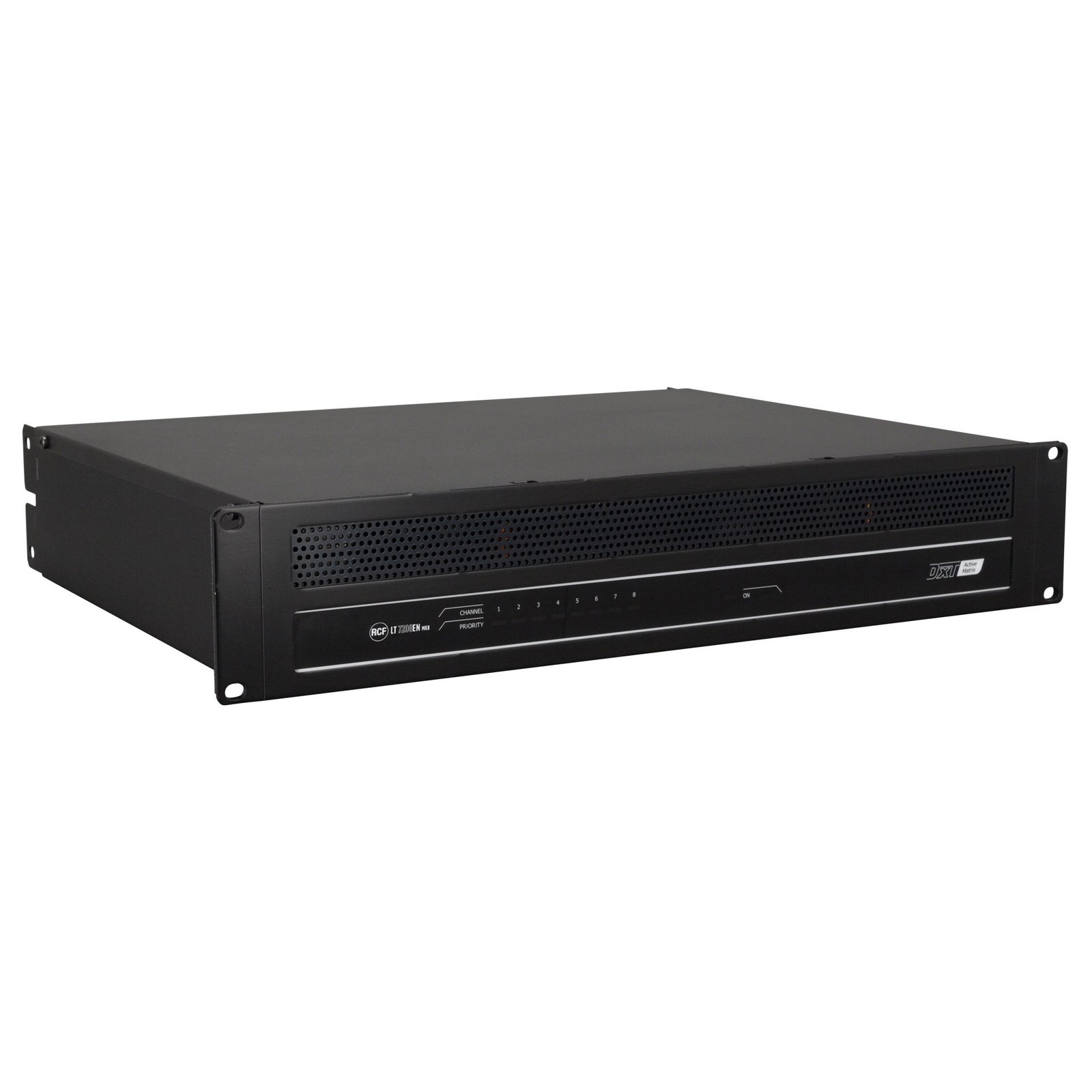

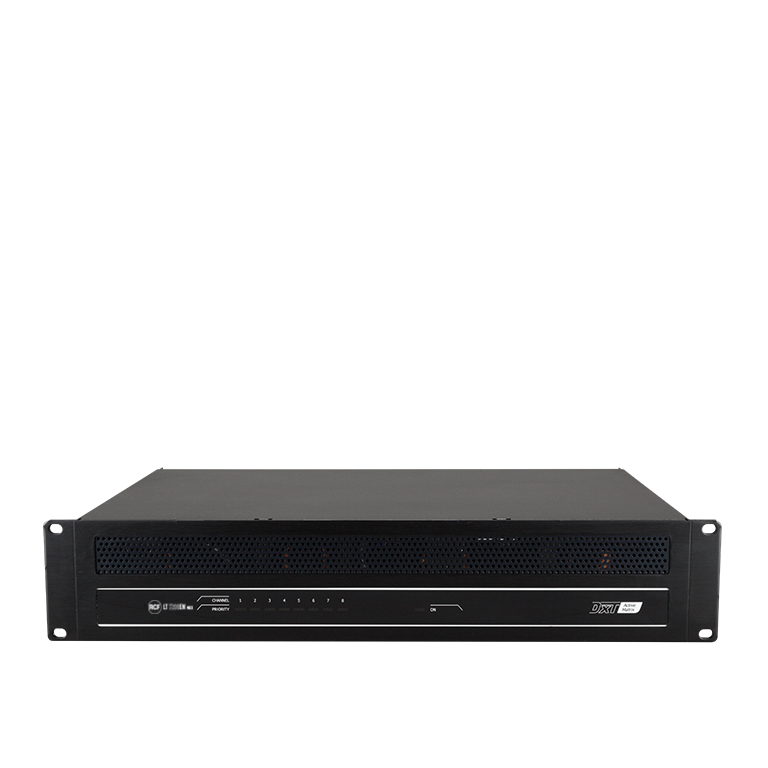

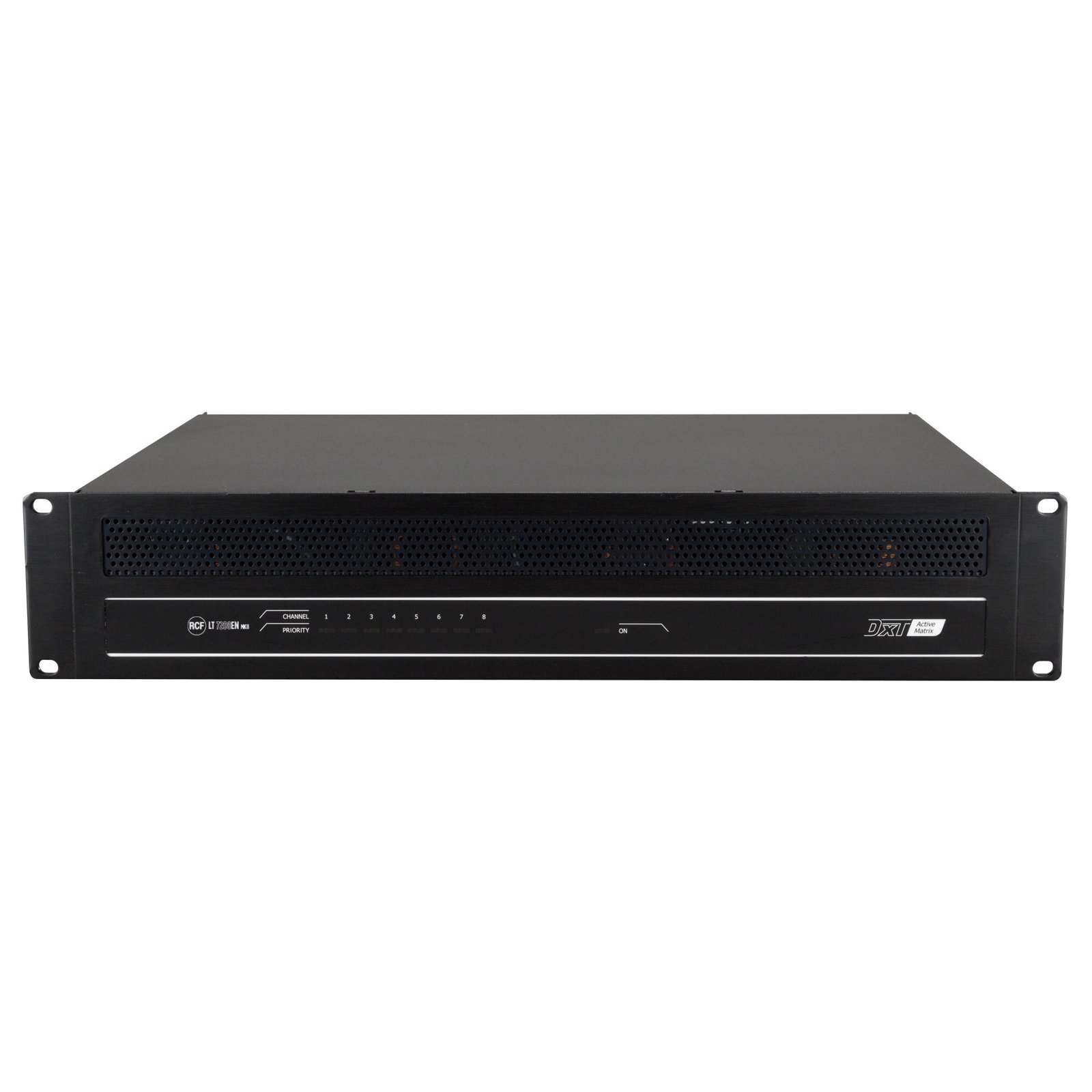

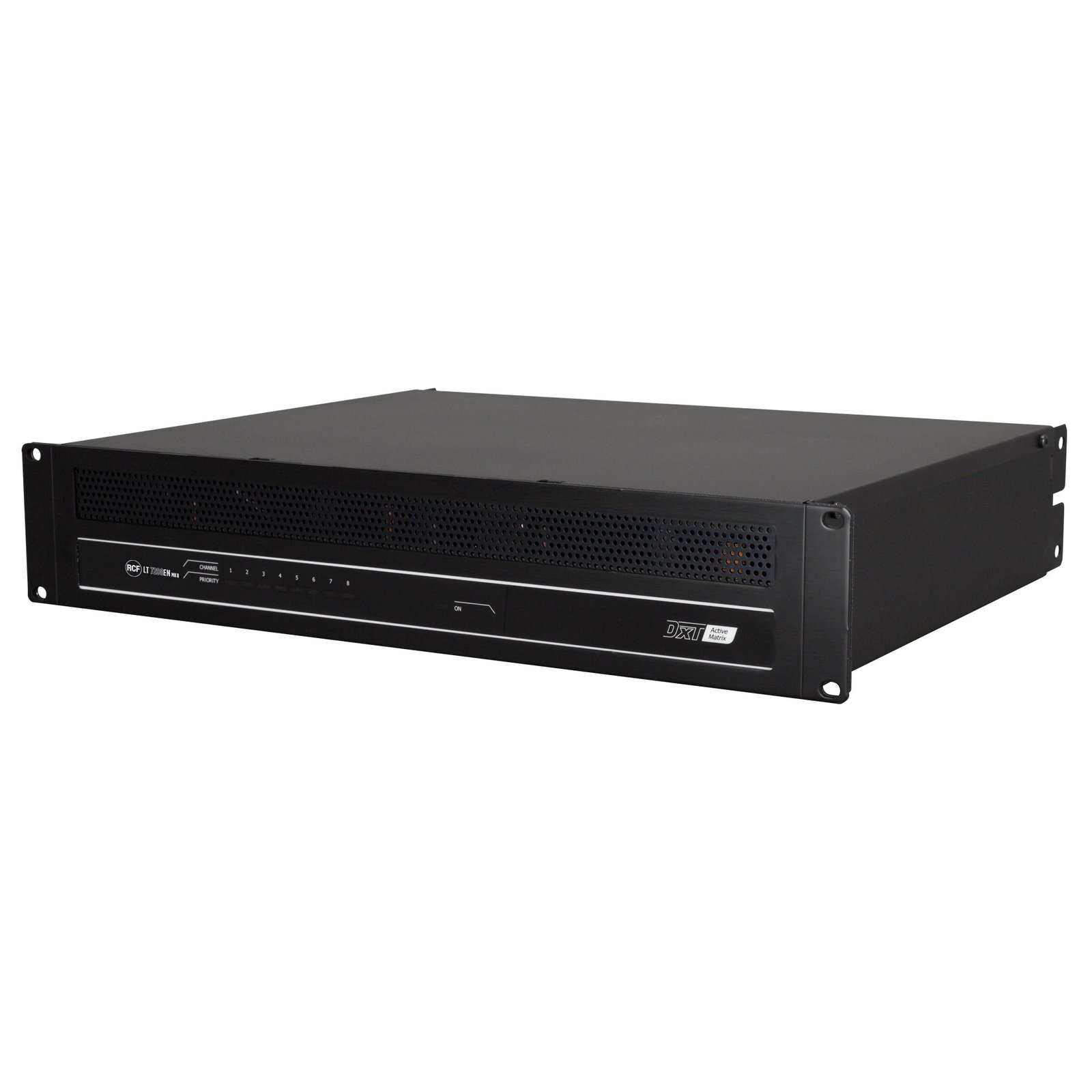

A metal enclosure occupies a 19-inch, 2U rack position. Dimensions are 88 mm high, 482 mm wide and 378 mm deep, with a weight of 13 kg. Plan the rack space, cable paths and grouped output connections together so the transformer interface follows the configured master-unit outputs and the requirements of the distributed speaker circuits. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.

Features of LT 7208EN MKII

• 8 built -in line transformes
• Link/group MU 7100EN amplifiers
• Speakers line monitoring
• Supports different line voltage setting

Specifications of LT 7208EN MKII
