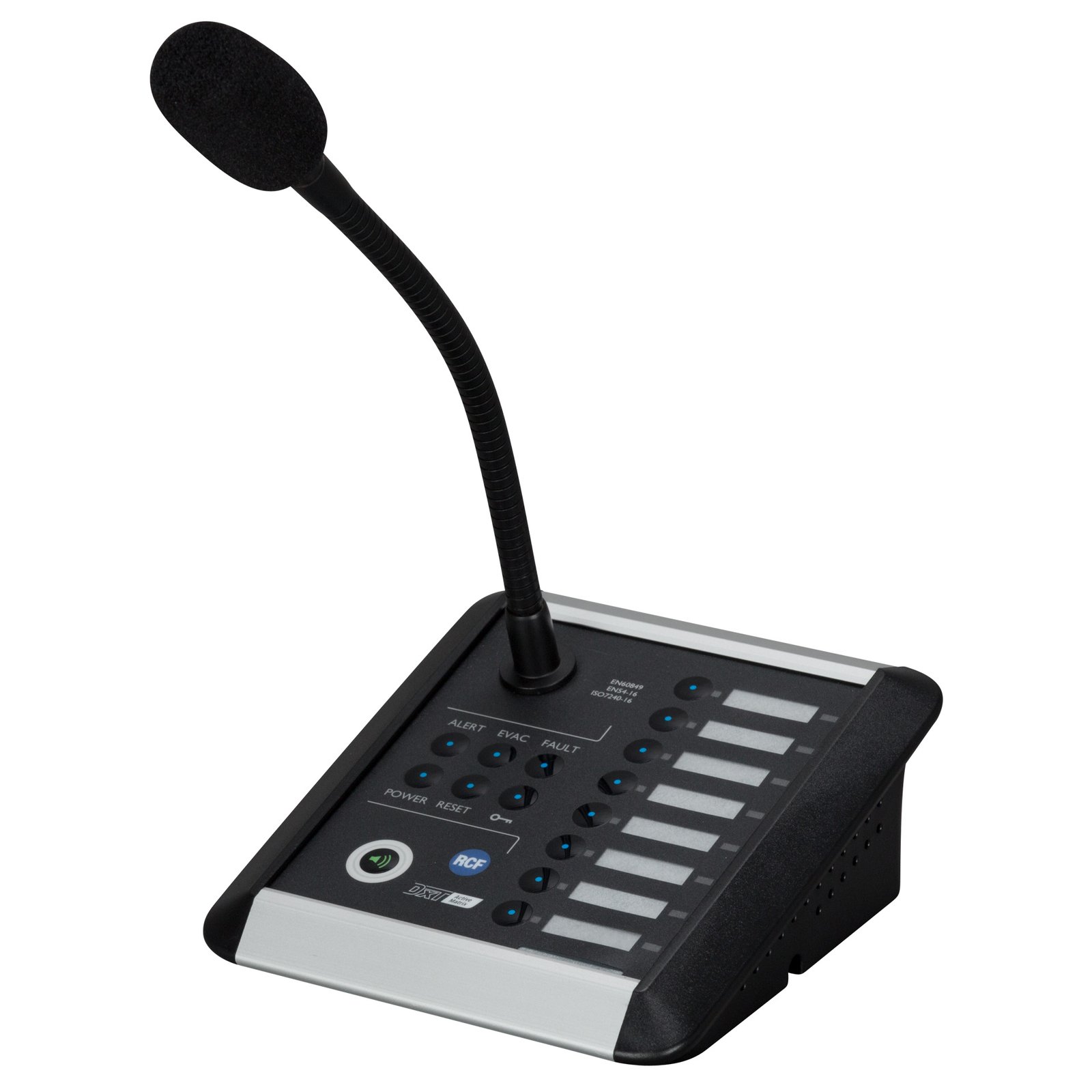

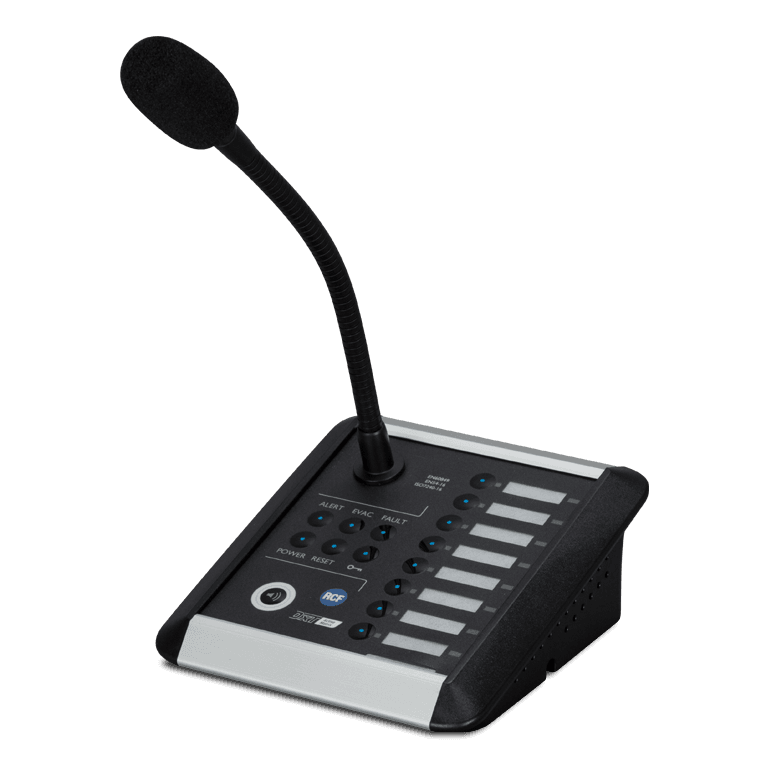

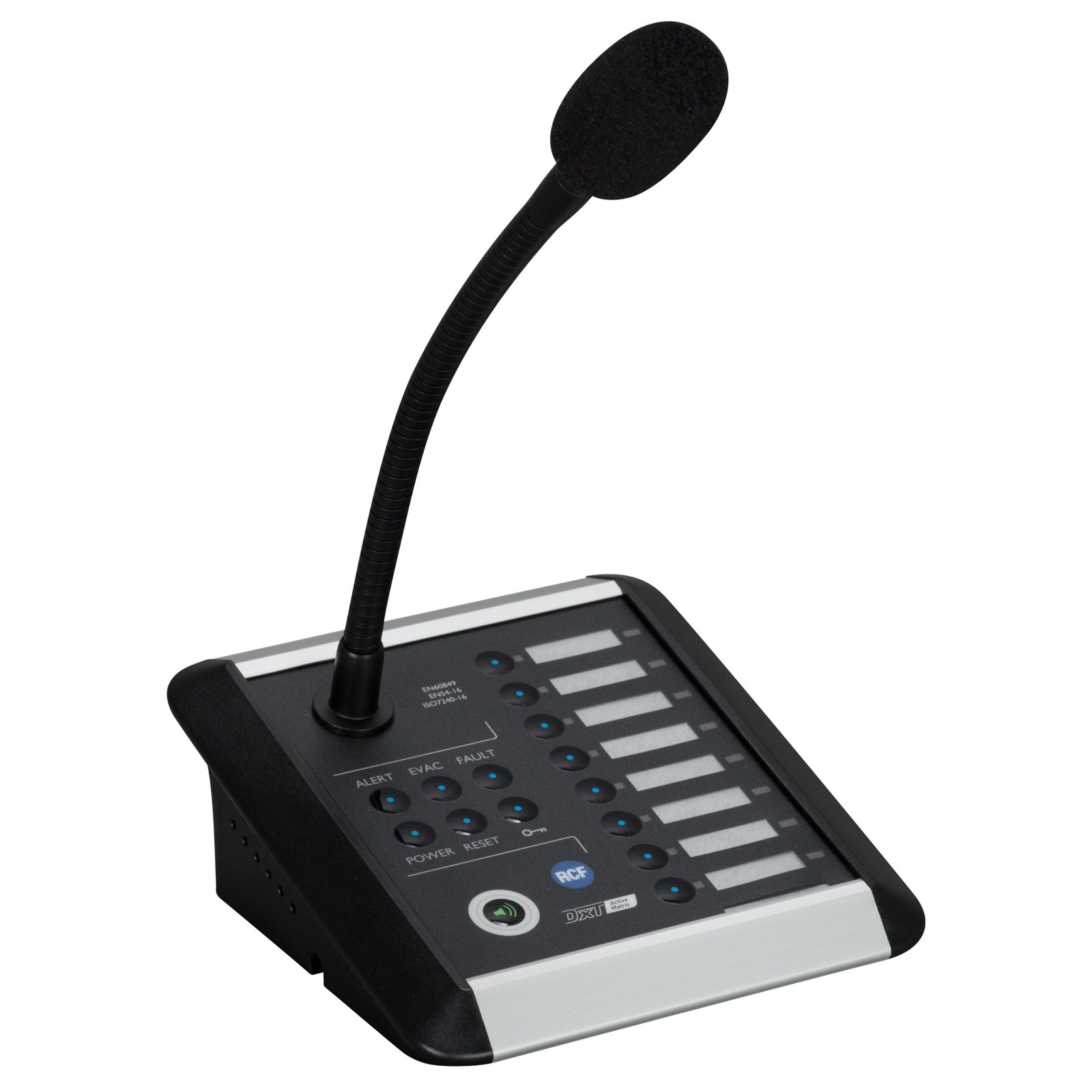

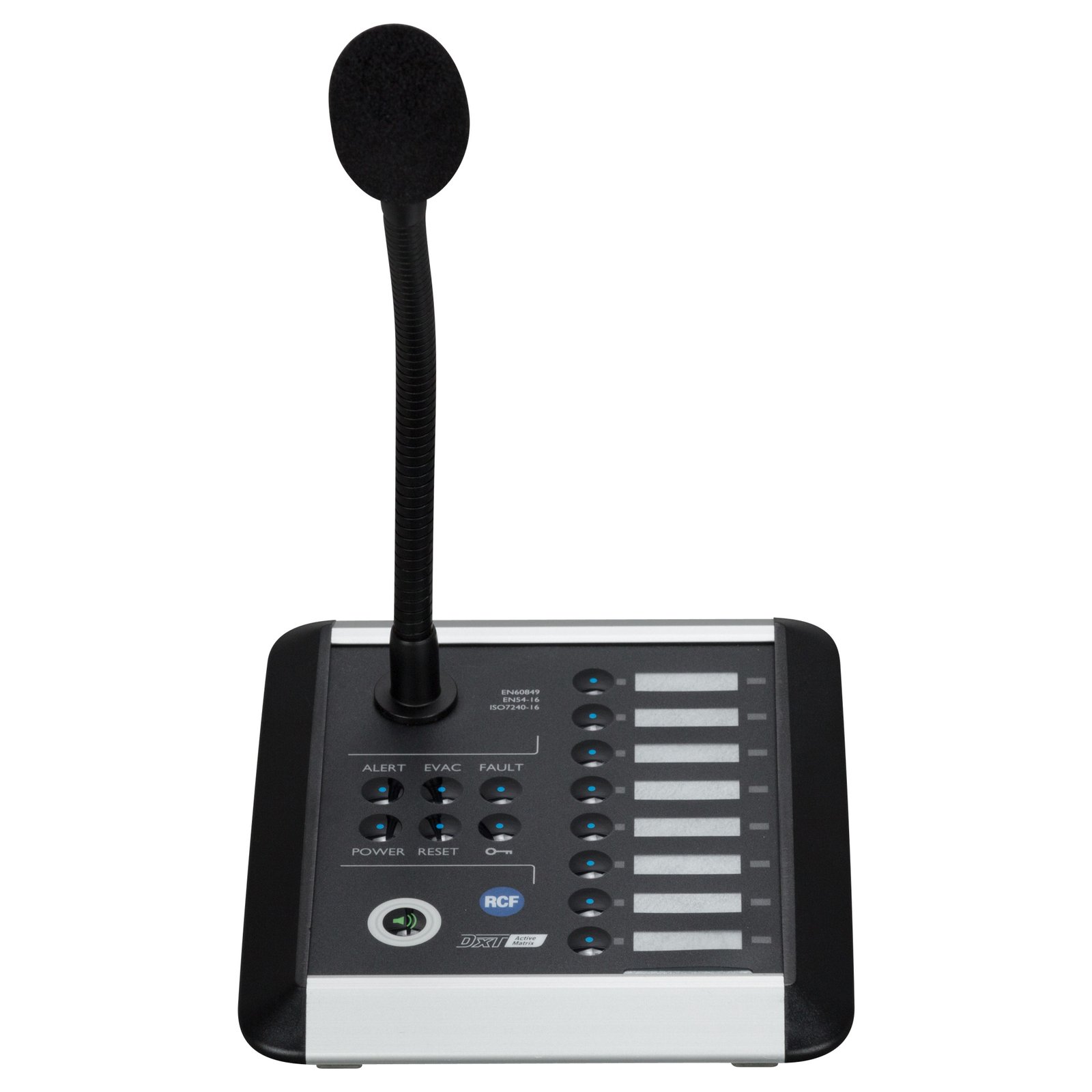

The RCF BM 7608 is a desktop emergency microphone console dedicated to the DXT 7000 voice alarm system. It provides a local position for live announcements and activation of recorded messages, with system-status indications and self-diagnostic functions supporting the supervised paging arrangement.

The microphone uses a electret cardioid capsule. The gooseneck microphone arrangement gives the operator a dedicated speaking position at the console, with a directional pickup pattern intended for clear voice capture. A numeric keyboard supports the console control interface.

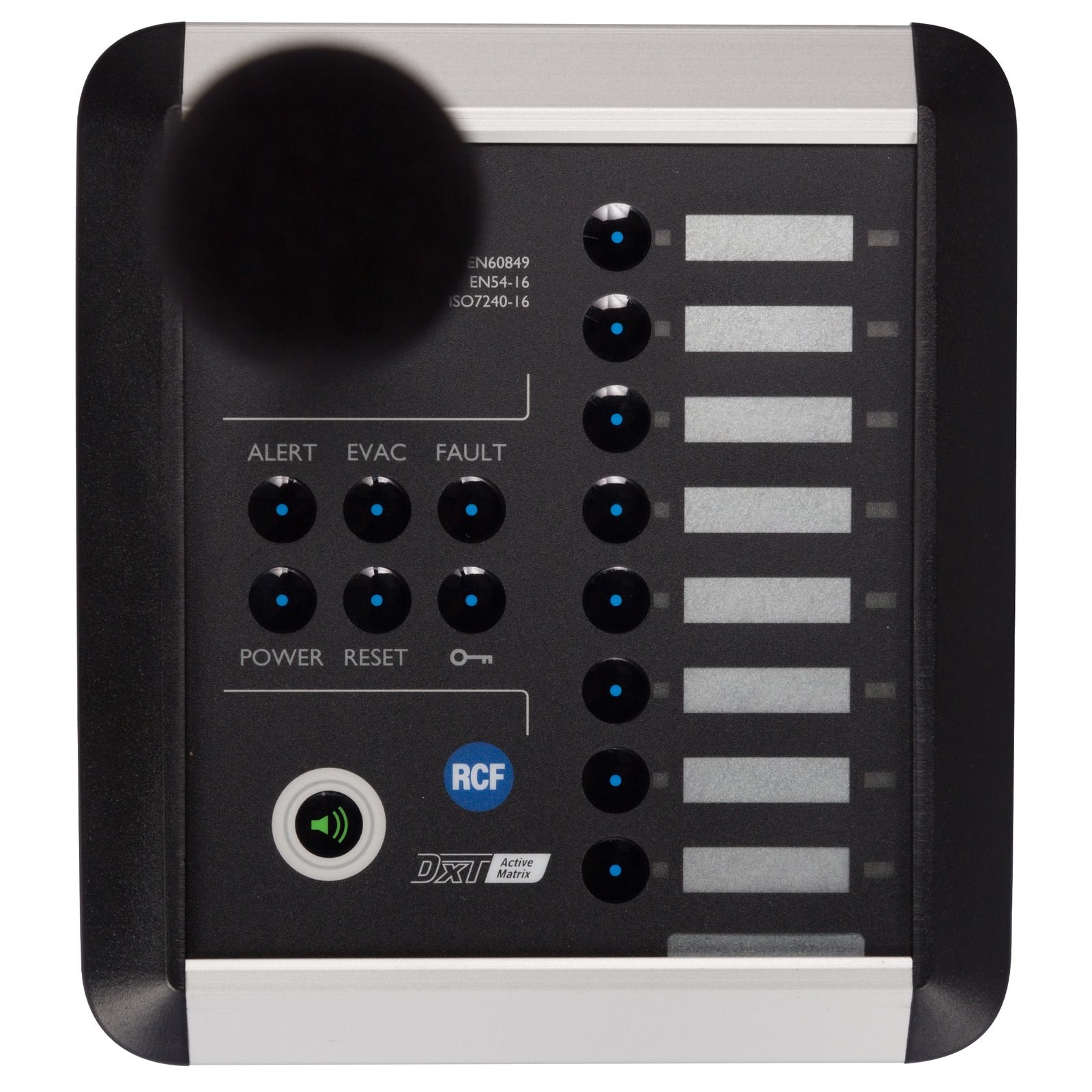

Up to eight consoles can be daisy-chained on each paging bus, with a total of thirty-two consoles supported in the specified DXT 7000 arrangement. The system provides general and selective calling, configurable buttons, priority handling and LED indications, allowing the operator to manage announcements within the configured paging structure.

The product is certified to EN 54-16 and includes the monitoring functions specified for its compatible voice alarm system. Its metal construction provides a dedicated housing for the microphone and control electronics. The supported calling functions and connection arrangement should be configured as part of the complete system design, using the instructions for the selected model.

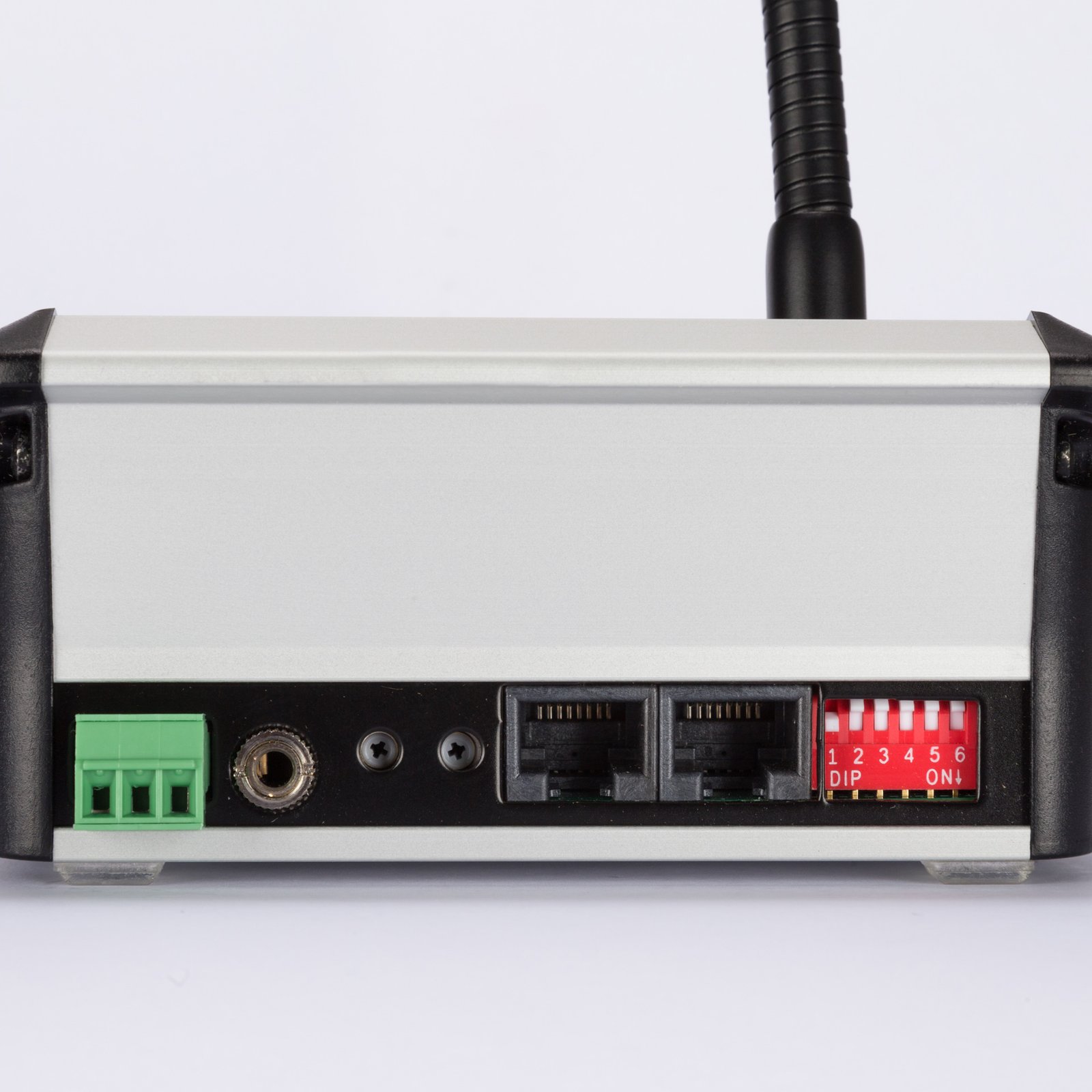

The console measures 55 mm high, 126 mm wide and 135 mm deep and weighs 0.5 kg. RJ45 connections provide the specified system interface. The physical position, cable route and access to the microphone controls should be considered together when establishing the announcement point within the installation. The selected assembly should account for the dimensions of the accessory and the position of the supported equipment. Use the documented attachment sequence when establishing the final relationship between the connected components.

Features of BM 7608

• Live emergency announcements
• Pre-recorded messages activation
• Complete self-diagnostic
• Numeric keyboard
• Hi-quality cardioid microphone
• Modern design

Specifications of BM 7608
