RCF QL-PIN 010 Quick Lock Pin Kit

RCF QL-PIN 010 Quick Lock Pin Kit

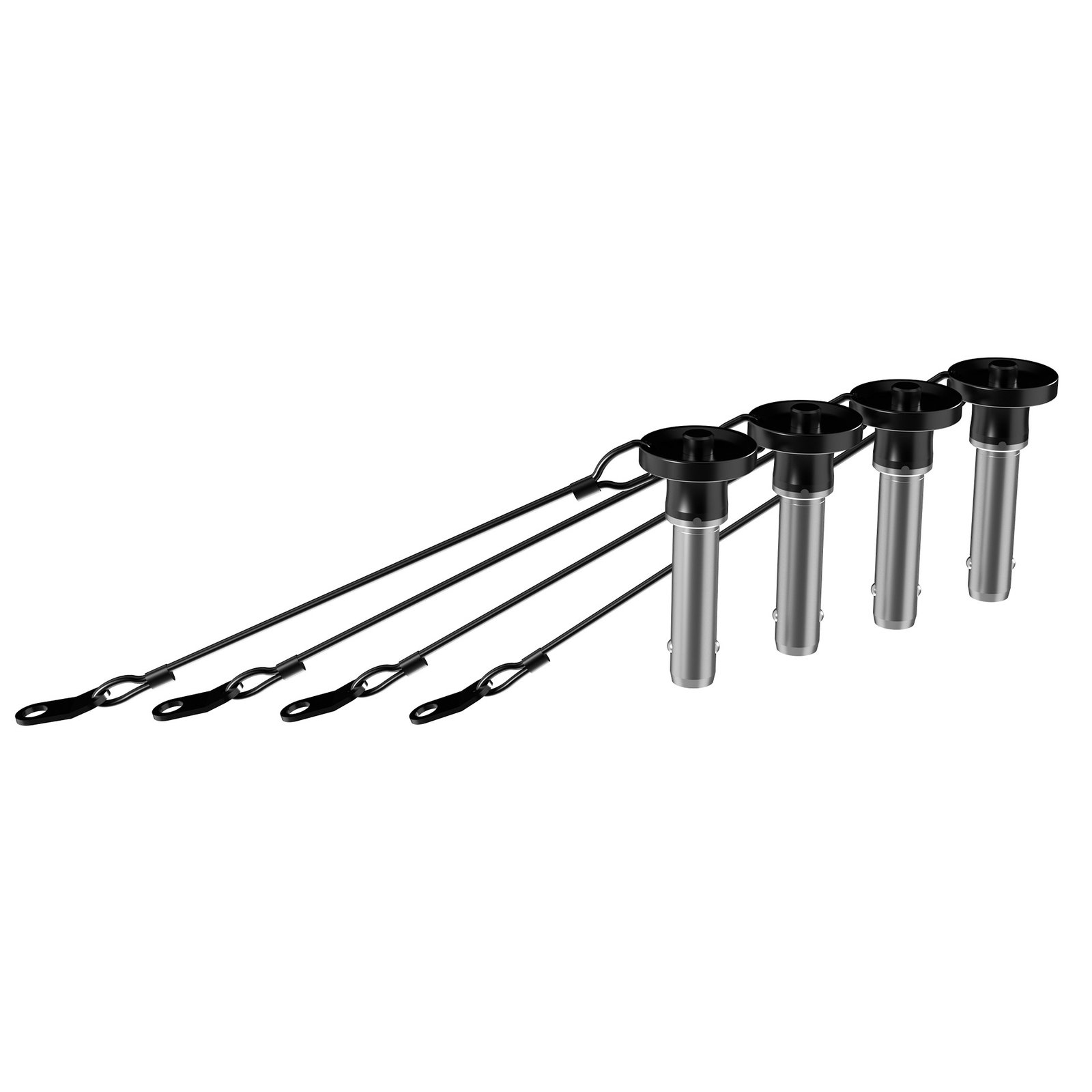

The RCF QL-PIN 010 is a stainless-steel quick-lock pin kit with 11.2 mm pin diameter and 31 mm length. RCF identifies this model for front link and front lock positions on the HDL 50-A 4K in its pin table. The kit weighs 0.35 kg and retains its own part number, helping distinguish it from pins with different lengths or diameters.

The accessory material is steel. The specified finish is black. Its stated accessory weight is 0.35 kg. The packaged dimensions are 20 mm, 145 mm, 125 mm for height, width and depth respectively. The packaged weight is 0.4 kg. Rigging pins must be matched to their specified connection position and compatible product.

Diameter and length are part of that selection, so a pin should be chosen by its exact model rather than by appearance alone. Keep matching pins together as an identified set when organizing rigging hardware for an event.

Before fitting a pin, establish the equipment model and the connection position described in the applicable pin table or system instructions. This helps keep similar-looking accessories associated with the correct mechanical interface. The pin performs a locking function within a larger assembly, so the surrounding brackets and connection components also need to match the intended arrangement.

Retain the required set with its system hardware during packing and preparation. When equipment is reused, inspect the pin and associated fittings as part of the normal assembly routine. Accurate model identification helps distinguish this kit from other RCF pins with different dimensions or permitted positions.

Features of QL-PIN 010

• Stainless steel construction
• Dimensions: Ø 11.2 mm – L. 31 mm

Specifications of QL-PIN 010
