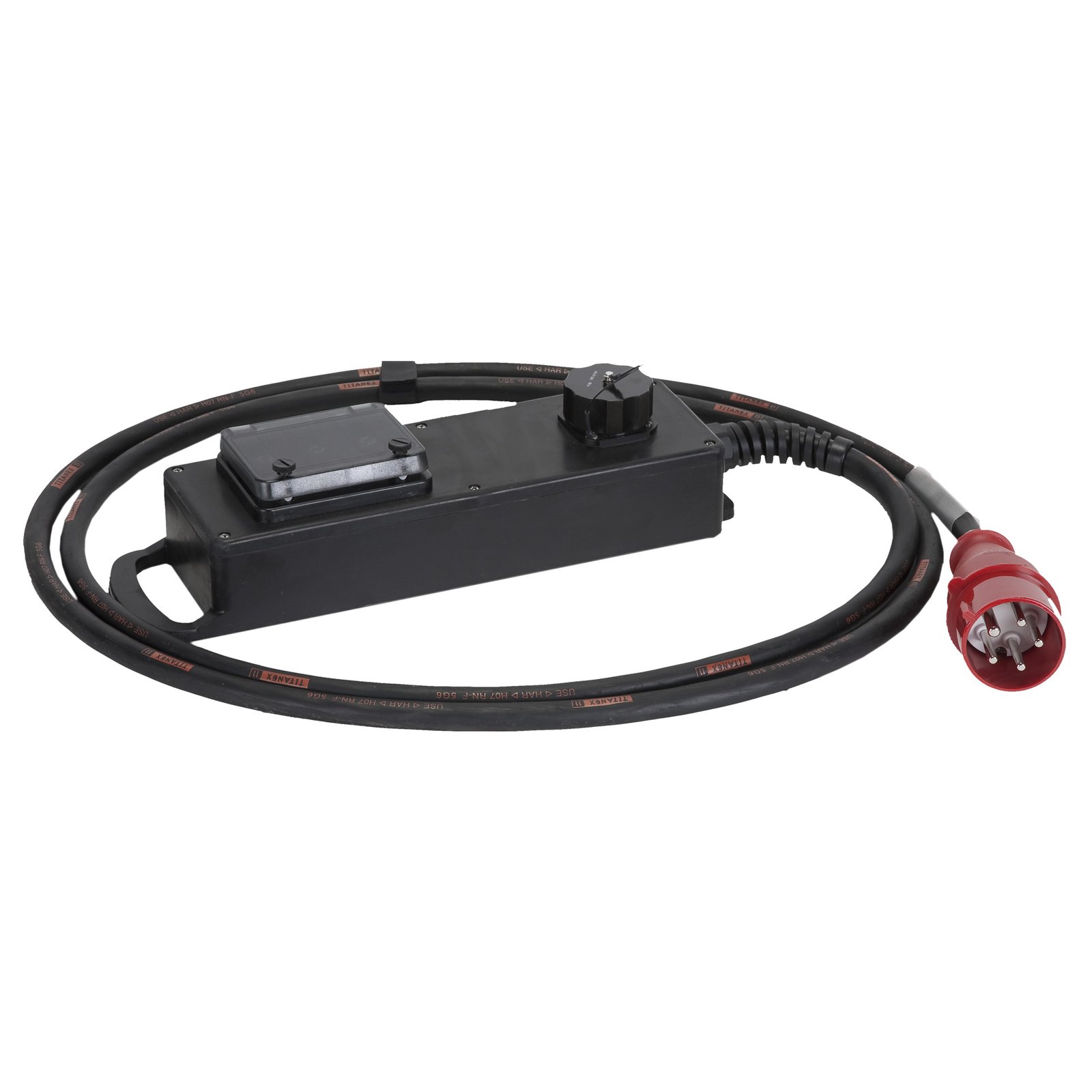

The RCF CBL POWER BOX 6X distributes power within compatible 230 V touring systems. It connects to a 19-pin LKS female connector and provides six 20 A fuse protections. Its input is an IEC 32 A three-phase male connector, with compatibility for the Socapex SL 419 series.

RCF recommends one stage box per six TTL55 modules or six TTS56 subwoofers in the specified system arrangement. The specified finish is black. Its stated accessory weight is 4.6 kg. The packaged dimensions are 210 mm, 435 mm, 440 mm for height, width and depth respectively. The packaged weight is 5.8 kg.

Keeping the stage box identified with its connector arrangement helps organize the associated touring-system cabling. A stage power-distribution accessory should be selected as part of the complete touring-system layout. Identify the supply arrangement, connector family and equipment grouping before planning how the stage box will be used.

The input connector and protected outputs belong to the electrical distribution design, while loudspeaker audio connections remain a separate part of the system. Keeping these functions clearly identified helps organize the associated cables and equipment during preparation. For a repeated setup, record the intended module grouping and retain the appropriate connector hardware with the stage box.

Cable routes should allow practical access to the connection points and avoid unnecessary strain on the fittings. The stage box supports the specified system arrangement rather than changing the loudspeaker’s acoustic performance. Follow the electrical and system documentation for the complete connection configuration, and have the supply and protection requirements checked for the planned installation before connecting the equipment.

Features of CBL POWER BOX 6X

• Full compatibility with Socapex SL 419 series
• 6 x 20 Amp fuse protections
• 1 x IEC 32 Amp 3-phase male connector
