RCF S 19 Passive 1500W 19″ Subwoofer

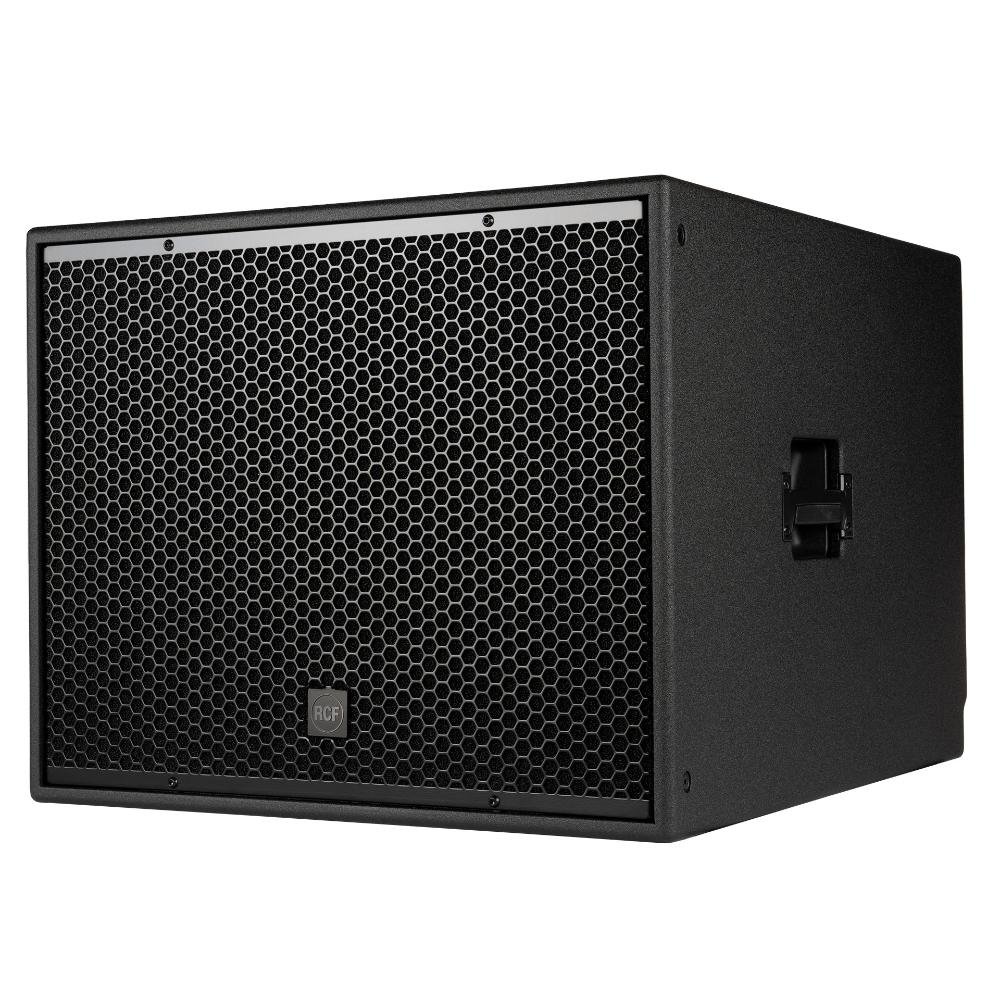

RCF S 19 subwoofer

The RCF S 19 subwoofer is designed to provide high-power, low-frequency reinforcement with exceptional clarity and control for professional installed sound systems. Featuring a single 19-inch HyperVented neodymium woofer with a 4-inch voice coil, the system offers an optimal balance between speed and depth, combining the responsiveness of smaller drivers with the extended low-end performance of larger transducers.

With a continuous power handling capacity of 1500W and peak performance reaching 6000W, the subwoofer delivers a maximum sound pressure level of 139 dB. Its bass-reflex design ensures efficient acoustic performance with a frequency response extending down to 30 Hz, producing deep and articulate bass suitable for a wide range of applications including live venues, theatres, and fixed installations.

The enclosure is constructed from high-quality multi-ply plywood and finished with a durable polyurea coating, offering excellent resistance to moisture, impact, and environmental wear. The steel front grille with acoustic cloth provides reliable protection while maintaining sound transparency. The cabinet design also supports ground stacking and cardioid configurations for improved directional control and reduced rear output.

For system integration, the subwoofer is equipped with dual Speakon NL4 connectors for secure input and output connections. An M20 pole mount allows easy integration with satellite speakers, while integrated side handles facilitate transport and installation. The RCF S 19 subwoofer combines advanced transducer technology, rugged construction, and high SPL capability for powerful and controlled low-frequency performance.

Features of S 19

• 1500W continuous power handling
• 6000W peak power capacity
• 139 dB maximum SPL output
• Extended response down to 30 Hz
• 19-inch HyperVented neodymium woofer
• 4-inch voice coil design
• Advanced transducer technology
• Bass-reflex enclosure configuration
• Fast and controlled bass response
• Multi-ply plywood cabinet construction
• Durable polyurea coating finish

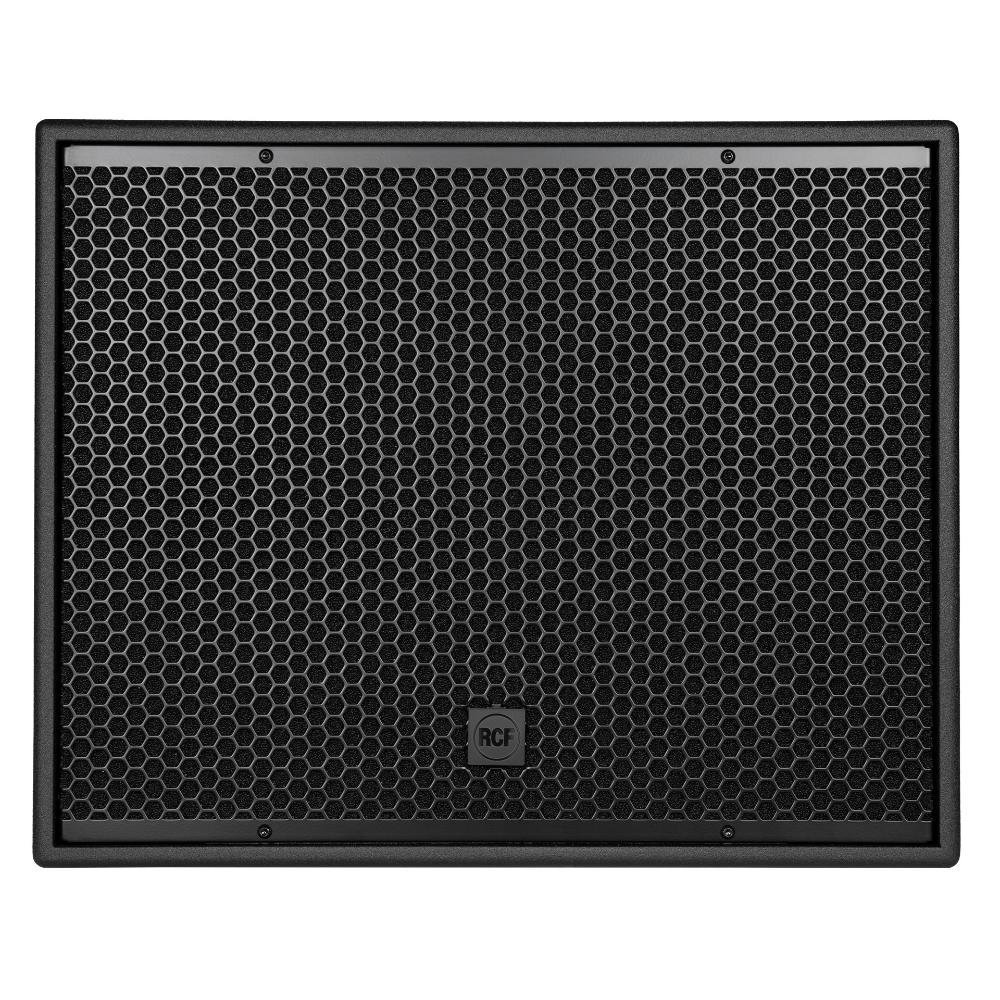

• Steel grille with acoustic cloth
• M20 pole mount integration

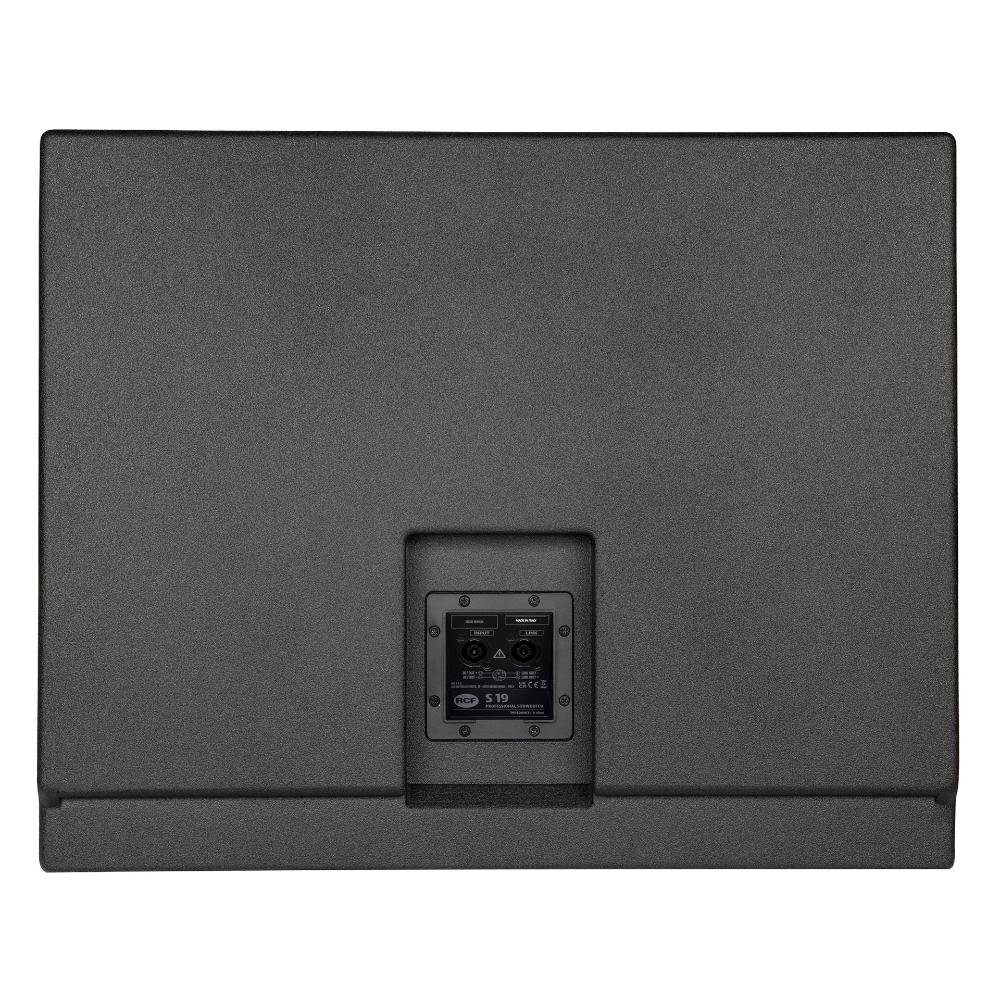

• Speakon NL4 input connectivity
• Speakon NL4 link output support

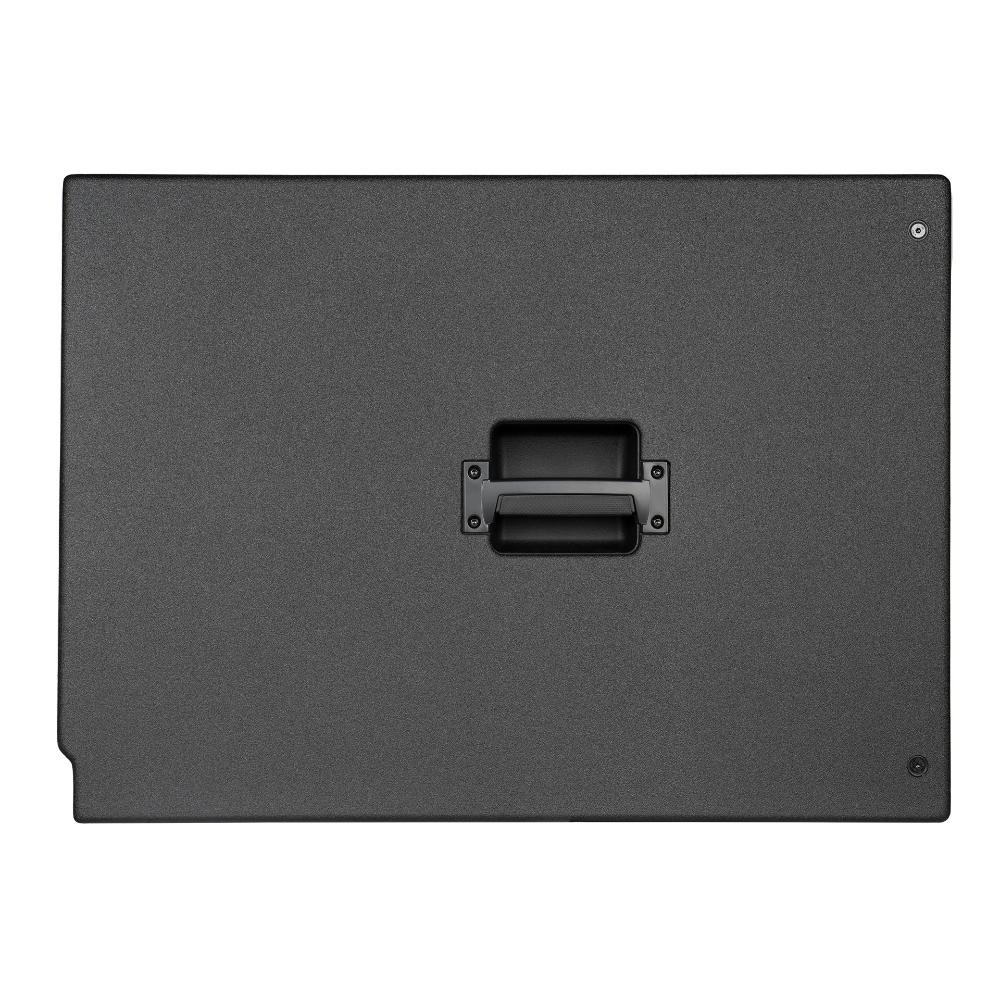

• Integrated side carry handles
• Cardioid array configuration support

Specifications of S 19
