RCF STK60750 KXL 4-A and KXW 4-A Stacking Kit

RCF STK60750 KXL 4-A and KXW 4-A Stacking Kit

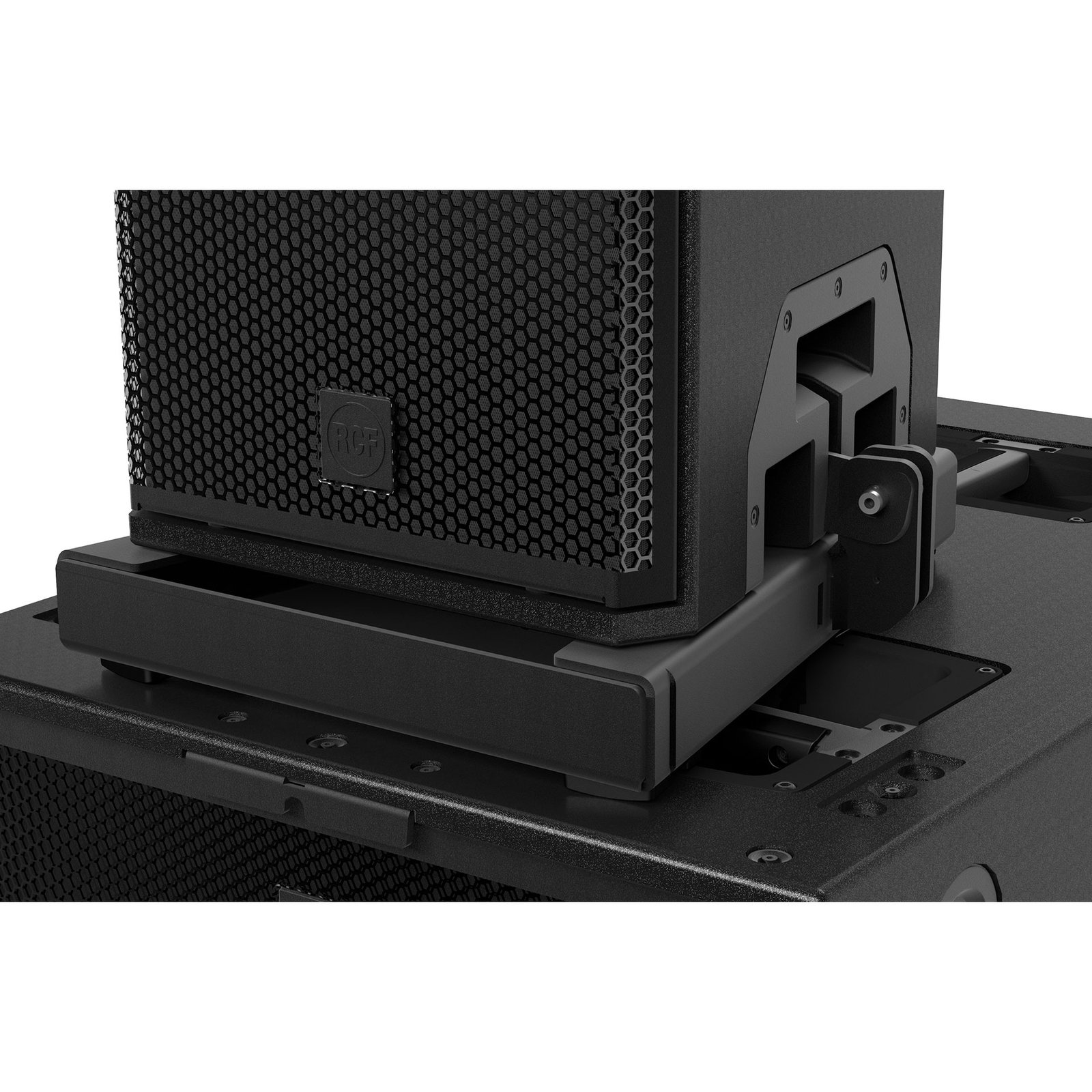

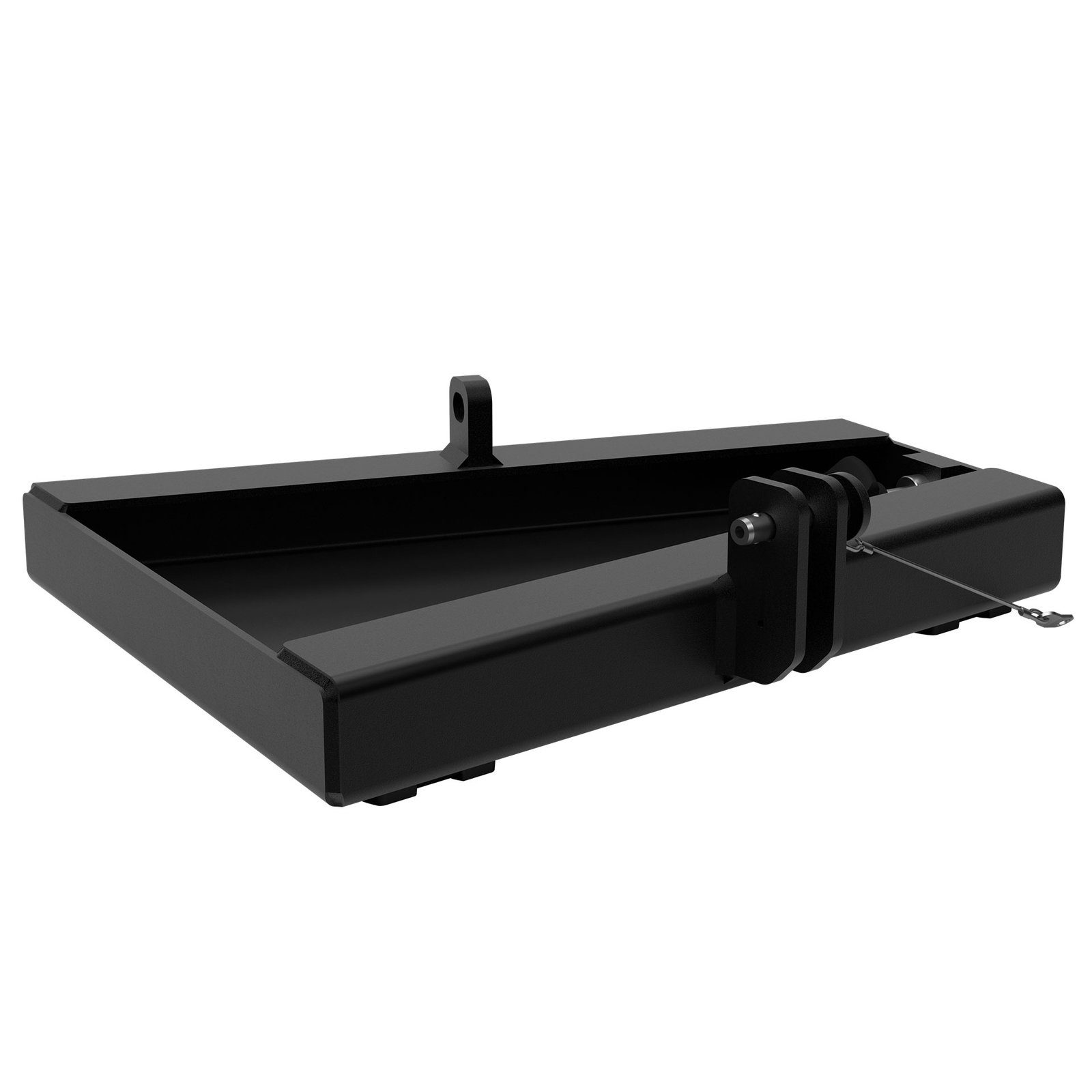

The RCF STK60750 couples a KXL 4-A or KXW 4-A loudspeaker directly to a subwoofer. An M20 threaded knob provides the specified fixing interface, while a slotted guide permits longitudinal positioning. This arrangement supports the required cabinet-to-subwoofer relationship within the compatible system. The black accessory weighs 1.7 kg and is dedicated to this mounting task rather than flybar connection duties.

The specified finish is black. Its stated accessory weight is 1.7 kg. The packaged dimensions are 90 mm, 475 mm, 135 mm for height, width and depth respectively. The packaged weight is 2 kg. Keeping the mounting interface matched to the named equipment helps preserve a consistent setup routine.

Ground-stacked systems depend on the relationship between the supporting subwoofer and the loudspeaker assembly above it. A dedicated stacking accessory helps keep that interface associated with the correct equipment. Plan the cabinet combination and its supported fixing arrangement before assembly, then check that the necessary flybar or pole components are appropriate for the selected configuration.

Mechanical positioning should be considered alongside the intended coverage area and the practical space available around the system. Keep the stacking parts together as a matched set when packing or preparing equipment for another event. The accessory performs a mounting function and should be identified separately from the loudspeaker, subwoofer and any other system hardware.

For repeated setups, documenting the chosen cabinet combination can simplify preparation and reduce uncertainty over which connection components are needed. Follow the instructions for the complete assembly, and use the model-specific arrangement described for the supported speakers and subwoofer interface.

Features of STK60750

• For KXL 4-A and KXW 4-A
• M20 threaded fixing knob
• Slotted guide for longitudinal positioning

Specifications of STK60750
