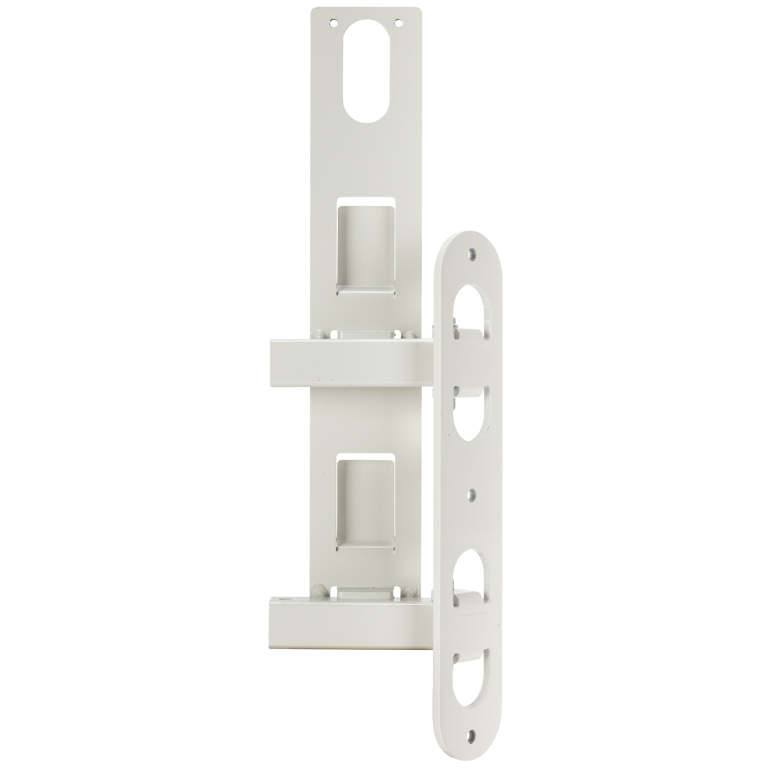

RCF SWM-BR VSA II Swivel Bracket Pair – White

RCF SWM-BR VSA II Swivel Bracket Pair – White

The RCF SWM-BR VSA II is a pair of swivel brackets for wall mounting one compatible VSA II digitally steerable column loudspeaker. This version, identified by part number 13360410, has a white RAL 9003 finish. It supports the VSA 2050 II, VSA 1250 II and VSA 850 II models.

The bracket arrangement permits horizontal pointing up to 60 degrees, allowing the installed loudspeaker to face the intended listening area. Mechanical aiming complements the placement of the column within the room. The two bracket mounting points attach to the rear of the loudspeaker to form the specified connection to the wall-mounted assembly.

Three holes are provided for wall mounting through M5 wall plugs. Two bolts and nuts act as pins and can be tightened once the horizontal direction has been set. This arrangement gives the installer a defined way to establish the chosen direction and secure the bracket position within the approved mounting layout.

Two further holes secure the loudspeaker to the swivel bracket using M5x10 screws. The kit is specified as a pair for one loudspeaker, which helps identify the required accessory quantity when planning several columns. Its white finish can coordinate with the corresponding white VSA installation and surrounding interior surfaces.

The listed width is 318 mm and the accessory weight is 1.5 kg. Check the selected loudspeaker, attachment points and wall construction together before installation, using the instructions for the complete system. The dedicated bracket pair provides the mounting interface and horizontal adjustment required for a properly planned VSA II wall installation.

Features of SWM-BR VSA II

• Pair for one compatible VSA II column
• Up to 60° horizontal pointing
• Two rear loudspeaker mounting points
• Three wall mounting holes for M5 wall plugs
• M5x10 loudspeaker fixing points
• White RAL 9003 finish

Specifications of SWM-BR VSA II
