RCF TRF-KIT DMA 162 100V Line Transformer Kit

RCF TRF-KIT DMA 162 100V Line Transformer Kit

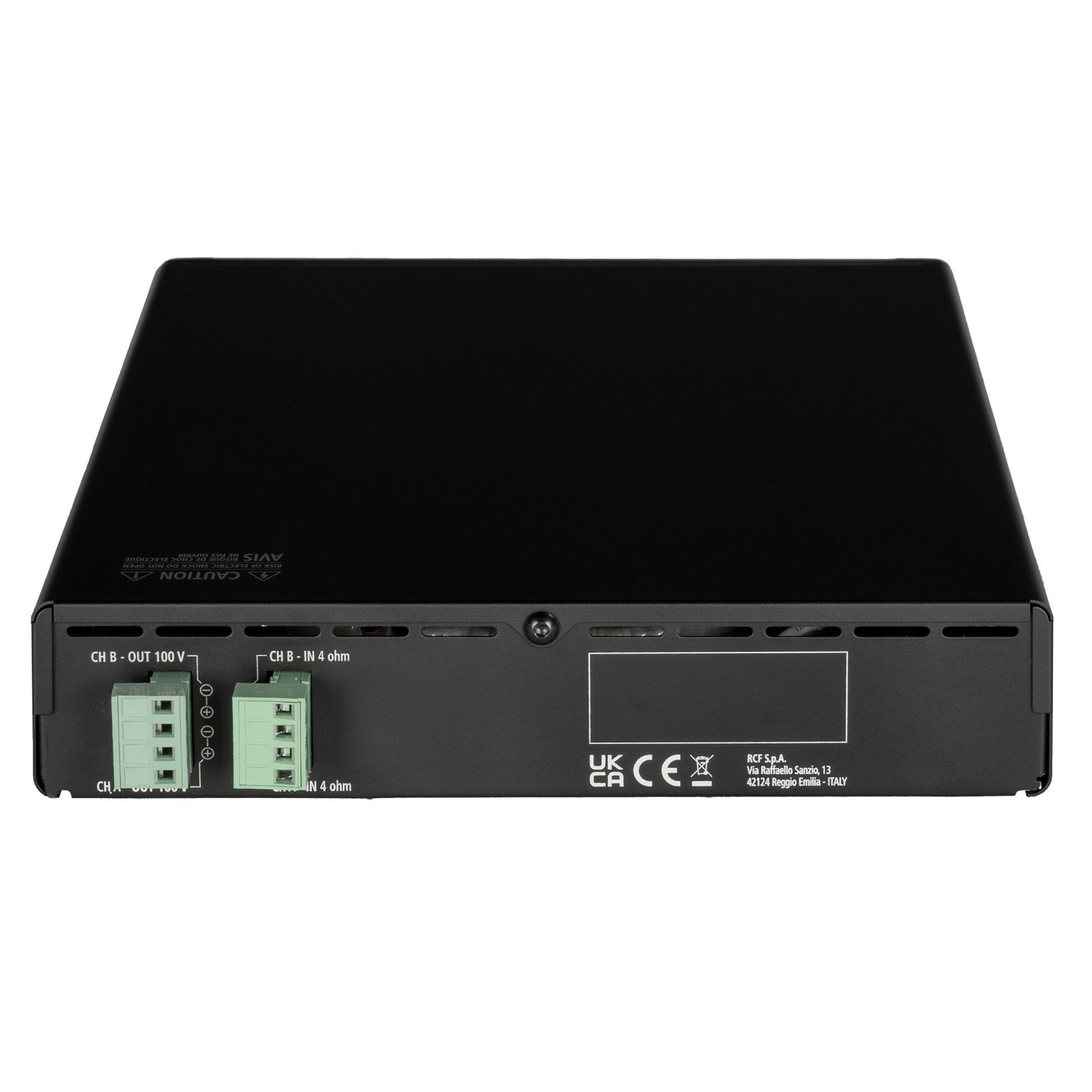

The RCF TRF-KIT DMA 162 is a two-transformer accessory for DMA 162 and DMA 162P amplifiers. It converts the compatible amplifier’s low-impedance speaker outputs into 100 V constant-voltage lines. The resulting arrangement provides two independent high-impedance channels, allowing the amplifier to serve an appropriate distributed loudspeaker installation while retaining separate channel connections.

Each transformer is rated at 160 W. Matching the transformer kit to the correct amplifier model is essential because the DMA transformer accessories have different power ratings. This version gives the installer a specific conversion module for the stated amplifier, with a defined role between the amplifier outputs and the 100 V speaker lines.

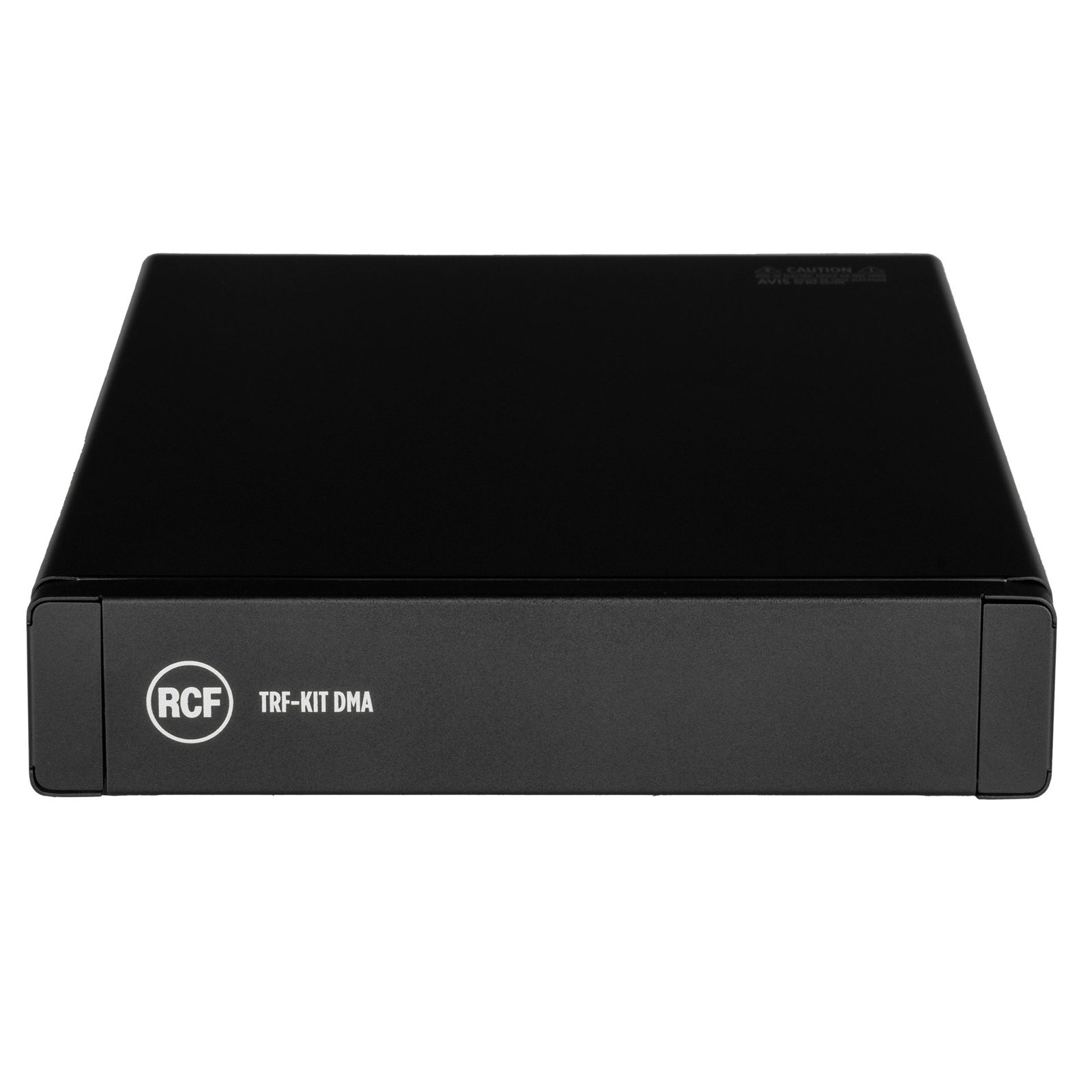

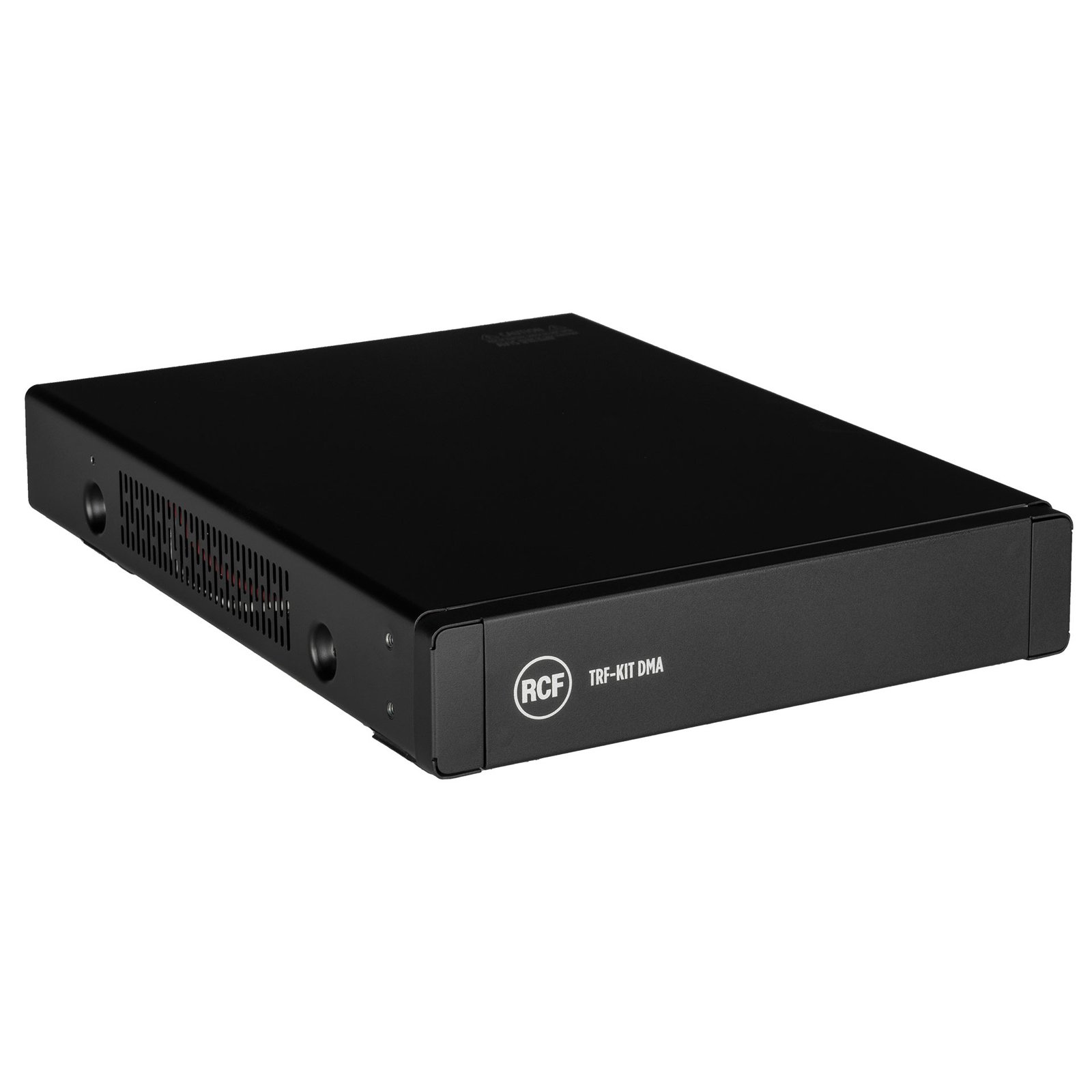

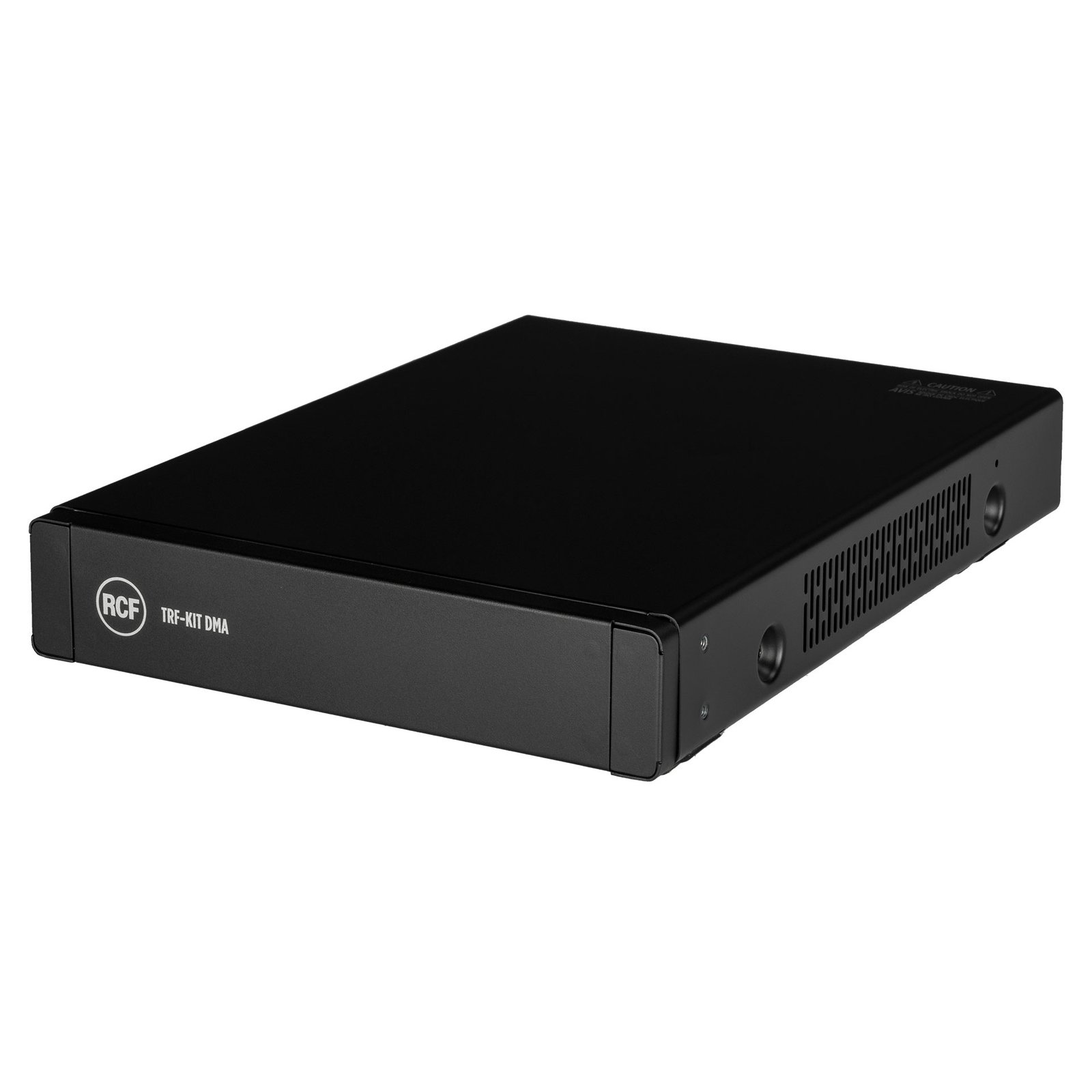

The transformers are housed in a black metal enclosure with a half-width 19-inch, 1U format. The compact case groups both channels into a single accessory rather than requiring separate enclosures. The defined rack format is useful when planning the physical arrangement of the amplifier, conversion module and other installation equipment.

The unit is compatible with the RM-KIT DMA accessory for rack installation. Rack mounting requires the appropriate optional accessory, and the final layout should follow the mounting instructions for the equipment combination. Consider the space for terminals and cable routing alongside the case dimensions when arranging the amplifier and transformer kit.

Use TRF-KIT DMA 162 with the specified amplifier and design each loudspeaker line around the applicable transformer rating. Keep the two channel connections identified throughout installation so the intended zone routing is maintained. The kit supplies the required low-to-high impedance conversion in one dedicated module for a compatible DMA audio distribution system.

Features of TRF-KIT DMA 162

• Two independent 100 V output lines
• Two 160 W line transformers
• For DMA 162 and DMA 162P
• Black metal enclosure
• Half-width 19-inch, 1U format
• Compatible with optional RM-KIT DMA

Specifications of TRF-KIT DMA 162
