RCF BT BOARD DMA Bluetooth Expansion Board
RCF BT BOARD DMA adds Bluetooth streaming and mobile amplifier control to compatible DMA units, with Bluetooth 5.0, four pairable devices, Android and iOS app support, and power from the amplifier.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 710.85 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

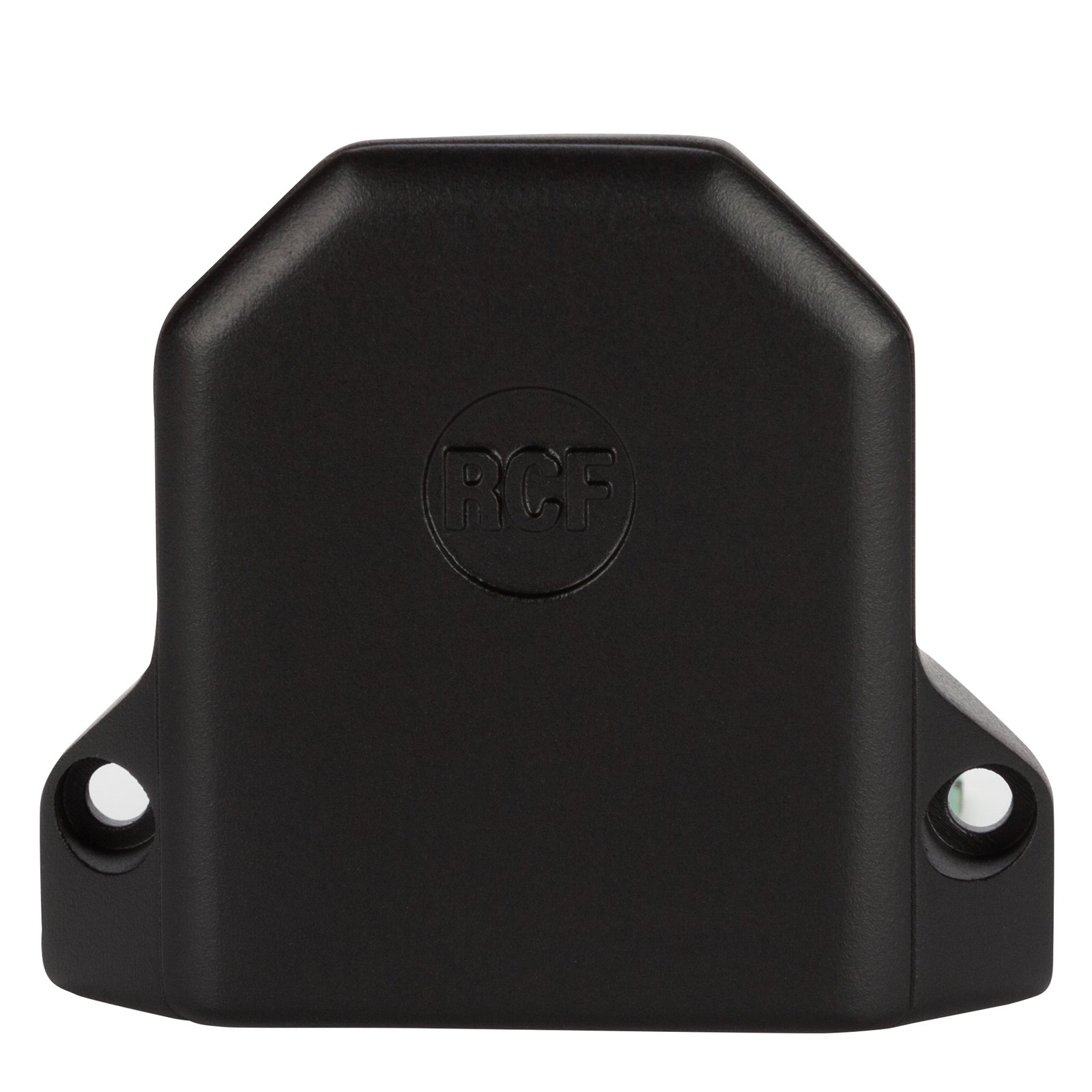

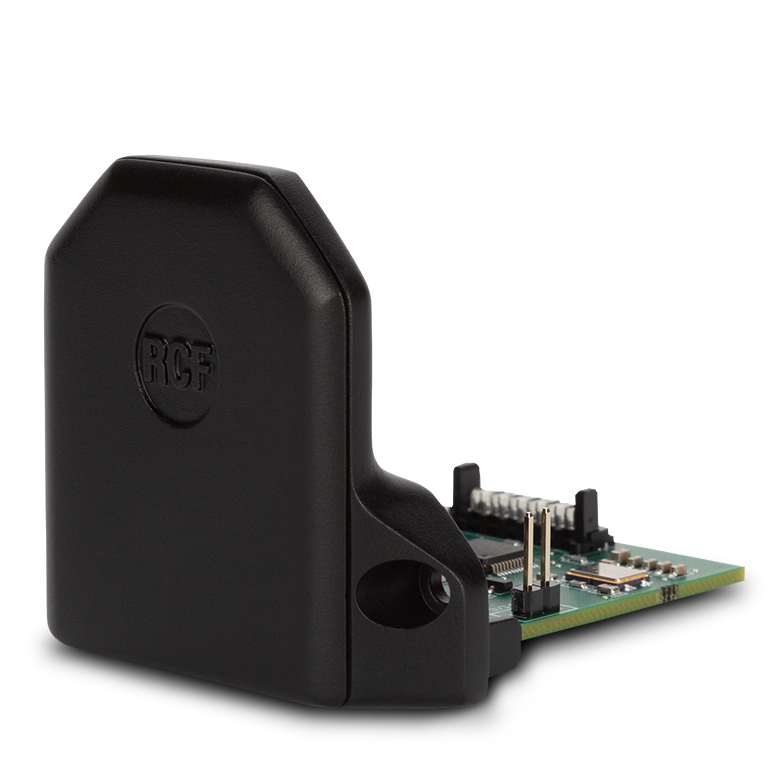

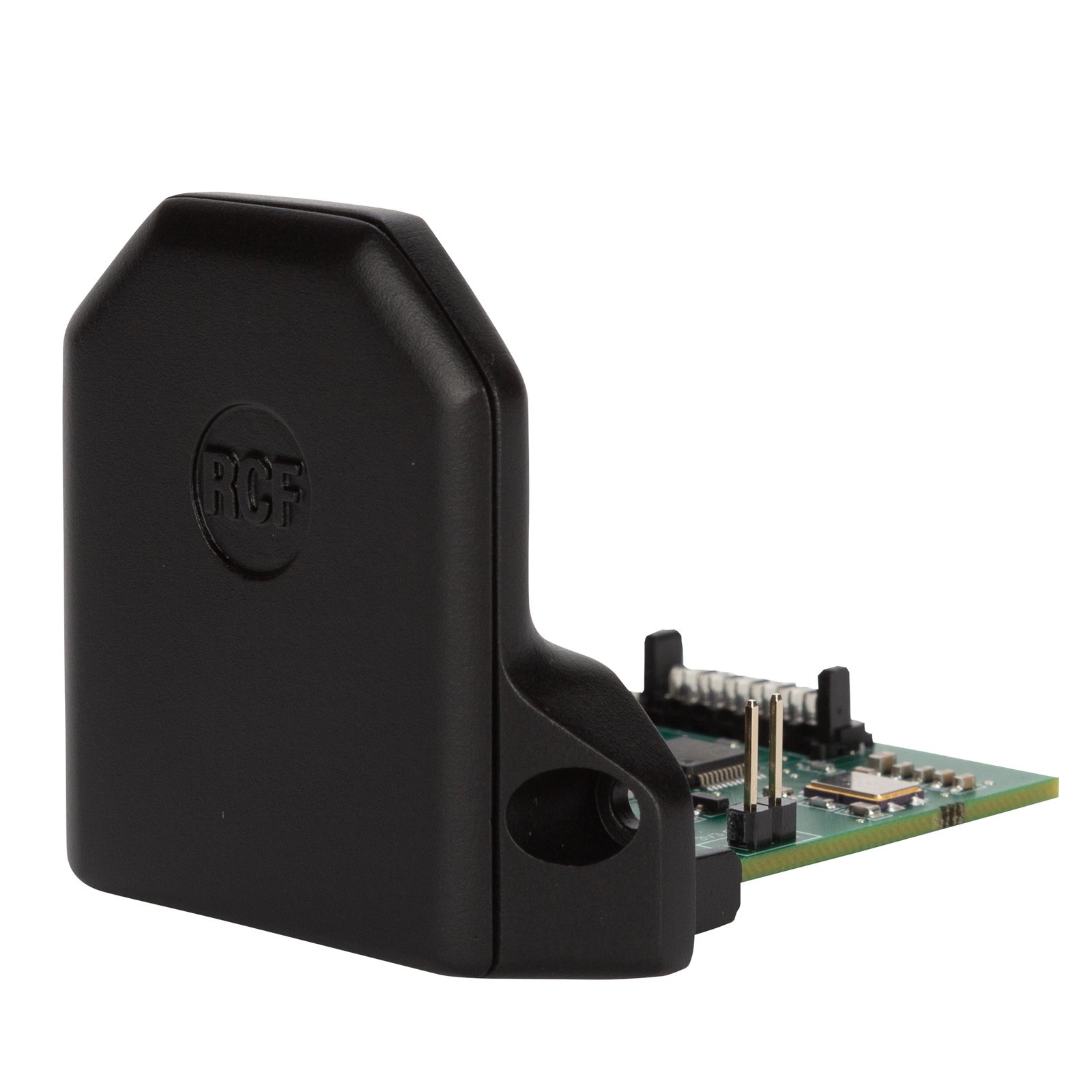

RCF BT BOARD DMA Bluetooth Expansion Board
The RCF BT BOARD DMA is an optional internal board that connects a compatible DMA amplifier to a mobile device using Bluetooth. It combines wireless audio streaming with amplifier control, giving an installation a practical way to receive programme material and adjust supported settings from the same mobile interface.
The board uses Bluetooth 5.0 technology and supports up to four pairable devices. Pairing capacity identifies the number of devices that can be associated with the board; it should be distinguished from the active playback source chosen for a session. Streaming sends audio from the mobile device into the compatible DMA system.
Amplifier control includes input and output level adjustment and equalization through the mobile application. An app is available for Android and iOS devices, allowing the supported controls to be managed from either mobile platform. This places everyday audio and adjustment functions together without requiring the user to work directly at the amplifier.

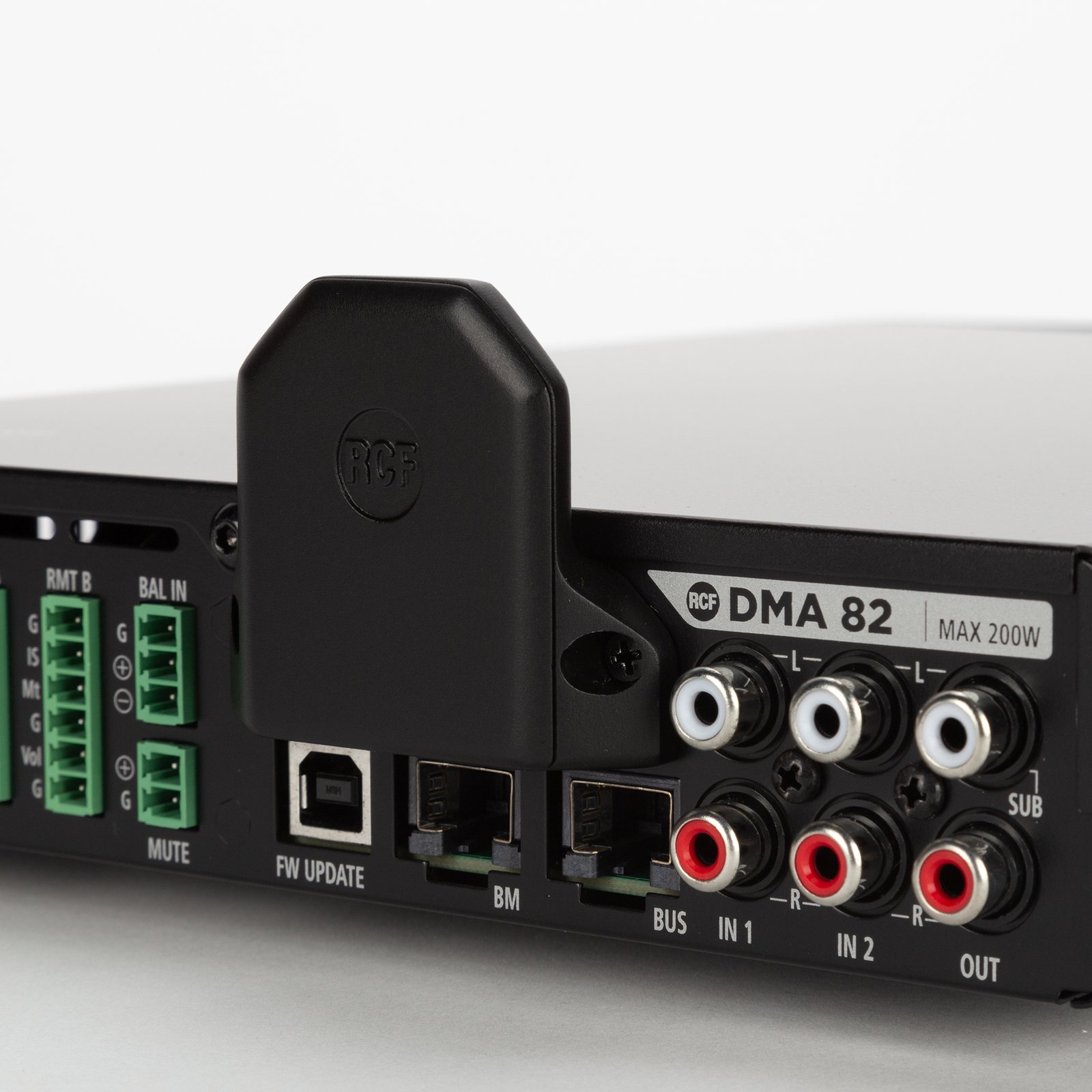

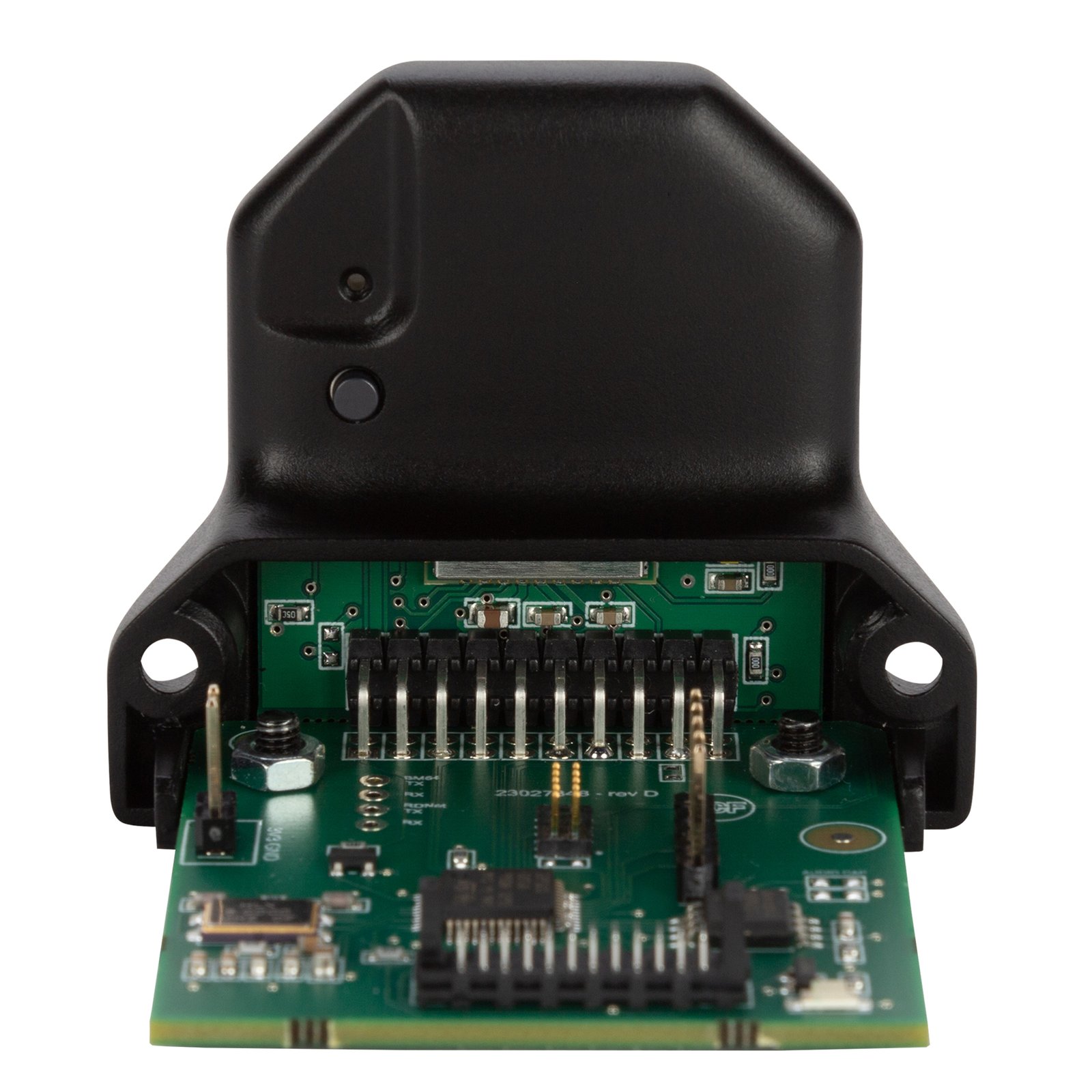

The board installs inside the DMA unit and draws power from the amplifier, so it does not require an additional external power supply. RCF identifies compatibility with DMA 82, DMA 162 and DMA 162P. The compact board measures 49 mm high, 56 mm wide and 56 mm deep and weighs 0.03 kg.
Select the board for one of the stated DMA models and follow the amplifier accessory installation instructions. After installation, configure the mobile connection and use the supported app controls for the intended audio arrangement. The accessory extends the compatible amplifier with a dedicated Bluetooth interface while keeping its power and physical installation within the DMA unit.
Features of BT BOARD DMA
- Bluetooth 5.0 audio streaming
- Mobile control of levels and equalization
- Up to four pairable devices
- Android and iOS control app
- Internal DMA installation
- Powered by the DMA amplifier
Specifications of BT BOARD DMA
| Product Type | Bluetooth expansion board |
| Model | BT BOARD DMA |
| Part Number | 12399065 |
| Compatible models: | DMA 82 DMA 162 DMA 162P |
| Power supply: | from DMA unit |
| Number of pairable devices: | 4 |
| Audio streaming: | Yes |
| Amplifier control: | Yes |
| Technology: | Bluetooth 5.0. |
| Color | Black – RAL 9005 |
| Height | 49 mm / 1.93 inches |
| Width | 56 mm / 2.2 inches |
| Depth | 56 mm / 2.2 inches |
| Weight | 0.03 kg / 0.07 lbs |
