Allen & Heath SQ Dante 32×32 Module for SQ Mixers & AHM Audio Processors

Allen & Heath SQ Dante 32×32 Interface Card

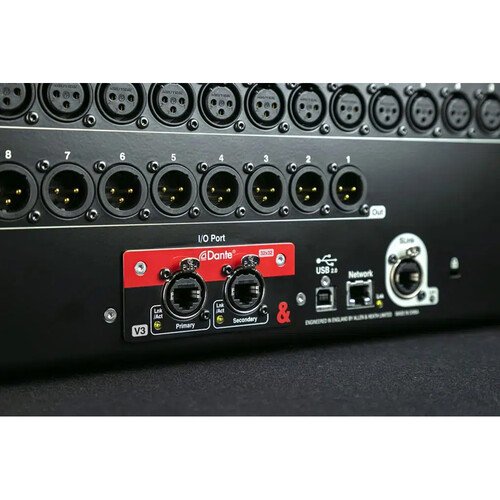

The Allen & Heath SQ Dante 32×32 is a professional Dante networking expansion card designed for SQ series digital mixers and AHM matrix processors. The card provides a 32×32 channel bidirectional audio interface, enabling seamless integration with Dante-enabled amplifiers, stage boxes, wireless microphone systems, audio processors, preamps, and other networked audio devices.

Supporting both 96kHz and 48kHz operation, the SQ Dante 32×32 card allows users to connect to Dante networks operating at either sample rate while maintaining high-quality audio performance. This flexibility makes it suitable for a wide range of professional audio environments, from live sound reinforcement and installations to conferencing, broadcast, and distributed audio systems.

The card simplifies system expansion by providing reliable network-based audio transport and routing capabilities. It also enables digital splits between compatible audio systems, allowing multiple devices to share audio sources without additional analog infrastructure. For recording applications, the SQ Dante 32×32 supports multichannel recording and playback through Dante Virtual Soundcard, providing an efficient and cost-effective workflow for live recording, virtual soundcheck, and audio production.

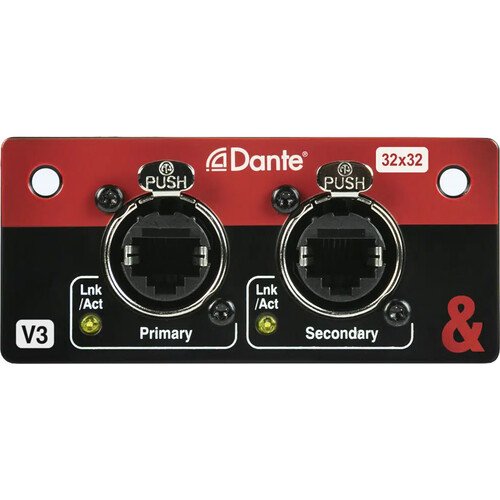

Equipped with dual locking etherCON network ports, the interface supports both switched and redundant network configurations for enhanced reliability and operational flexibility. An integrated Control Network Bridge streamlines communication and management across connected devices within the Dante ecosystem.

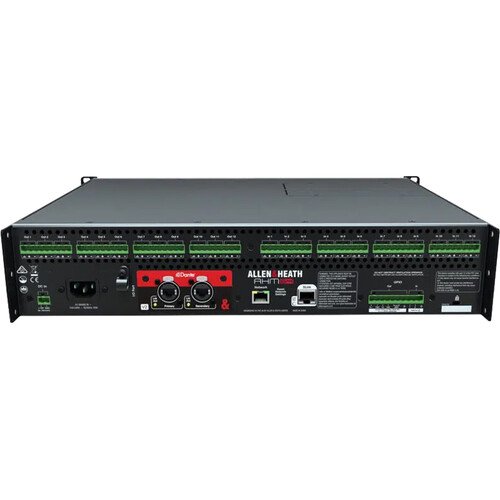

The SQ Dante 32×32 card is also an ideal companion for AHM-16 and AHM-32 matrix processors, enabling integration into existing Dante networks and supporting Allen & Heath Dante-enabled expanders such as DT22, DT20, DT02, DT164-W, and DT168. With AES67 compatibility and Dante Domain Manager support, the card provides dependable interoperability for modern networked audio systems.

Features of SQ Dante 32×32

• 32×32 channel Dante audio networking
• Bidirectional audio transport
• Supports 96kHz operation
• Supports 48kHz operation
• Compatible with SQ mixers
• Compatible with AHM processors
• Dual locking etherCON ports
• Redundant network mode support
• Switched network mode support
• Internal Control Network Bridge
• Digital console split capability
• Multichannel recording support
• Multichannel playback support
• Dante Virtual Soundcard compatible
• Dante Domain Manager ready
• AES67 interoperability support
• High-resolution network audio
• Dante expander compatibility
• Network-based system integration
• Professional installation ready

Specifications of SQ Dante 32×32
