RCF HD 3216T Plastic Paging Horn Speaker

RCF HD 3216T Plastic Paging Horn Speaker

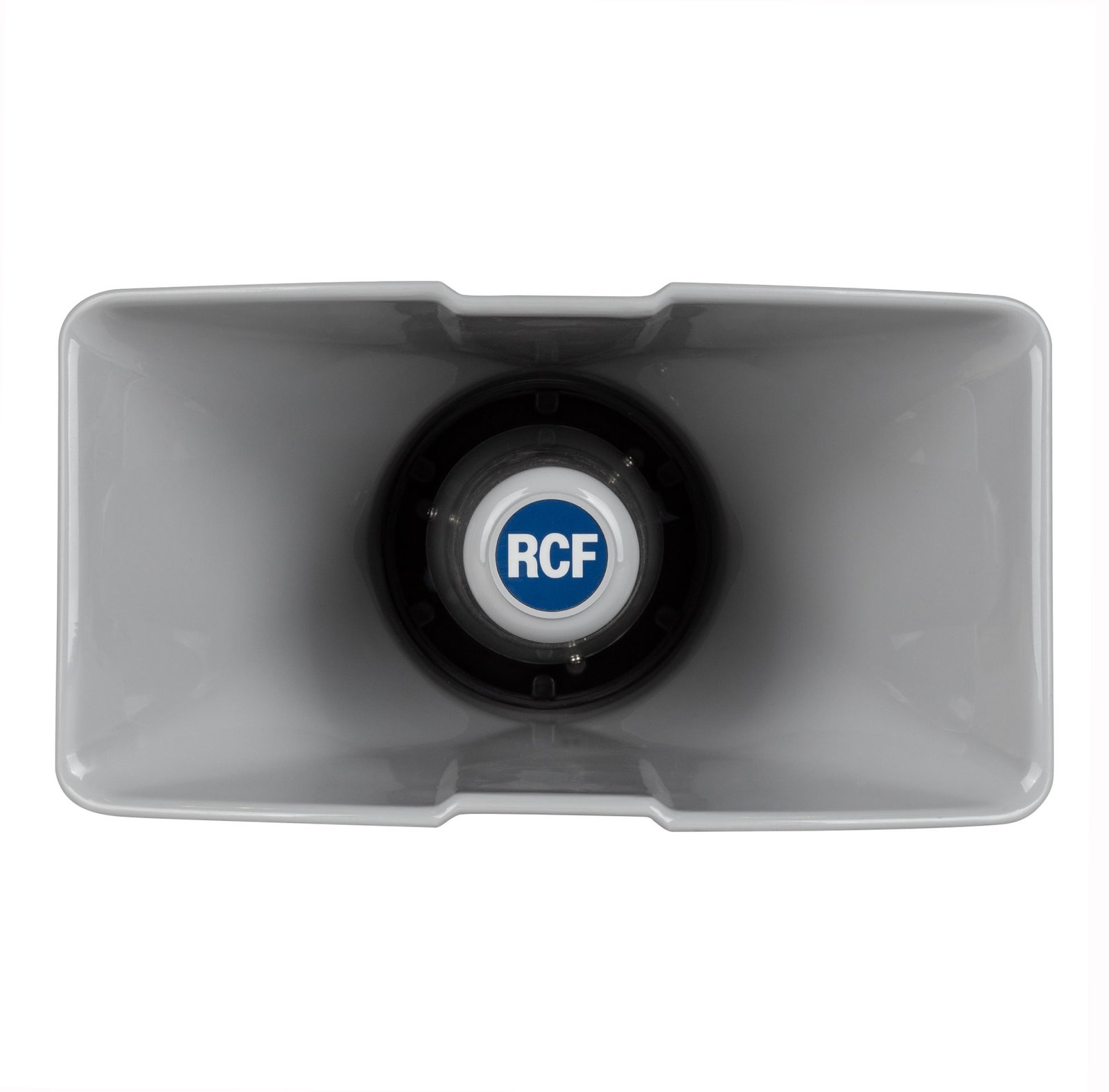

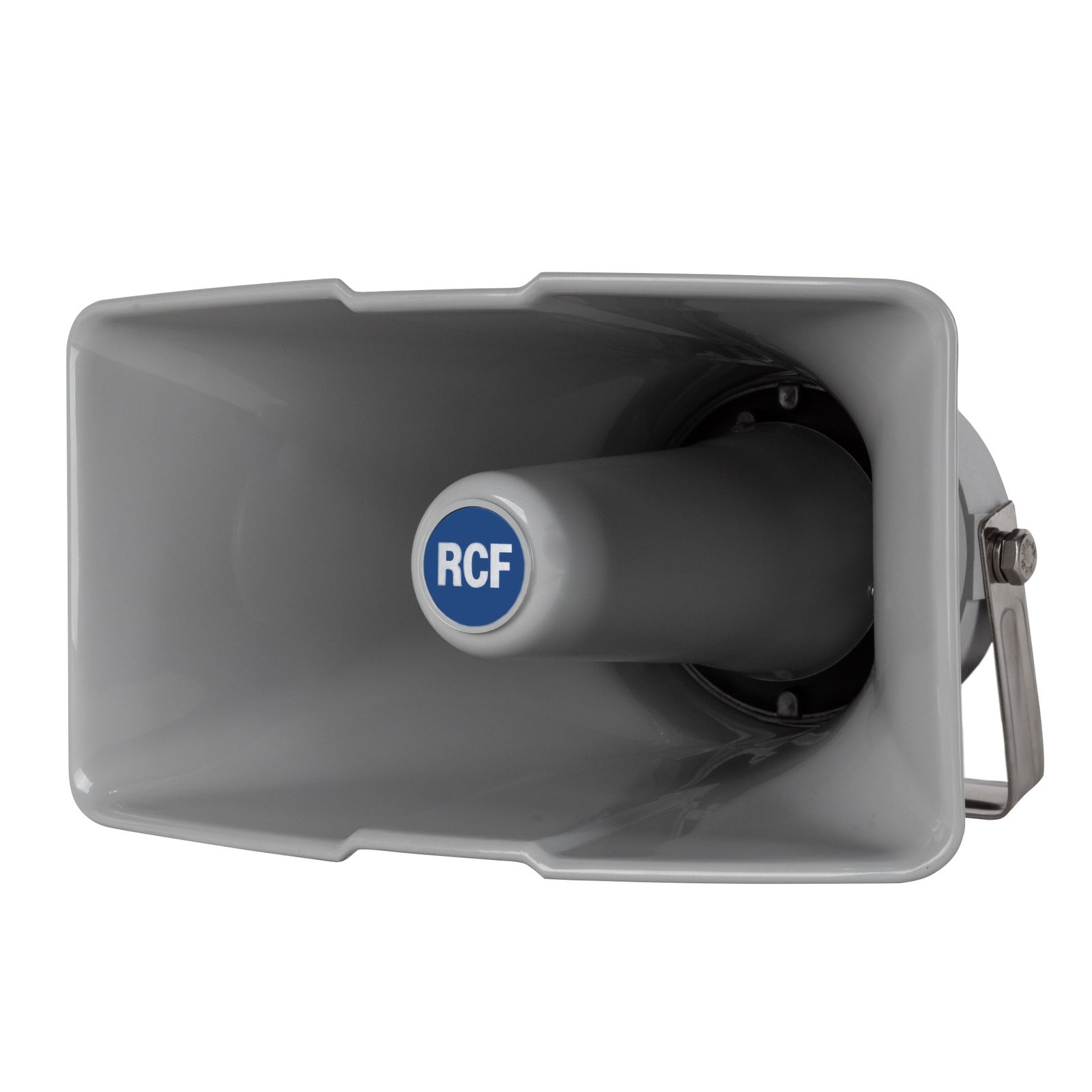

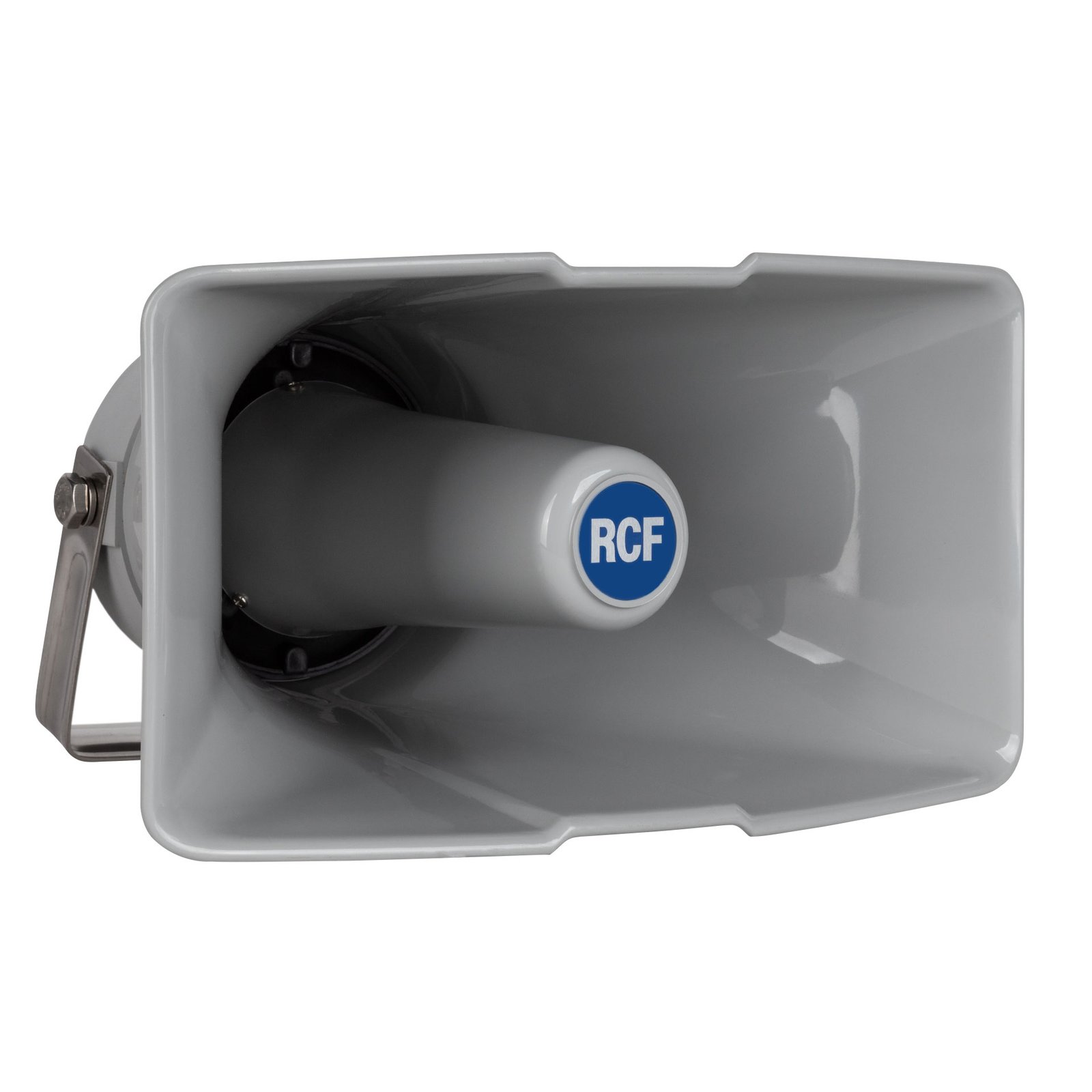

The RCF HD 3216T is a compact plastic paging horn with an integrated driver and line transformer. Its protected construction, rear selector and high-pass filter support intelligible announcement coverage through compatible constant-voltage speaker systems.

The specified frequency response is 250 Hz – 10000 Hz. Rated power handling is 25 W. The nominal impedance is 8 ohm. Maximum sound pressure level at one metre is 122 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 175 mm, width 310 mm, depth 322 mm, weight 2.5 kg. The enclosure material is ABS. The specified finish is Grey – RAL 7035. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of HD 3216T

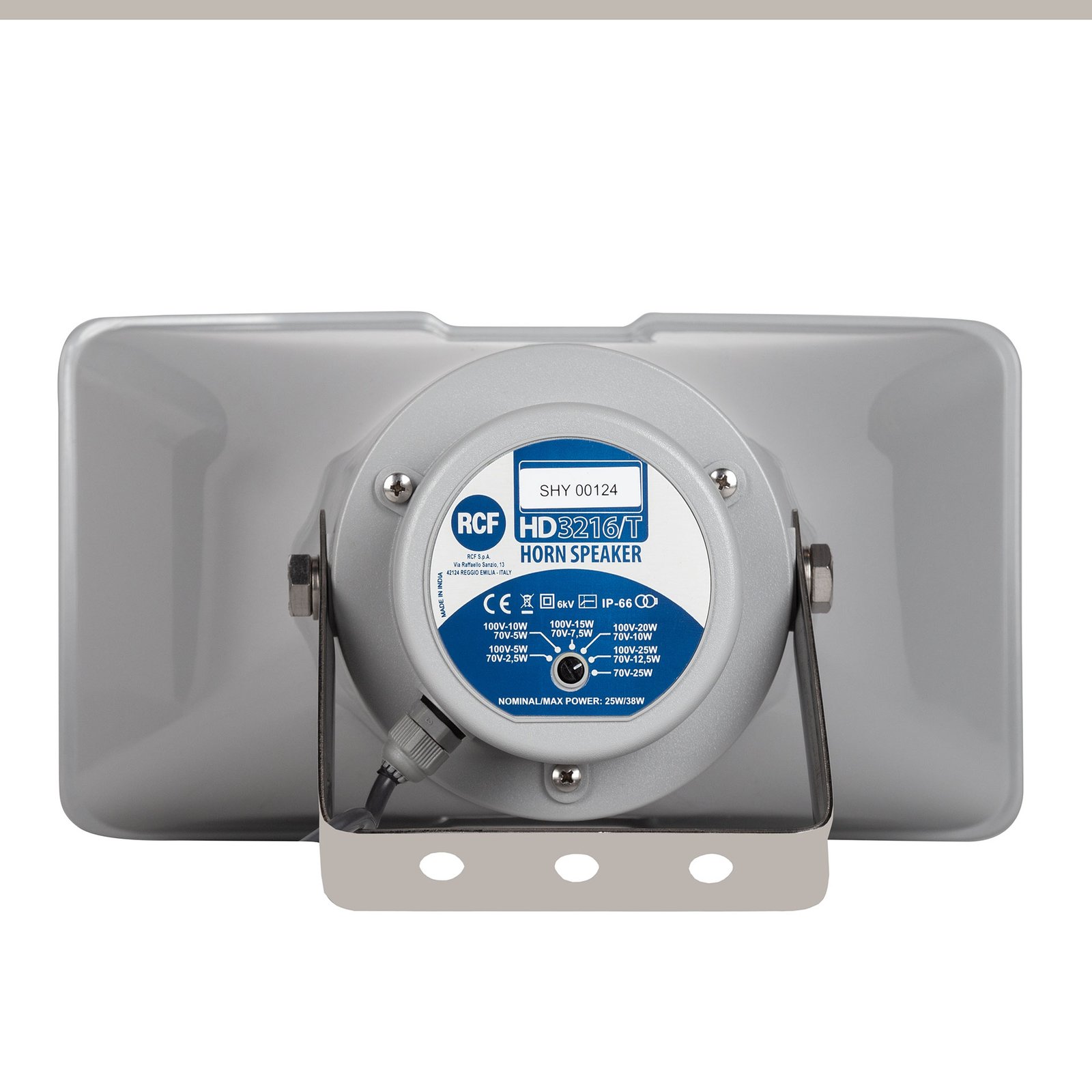

• Built-in line transformer with multitap power selector on rear cover
• Hi-pass filter for protecting driver against out-of-range low-freq
• IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
• UV-stabilized autoextinguishing UL-HB ABS plastic
• Colour Grey – RAL 7035

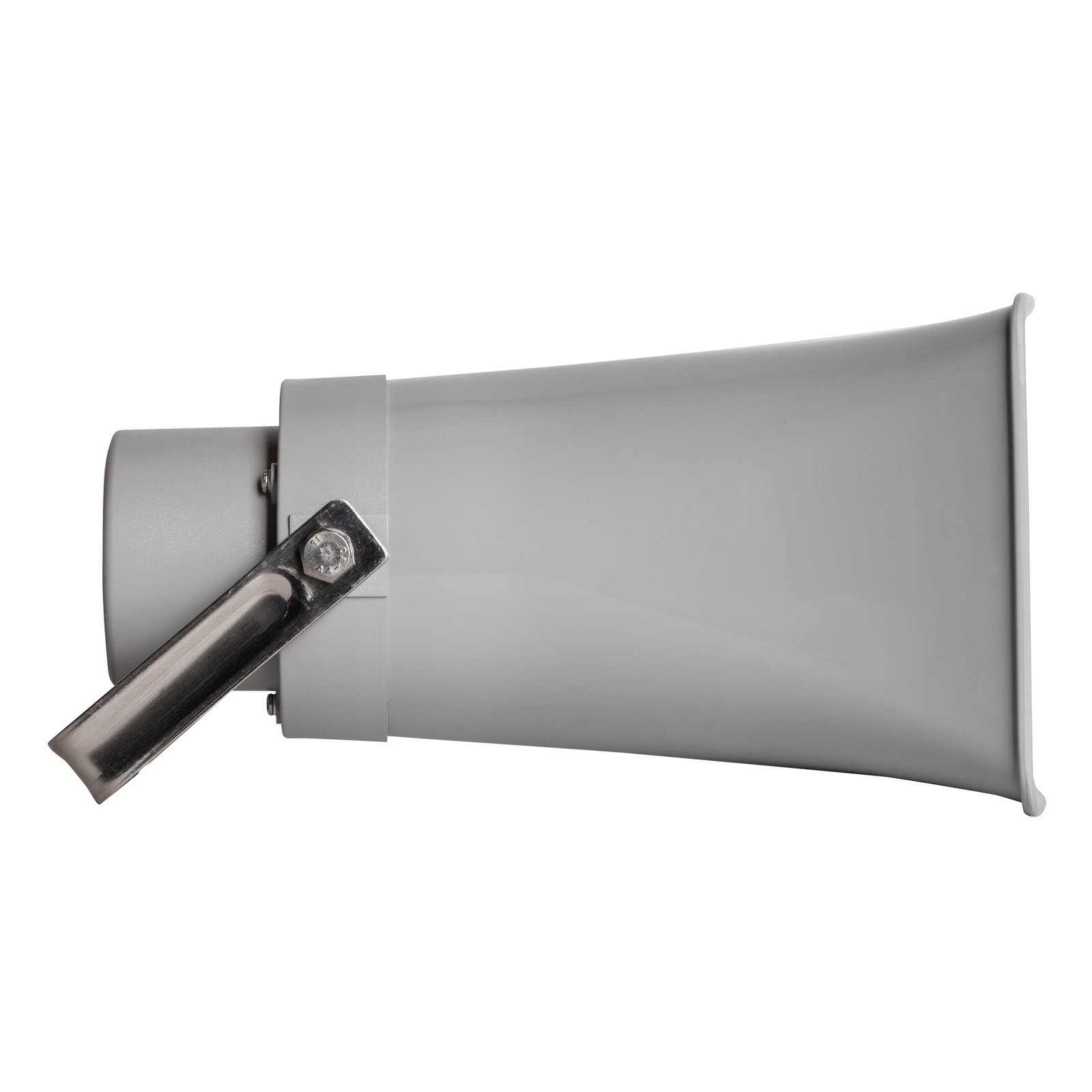

• Stainless-Steel mounting hardware

Specifications of HD 3216T
