RCF DMU 6100 Conference System Central Unit

RCF DMU 6100 Conference System Central Unit

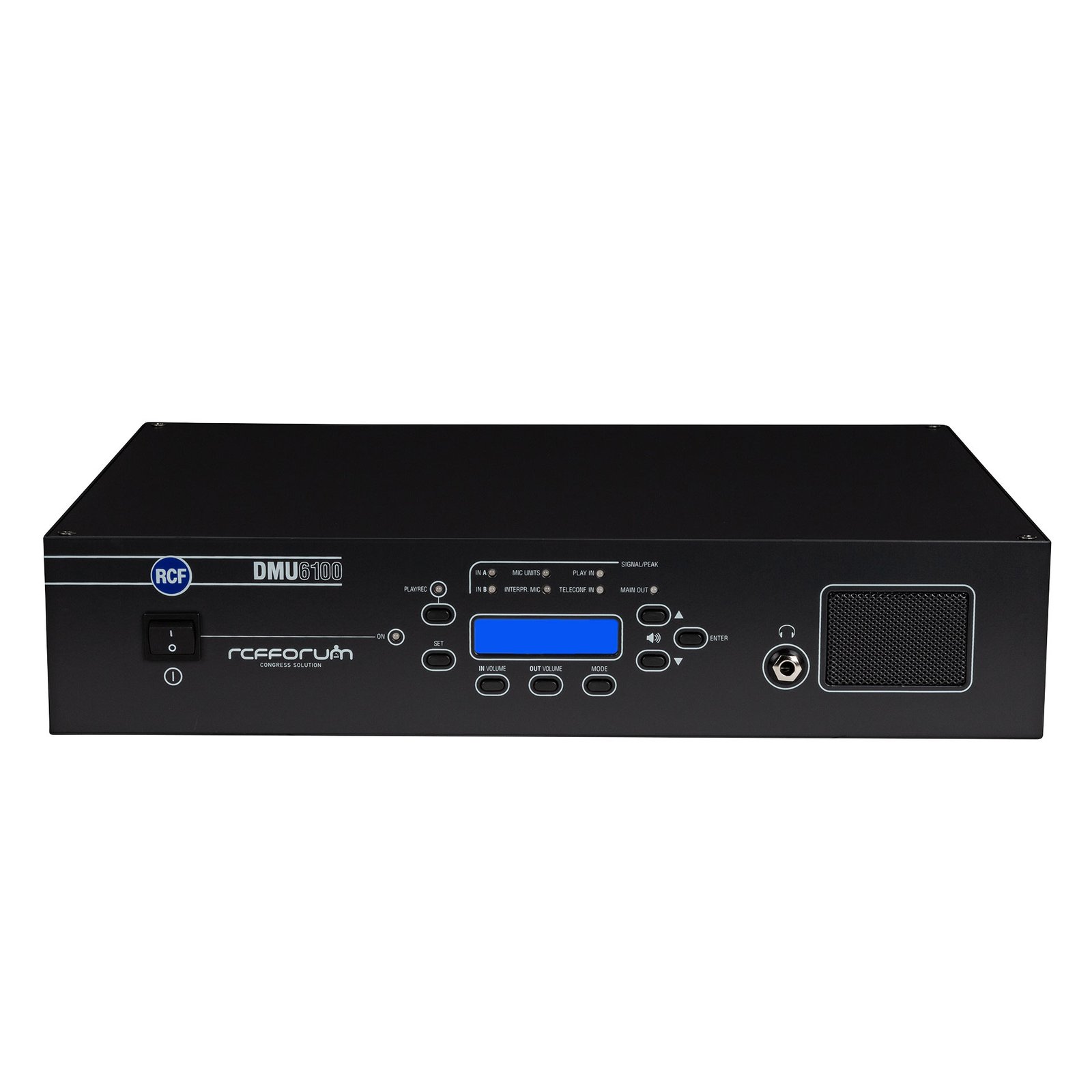

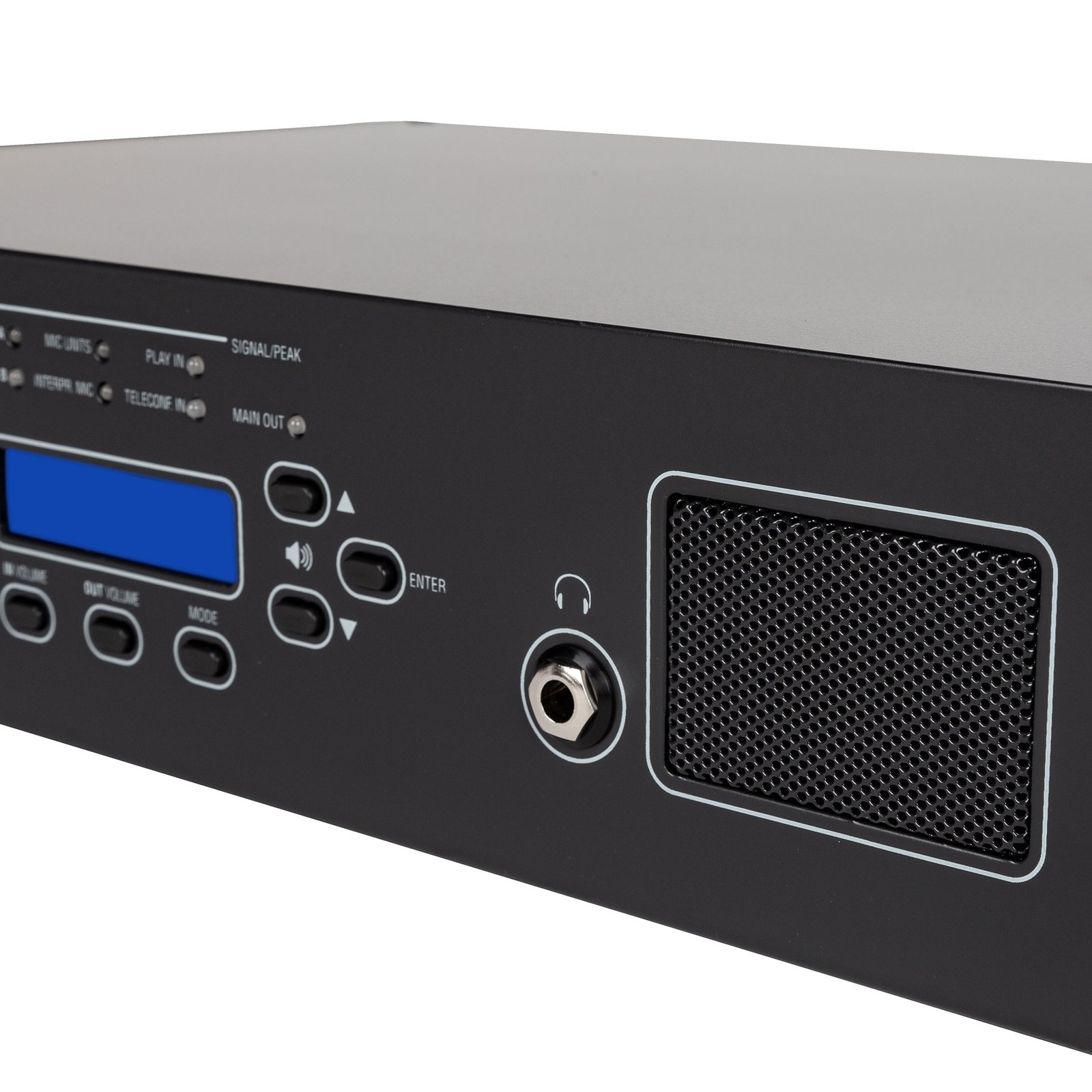

The RCF DMU 6100 is the central unit of the FORUM 6000 conference system, supporting up to sixty microphone consoles directly on two lines. An LCD and front-panel controls provide configuration access, with monitoring and external audio interfaces for the meeting system.

The total number of audio inputs is 11. A specified feature is: Dedicated IN and OUT connections are available echo-free for the link to a teleconference system. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 88 mm, width 430 mm, depth 310 mm, weight 5.77 kg. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The control component has a defined role within the compatible audio system. Its connection method, supported equipment and local operating interface should be considered together when planning the installation. This establishes how the control position relates to the rest of the system and keeps the intended signal or command path clear.

Match the component to the system arrangement described for the exact model. Plan the physical position and connection routes so that the relevant terminals and controls remain accessible. Use the documented configuration and wiring sequence when assembling the installation, keeping the local interface consistent with the equipment it is intended to control. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of DMU 6100

• Two universal inputs for connecting any additional sources such as a wireless microphone or a lectern microphone or any other complementary device, even a mixer-preamplifier.
• Two inputs can be configured in different ways; for instance they can be mixed with the system audio, have priority on system microphone sets, one mixed and one priority etc.
• Dedicated IN and OUT connections are available echo-free for the link to a teleconference system
• VOX operation or command operation are available
• The command switch can be programmed to work as FORCED-ON or FORCED-OFF always through configuration menu

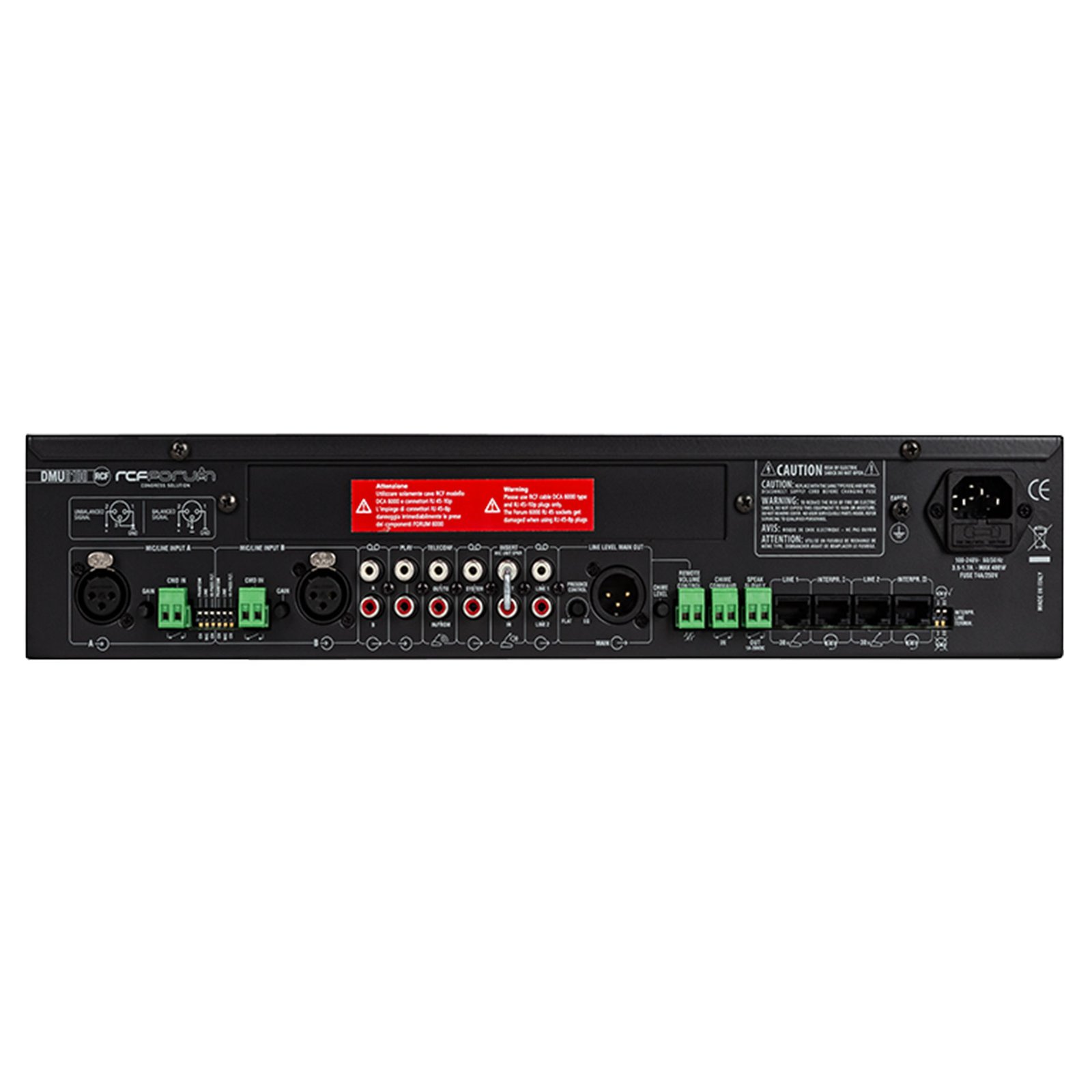

• REC-PLAY input and outputs associated to a switch allow the connection of any recorder/player.
• 4 additional Auxiliary Outputs are available for the independent recording of the 2 universal inputs and each of the 2 lines of microphone sets

Specifications of DMU 6100
