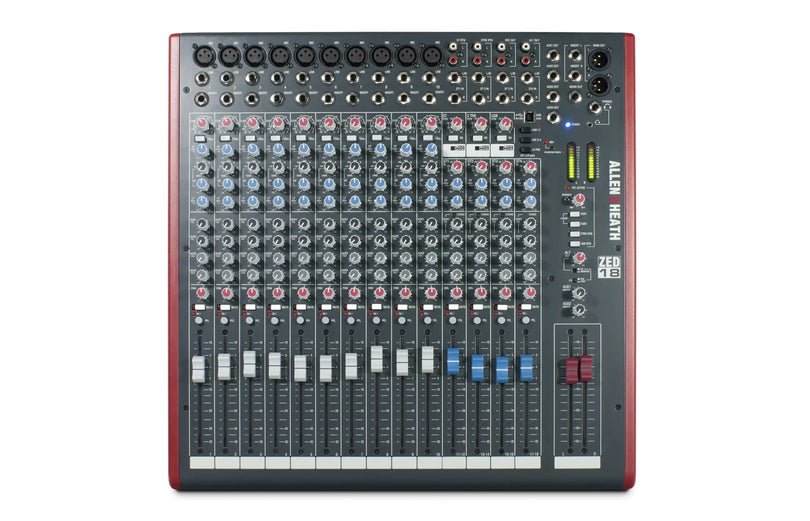

Allen & Heath ZED-18 18-channel Mixer with USB Audio Interface
The Allen & Heath ZED-18 is an 18-channel analogue mixer with DuoPre preamps, MusiQ EQ, configurable USB audio connectivity, and flexible routing for live sound, recording, and installation applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 3,126.90 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Allen & Heath ZED-18 18-Channel Analog Mixer with USB Audio Interface
The Allen & Heath ZED-18 is a versatile and feature-rich analogue mixer designed for musicians, venues, recording studios, and hire companies that require professional audio performance in a compact, rack-mountable format. Combining ten mono input channels and four stereo channels, the mixer provides extensive connectivity and advanced mixing capabilities for both live sound reinforcement and recording applications.
At the heart of the ZED-18 are Allen & Heath’s acclaimed DuoPre microphone preamps, delivering up to 69 dB of gain with exceptionally low noise and excellent headroom. The dual-stage preamp design ensures accurate signal amplification and improved control over input levels while maintaining sonic clarity. Line-level signals benefit from optimized impedance matching and reduced noise performance.
The mixer also incorporates MusiQ equalization, featuring a responsive 3-band EQ with swept mid frequencies on mono channels. This musical EQ design enables precise tonal shaping and effective adjustment of individual instruments and vocal sources. Four stereo channels provide additional flexibility for connecting keyboards, media players, and external audio devices.
USB audio integration makes recording and playback simple and efficient. The configurable USB interface supports stereo audio transfer between the mixer and a Mac or Windows computer, offering multiple routing options including main mix outputs and auxiliary sends. Combined with four auxiliary sends, flexible monitoring paths, and comprehensive output options, the ZED-18 is equally suitable for live performances, project studios, and installed sound systems.
Its rugged construction, long-throw faders, and professional-grade components ensure reliable operation and consistent audio performance in demanding environments.
Features of ZED-18
- 18-channel analogue mixer design
- Ten mono input channels
- Four stereo input channels
- DuoPre low-noise microphone preamps
- Up to 69 dB microphone gain
- Configurable USB audio interface
- Stereo USB recording and playback
- 16-bit/48 kHz USB audio resolution
- MusiQ 3-band EQ with swept midrange
- Four auxiliary sends
- Two pre-fade auxiliary sends
- Two post-fade auxiliary sends
- Long-throw ALPS 100 mm faders
- Global 48V phantom power
- Rack-mountable compact chassis
- Multiple USB send and return configurations
- Stereo two-track inputs
- Dedicated record and alternate outputs
- Professional analogue signal path
- Suitable for live and studio applications
Specifications of ZED-18
| Mixer Type | Analog Mixer with USB Audio Interface |
| Total Channels | 18 Channels |
| Mono Channels | 10 |
| Stereo Channels | 4 |
| Computer Connectivity | USB 2 × 2 |
| USB Audio Resolution | 16-Bit / 48 kHz |
| Channel Faders | 16 × ALPS 100 mm |
| Microphone Inputs | 10 × XLR |
| Line Inputs | 10 × 1/4″ TRS |
| Stereo Inputs | 8 × 1/4″ (4 Stereo Channels) |
| Additional Inputs | 2 × Dual RCA Stereo (2-Track) |
| Main Outputs | 2 × XLR Main Outputs |
| Mono Output | 1 × 1/4″ Mono Output |
| Additional Outputs | 2 × Dual RCA Stereo (Record Out, Alt Out) |
| Auxiliary Sends | 4 Total |
| Pre-Fade Aux Sends | 2 |
| Post-Fade Aux Sends | 2 |
| Send/Return I/O | 4 × 1/4″ Auxiliary Sends |
| Phantom Power | Global +48V |
| EQ Type | MusiQ 3-Band EQ with Swept Mid |
| USB Send Options | Main Mix Post-Fade, Main Mix Pre-Fade, Aux 1-2, Aux 3-4 |
| USB Return Destination | Stereo 3 Channel |
| Rack Mountable | Yes |
| Application | Live Sound, Recording, Installations, Hire Systems |
