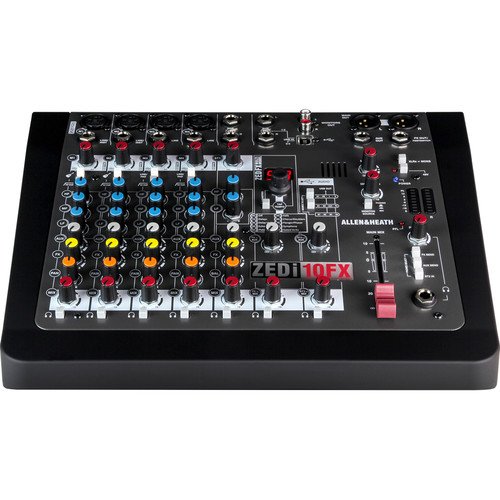

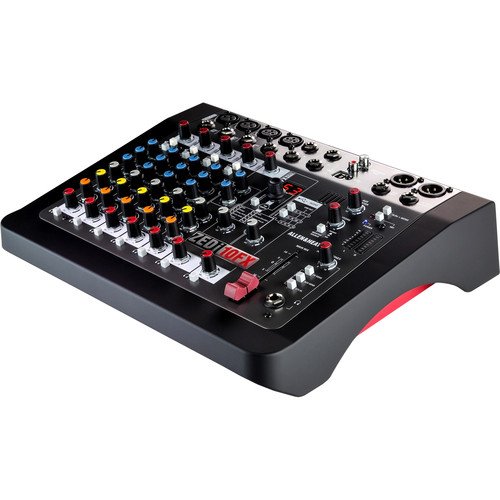

Allen & Heath ZEDi-10FX Hybrid Compact Mixer and USB Interface
The Allen & Heath ZEDi-10FX combines professional analogue mixing, high-resolution USB recording, and integrated effects processing into a compact and portable design. Created for musicians, home studios, content creators, and live performers, the mixer delivers the renowned Allen & Heath sound quality while providing the flexibility required for modern recording and performance workflows.
The mixer features four microphone inputs, four line inputs, two dedicated high-impedance instrument inputs, and stereo channels for connecting keyboards, playback devices, and additional audio sources. Its microphone preamps are derived from the acclaimed GS2-R24 recording console and provide low-noise performance, wide headroom, and the warm analogue character that has become a hallmark of Allen & Heath mixers.
The integrated USB interface supports four channels of audio conversion at up to 24-bit/96kHz resolution, enabling high-quality recording and playback with digital audio workstations. Flexible USB routing allows users to determine how signals are sent to and received from a computer, making the ZEDi-10FX suitable for both multitrack recording and live sound applications. Included Cubase LE and Cubasis LE software provide an immediate production platform for recording and editing.

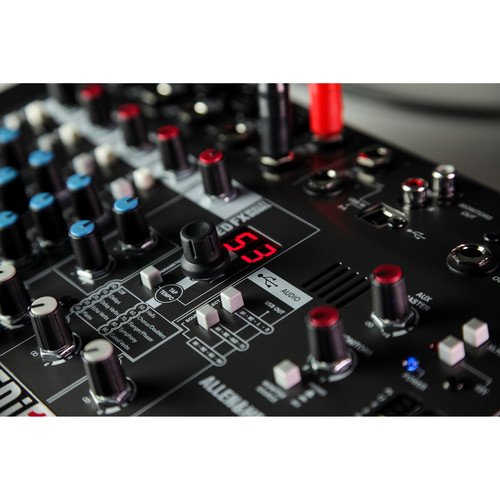

A key feature of the ZEDi-10FX is its onboard effects engine, which incorporates high-quality reverbs, delays, chorus effects, and tap-tempo functionality. Combined with responsive EQ sections and high-pass filters, the mixer offers extensive control over both tonal shaping and creative sound enhancement.
With balanced XLR outputs, monitor outputs, dedicated auxiliary and effects sends, and durable construction, the Allen & Heath ZEDi-10FX provides a complete solution for musicians seeking professional mixing, recording, and effects processing in a single compact device.
Features of ZEDi-10FX
- Hybrid analogue mixer and USB audio interface
- High-resolution 24-bit/96kHz audio conversion
- Four-channel USB recording and playback
- Integrated effects engine with reverb, delay, and chorus
- Tap-tempo effects control
- Four premium GS2-R24-derived microphone preamps
- Two dedicated Hi-Z instrument inputs
- Direct guitar and bass connection without DI boxes
- Four mic/line input channels
- Two stereo input channels
- 3-band EQ on mono channels
- 2-band EQ on stereo channels
- High-pass filters on channels 1 through 4
- Flexible USB signal routing
- Balanced XLR main outputs
- Stereo RCA monitor outputs
- Dedicated auxiliary and FX sends

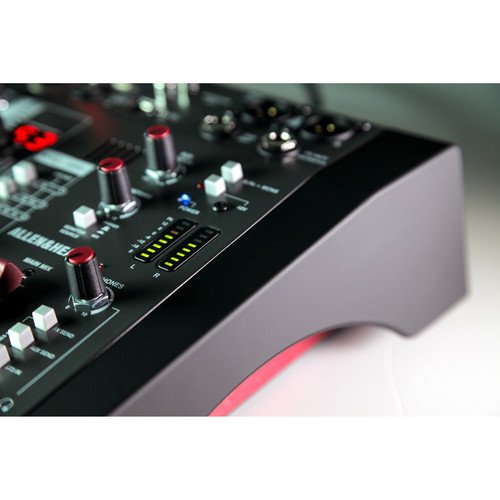

- Eight-segment LED metering
- 48V phantom power for condenser microphones
- Includes Cubase LE and Cubasis LE software
- Internal universal power supply
- Compact and portable design
Specifications of ZEDi-10FX
| Max I/O Capacity | 6 Inputs / 8 Outputs |
| Number of Analog Input Channels | 6 (4 Mono / 1 Stereo) |
| Number of Mic Preamps | 4 |
| Analog Output Channels | 1 × Stereo Master Output, 1 × Stereo Control Room Output, 1 × Mono Aux Send, 1 × Mono FX Send, 1 × Stereo Headphone Output |
| Mix Routing | FX Bus |
| Channel Controls | 7 Channel Faders |
| Metering | LED Meter |
| Gain Range | +5 dB to +60 dB |
| EQ (Mono Channels) | 3-Band EQ |
| EQ (Stereo Channels) | 2-Band EQ |
| Filters | High-Pass Filter at 100 Hz |
| Built-In Effects | Yes |
| Effects Types | Reverb, Delay, Chorus, Tap Tempo |
| Sample Rate | Up to 96 kHz |
| Bit Depth | Up to 24-Bit |
| Mic Inputs | 4 × XLR 3-Pin |
| Instrument Inputs | 2 × 1/4″ TS Hi-Z |
| Line Inputs | 2 × 1/4″ Line/Hi-Z |
| Additional Line Inputs | 4 × 1/4″ Line Inputs (2 Stereo Pairs) |
| Main Outputs | 2 × XLR 3-Pin Balanced |
| Monitor Outputs | 1 × Stereo RCA |
| Aux Output | 1 × 1/4″ |
| FX Output | 1 × 1/4″ |
| Headphone Output | 1 × 1/4″ TRS |
| Phantom Power | +48 V |
| USB Connectivity | 1 × USB-B |
| USB I/O Capacity | 4 Inputs / 4 Outputs |
| MIDI I/O | No |
| Wireless Connectivity | No |
| Operating System Compatibility | Windows, macOS |
| Input Power | 100 to 240 VAC |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Dimensions | 96.5 × 332.7 × 274.3 mm |
| Weight | 2.3 kg |
| Package Weight | 7.4 lb |
| Box Dimensions | 18 × 13 × 5.5 in |
