Allen & Heath ZED-10FX Multipurpose Mini Mixer with Effects
The Allen & Heath ZED-10FX is a portable 10-channel mixer featuring built-in digital effects, USB audio interfacing, premium microphone preamps, and Hi-Z guitar inputs for live sound and recording applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,559.25 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

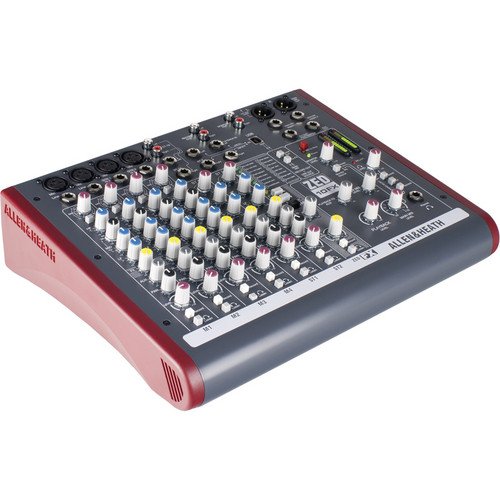

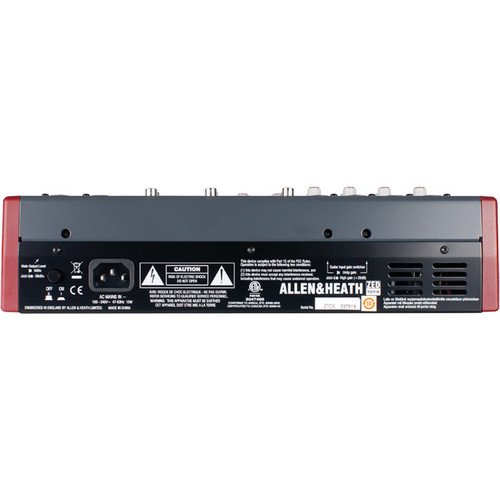

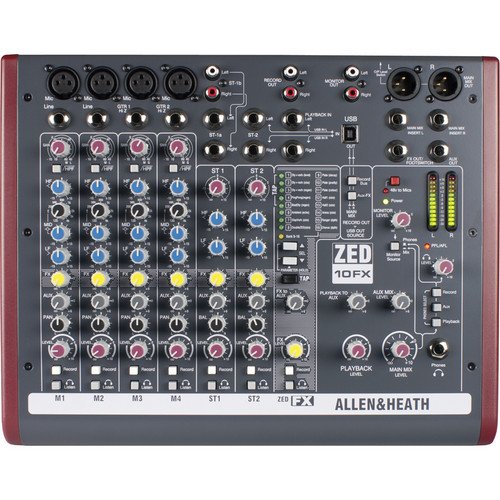

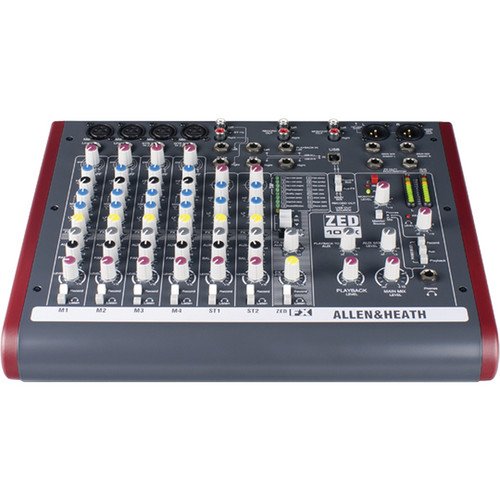

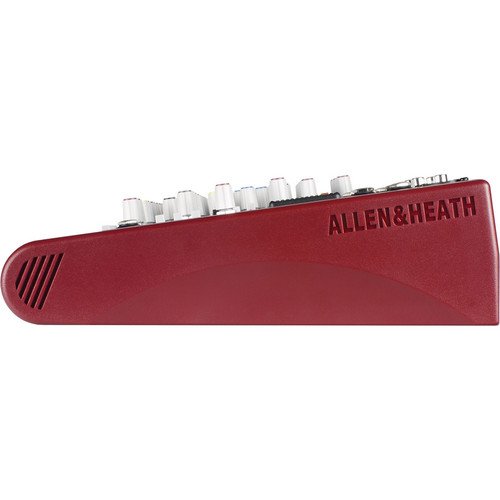

Allen & Heath ZED-10FX Portable Mixer and USB Audio Interface
The Allen & Heath ZED-10FX is a versatile compact mixer designed to deliver professional audio performance for live sound reinforcement, home recording, and small studio applications. Combining high-quality analogue circuitry, integrated digital effects, and USB audio interfacing, the mixer provides an all-in-one solution for musicians, performers, and content creators.
The mixer features four microphone and line input channels, including two dedicated Hi-Z Class-A FET instrument inputs designed specifically for guitars and basses. These inputs provide tube-like warmth and eliminate the need for external DI boxes. Two additional stereo input channels support keyboards, media players, and effect returns, making the ZED-10FX suitable for a wide variety of audio setups.
Each mono channel is equipped with a responsive 3-band EQ featuring MusiQ technology, allowing precise tonal shaping with optimized equalization curves. The integrated 24-bit DSP effects processor offers sixteen professional-quality effects, including reverbs, delays, chorus, flanger, and combined effects, with convenient tap-tempo control for real-time adjustments during performances.
The built-in USB audio interface provides straightforward connectivity with Mac and Windows computers, enabling stereo recording and playback directly from digital audio workstations. The mixer also includes flexible monitoring capabilities with dedicated headphone outputs, monitor speaker outputs, and separate record buses for enhanced routing options.
With balanced XLR main outputs, auxiliary and effects sends, comprehensive monitoring features, and durable construction, the Allen & Heath ZED-10FX delivers reliable performance and exceptional audio quality for both stage and studio environments.
Features of ZED-10FX
- Portable mixer for live and studio applications
- Integrated USB audio interface
- Built-in 24-bit DSP effects processor
- Sixteen delay, reverb, and modulation effects
- Four mic/line input channels
- Two Hi-Z Class-A FET guitar inputs
- Tube-like warmth for instrument sources
- Two stereo line input channels
- Responsive 3-band MusiQ EQ
- Auxiliary and FX send buses
- Dedicated monitor speaker output
- Headphone monitoring output
- XLR main outputs with inserts
- Separate stereo record outputs
- Stereo playback and return inputs
- 48V phantom power for condenser microphones
- Twelve-segment LED metering
- USB recording and playback support
- Neutrik XLR and 1/4-inch connectors
- Compact and portable design
Specifications of ZED-10FX
| Max I/O Capacity | 8 Inputs / 6 Outputs |
| Number of Analog Input Channels | 8 (4 Mono / 2 Stereo) |
| Number of Mic Preamps | 4 |
| Analog Output Channels | 1 × Stereo Master Output, 1 × Stereo Monitor Output, 1 × Stereo Record Output, 1 × Mono Aux Send, 1 × Mono FX Send, 1 × Stereo Headphone Output |
| Mix Routing | Stereo Main Mix / Stereo FX Bus |
| Channel Controls | 6 Channel Knobs |
| Master Control | 1 Master Knob |
| Metering | 12-Segment LED |
| EQ | 3-Band MusiQ EQ |
| Built-In Effects | Yes |
| Effects Processor | 24-Bit DSP |
| Effects Types | Reverb, Delay, Chorus, Flanger, Combined Effects |
| Sample Rates | 32, 44.1, 48 kHz (AD/DA), 48 kHz DSP |
| Bit Depth | 16-Bit |
| Frequency Response (Mic Input) | 10 Hz to 30 kHz (+0.5/-1 dB) |
| Frequency Response (Line Input) | 10 Hz to 25 kHz (+0.5/-1 dB) |
| Frequency Response (Stereo Input) | 10 Hz to 30 kHz (+0.5/-1 dB) |
| Maximum Mic Input Level | +11 dBu |
| Maximum Line Input Level | +31 dBu |
| Maximum Stereo Input Level | +15 dB |
| THD+N (Hi-Z Input) | 0.015% at Unity Gain |
| THD+N (Line Input) | 0.003% at Unity Gain |
| THD+N (Mic Input) | 0.002% at +10 dB Gain, 0.01% at +30 dB Gain |
| THD+N (Stereo Input) | 0.002% at Unity Gain |
| Mic Inputs | 4 × XLR 3-Pin Balanced |
| Instrument Inputs | 2 × 1/4″ TS Hi-Z |
| Stereo Inputs | 4 × 1/4″ TRS (2 Stereo Pairs) |
| Main Outputs | 2 × XLR 3-Pin Balanced |
| Monitor Output | 1 × Stereo RCA |
| Tape Output | 1 × Stereo RCA |
| Aux Send | 1 × 1/4″ Pre-Fader |
| FX Send | 1 × 1/4″ Post-Fader |
| Headphone Output | 1 × 1/4″ TRS |
| USB Connectivity | 1 × USB-B 1.1 |
| USB I/O Capacity | 2 Inputs / 2 Outputs |
| Phantom Power | +48 V |
| Operating System Compatibility | Windows, macOS |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Dimensions | 336 × 95 × 275 mm |
| Weight | 3.3 kg |
| Package Weight | 10.22 lb |
| Box Dimensions | 16.45 × 12.7 × 7.1 in |
