Arylic CK30C 3″ 60W Coaxial HD In-ceiling Speaker

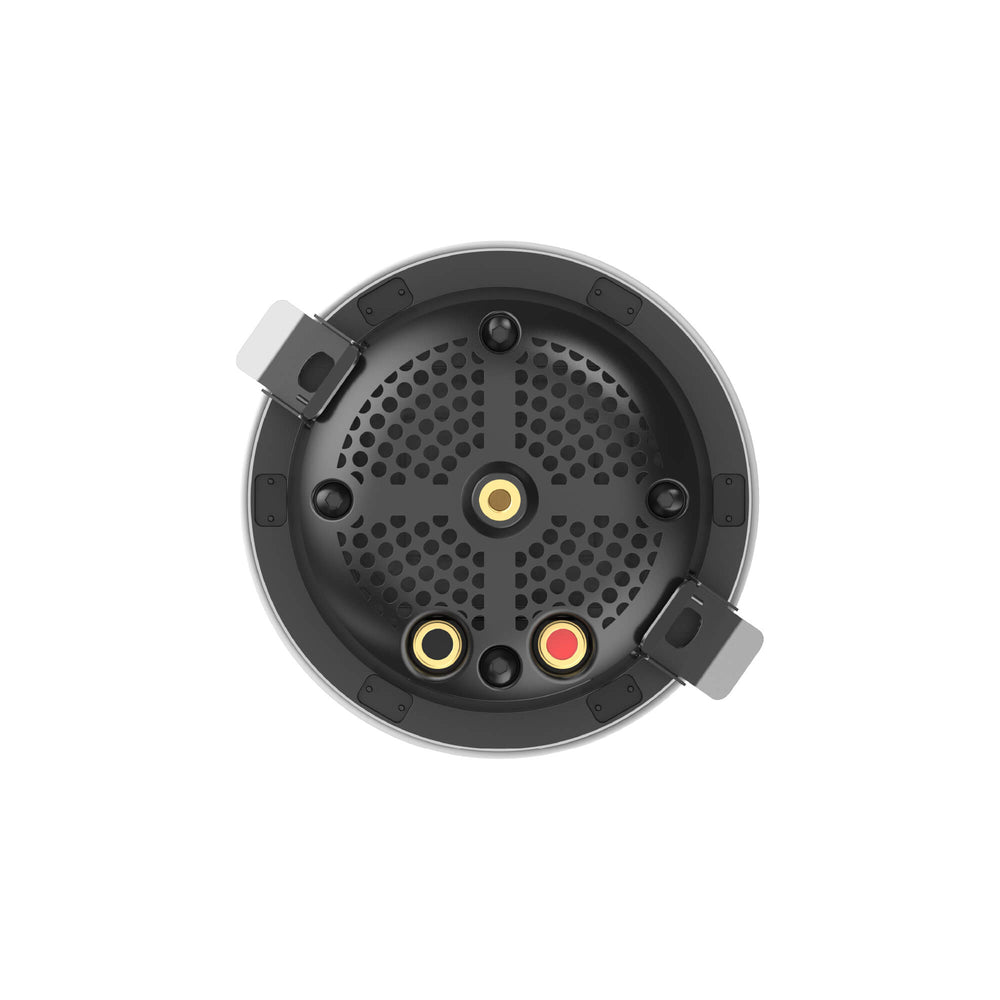

CK30C in-ceiling speaker

The CK30C in-ceiling speaker is engineered to provide strong, detailed sound output in a compact form factor suitable for a wide variety of installation environments. With a maximum power handling of 60 W, it delivers impressive audio performance while maintaining a discreet and space-saving design. This makes it ideal for residential and commercial applications where clean integration and sound clarity are equally important.

At the core of its acoustic performance is a 16-core silk membrane tweeter that extends high-frequency reproduction up to 30 kHz. A specially tuned equalization profile refines the high-frequency response, producing clearer treble, improved resolution, and enhanced vocal articulation. This tuning ensures transparent sound reproduction that appeals to music-focused listening as well as multimedia playback.

Low-frequency performance is strengthened through the use of a passive radiator and vibration plate system designed in accordance with an acoustic volume patent. This structure increases effective cabinet volume, improves bass depth, and enhances the overall soundstage without increasing physical size. The coaxial speaker configuration further supports consistent sound dispersion across listening areas.

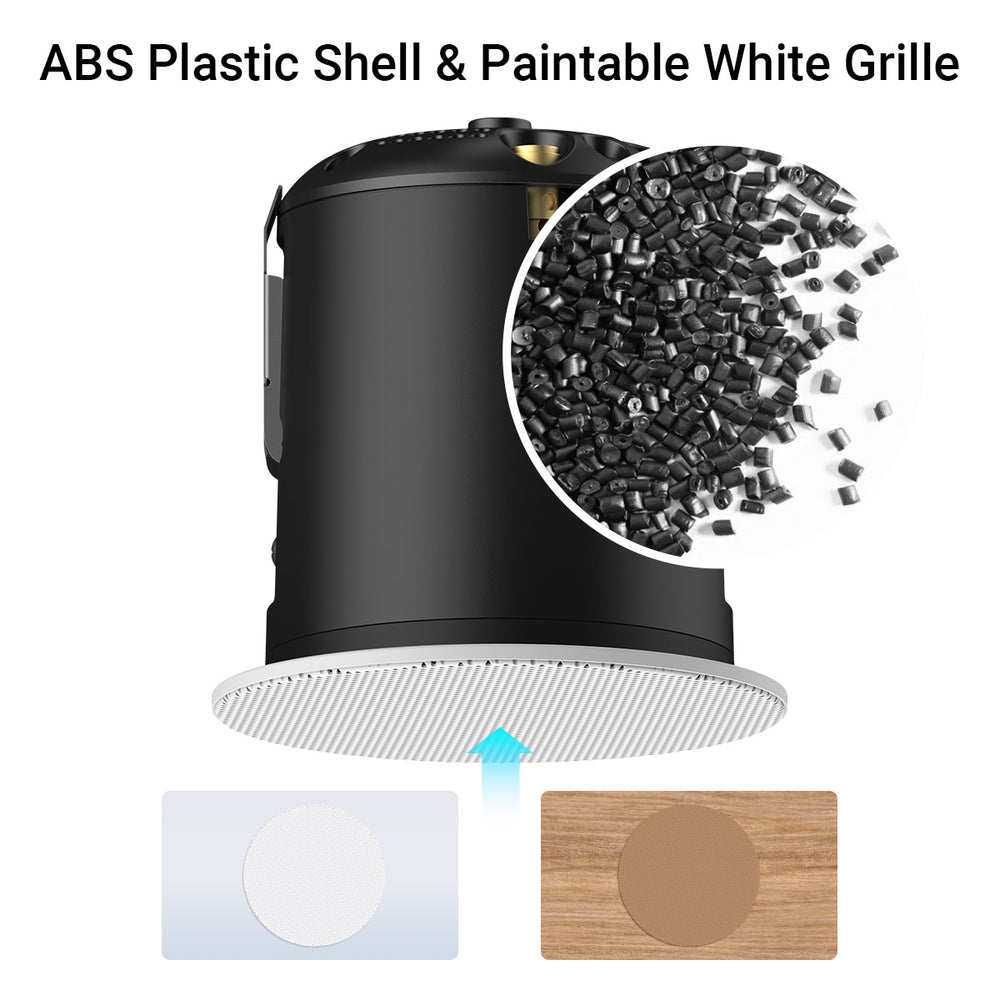

The enclosure features a fully sealed back cover that supports controlled resonance and stable acoustic behavior. Manufactured from durable ABS plastic, the housing is resistant to temperature variations and protects internal components from dust and moisture. With an IP66 rating, the CK30C is suitable for challenging environments such as bathrooms, outdoor rooftops, and utility spaces.

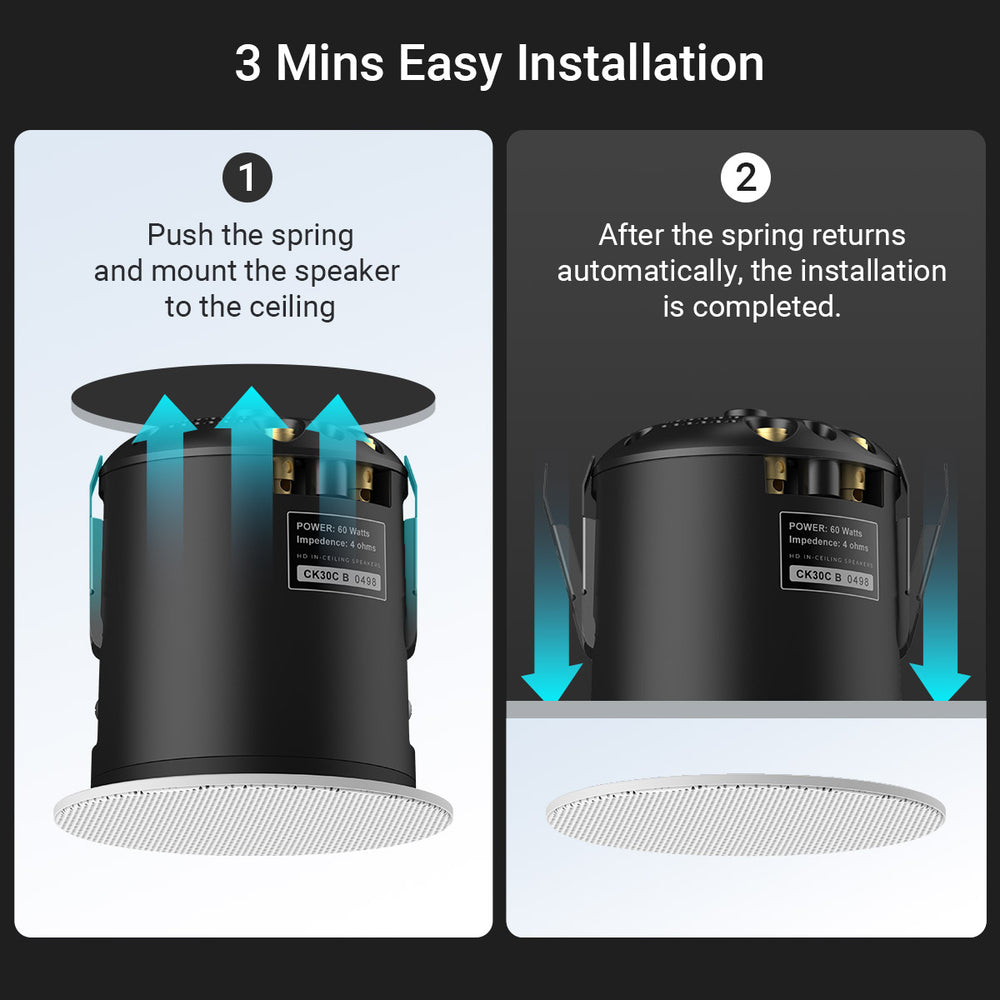

Installation is designed to be quick and efficient using pre-installed dog-leg clamps and press-fit connectors. The speaker supports ceiling mounting as well as pendant-style installation, offering flexibility for different architectural layouts and interior design requirements.

Features of CK30C In-Ceiling Speaker

• Compact form factor with up to 60 W dynamic power handling

• 16-core silk membrane tweeter for extended high-frequency clarity

• Passive radiator design for deeper bass and wider soundstage

• IP66-rated enclosure for dust and water resistance

• ABS housing for durability and temperature resistance

• Coaxial speaker system for uniform sound dispersion

• Fast installation with integrated mounting clamps

• Supports ceiling and pendant-style mounting options

Specifications of CK30C In-Ceiling Speaker
