Bose ArenaMatch AM10/60 Outdoor Array Loudspeaker

Description of AM10/60.

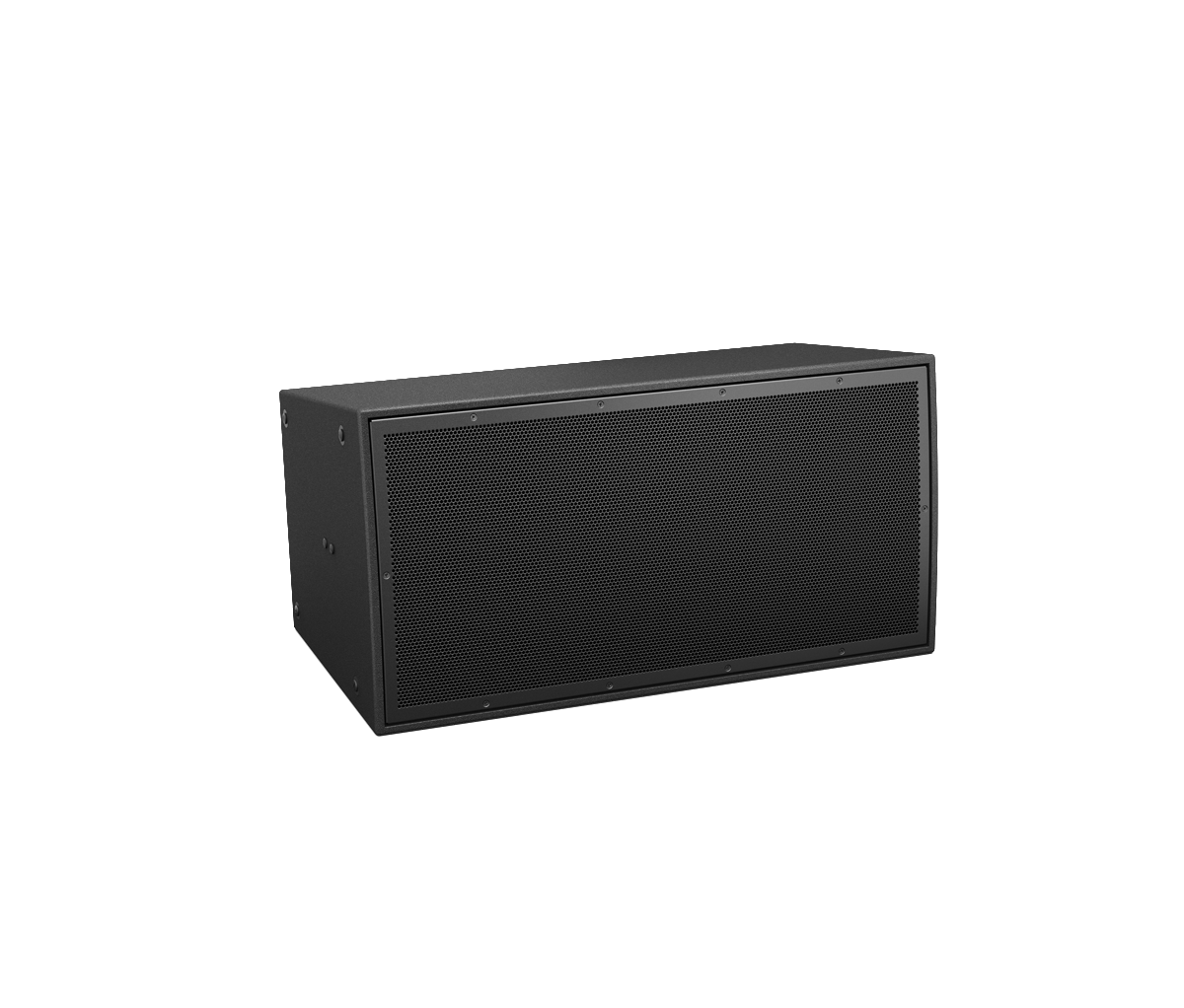

Bose Professional ArenaMatch AM10/60 outdoor DeltaQ array loudspeaker, black

The Bose Professional ArenaMatch AM10/60 is an outdoor loudspeaker module built to bring proven DeltaQ sound quality and array flexibility to large outdoor venues such as stadiums, arenas, and outdoor entertainment centers. As part of the ArenaMatch family, the AM10/60 lets system designers combine modules with different coverage angles within the same array to precisely match sound distribution to the shape of the audience area.

This module delivers 10 degree nominal vertical coverage paired with a 60 degree horizontal waveguide, and the horizontal waveguide itself can be swapped for an alternative angle to further tailor coverage without changing the entire enclosure. DeltaQ array technology allows the directivity, or Q, to vary module by module, so fewer enclosures are needed to cover an audience area evenly, reducing weight, sightline obstruction, and overall system cost.

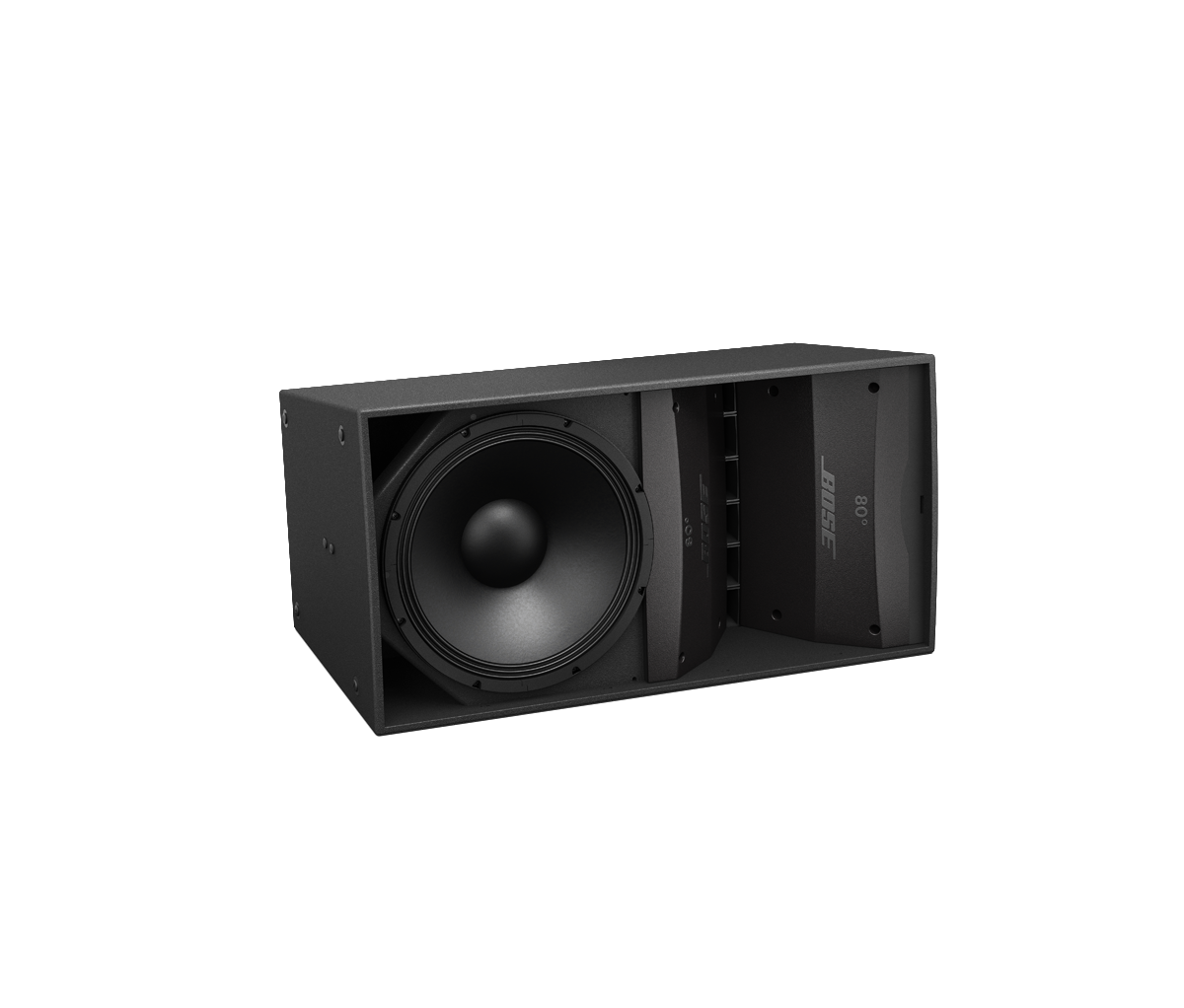

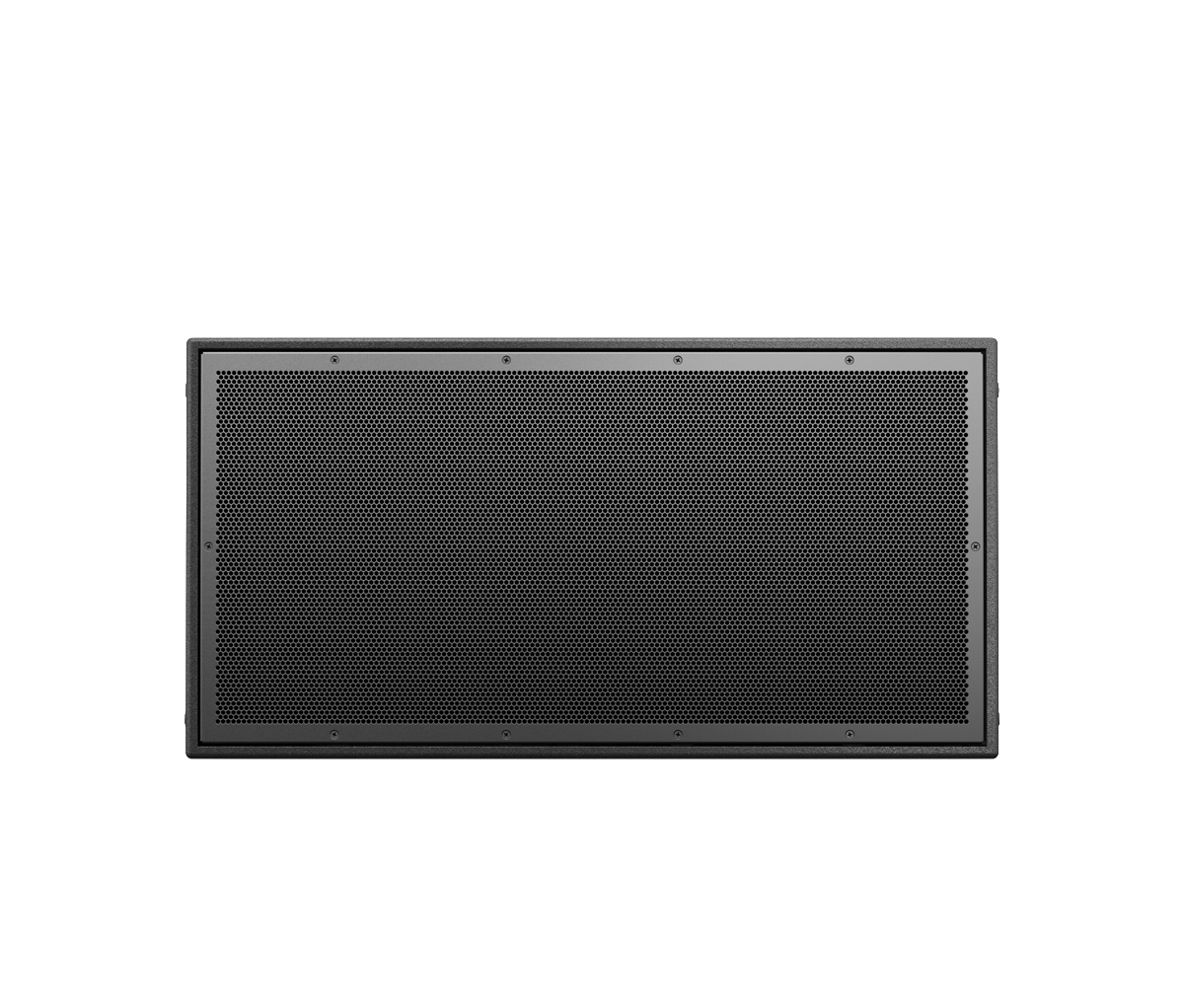

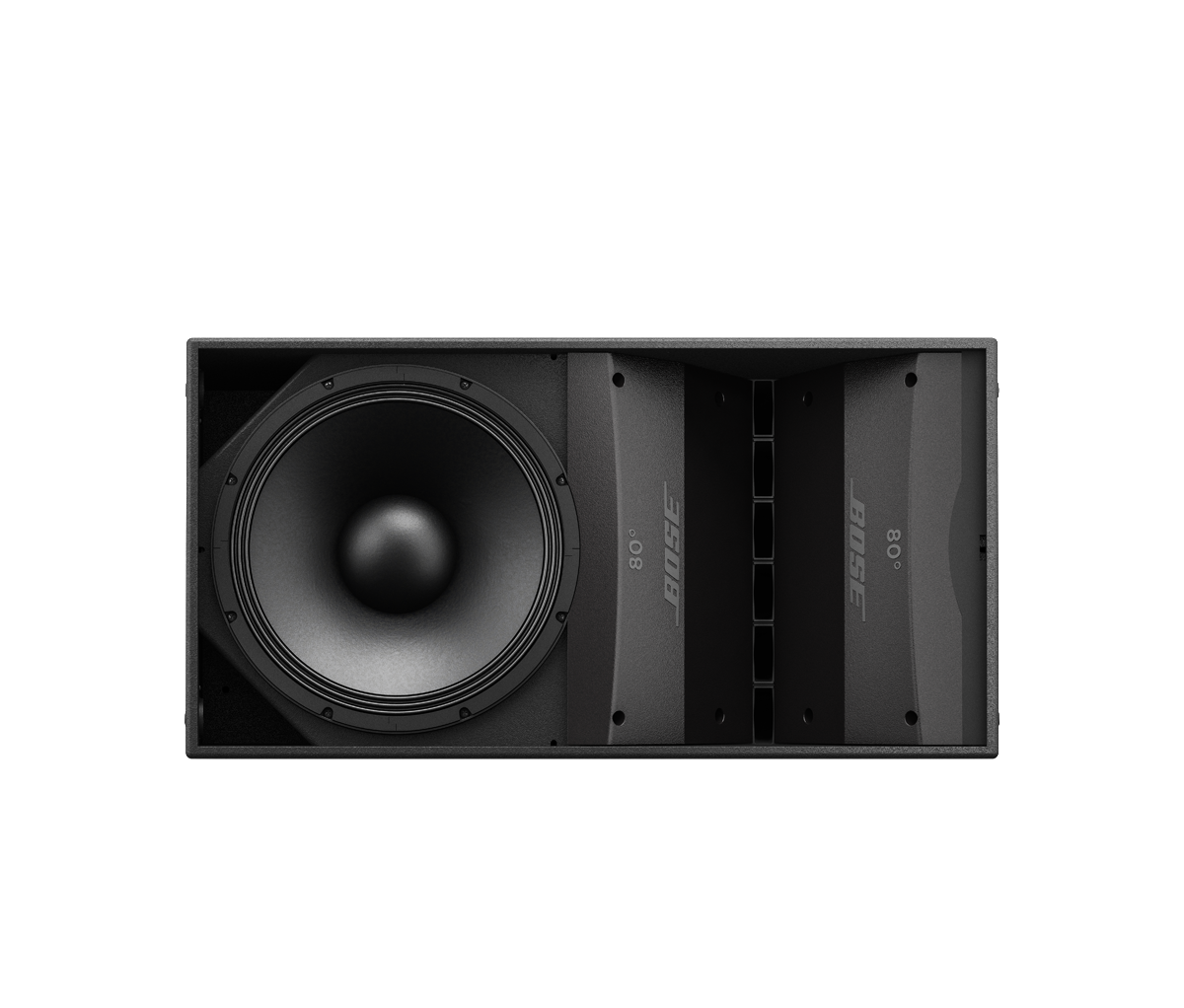

Sound is produced by a 14-inch neodymium woofer paired with six titanium-diaphragm neodymium compression drivers, delivering high-SPL, long-throw output with clear vocal intelligibility across the coverage area. The enclosure is rated for direct-exposure outdoor installation, featuring a three-layer stainless steel grille, a water-resistant woofer cone coating, an industrial polyurethane exterior finish, and a molded input cover to withstand sustained outdoor use.

Each ArenaMatch module ships with bi-amp capability, a passive crossover, and 70/100V transformer inputs, giving installers flexibility to configure the module for a range of amplifier and distribution setups. Standard M12 threaded inserts and a quick-pin rigging system simplify building custom array frames, and the module pairs naturally with Bose Professional PowerMatch amplifiers and ControlSpace processors for a complete outdoor sound reinforcement system.

Features of AM10/60

• 10° vertical x 60° horizontal DeltaQ coverage
• Interchangeable horizontal waveguide for custom coverage
• 14-inch neodymium woofer
• 6 titanium-diaphragm neodymium compression drivers
• Direct-exposure outdoor rating, IP55
• 3-layer stainless steel grille
• Water-resistant woofer cone coating
• Industrial polyurethane exterior coating
• Bi-amp capable with passive crossover and 70/100V taps
• M12 threaded inserts and quick-pin rigging system

Specifications of AM10/60
