Bose ControlSpace CC-16 Zone Controller – White
The Bose ControlSpace CC-16 is a wall-mounted zone controller with a backlit LCD and pushbuttons, giving end users programmable control over sources, scenes, and settings within a larger ControlSpace processor system.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,747.20 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Description of CC-16.
Bose ControlSpace CC-16 zone controller, white

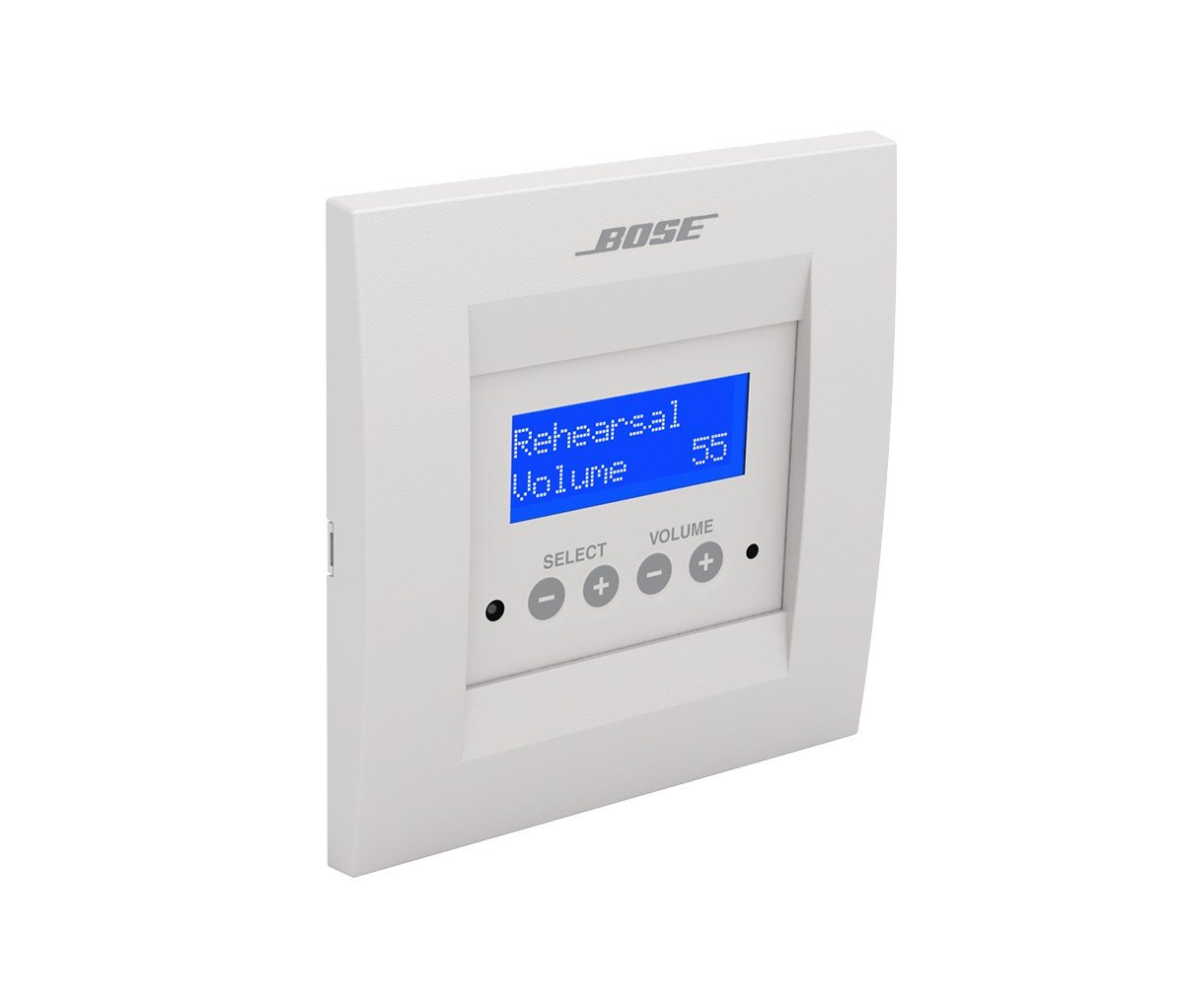

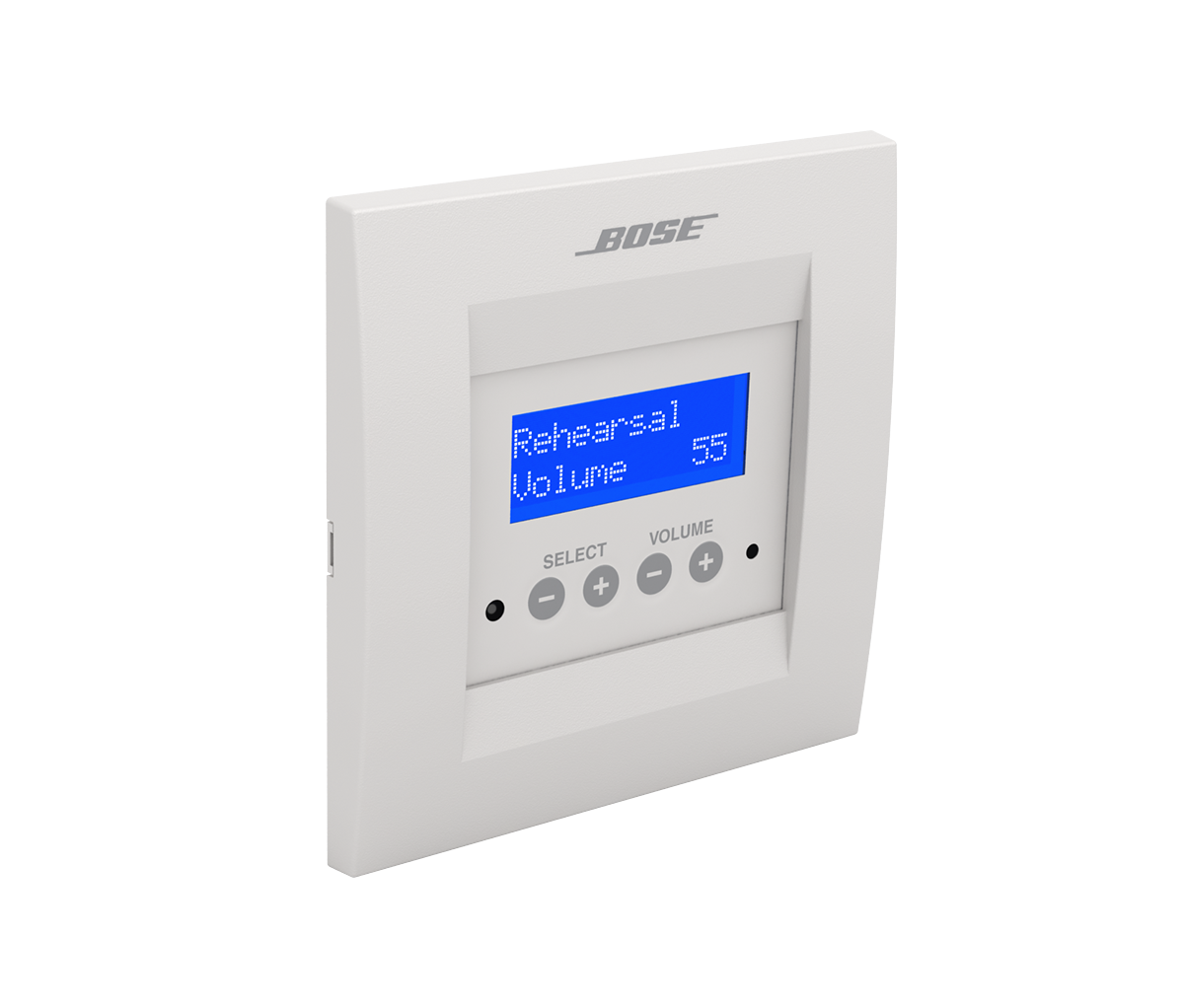

The Bose ControlSpace CC-16 zone controller is an elegant, wall-mounted device that provides end-user control over a ControlSpace engineered sound processor system. It is intended for occupants who need more than simple volume adjustment, offering a programmable interface that can be tailored to the exact controls a space requires.
Custom programming performed in ControlSpace Designer software determines what the CC-16 can control, from switching between remote audio sources to recalling pre-configured system ‘scenes’ for different room usage scenarios. This flexibility makes the CC-16 well suited to spaces that are reconfigured throughout the day, such as meeting rooms, worship spaces, or multipurpose venues.
A bitmap LCD display combined with four control buttons lets users navigate available options and see the current system status at a glance. On-screen wording is fully customizable during programming, so labels can match the terminology used elsewhere in the building rather than generic factory defaults.
The CC-16 connects to a ControlSpace ESP-88 processor over an RS-485 network, with up to fifteen units supported per processor and a maximum cable run of 2000 feet in a daisy-chain configuration. ControlSpace Designer’s Smart Simulation feature lets integrators verify programming on a virtual CC-16 display before ever connecting the physical hardware.
Features of CC-16
- Programmable wall-mounted zone controller for ControlSpace
- Bitmap LCD display with four control buttons
- Customizable on-screen wording for each installation
- Source switching and scene recall programmed via software
- RS-485 connection to ControlSpace ESP-88 processor
- Up to 15 units supported per processor
- Maximum cable run of 2000 feet, daisy-chain wiring
- Smart Simulation for offline programming verification
- Fits a standard 2-gang electrical wall box
- White finish for a clean, unobtrusive look
Specifications of CC-16
| Model | ControlSpace CC-16 |
| Colour | White |
| Display | Bitmap LCD |
| Controls | 4 pushbuttons |
| Connector | RS-485 network |
| Compatible Processor | ControlSpace ESP-88 |
| Max Units Per System | 15 per ESP-88 processor |
| Max Cable Length | 2000 ft (609 m), daisy-chain |
| Mounting | Standard 2-gang electrical wall box |
| Configuration Software | ControlSpace Designer |
