BSS Soundweb London BLU-6 Wall-Mount Controller

BSS Soundweb London BLU-6 wall-mount controller (UK)

The Soundweb London BLU-6 wall panel is a simple, cost-effective controller that allows system designers to provide level control and source selection or preset recall directly at the wall, without dedicating a full Ethernet Contrio controller to the task. It connects to the control ports on the rear of a compatible Soundweb London chassis such as the BLU-16, BLU-32, or BLU-80.

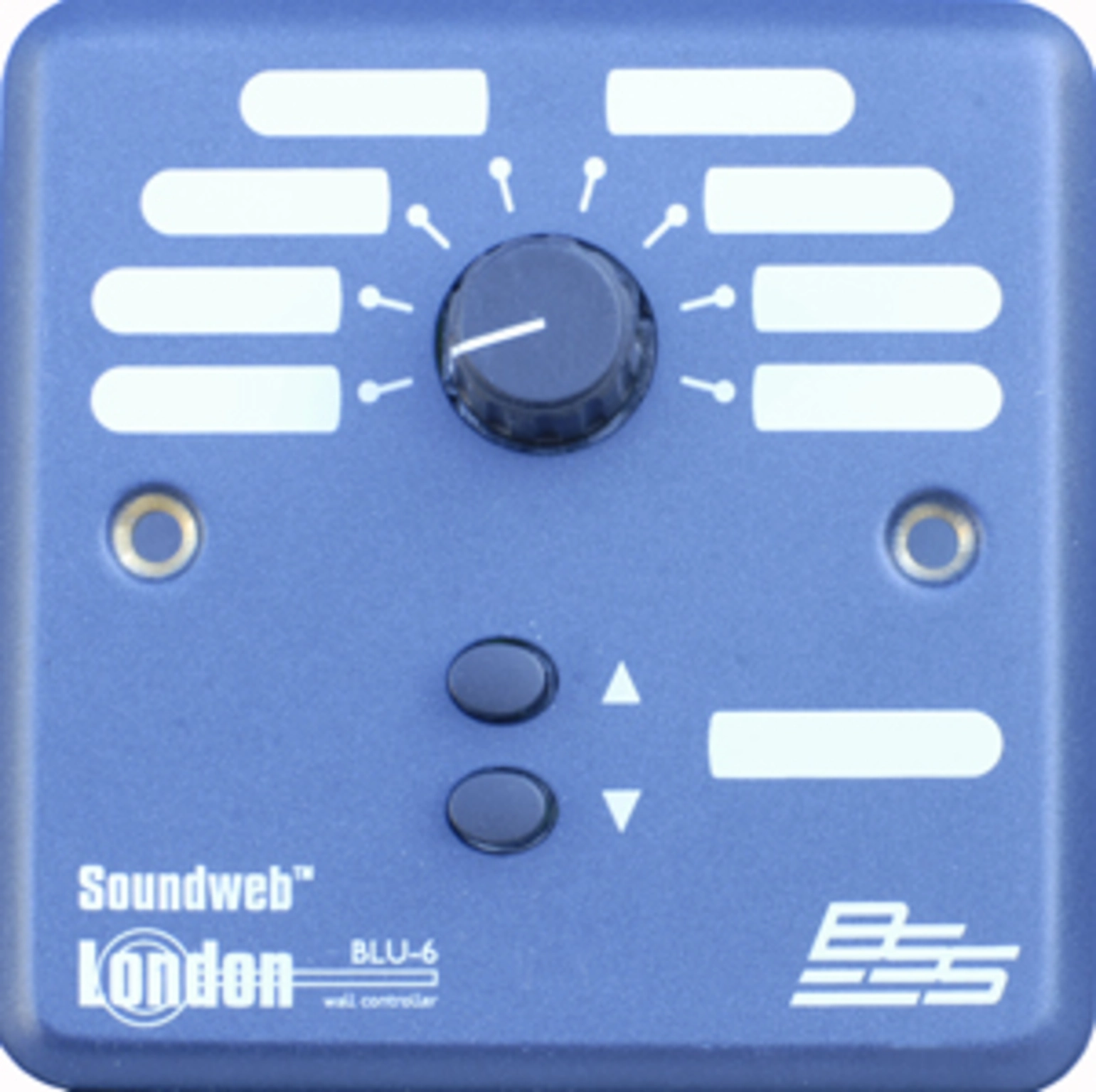

The BLU-6 offers a rotary fader and a six-way switch that can be mapped in HiQnet Audio Architect to a variety of functions. The switch can be used to select system presets, such as configurations specific to particular times of day or event types, while the rotary control is commonly assigned to zone volume adjustment, giving non-technical users a simple and intuitive local control point.

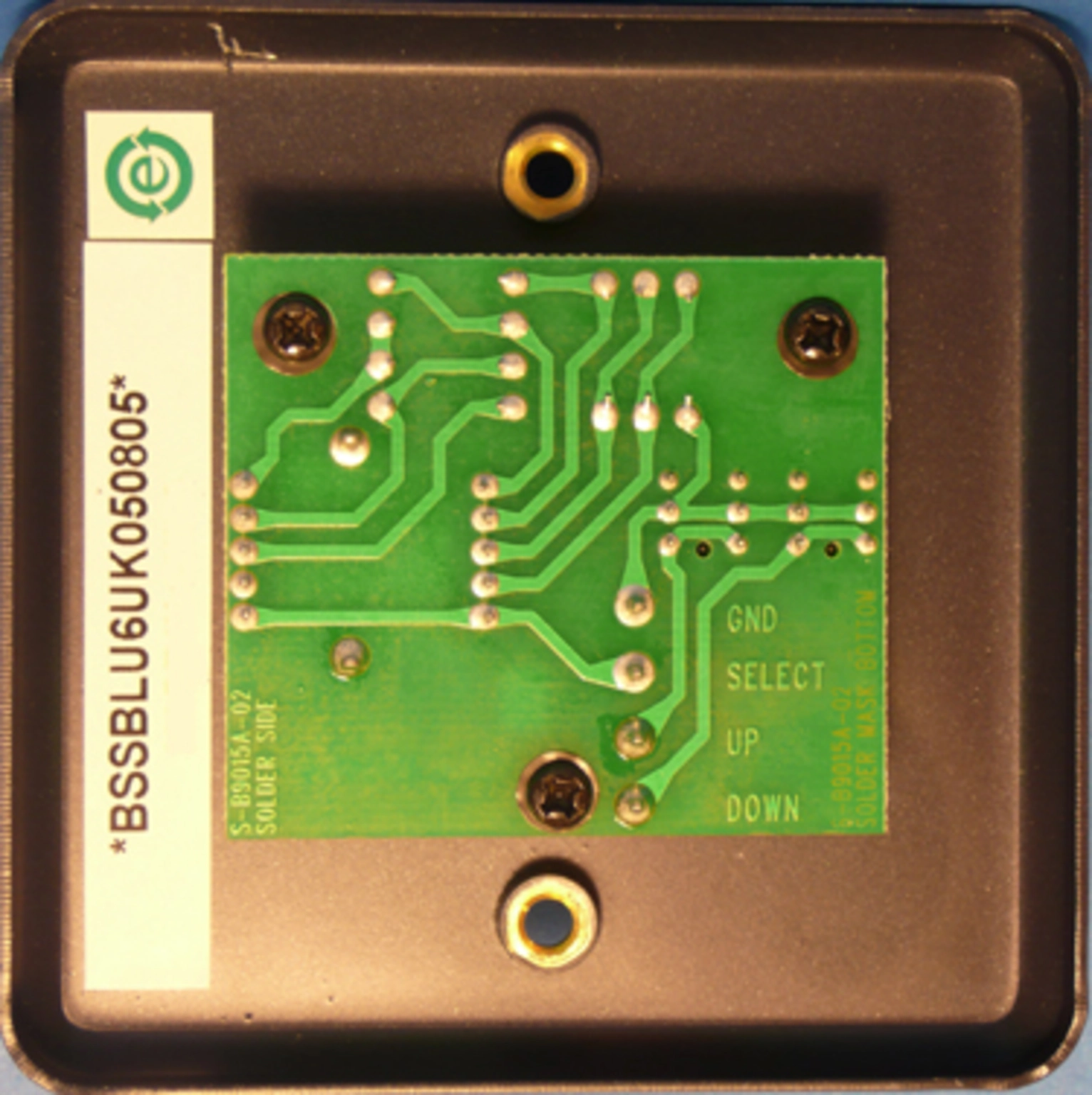

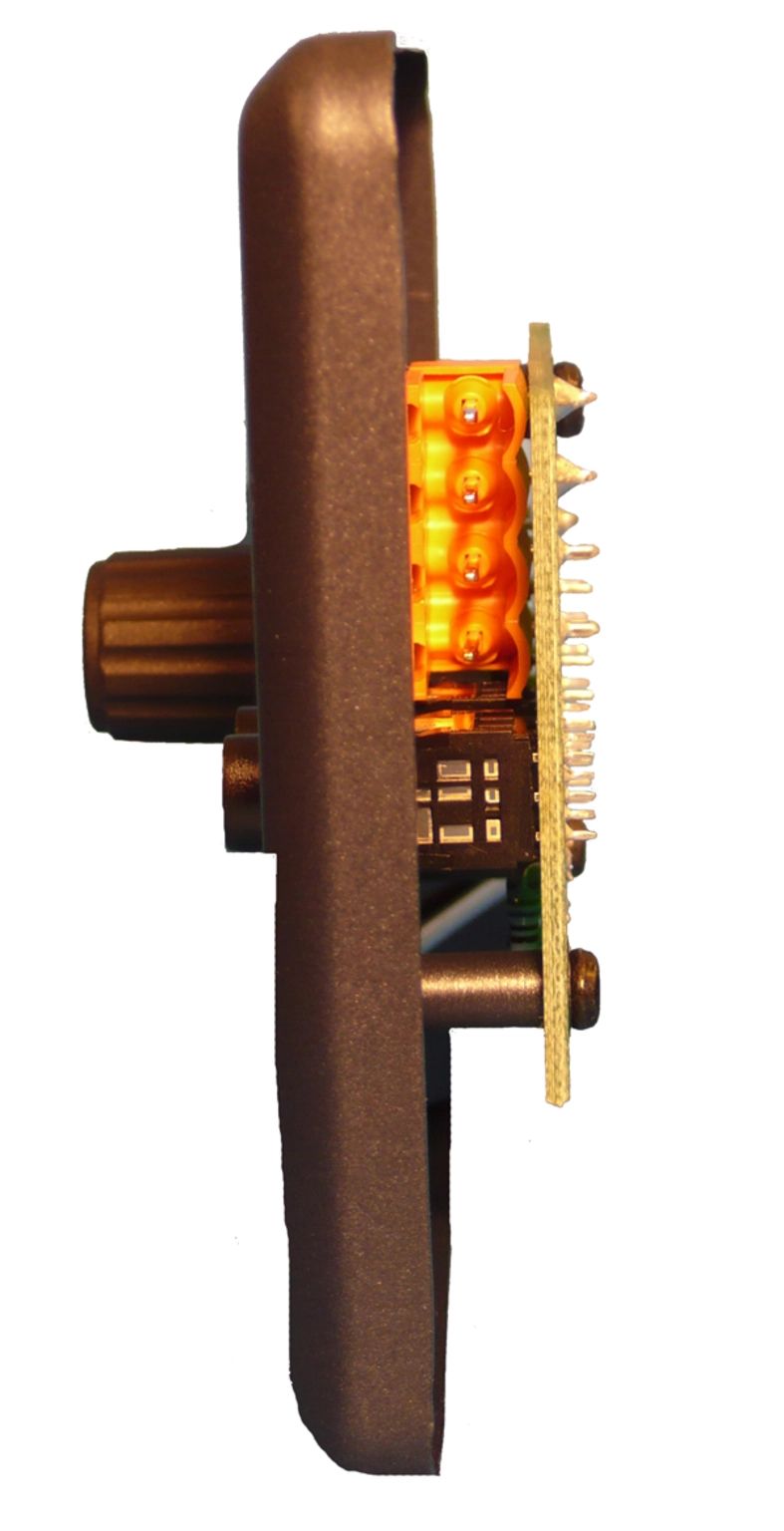

The switch and fader carry blank ident areas that can be labeled directly or with self-adhesive labels to describe their assigned function, and connection to the host Soundweb London device is made through standard Phoenix/Combicon removable screw terminal connectors, keeping installation consistent with the rest of the product family.

As a purely analog control device, the BLU-6 requires no separate power supply or network connection of its own, drawing control signal directly from the host processor. This makes it an economical option for adding a straightforward local control point to classrooms, meeting rooms, retail spaces, and other zones within a larger Soundweb London installation.

Features of BLU-6

• Simple wall-mounted analog controller
• Rotary fader for continuous level control
• Six-way switch for source or preset selection
• Connects directly to Soundweb London control ports
• Mappable functions via HiQnet Audio Architect
• Blank ident areas for custom labeling
• Phoenix/Combicon removable screw terminal connection
• No separate power supply required
• Compatible with BLU-16, BLU-32, BLU-80, and related chassis
• Compact wall plate form factor
• Economical local control solution

Specifications of BLU-6
