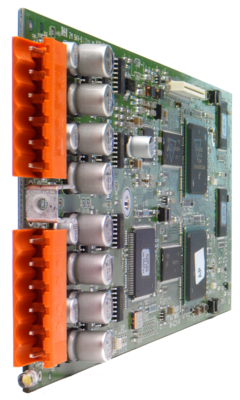

BSS Soundweb London Analog Output Card

BSS Soundweb London Analog Output Card analog output card

The Soundweb London Analog Output Card is designed to populate any of the four card slots on Soundweb London chassis such as the BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16, giving system integrators a modular way to configure the exact I/O mix required for a given installation.

The Analog Output Card enables Soundweb London devices to send balanced line-level signals to amplifiers, powered loudspeakers, and other downstream audio equipment, giving system designers flexible output expansion within a modular chassis.

The card delivers a maximum output level of +19 dBu with a frequency response of 20 Hz to 20 kHz (+0.5 dB / -1 dB) and total harmonic distortion below 0.01% across the audio band, ensuring transparent, high-fidelity signal delivery. Dynamic range of 108 dB typical keeps the output stage quiet even in demanding installed sound applications.

Each Analog Output Card card provides four channels of line-level outputs, keeping a consistent channel density across the Soundweb London card range so that chassis I/O can be planned and budgeted predictably. Cards are hot-swappable within a properly powered-down chassis and are secured with captive screws for reliable long-term operation in installed sound environments.

By using field-configurable cards rather than fixed I/O, the Analog Output Card allows a single Soundweb London chassis to be adapted over the lifetime of an installation as requirements change, protecting the integrator’s investment in the core processing hardware while still allowing the physical I/O to evolve alongside the project.

Features of Analog Output Card

• 4-channel analog output card for Soundweb London chassis
• Populates any of the four card slots on compatible chassis
• Compatible with BLU-800, BLU-320, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
• 4-channel balanced analog line-level outputs
• Maximum output level of +19 dBu
• Frequency response 20 Hz – 20 kHz (+0.5 dB / -1 dB)
• THD below 0.01% across the audio band
• 108 dB typical dynamic range
• Hot-swappable within a powered-down chassis
• Captive screw retention for reliable connection
• Field-upgradable I/O configuration
• Consistent 4-channel density across the card range
