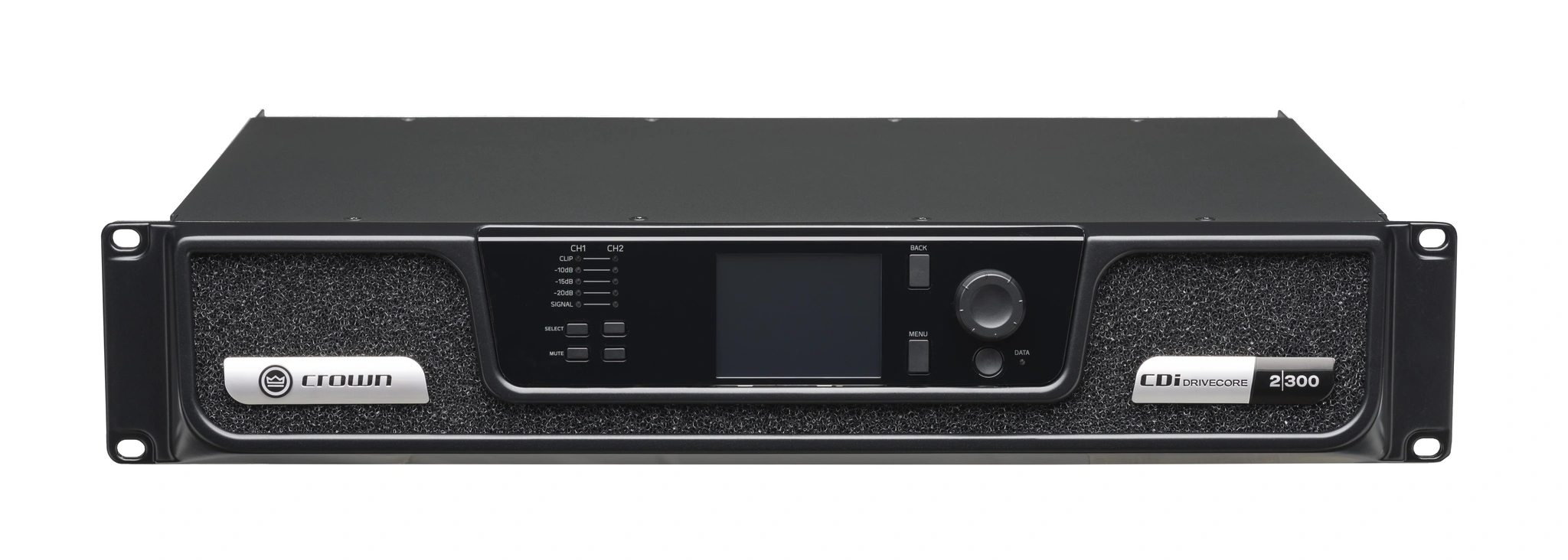

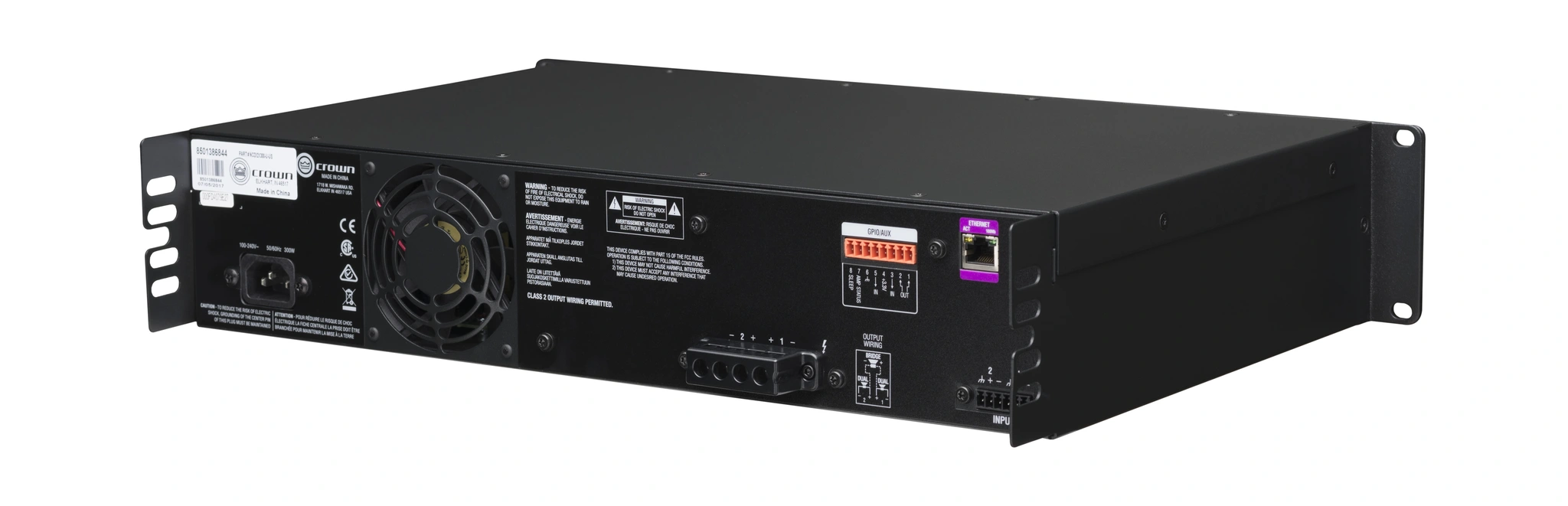

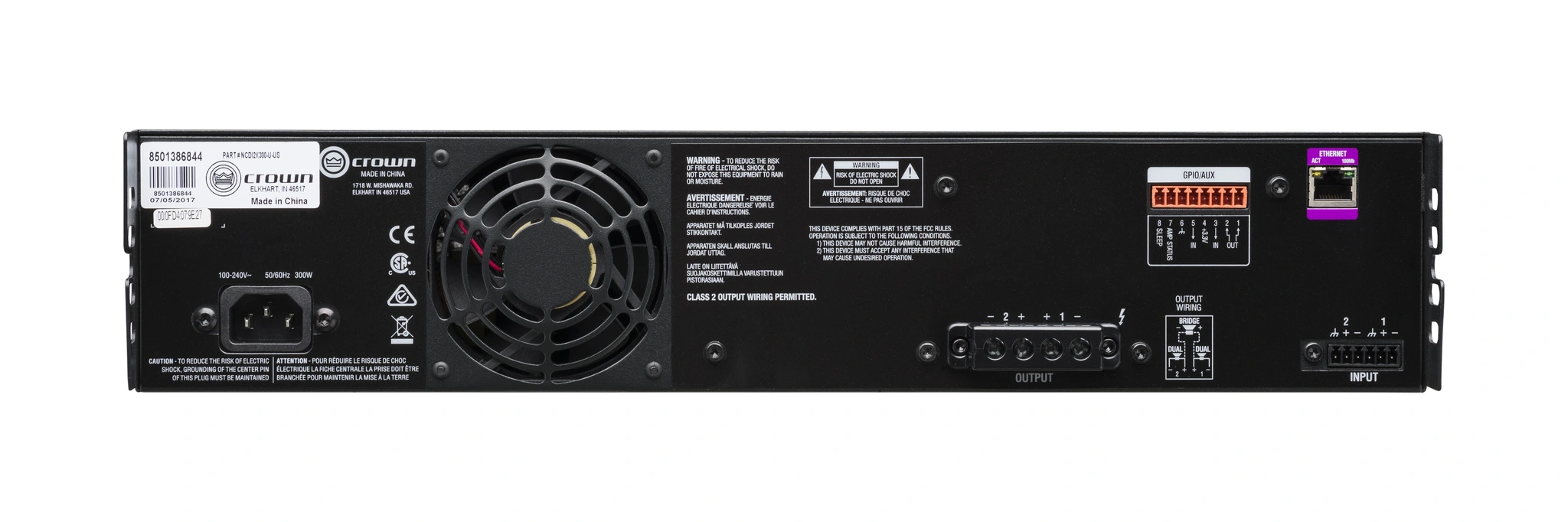

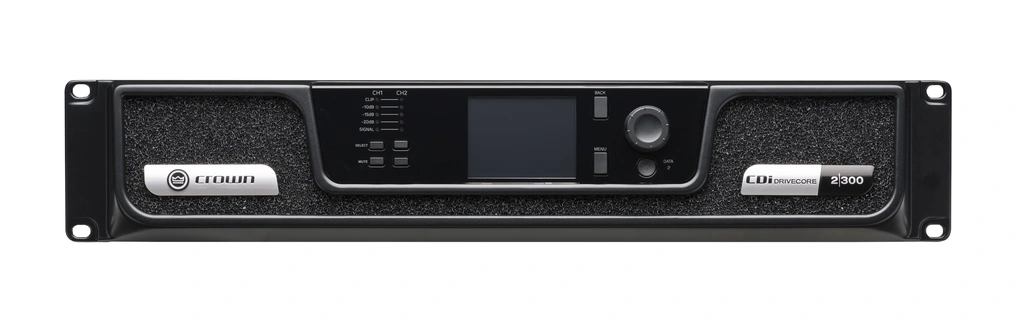

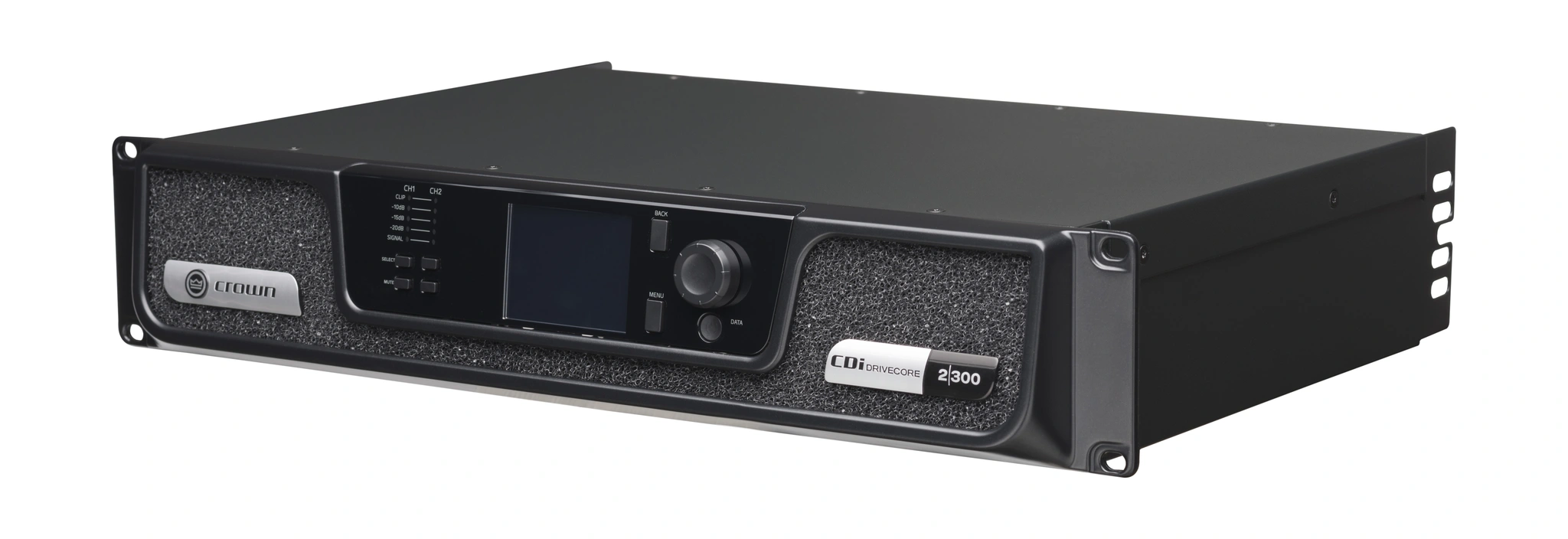

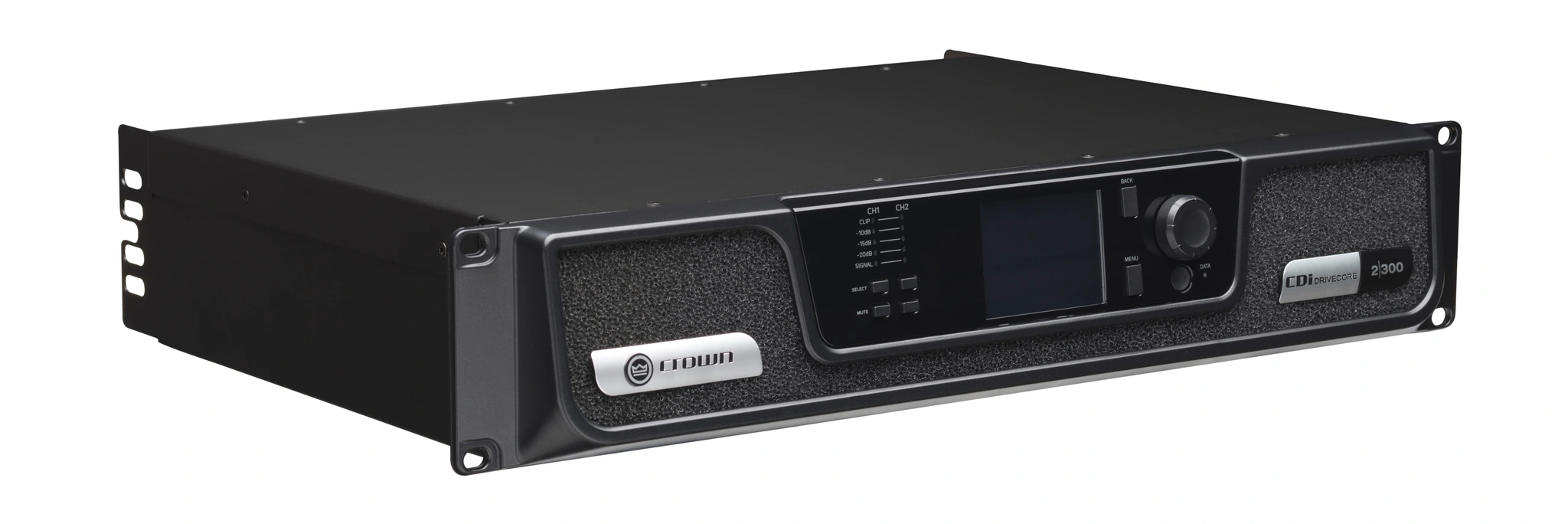

Crown NCDI2X300-U-UK CDi DriveCore 2|300 Installation Power Amplifier
The Crown CDi DriveCore 2|300 amplifier combines efficient two-channel power delivery, advanced DSP processing, and network control with flexible 70V/100V operation for commercial installed audio applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 7,517.01 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Crown CDi DriveCore 2|300 Installation Power Amplifier
The Crown CDi DriveCore 2|300 is a professional-grade two-channel amplifier developed for commercial installed sound systems requiring dependable performance, flexible configuration, and integrated digital processing. Based on Crown’s advanced DriveCore amplifier platform, the CDi DriveCore 2|300 delivers efficient operation with reduced internal component complexity, resulting in reliable long-term performance and consistent audio quality for professional environments.
Optimized for small and medium-scale installations, the amplifier is suitable for restaurants, retail stores, educational spaces, hospitality venues, meeting rooms, and other distributed audio applications. Each channel supports both low-impedance loudspeakers and high-voltage 70V/100V systems without the need for external transformers, simplifying installation while maintaining clean and stable power delivery. The amplifier provides up to 300 watts per channel, making it suitable for background music, paging, and commercial sound reinforcement systems.
Integrated DSP functionality allows installers to customize system performance directly within the amplifier. Built-in processing features include input routing, crossover configuration, parametric equalization, signal delay, and LevelMAX limiting for improved loudspeaker protection and optimized sound performance. Pre-configured JBL loudspeaker tunings are included to accelerate setup and provide accurate speaker optimization in compatible installations.
The amplifier also supports network-based control and monitoring through Harman HiQnet Audio Architect software, enabling centralized management and remote adjustment of system parameters. An intuitive front-panel interface provides direct access to configuration settings, monitoring functions, and operational controls for easier system deployment and maintenance. With low distortion performance, excellent damping characteristics, and universal AC compatibility, the Crown CDi DriveCore 2|300 delivers professional amplification performance for modern installed audio systems.
Features of CDi DriveCore 2|300
- Professional 2-channel installation amplifier
- Advanced Crown DriveCore technology
- Integrated DSP audio processing
- Network control and system monitoring
- Direct 70V speaker system support
- Direct 100V speaker system support
- Transformer-free high-voltage outputs
- Front-panel setup and monitoring interface
- JBL speaker tuning presets included
- Flexible input routing configuration
- 8-band input equalization
- 8-band output equalization
- Integrated crossover processing
- Adjustable input delay control
- Adjustable output delay control
- LevelMAX speaker protection limiting
- GPIO and AUX integration support
- High damping factor architecture
- Low-noise audio performance
- Rackmount commercial installation design
Specifications of CDi DriveCore 2|300
| Amplifier Type | Commercial installation power amplifier |
| Channels | 2 |
| DriveCore Technology | Yes |
| BLU Link Support | No |
| Power Output @ 2 Ohms | 150W per channel |
| Power Output @ 4 Ohms | 300W per channel |
| Power Output @ 8 Ohms | 300W per channel |
| Power Output @ 16 Ohms | 150W per channel |
| Power Output @ 70Vrms | 300W per channel |
| Power Output @ 100Vrms | 300W per channel |
| Bridge Mono Output @ 4 Ohms | 300W |
| Bridge Mono Output @ 8 Ohms | 600W |
| Bridge Mono Output @ 16 Ohms | 600W |
| Bridge Mono Output @ 140Vrms | 600W |
| Bridge Mono Output @ 200Vrms | 600W |
| Input Sensitivity | 0.7V RMS |
| Frequency Response | ±0.5 dB (20 Hz – 20 kHz) |
| Total Harmonic Distortion | 0.35% |
| Damping Factor | >1000 |
| Crosstalk | >80 dB |
| Signal-to-Noise Ratio | >104 dB |
| Balanced Input Impedance | 20 kΩ |
| Unbalanced Input Impedance | 10 kΩ |
| DSP Functions | EQ, crossover, delay, limiting |
| Input EQ | 8-band parametric |
| Output EQ | 8-band parametric |
| Input Delay | Up to 1000 ms |
| Output Delay | Up to 100 ms |
| Limiter Type | LevelMAX |
| Network Management | Supported |
| GPIO/AUX Port | Yes |
| JBL Speaker Presets | Included |
| Power Supply | 100 – 240V AC |
| Power Connector | IEC Type 320 |
| Rack Height | 2RU |
| Dimensions (W × H × D) | 19 × 3.5 × 12.25 in |
| Weight | 14.56 lb (6.6 kg) |
