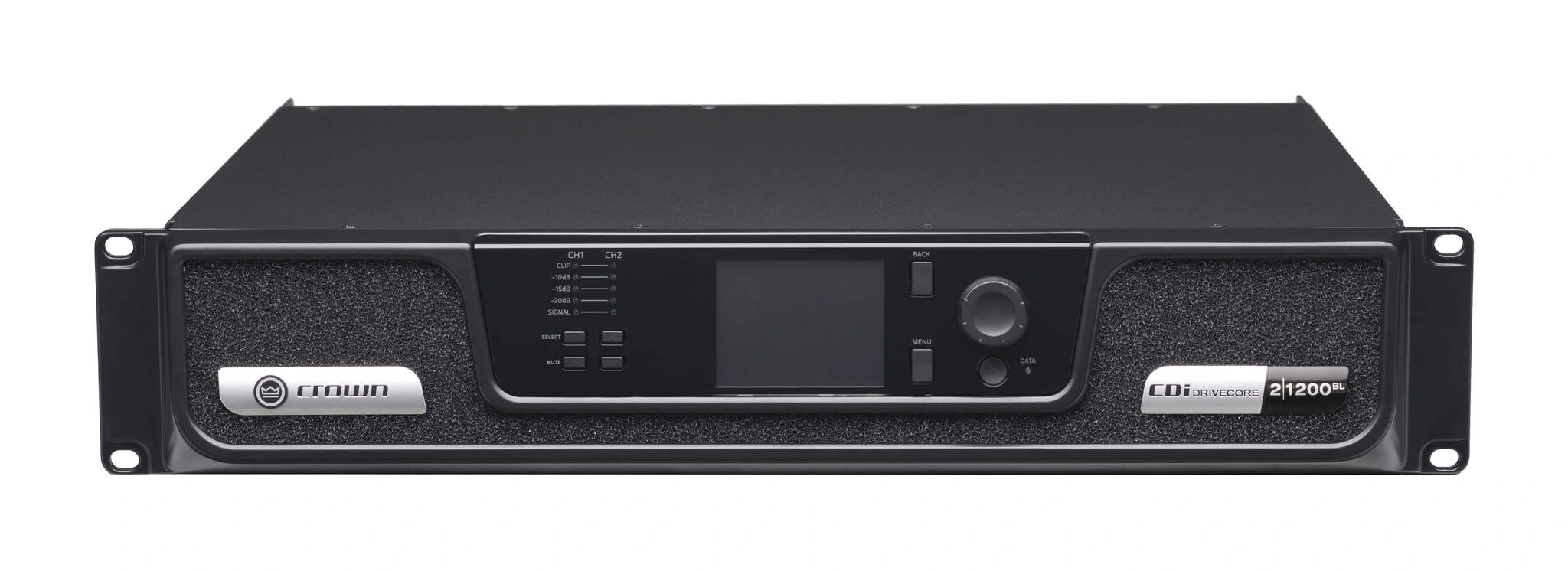

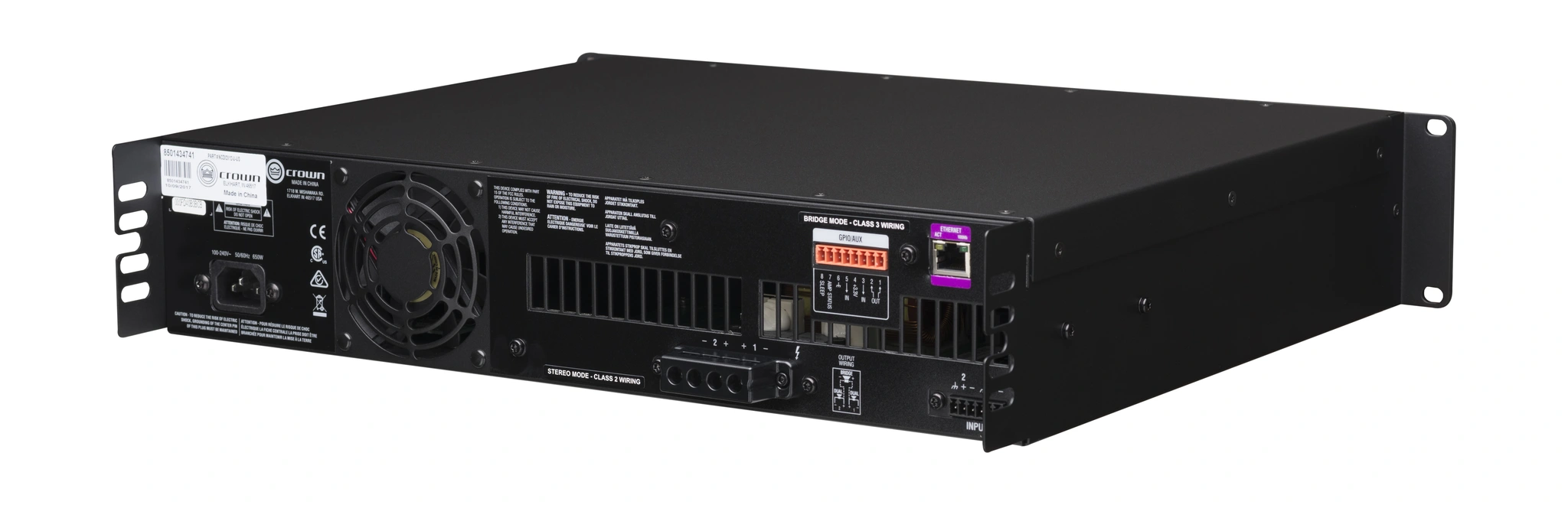

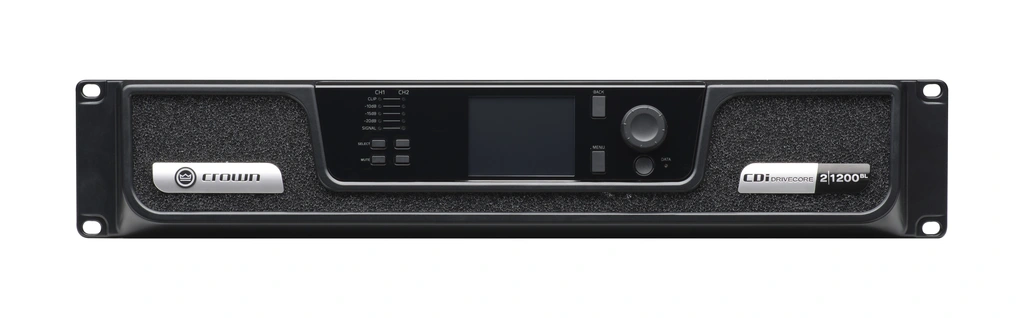

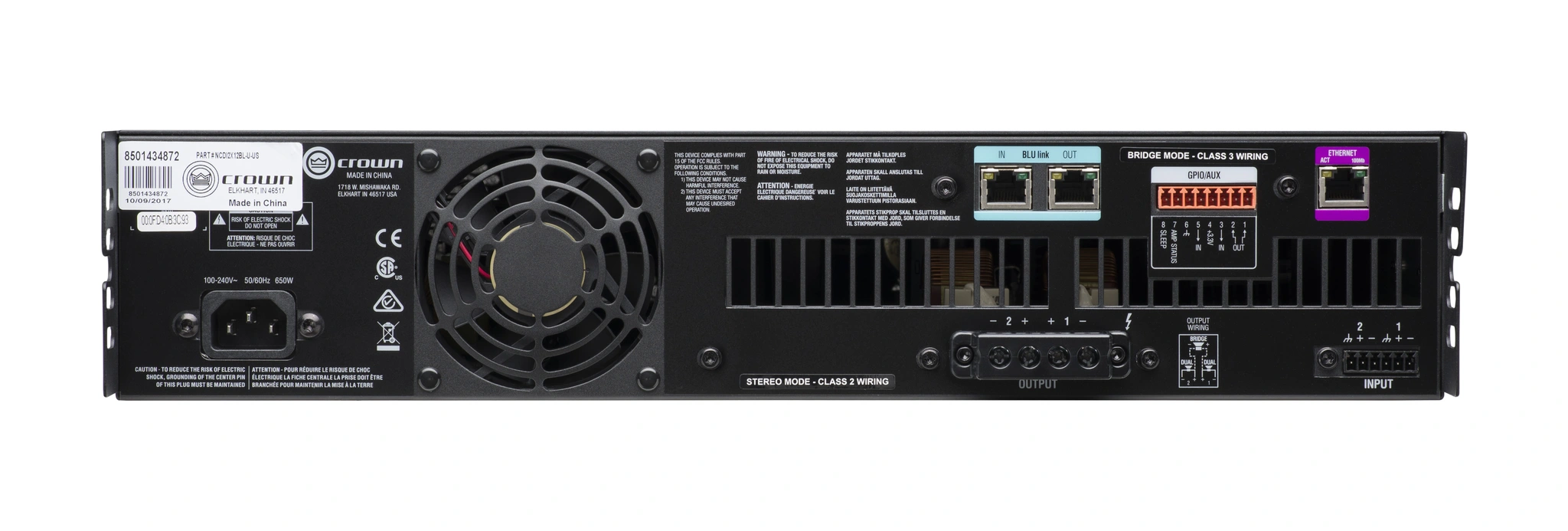

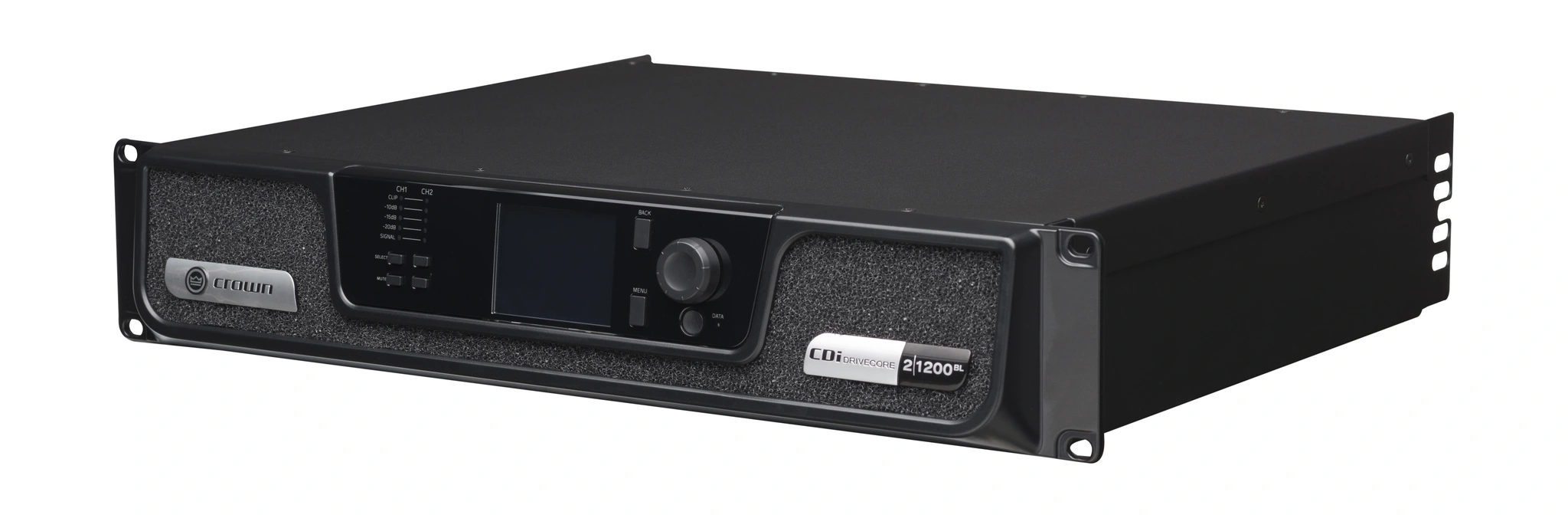

Crown NCDI2X12BL-U-UK CDi 2|1200BL Analog + BLU link input, 2 channel Amplifier

Crown CDi DriveCore 2|1200BL Installation Amplifier

The Crown CDi DriveCore 2|1200BL is a high-performance 2-channel power amplifier developed for professional installed audio systems in venues such as cinemas, hotels, conference centers, houses of worship, cruise ships, and large commercial facilities. Incorporating advanced DriveCore technology from Crown’s premium installation amplifier lineup, the amplifier delivers efficient power output, integrated DSP functionality, digital networking capability, and reliable long-term operation in a compact rackmount chassis.

Designed for flexible integration, the CDi DriveCore 2|1200BL supports both low-impedance loudspeaker systems and high-voltage distributed audio configurations including 70V and 100V speaker loads without requiring external transformers. The amplifier provides up to 1200 watts per channel, making it suitable for demanding audio installations requiring consistent coverage and high-output performance across multiple zones.

Integrated DSP processing allows system designers and installers to configure loudspeaker tuning, equalization, crossover settings, delay adjustment, and overall system optimization directly within the amplifier. Factory-installed JBL loudspeaker presets help accelerate deployment while ensuring optimized speaker performance in professional sound systems.

The inclusion of BLU link digital audio networking enables seamless audio transport over HARMAN’s digital audio bus infrastructure, simplifying connectivity between compatible professional audio devices. Combined with network monitoring and remote management support, the amplifier enables centralized control and efficient system operation across complex installations.

High damping factor performance and low distortion characteristics contribute to clean, controlled, and accurate sound reproduction throughout the frequency range. The amplifier also supports bridge-mono operation for applications requiring increased output capability. With advanced connectivity, integrated digital processing, and reliable high-power operation, the Crown CDi DriveCore 2|1200BL is engineered for modern commercial and installed audio environments.

Features of CDi DriveCore 2|1200BL

• 2-channel professional installation amplifier
• Advanced DriveCore amplification platform
• Integrated BLU link audio networking
• Built-in DSP signal processing
• Remote monitoring and network control
• Front-panel system management interface
• Supports 70V distributed audio systems
• Supports 100V distributed audio systems
• Transformer-free high-voltage operation
• Factory-loaded JBL loudspeaker presets
• Bridge-mono amplification support
• High damping factor performance
• Low distortion signal reproduction
• Compatible with low-impedance speakers
• Rackmount commercial installation design
• Universal AC power compatibility

Specifications of CDi DriveCore 2|1200BL
