DBX 641V-EU 6×4 Digital Zone Processor
The dbx ZonePRO 641 delivers advanced 6×4 commercial audio processing with flexible routing, comprehensive DSP, AutoWarmth technology, and versatile control options for professional installed sound systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 3,878.08 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

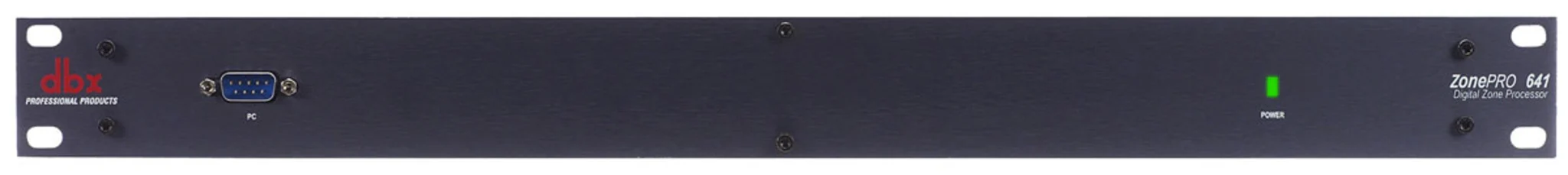

dbx ZonePRO 641 Digital Zone Processor
The dbx ZonePRO 641 is a professional digital signal processor engineered to provide advanced audio routing, comprehensive DSP processing, and centralized system control for commercial audio installations. Featuring six inputs and four outputs, the processor is designed for hospitality venues, retail environments, educational facilities, conference centers, houses of worship, and other installed sound applications requiring dependable multi-zone audio management. Its combination of powerful signal processing and intuitive control capabilities enables installers to build scalable, high-performance commercial audio systems with ease.
The processor supports professional and consumer audio sources through switchable microphone and line inputs alongside RCA source inputs. Extensive input processing includes gain adjustment, parametric equalization, noise gating, de-essing, automatic gain control, compression, and Advanced Feedback Suppression (AFS™), ensuring clear speech reproduction and stable system performance. The integrated routing engine provides primary source selection, source ducking for paging applications, and priority override functions, allowing efficient management of multiple audio sources across independent zones.
Each output features advanced processing tools including parametric equalization, bandpass and crossover filters, limiting, delay, and the patented AutoWarmth® technology developed with JBL to preserve natural low-frequency response at reduced playback levels. Additional system control is available through optional wall panel controllers, RS-232 communication, a built-in real-time clock for scheduled automation, and ZonePRO Designer software with its intuitive interface and guided Configuration Wizard. High-performance dbx Type IV™ digital conversion, low distortion, and wide dynamic range ensure exceptional audio quality throughout the signal path. The dbx ZonePRO 641 provides a complete digital processing solution for demanding commercial audio installations.
Features of 641
- Six-input, four-output digital processor
- Advanced Feedback Suppression (AFS™)
- AutoWarmth® low-frequency enhancement
- Automatic Gain Control
- Compression processing
- Output limiting
- Noise gating
- Notch filtering
- Bandpass filters
- Crossover filters
- Parametric equalization
- Flexible source routing
- Paging source ducking
- Wall panel controller support
- RS-232 control
- Security lockout
- Windows® GUI support
- Professional commercial audio processor
- IEC, UL, and CSA approved
Specifications of 641

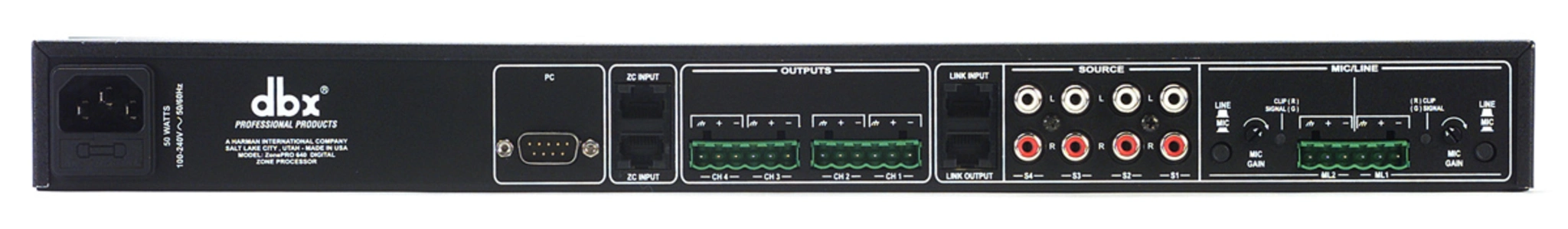

| Inputs | 6 total: (2) switchable mic/line inputs, (4) RCA source inputs |
| Input Connectors | Euroblock (line and mic), RCA (source) |
| Input Type | Electronically balanced, RF-filtered |
| Input Impedance | 50 kΩ balanced, >75 kΩ unbalanced |
| Maximum Input Level | +20 dBu mic/line, +12 dBu RCA |
| CMRR | >40 dB, typically >55 dB at 1 kHz |
| Mic Preamp Gain | 30 to 60 dB |
| Mic Preamp Equivalent Input Noise (EIN) | <-118 dB |
| Mic Preamp Phantom Power | 15 V |
| Outputs | 4 total |
| Output Connectors | Euroblock |
| Output Type | Electronically balanced, RF filtered |
| Output Impedance | 120Ω balanced, 60Ω unbalanced |
| Maximum Output Level | +20 dBu |
| A/D Converter | dbx Type IV™ conversion system |
| A/D Dynamic Range | (Line) >113 dB A-weighted, >110 dB unweighted |
| Type IV Dynamic Range | >119 dB A-weighted, 22 kHz BW; >117 dB unweighted, 22 kHz BW |
| Digital Output | RCA 24-bit oversampling |
| Digital Output Dynamic Range | >114 dB A-weighted, 110 dB unweighted |
| Sample Rate | 48 kHz |
| D/A Dynamic Range | 112 dB A-weighted, 109 dB unweighted |
| Overall Dynamic Range | >109 dB A-weighted, >106 dB unweighted |
| THD+Noise | 0.003% typical at +4 dBu, 1 kHz, 0 dB gain |
| Frequency Response | 20 Hz – 20 kHz, ±0.5 dB |
| Interchannel Crosstalk | >80 dB typical |
| Propagation Delay | 0.6 ms |
| Operating Voltage | 100 VAC 50/60 Hz, 120 VAC 60 Hz, and 230 VAC 50/60 Hz |
| Power Consumption | 29 W |
| Unit Weight | 6.8 lb (3.1 kg) |
| Shipping Weight | 8.8 lb (4.0 kg) |
| Dimensions (H × D × W) | 1.75 × 5.75 × 19 in |
| Safety Agency Certifications | UL 600065, IEC 60065, EN 55013, E60065 |
