dbx ZonePRO 640m Digital Zone Processor
The dbx ZonePRO 640m is a professional digital signal processor designed to provide flexible signal routing, advanced DSP processing, and centralized system control for commercial audio installations. Featuring a fixed architecture with six inputs and four outputs, the processor delivers a streamlined solution for hospitality venues, retail stores, educational facilities, conference rooms, and other installed sound environments requiring reliable multi-zone audio management. Its pre-configured architecture simplifies installation while offering extensive processing capabilities for professional system optimization.
The processor features four balanced microphone/line inputs and two mono-summed RCA input pairs, allowing integration with both professional microphones and consumer audio sources. Independent microphone gain adjustment is available for each input channel, while two configurable input insert positions and one configurable output insert position provide flexible channel-specific processing. Every output incorporates the patented AutoWarmth® technology, which preserves natural low-frequency response at reduced listening levels to maintain consistent audio quality across all operating conditions.
For expanded installations, the integrated Link Bus enables duplication of the first six audio channels to another compatible ZonePRO processor, allowing additional output zones without complex wiring. The front panel provides comprehensive signal metering, an informative LCD display, and programmable user controls for convenient local operation. Optional Zone Controllers, Ethernet networking, RS-232 communication, and third-party control system compatibility further extend system flexibility. Configuration and monitoring are simplified using ZonePRO Designer software with its guided Configuration Wizard for quick setup and efficient management. With high-quality dbx Type IV™ digital conversion, low distortion, and wide dynamic range, the dbx ZonePRO 640m delivers a complete commercial audio processing solution for professional installed sound systems.
Features of 640m
- Six-input, four-output digital processor
- Four balanced mic/line inputs
- Two mono-summed RCA input pairs
- Independent microphone gain per channel
- Pre-configured DSP architecture
- Two configurable input inserts
- One configurable output insert
- AutoWarmth® on every output zone
- Link Bus for system expansion

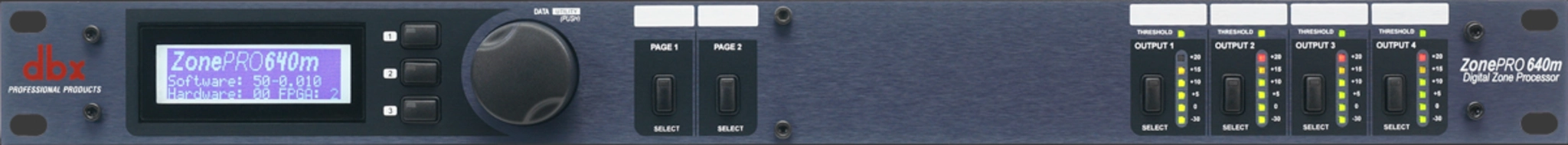

- Comprehensive signal metering
- Front-panel LCD display
- User-programmable front-panel controls
- Optional Zone Controller support
- Ethernet control
- RS-232 serial control
- Third-party control compatibility
- Wizard-driven configuration
- Professional commercial audio processor
Specifications of 640m
| Indicators | Four independent six-segment lightpipe output meters ranging from -30 to +20 dBu, threshold meters |
| LCD Display | Displays source selection, page steering, zone volume, and mute status |

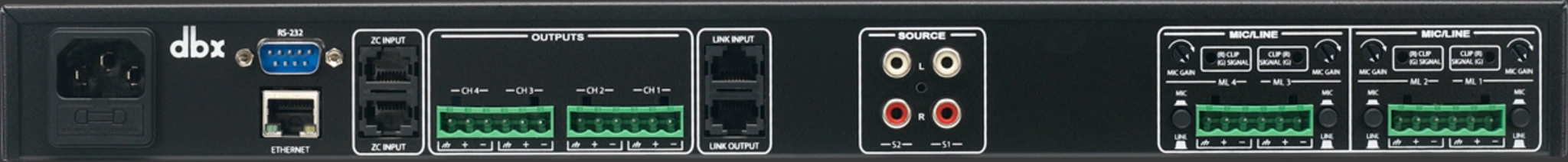

| Inputs | 6 Total: (4) switchable mic/line inputs, (2) unbalanced mono-summed RCA input pairs |
| Input Connectors | Euroblock (line and mic), RCA (source) |
| Input Type | Electronically balanced, RF-filtered |
| Input Impedance | Euroblock: >50 kΩ balanced, >25 kΩ unbalanced, RF filtered; RCA: >25 kΩ unbalanced, RF filtered |
| Maximum Input Level | +20 dBu mic/line, +12 dBu RCA |
| CMRR | >40 dB, typically >55 dB at 1 kHz |
| Mic Preamp Gain | 30 to 60 dB |
| Mic Preamp Equivalent Input Noise (EIN) | <-118 dBu, 22 Hz–22 kHz, 150Ω source impedance |
| Mic Preamp Phantom Power | +15 VDC |
| Outputs | 4 total |
| Output Connectors | Euroblock |
| Output Type | Electronically balanced, RF filtered |
| Output Impedance | 120Ω balanced, 60Ω unbalanced |
| Maximum Output Level | +20 dBu |
| A/D Converter | dbx Type IV™ conversion system |
| A/D Dynamic Range | (Line) >113 dB A-weighted, >110 dB unweighted |
| Type IV Dynamic Range | >119 dB A-weighted, 22 kHz BW; >117 dB unweighted, 22 kHz BW |
| Digital Output Dynamic Range | >114 dB A-weighted, 110 dB unweighted |
| Sample Rate | 48 kHz |
| D/A Dynamic Range | 112 dB A-weighted, 109 dB unweighted, 22 kHz BW |
| Overall Dynamic Range | >109 dB A-weighted, >106 dB unweighted, 22 kHz BW |
| THD+Noise | 0.003% typical at +4 dBu, 1 kHz, 0 dB gain |
| Frequency Response | 20 Hz – 20 kHz, ±0.5 dB |
| Interchannel Crosstalk | >80 dB typical |
| Propagation Delay | 0.6 ms |
| Operating Voltage | 100 VAC 50/60 Hz, 120 VAC 60 Hz, and 230 VAC 50/60 Hz |
| Power Consumption | 29 W |
| BTU | <92.13 |
| Unit Weight | 6.05 lb (2.74 kg) |
| Shipping Weight | 8.2 lb (4.0 kg) |
| Dimensions | 1.75 in (1U) × 19 in × 7.75 in (45 × 483 × 197 mm) |
| Safety Agency Certifications | UL 600065, IEC 60065, EN 55013, E60065 |
Customer Reviews
Related Products

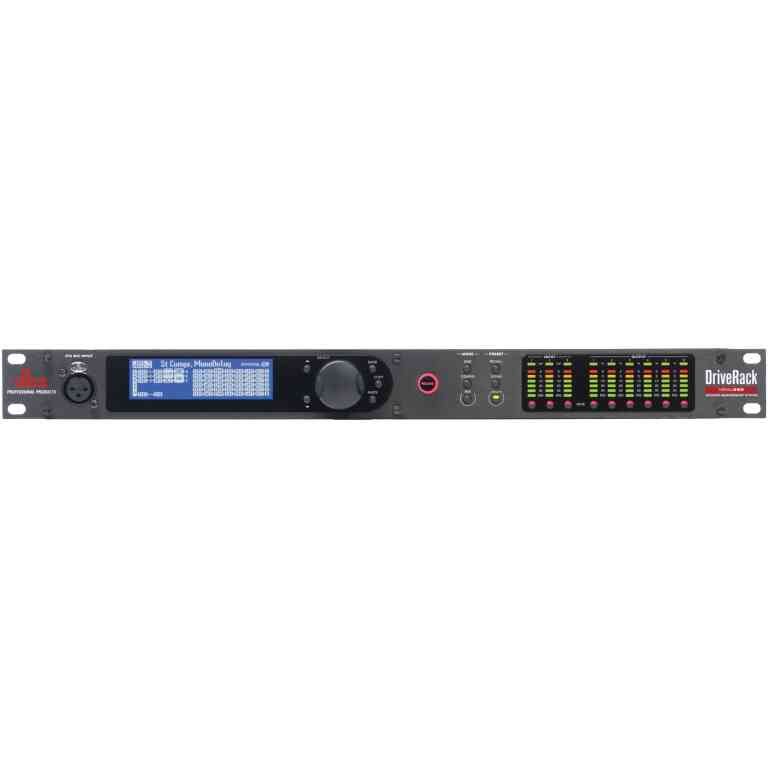

DBX DriveRack VENU360 Loudspeaker Management System – EU
