DBX DriveRack VENU360 Loudspeaker Management System – EU
The dbx DriveRack VENU360 is a professional 3-input, 6-output loudspeaker management processor with advanced DSP, AutoEQ, AFS, mobile control, and flexible routing for installed, touring, and portable sound systems.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 8,001.15 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

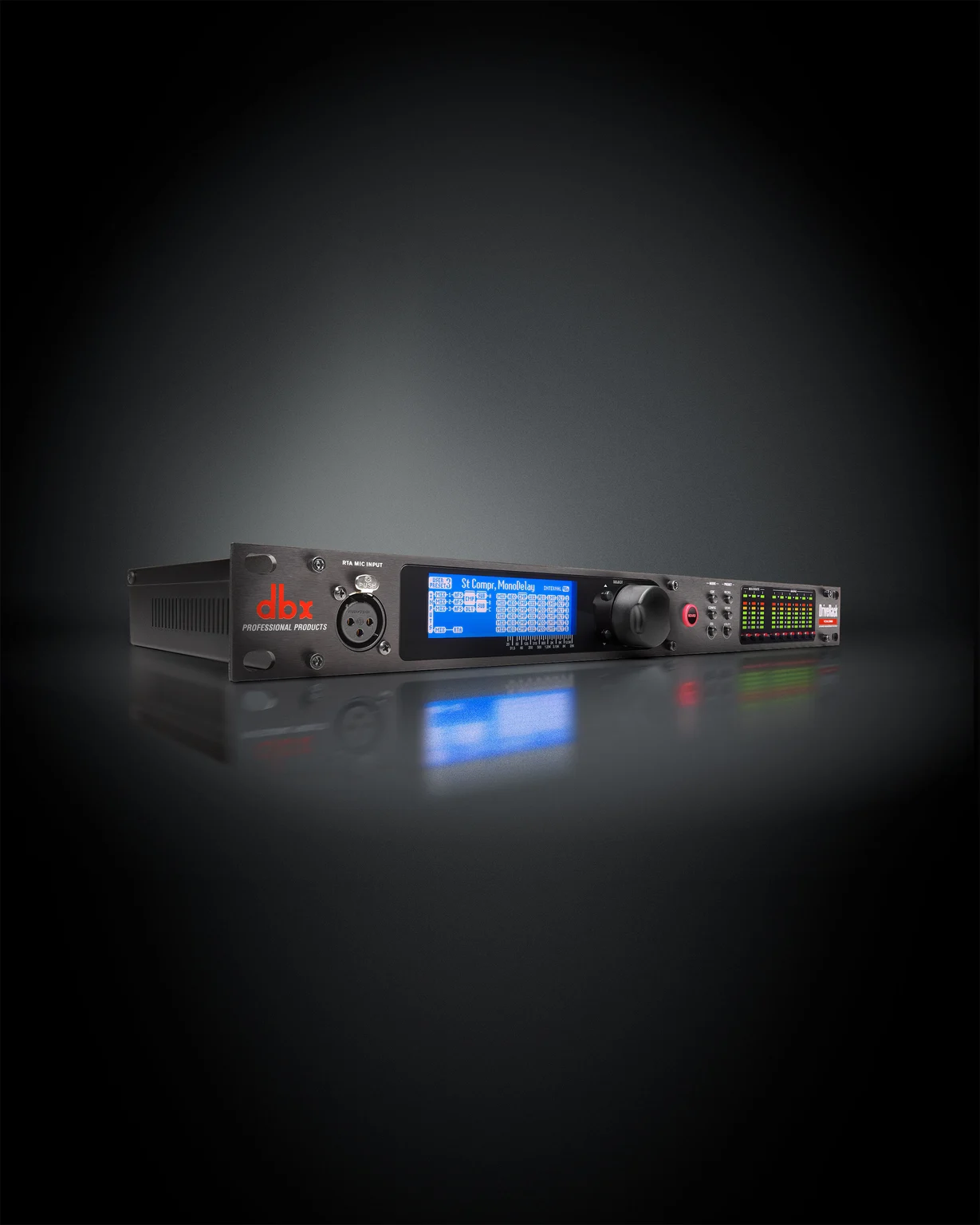

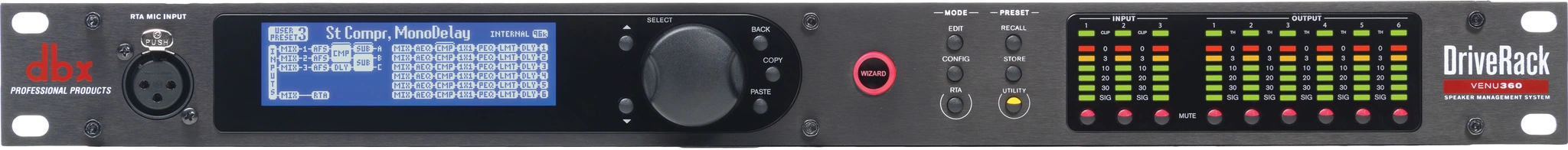

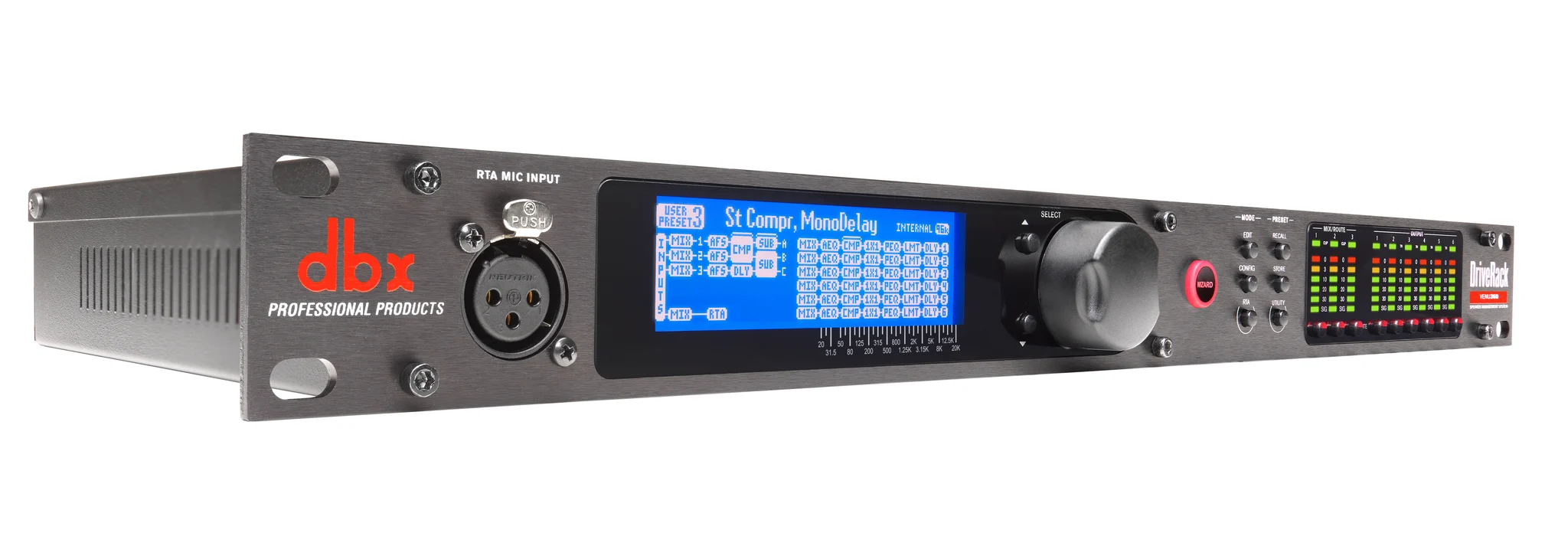

dbx DriveRack VENU360 Complete Loudspeaker Management System
The dbx DriveRack VENU360 is a professional loudspeaker management processor designed to maximize the performance, protection, and flexibility of modern sound reinforcement systems. Built as the next generation of the acclaimed DriveRack 260, it combines powerful digital signal processing with enhanced connectivity, expanded routing options, and intuitive system configuration for installed, portable, and touring audio applications.
Featuring three analog inputs and six configurable outputs, the DriveRack VENU360 provides comprehensive processing between the mixing console and power amplifiers. Its updated AutoEQ™ technology uses an RTA microphone and sine-sweep measurements to quickly analyze the acoustic environment, automatically optimizing speaker levels and room equalization without the prolonged use of pink noise. Since AutoEQ operates independently on each output, front-of-house systems, stage monitors, delay towers, and individual zones can all be calibrated separately for improved overall performance.
The enhanced Advanced Feedback Suppression (AFS™) algorithm continuously monitors the audio signal, identifying and eliminating feedback before it becomes audible while preserving the natural tonal balance of the system. Updated setup wizards simplify routing, crossover configuration, speaker tuning, monitor setup, and gain balancing, allowing faster deployment and reliable system optimization.
The DriveRack VENU360 also offers complete Ethernet-based remote control using Android®, iOS®, macOS®, or Windows® devices. Through its intuitive graphical interface, users can adjust compression, equalization, crossover settings, delays, speaker profiles, and other processing parameters from anywhere on the local network. With high-resolution digital processing, extensive DSP tools, and flexible system management capabilities, the DriveRack VENU360 delivers reliable, scalable, and precise loudspeaker control for demanding professional audio installations and live performance environments.
Features of DriveRack VENU360
- 3-input, 6-output loudspeaker management processor
- Advanced AutoEQ™ using sine-sweep room analysis
- Enhanced AFS™ automatic feedback suppression
- Ethernet control via Android®, iOS®, macOS®, and Windows®
- User-friendly setup and monitor configuration wizards
- 31-band Graphic EQ for input processing
- 12-band Parametric EQ with narrow notch filtering
- dbx compression and automatic gain control
- Integrated subharmonic synthesis processing
- Backline delay and noise gate functions
- Flexible crossover supporting full-range to mono 6-way systems
- Independent AutoEQ processing for output zones
- Tower delays up to 1000 ms per output
- Driver alignment delay for precise system timing
- 24-bit dbx Type IV™ digital conversion

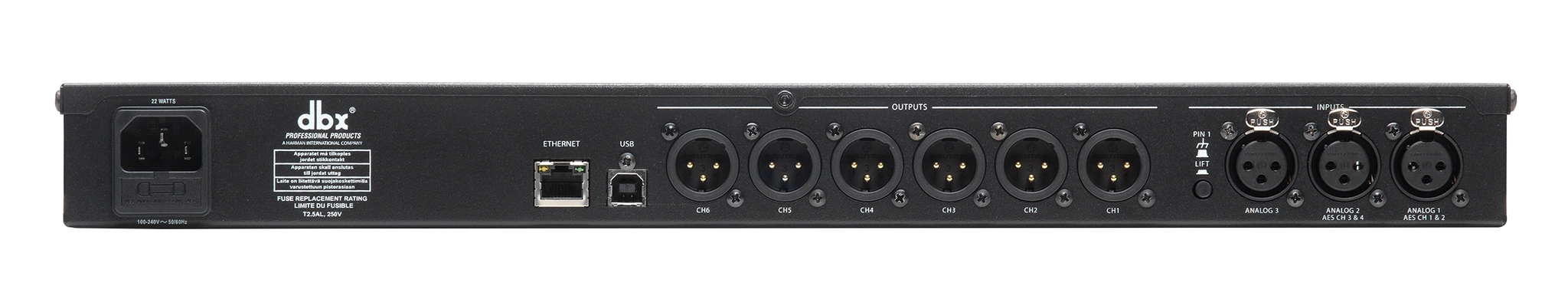

- Professional analog and AES digital XLR connectivity
Specifications of DriveRack VENU360
| System Type | Complete Loudspeaker Management System |
| Inputs | 3 Analog Line Inputs, 2 AES Digital Inputs (Shared), 1 RTA Mic Input |
| Input Connectors | 3 Female XLR (2 Selectable Analog/AES), 1 Female XLR RTA Mic |
| Input Type | Electronically Balanced, RF Filtered |
| Input Impedance | >30 kΩ Balanced |
| Maximum Input Level | >+28 dBu Balanced, ≤1% THD |
| CMRR | >50 dB @ 1 kHz |
| RTA Mic Phantom Power | +48 VDC |
| Outputs | 6 Line Outputs |
| Output Connectors | Male XLR |
| Output Type | Electronically Balanced, RF Filtered |
| Output Impedance | 120 Ω Balanced |
| Maximum Output Level | +22 dBu Balanced, ≤1% THD |
| Alignment Delay | Up to 1000 ms per Output Channel |
| A/D Converter | 24-bit dbx Type IV™ Conversion System |
| A/D Dynamic Range | 117 dB A-weighted, 114 dB Unweighted |
| Type IV Dynamic Range | 129 dB (Transient), 126 dB Unweighted, 121 dB Typical Program Material |
| D/A Converter | 24-bit |
| D/A Dynamic Range | 116 dB A-weighted, 113 dB Unweighted |
| Internal Processing | 32-bit Floating Point |
| Supported Sample Rates | 48/96 kHz (32–192 kHz with Sample Rate Conversion) |
| System Dynamic Range | 114 dB A-weighted, 110 dB Unweighted |
| THD+Noise | 0.0025% Typical @ +4 dBu, 1 kHz |
| Frequency Response | 20 Hz – 20 kHz (+0/-0.5 dB) |
| Interchannel Crosstalk | < -97 dB, -105 dB Typical |
| Latency | 2.57 ms (48 kHz Analog), 2.28 ms (96 kHz Analog), 2.31 ms (48 kHz AES), 2.15 ms (96 kHz AES) |
| Operating Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 18 W |
| Dimensions (H × D × W) | 1.75 × 8.0 × 19 in (4.4 × 20.32 × 48.26 cm) |
| Unit Weight | 5.48 lbs (2.49 kg) |
| Shipping Weight | 7.10 lbs (3.22 kg) |
