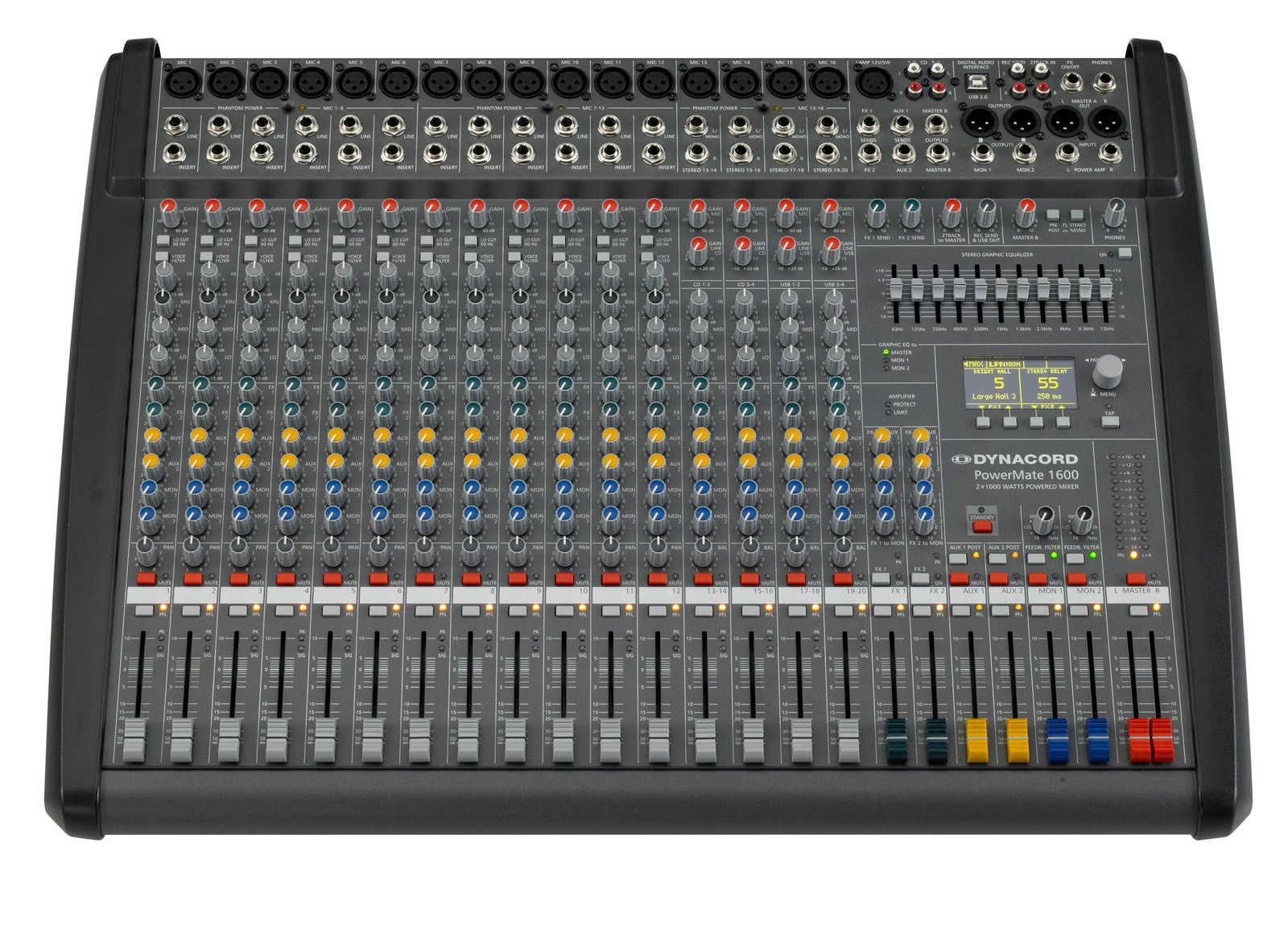

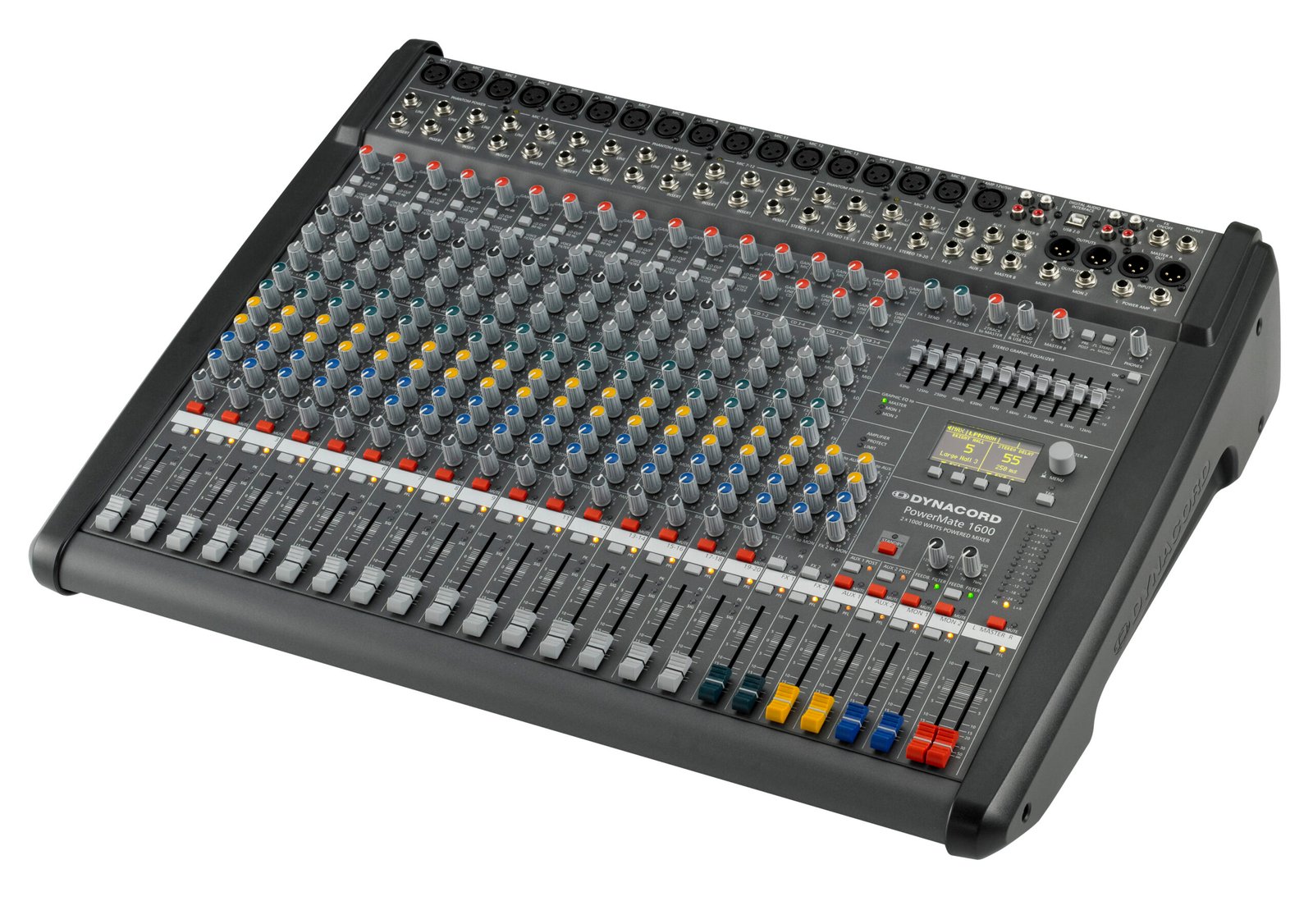

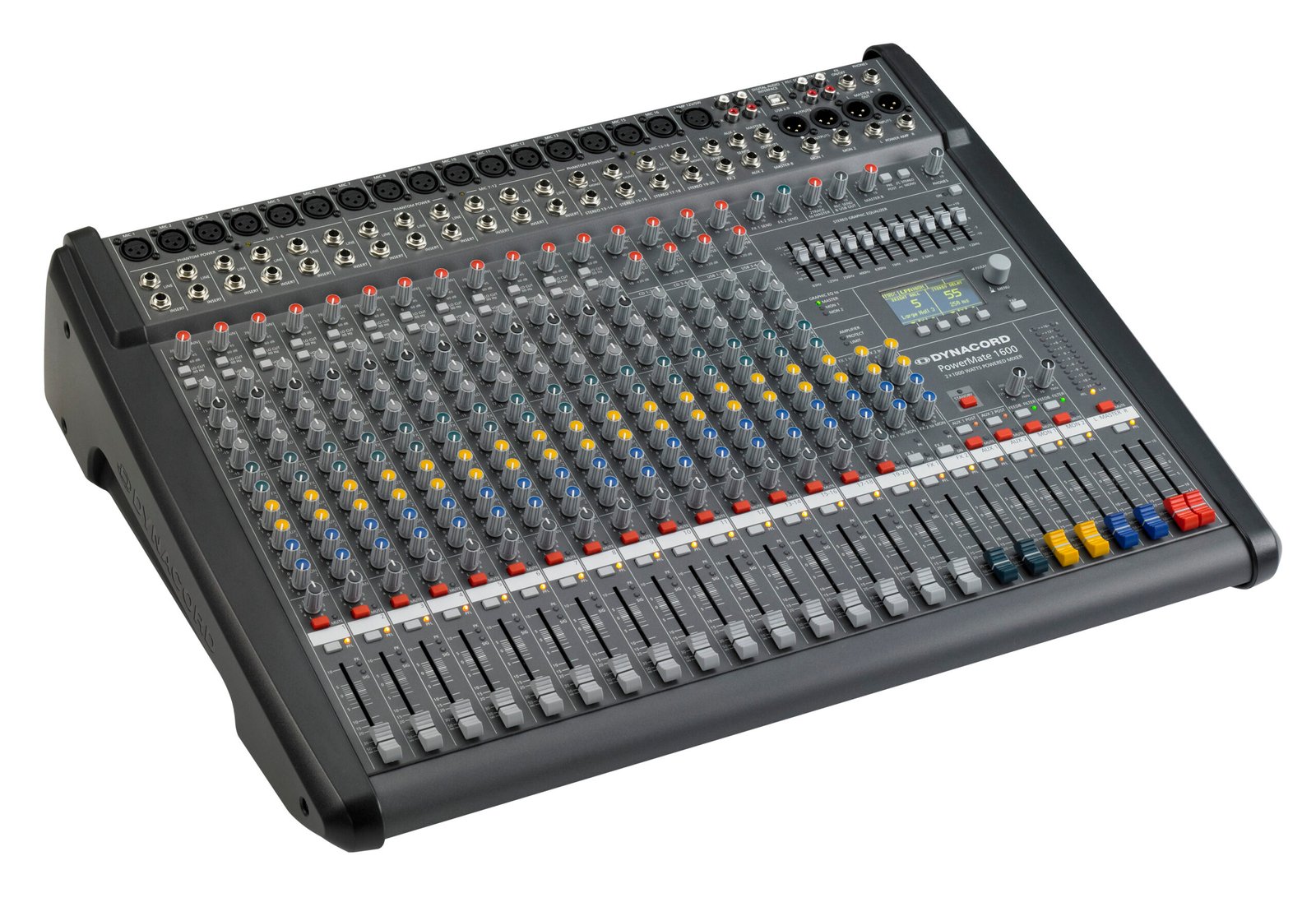

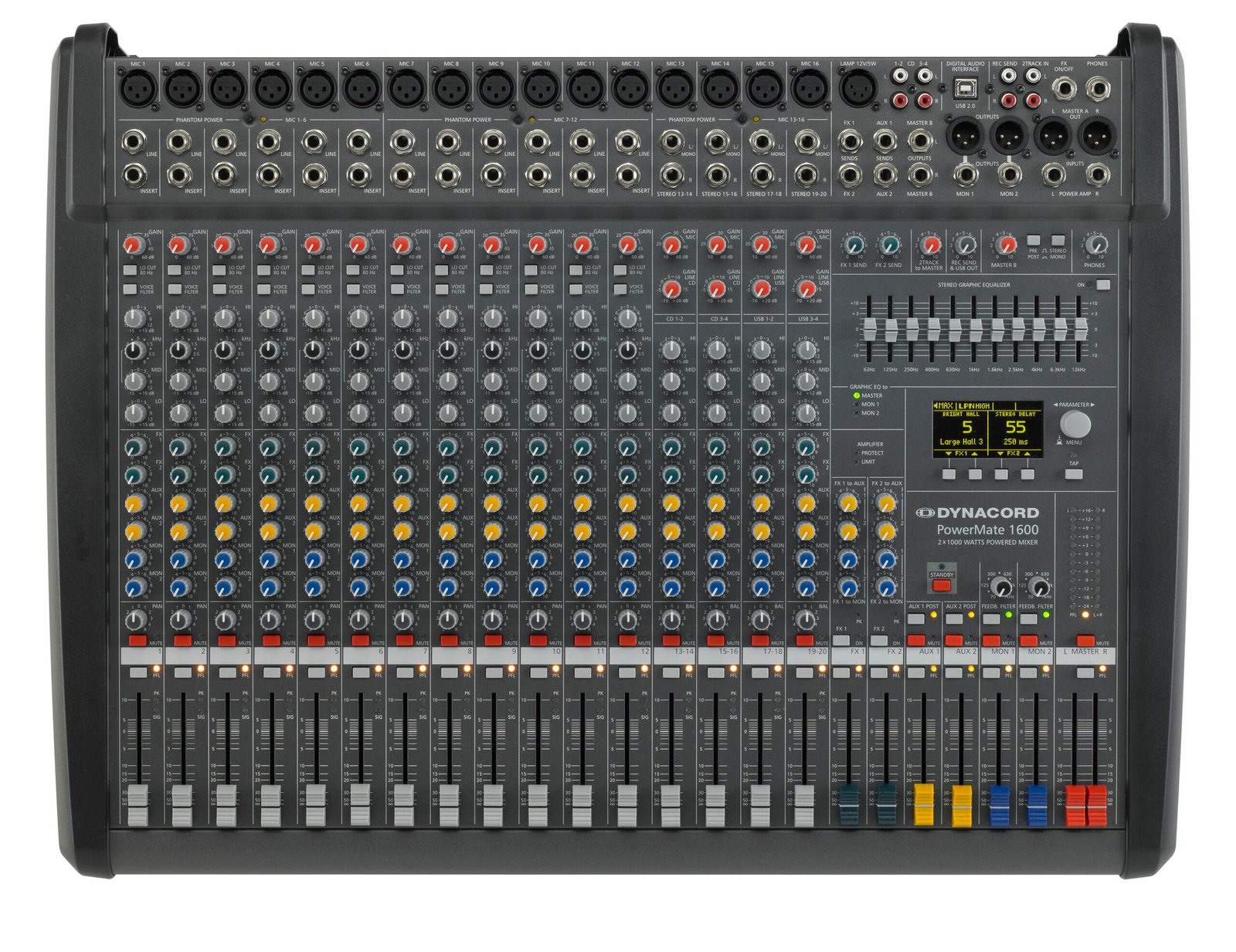

Dynacord PowerMate 1600-3 16-Channel Powered Mixer
The Dynacord PowerMate 1600-3 is a sixteen-channel powered mixer designed for professional live sound, production, and installation systems requiring substantial input capacity. It combines a mixing console, dual digital effects processors, stereo graphic equalization, USB audio, MIDI connectivity, and a high-output Class-D amplifier in one rugged chassis. Its twelve mono and four stereo channels provide extensive source handling for bands, touring systems, venues, houses of worship, and other demanding applications.
The two independent effects processors provide 100 factory presets and 20 user memories, with editable parameters and TAP control for synchronizing delay effects. An 11-band stereo graphic equalizer can be routed to master or monitor channels, while flexible auxiliary paths support monitor and effects requirements. The built-in four-in/four-out USB interface provides 24-bit audio with sample rates through 96 kHz, and the MIDI interface supports compatible instruments and control equipment.
The amplifier section uses Class-D technology and provides high output capability, including 2 x 900 W rated full-band power into 4 ohms and 2 x 450 W into 8 ohms. Maximum dynamic output reaches 2 x 1600 W into 2.66 ohms under the specified conditions. The universal 100–240 V AC supply and transport-oriented enclosure support professional deployment. With extensive channels, integrated effects, digital connectivity, and substantial amplification, the PowerMate 1600-3 provides an efficient all-in-one platform for large live and installed audio systems.
Features of PowerMate 1600-3
- 16-channel powered mixing system
- 12 mono and four stereo channels
- Class-D power amplifier
- 2 x 900 W rated output at 4 ohms
- Dual stereo digital effects
- 100 factory and 20 user presets
- 4-in/4-out 24-bit USB interface
- MIDI connectivity
- 11-band stereo graphic equalizer
- High-output design for professional systems
Specifications of PowerMate 1600-3
| Channels | 12 mono + 4 stereo |
| Microphone Inputs | 16 XLR inputs |
| Auxiliaries | 2 Pre, 2 Post, 2 Pre/Post switchable |
| Rated Output Power | 2 x 900 W at 4 ohms |
| Rated Output Power | 2 x 450 W at 8 ohms |
| Maximum Dynamic Output | 2 x 1600 W at 2.66 ohms |
| Maximum Dynamic Output | 2 x 1250 W at 4 ohms |
| Maximum Dynamic Output | 2 x 675 W at 8 ohms |
| Amplifier Topology | Class-D |
| Frequency Response, Mixer | 15 Hz – 70 kHz |
| Frequency Response, Speaker Output | 20 Hz – 30 kHz |
| Effects | Dual stereo 24/48-bit multi-effects |
| Effect Presets | 100 factory + 20 user |
| USB Interface | 4 in / 4 out |
| USB Resolution | 24-bit |
| USB Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| MIDI | 5-pin DIN In/Out |
| AC Input | 100–240 V AC, 50–60 Hz |
| Dimensions | 663.5 x 155 x 498.5 mm |
| Net Weight | 12 kg |
