Ecler CALMA24 ALMA24 Loudspeaker Manager

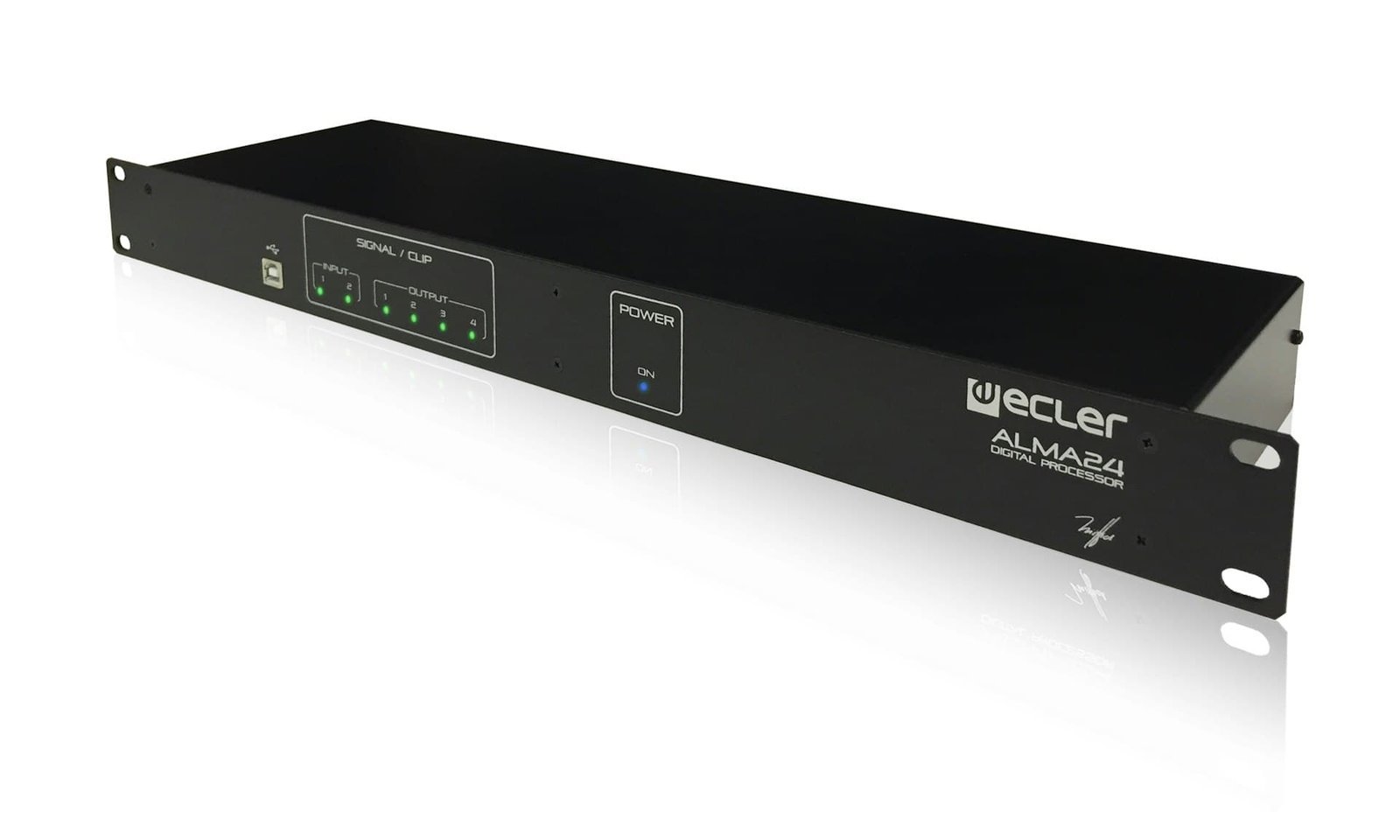

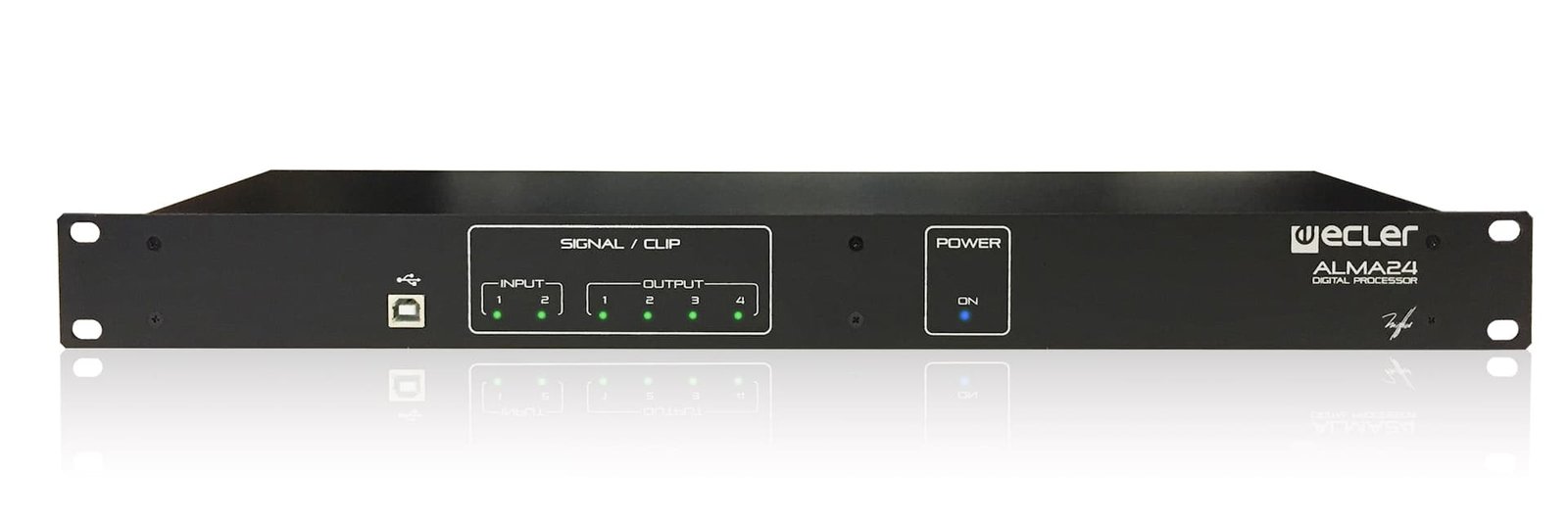

Ecler ALMA24 digital loudspeaker manager

The Ecler ALMA24 is a stand-alone digital loudspeaker manager designed to precisely tune and protect multi-way loudspeaker systems in professional installed sound and touring applications. It provides 2 inputs and 4 outputs within a compact 1U rack-mount chassis.

Configuration is performed via USB interface using dedicated PC software, giving system engineers full access to crossover filters, parametric equalization, delay, and level settings across every output channel, allowing a loudspeaker system to be precisely tuned to its acoustic environment.

Two remote volume control ports (0-10VDC) allow the unit to be integrated with external wall-panel volume controls or automation systems, giving venues a simple way to provide local level adjustment without exposing the full configuration to end users.

As a dedicated loudspeaker management tool, the ALMA24 sits between a mixing console or DSP matrix and the power amplifiers driving the loudspeaker system, ensuring each driver receives correctly filtered, time-aligned, and level-matched signal for optimal system performance.

Features

• Digital loudspeaker manager
• 2 inputs, 4 outputs
• USB interface for PC software configuration
• Crossover, parametric EQ, and delay processing
• 2 remote volume control ports (0-10VDC)
• 1U stand-alone rack-mount chassis
• Precise loudspeaker system tuning and protection
