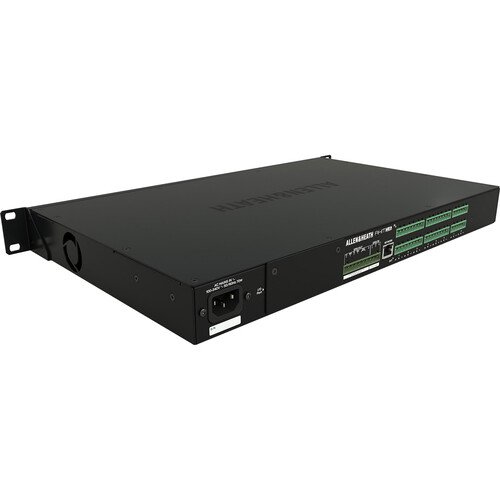

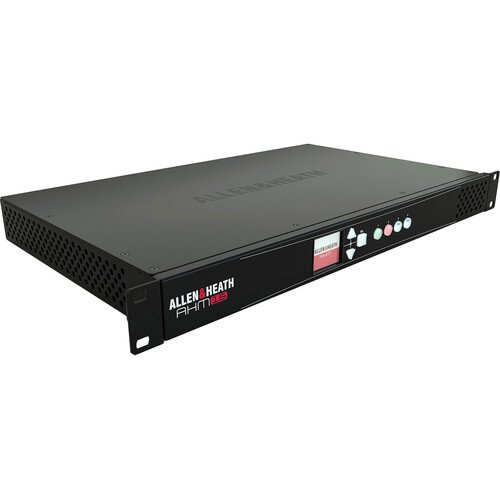

Allen & Heath AHM-16 16×16 Audio Matrix Processor

Allen & Heath AHM-16 Audio Matrix Processor

The Allen & Heath AHM-16 is a powerful audio matrix processor designed for professional sound management, distribution, paging, conferencing, and speaker processing applications. Engineered for corporate facilities, hospitality venues, educational institutions, retail environments, theatres, cruise ships, sports venues, and multipurpose spaces, the AHM-16 delivers flexible audio routing and advanced DSP processing within a compact rackmount format.

At the heart of the system is a 16×16 processing matrix powered by a 96kHz FPGA core that provides ultra-low latency performance and reliable audio processing. The unit includes 8 microphone/line inputs and 8 line outputs, while an expansion I/O port supports audio networking with capacities up to 128×128 channels. Compatibility with Dante and SLink option cards enables seamless integration into larger networked audio infrastructures.

The AHM-16 supports an extensive ecosystem of remote audio expanders, controllers, interfaces, software, and mobile applications. Integration options include GPIO, TCP/IP protocols, and support for third-party control platforms such as Crestron, AMX, and Extron. Users can manage system configuration through Mac and Windows System Manager software or develop customized interfaces using the Custom Control app.

Advanced sound management tools include automatic microphone mixing, ambient noise compensation, priority ducking, speaker processing, crossover filtering, delay management, limiting, and parametric equalization. Additional features such as integrated stereo playback, event scheduling, user profile management, and embedded recall functionality enhance operational flexibility. Designed for professional installation environments, the AHM-16 provides a scalable and comprehensive solution for complex audio distribution and processing requirements.

Features of AHM-16

• 16×16 DSP processing matrix
• 8 microphone/line inputs
• 8 line-level outputs
• 96kHz FPGA processing core
• Ultra-low latency operation
• Audio networking support up to 128×128 channels
• Dante option card compatibility
• AES67-ready networking support
• Dante Domain Manager compatibility
• SLink audio expansion support
• Configurable mono and stereo zones
• Speaker processing functionality
• Front-panel display and navigation controls
• Four programmable SoftKeys
• Automatic microphone mixer
• Ambient noise compensation
• Priority ducking functionality
• Integrated stereo playback
• Event scheduling capability
• Multiple user profile support
• TCP/IP third-party integration
• GPIO control interface support
• Crestron control compatibility
• AMX control compatibility
• Extron control compatibility
• Mac and Windows management software
• Custom Control app support
• Remote controller compatibility
• Feedback suppression tools
• Delay, limiter, and crossover processing

Specifications of AHM-16
