Ecler CDAM614C DAM614C Digital Mixer

Ecler DAM614C installation audio digital mixer

The Ecler DAM614C is a fully programmable audio digital mixer designed for installed sound applications that need flexible signal routing combined with straightforward day-to-day operation. It provides 6 audio inputs and 4 audio outputs, giving system designers a compact but capable core for a small to mid-sized commercial audio installation.

Front panel controls for both input and output levels give operators direct, tactile access to everyday adjustments without needing a connected computer, while the unit’s onboard DSP processing handles routing, mixing, and signal conditioning tasks internally.

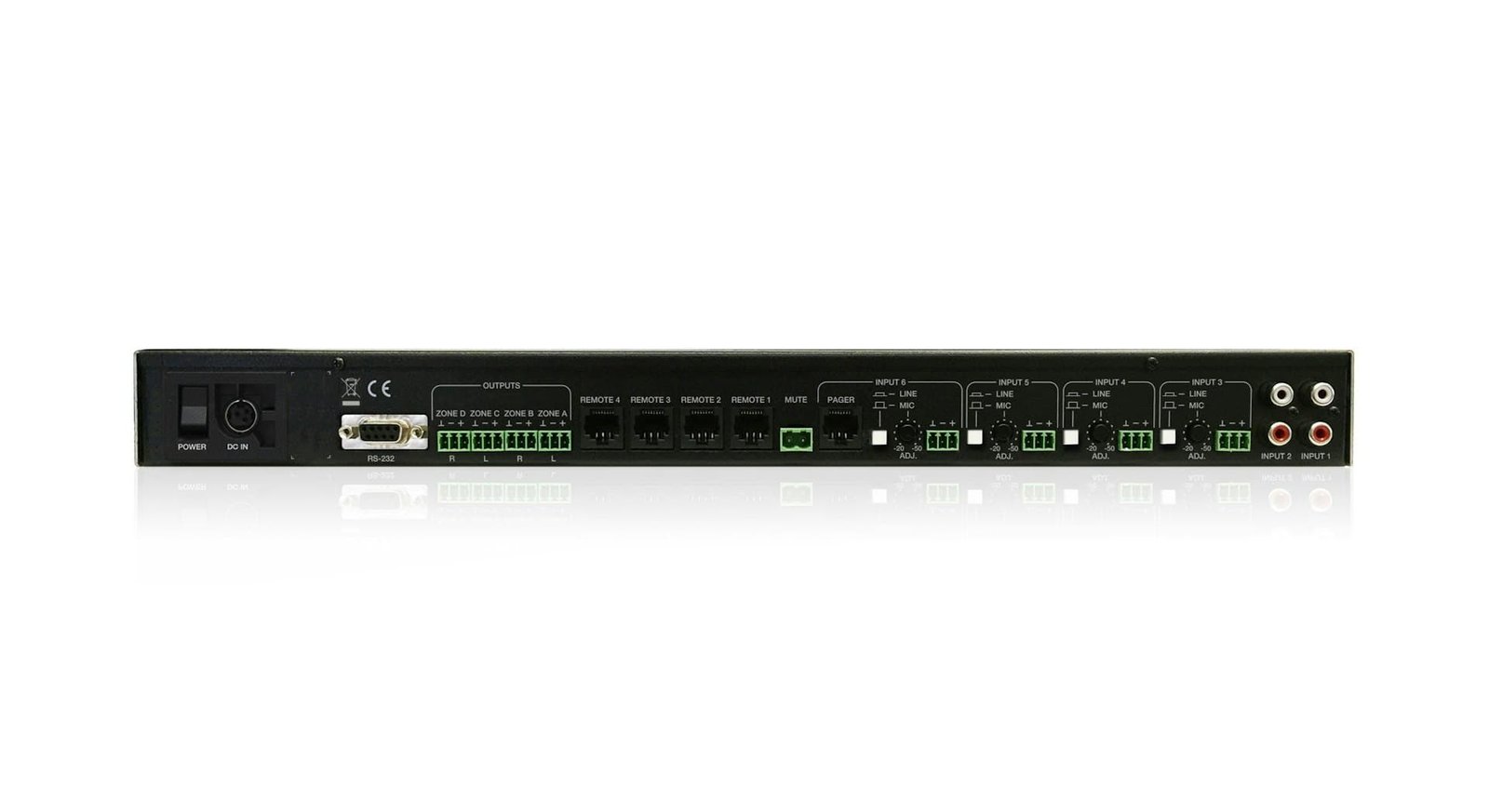

RS-232 connectivity allows the DAM614C to be integrated with third-party control systems and automation platforms, while 4 REMOTE control ports (0-10VDC) support external volume controls, source selectors, or contact-closure triggered events from wall-mounted panels.

This combination of digital signal processing, direct front panel control, and flexible remote integration options makes the DAM614C a practical choice for retail, hospitality, and corporate spaces that need dependable multi-input, multi-output audio management.

Features

• Fully programmable digital audio mixer
• 6 audio inputs, 4 audio outputs
• Front panel input and output level controls
• Onboard DSP processing
• RS-232 connectivity for third-party control
• 4 REMOTE control ports (0-10VDC)
• Suited to retail, hospitality, and corporate installations

Specifications
