Ecler VEO-XPS43 4K Single Cat.6 Extender Kit

Ecler VEO-XPS43 4K single Cat.6 extender kit

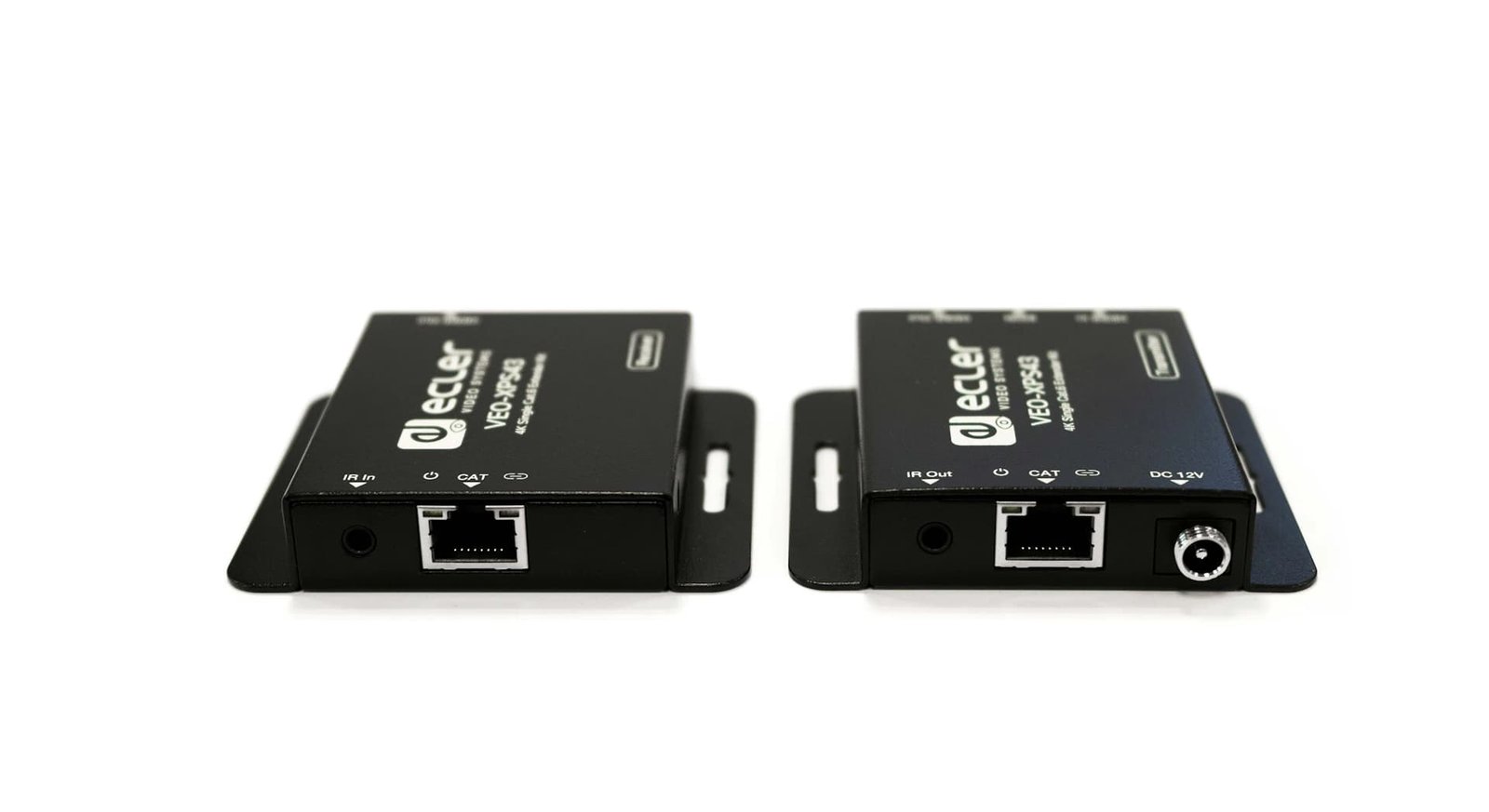

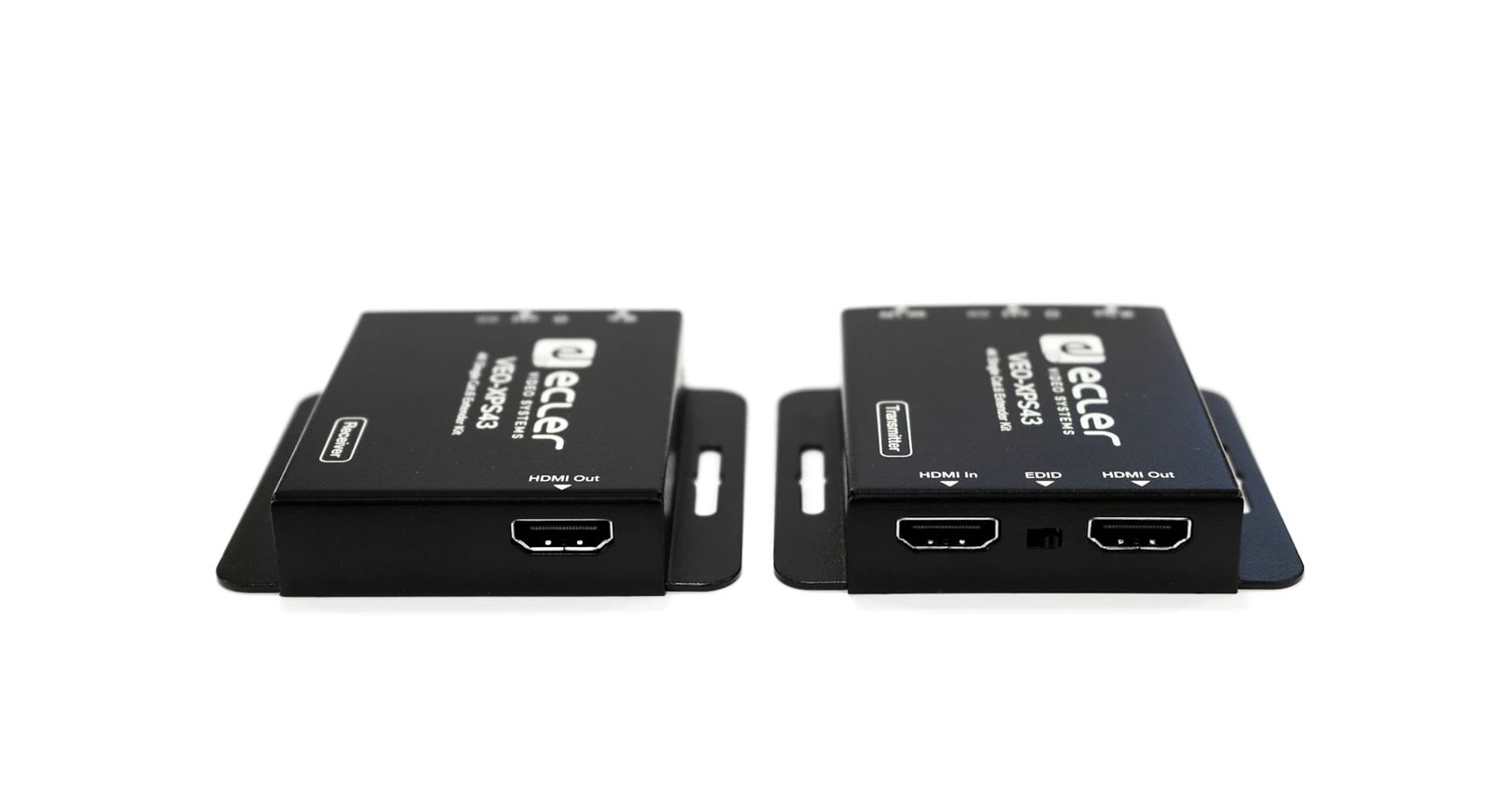

The Ecler VEO-XPS43 is a professional HDMI extender kit that allows Ultra High Definition audio, video and IR signals to be sent over a single Cat.6 cable or higher, reaching distances of up to 30 meters for 4K/UHD content and up to 60 meters for Full HD signals, all with zero latency.

The kit supports the full range of common resolutions, from 480i and 480p through 720p, 1080i, 1080p, and up to UHD/4K, making it compatible with both legacy and modern source equipment. EDID management features allow the receiver’s display EDID to be copied or a loop-out display’s EDID to be used, ensuring reliable handshake between source and display.

A unidirectional PoC (Power over Cable) feature powers the receiver directly from the transmitter, reducing the number of separate power supplies needed at the display end of the installation. The transmitter also includes an HDMI loop output, useful for feeding a local display or cascading to additional VEO-XPS43 transmitters.

IR pass-through is supported from the display back to the source, using the included IR blaster and IR receiver units, allowing remote control signals to be extended alongside the video signal. Supplied with an external 12VDC 1A international power supply and four region power blades, the VEO-XPS43 is a simple, cost-effective solution for professional HDMI extension applications.

Features of VEO-XPS43 4K

• HDMI extender kit: transmitter and receiver included
• 4K/UHD up to 30m, Full HD up to 60m, zero latency
• Single Cat.6 cable or higher
• Supports 480i to 4K/UHD resolutions
• EDID management: copy from receiver or loop-out display
• Unidirectional PoC: receiver powered by transmitter
• HDMI loop output on transmitter for local display/cascading
• IR pass-through with included IR blaster and receiver
• External 12VDC 1A PSU with 4 region power blades included

Specifications of VEO-XPS43 4K
