Allen & Heath Avantis Digital Mixer
The Allen & Heath Avantis Digital Mixer is a powerful live sound console designed to deliver professional-grade performance in a compact and highly customizable format. Built on the same processing technology found in Allen & Heath’s flagship dLive series, the Avantis offers 64 input channels, a 42-bus architecture, and 96kHz audio processing, making it suitable for live events, houses of worship, theatres, touring productions, and broadcast applications.

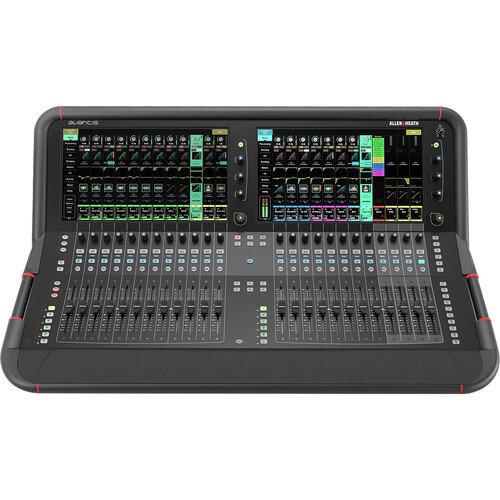

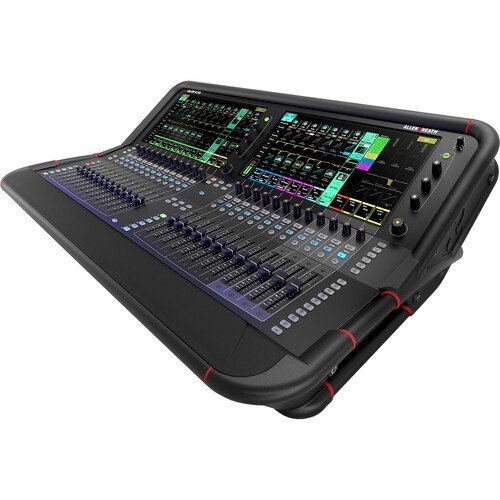

The mixer combines the familiarity of traditional analog workflows with the flexibility of modern digital control. Its 24 motorized channel strips feature dedicated faders and PAFL controls, while six switchable layers provide access to a total of 144 fader strips. The innovative Continuity UI integrates physical controls with touchscreen operation, creating an intuitive workflow that allows users to navigate, configure, and manage complex mixes efficiently.

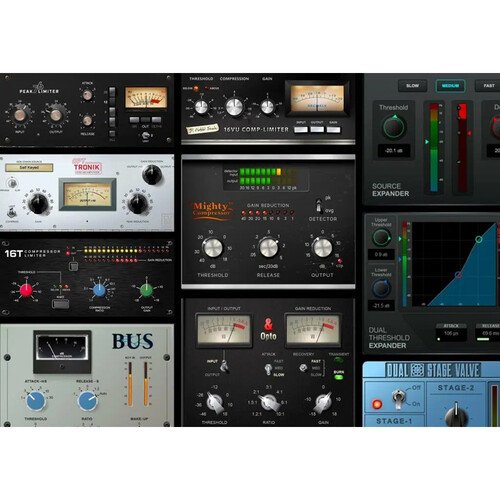

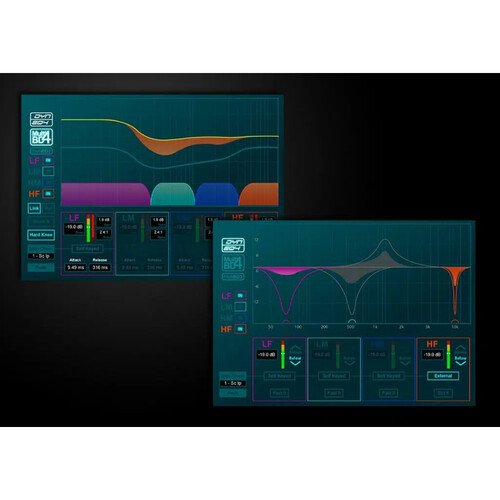

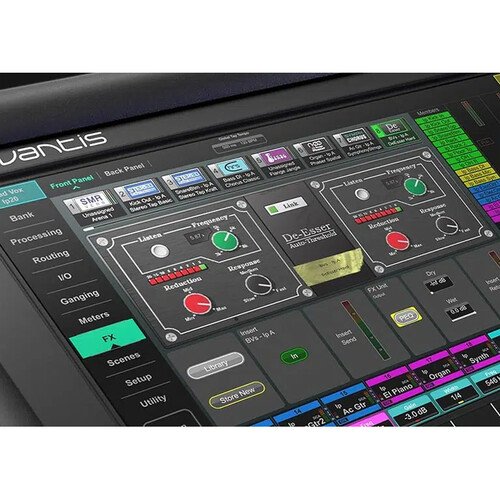

Two high-definition 15.6-inch touchscreens provide responsive gesture-based control, allowing users to pinch, swipe, drag, and drop parameters for fast system configuration. Customizable widget areas offer quick access to scenes, metering, and RackExtra FX processing, enabling users to tailor the interface to their specific workflow requirements.

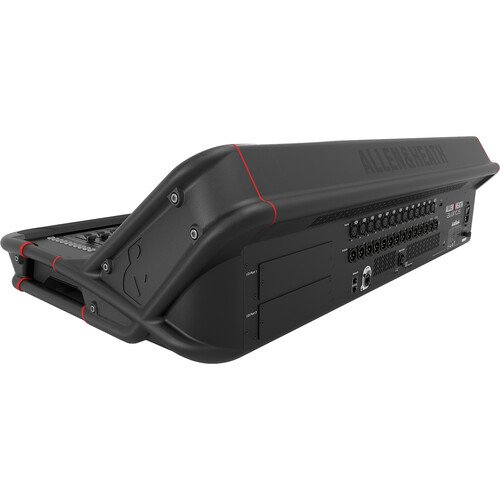

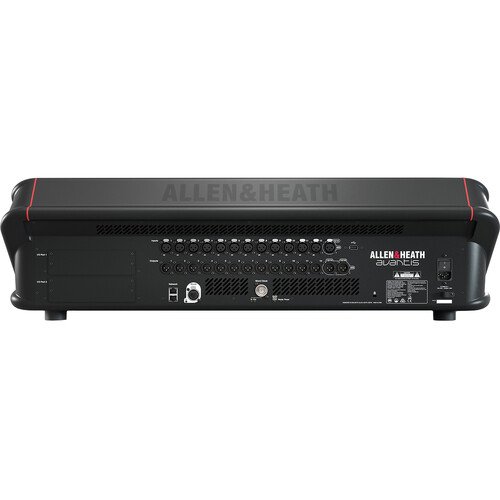

The Avantis is designed with extensive connectivity and expansion capabilities. It includes 12 XLR microphone inputs, 12 XLR outputs, AES digital connectivity, network audio support, and SLink integration for stage boxes and I/O expanders. Dual expansion card slots support Dante, MADI, Waves, and gigaACE protocols with up to 128 x 128 channels of operation at 96kHz. Word clock synchronization ensures seamless integration with external digital equipment, making the Avantis a versatile solution for demanding professional audio environments.
Features of Avantis
- 64-channel digital mixing platform
- 42-bus configurable architecture
- dLive processing technology integration
- Continuity UI workflow system
- Dual 15.6-inch HD touchscreens
- Gesture-based touchscreen control
- Pinch, swipe, and drag functionality
- 24 motorized channel strips
- Six switchable fader layers
- 144 total fader strip positions
- Fully assignable mixer layout
- Customizable routing architecture
- 24 assignable SoftKeys
- User-configurable rotary controls
- 12 RackExtra FX slots
- Dedicated FX return architecture
- Supports reverb, chorus, and delay effects
- Network audio connectivity
- SLink integration for stage boxes
- Word clock synchronization support
- Dante expansion compatibility
- MADI expansion compatibility
- Waves networking support
- gigaACE protocol support
- Dual expansion card slots
- Full metal chassis construction
- Optimized for live sound applications
Specifications of Avantis
| Product Type | Digital Mixer |
| Channels | 64 |
| Bus Architecture | 42 Bus |
| DCA Groups | 16 |
| Mute Groups | 8 |
| Mic/Line Inputs | 12 x XLR |
| Phantom Power | 12 Channels |
| Main Outputs | 12 x XLR |
| Digital Input | 1 x XLR (AES/EBU) |
| Digital Outputs | 2 x XLR (AES/EBU) |
| Data I/O | 2 x RJ45 Network, 1 x Locking Ethernet (S-Link) |
| Headphone Outputs | 1 x 1/8 in, 1 x 1/4 in |
| USB Ports | 2 x Type-A |
| Expansion Slots | 2 x Expansion Card Ports |
| Word Clock | 1 x BNC |
| Faders | 24 |
| Audio Resolution | 96kHz |
| Display | Dual 15.6 in Touchscreens |
| SoftKeys | 24 Assignable |
| FX Slots | 12 RackExtra FX |
| Power Source | Standard IEC AC Cable |
| Height | 10.59 in |
| Depth | 24.68 in |
| Width | 36.1 in |
| Weight | 57.4 lbs |
| Manufacturer Part Number | AH-AVANTIS |
