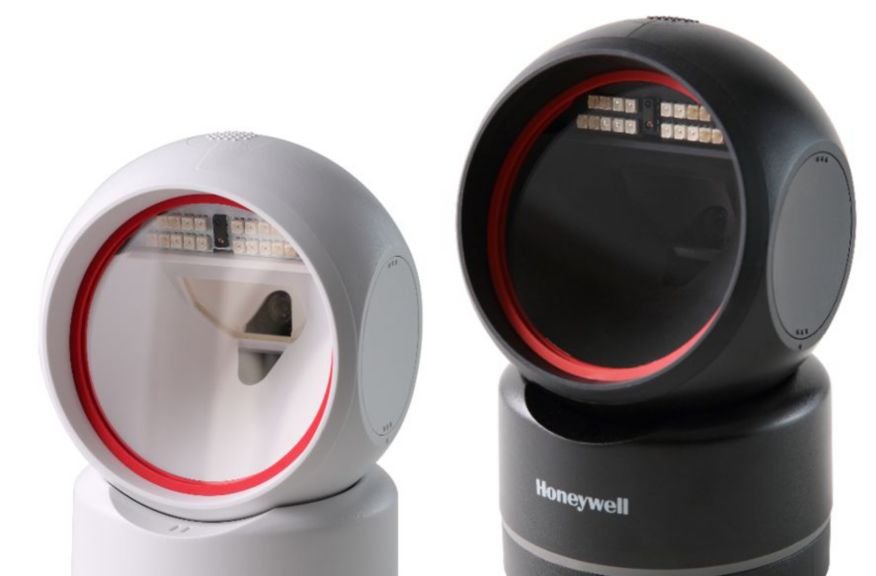

Honeywell Orbit HF680 2D Hands-Free Area-Imaging Barcode Scanner

Honeywell Orbit HF680 Point-of-Sale Scanner

The Honeywell Orbit HF680 Point-of-Sale Scanner is a hands-free presentation scanner designed for retail environments that require high-speed, accurate barcode scanning without compromising style or budget. Equipped with a megapixel sensor and 1 GHz processor, the Orbit HF680 delivers lightning-fast scanning of both 1D and 2D barcodes, including damaged or difficult-to-read digital codes, helping retailers minimize checkout delays and improve customer experience.

The Orbit HF680 is engineered for convenience and unobtrusive operation. Recessed LED lights in the scanning window illuminate barcodes without disturbing customers, automatically turning off when the scanner is idle. Its low-profile, modern design makes it a visually appealing addition to the checkout counter, combining performance and aesthetics. Installation and integration are simplified with Honeywell’s EZConfig configuration utility, along with OPOS and JPOS drivers to ensure compatibility with a wide range of POS systems, reducing deployment time and complexity.

Built for reliability in retail workflows, the Orbit HF680 offers a standard scanning range of up to 1 meter, high motion tolerance of 2.5 m/s for 13 mil UPC codes, and a print contrast capability of 20%. The device supports skew angles of ±70° and pitch angles of ±60°, providing flexibility when scanning barcodes from various angles. With corded USB or RS-232 connectivity, low power consumption, and IP42-rated protection, the Orbit HF680 is a durable, efficient, and cost-effective solution for retail checkout, enabling fast, accurate, and seamless scanning in busy commercial environments.

Features of Orbit HF680

• Hands-free presentation scanning

• Fast 1D and 2D barcode decoding

• Megapixel sensor with 1 GHz processor

• Low-profile, recessed LED lighting

• Modern styling for checkout counters

• Easy integration via EZConfig utility

• OPOS/JPOS driver support for POS compatibility

• Standard scanning range: 0–1 m

• High motion tolerance: 2.5 m/s for 13 mil UPC

• Skew: ±70°, Pitch: ±60°

• Print contrast capability: 20%

• Corded connectivity (USB/RS-232)

• Standard-range imaging engine

• IP42-rated protection

• Lightweight: 278 ±10 g

• Durable and reliable for retail environments

Specifications of Orbit HF680
