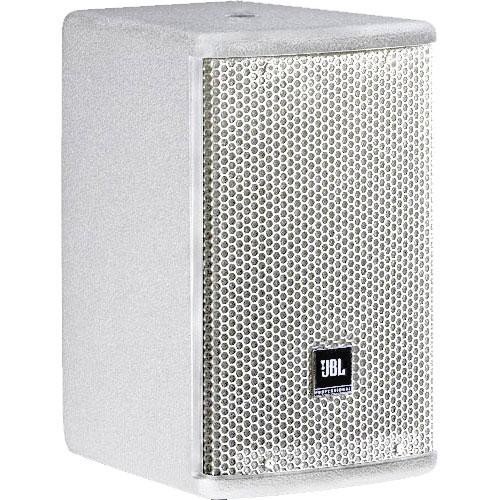

JBL AC15-WH Ultra Compact 5-inch 2-way Loudspeaker – White

JBL AC15 5-inch 2-way loudspeaker

The JBL AC15 is an ultra-compact, high-performance 2-way loudspeaker designed for professional fixed installation applications. Manufactured in Mexico, it forms part of JBL’s AE Compact family within the renowned AE Series, offering a balance of high output, clarity, and installation flexibility in a small footprint. Its compact design makes it ideal for venues where space efficiency and sound quality are equally important.

The loudspeaker is equipped with a 135 mm (5.25-inch) low-frequency transducer and a 1-inch dome tweeter, delivering accurate midrange response and crisp high-frequency detail. A controlled 90° x 90° coverage pattern ensures even sound dispersion across the listening area, supporting consistent audio performance in distributed and focused sound systems. The passive crossover design allows straightforward integration into a wide range of audio setups.

The enclosure is constructed from durable 12 mm exterior-grade multi-ply hardwood plywood, providing structural strength while maintaining a lightweight profile. The white finish offers a clean and unobtrusive appearance, making the AC15 suitable for visually sensitive environments such as worship spaces, auditoriums, and themed venues. Connectivity is supported through dual Neutrik NL4 connectors and screw terminals, ensuring secure and flexible system wiring.

Designed to handle demanding audio requirements, the AC15 supports substantial power handling relative to its size. Multiple attachment points enable compatibility with optional U-brackets and mounting solutions, allowing wall, ceiling, or structural installation options.

The AC15 is well suited for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs, sports facilities, and themed entertainment venues requiring compact, reliable, and high-quality sound reinforcement.

Features of AC15

• 5.25-inch low-frequency driver for accurate midrange performance

• 1-inch dome tweeter for clear and detailed high frequencies

• 90° x 90° coverage pattern for consistent dispersion

• Ultra-compact enclosure for space-efficient installations

• High program power handling for reliable operation

• Dual Neutrik NL4 connectors with screw terminals

• Multiple mounting points for flexible installation options

• White finish for visually integrated environments

Specifications of AC15
