JBL AC26 Ultra Compact 6-inch 2-way Loudspeaker – Black
JBL AC26 dual 6.5-inch 2-way loudspeaker in black finish delivers high-fidelity sound with two 165 mm low-frequency drivers and a 25 mm exit compression driver, featuring 90° x 90° coverage and versatile installation, manufactured in Mexico.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 8,967.02 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AC26 dual 6.5-inch 2-way loudspeaker
The JBL AC26 is an ultra-compact, high-output 2-way loudspeaker designed for professional fixed-installation applications. Manufactured in Mexico, it is part of JBL’s AE Compact family within the AE Series, offering precision audio, consistent coverage, and flexible installation in a space-efficient enclosure. This model is designed to meet the needs of system designers and performers seeking clear, reliable sound in small to medium venues.

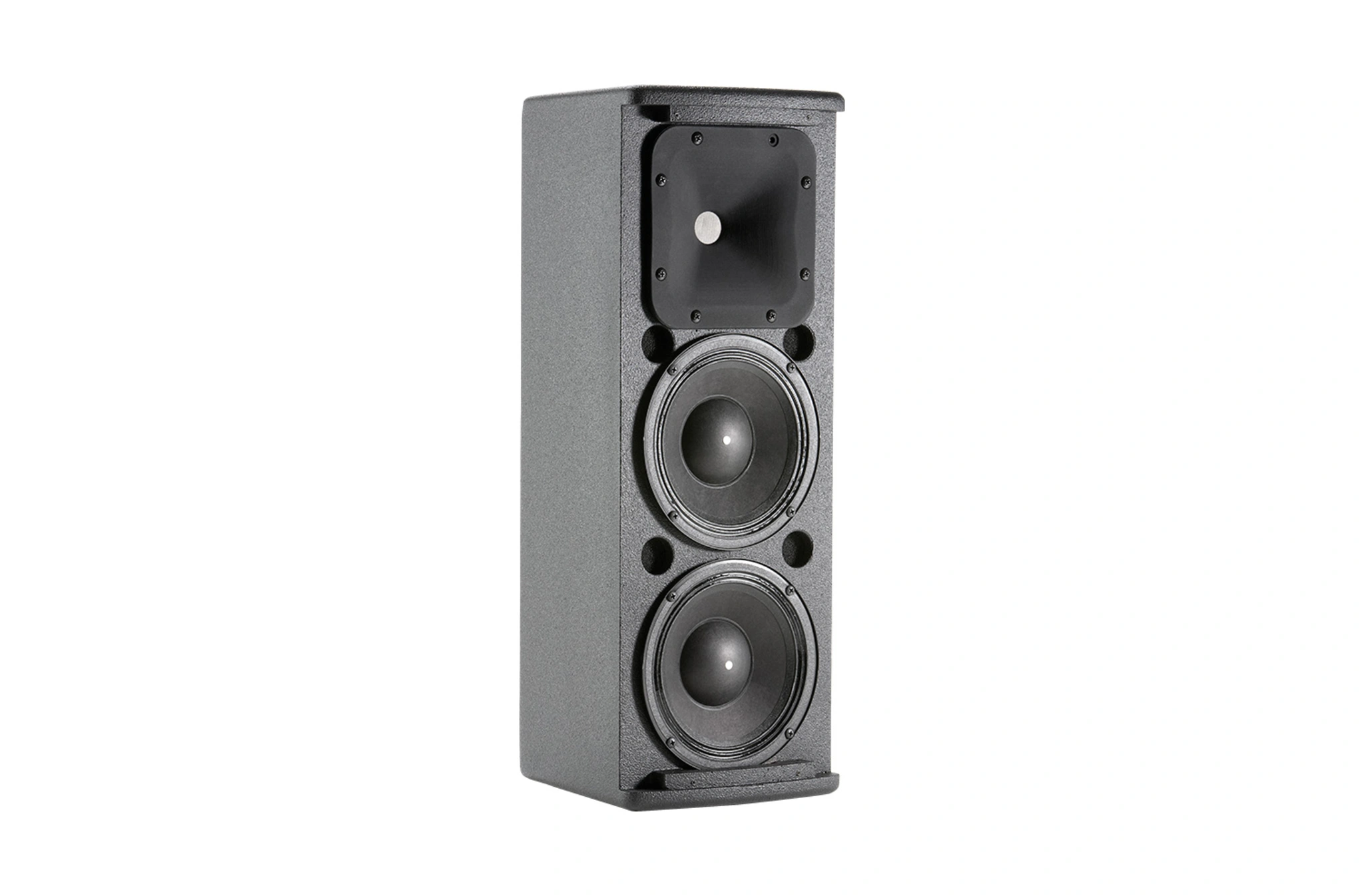

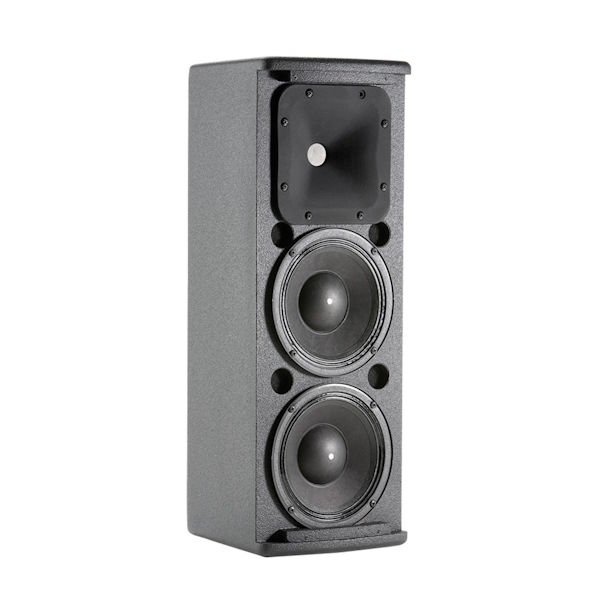

The AC26 features two 165 mm (6.5-inch) low-frequency transducers paired with a 25 mm (1-inch) exit compression driver, providing accurate midrange and crisp high-frequency output. Its PT™ Progressive Transition waveguide delivers a 90° x 90° coverage pattern, ensuring even sound distribution and controlled off-axis performance. The passive crossover and FIR-style tuning optimize frequency and phase response, improving coverage consistency and sound quality across the listening area.
The enclosure is constructed from 12 mm and 15 mm exterior-grade multi-ply hardwood plywood with a black textured finish, providing durability and professional aesthetics. Dual Neutrik NL4 connectors and screw terminals allow secure and flexible system connections. Multiple M8 and M6 suspension points support mounting with optional U-brackets, OmniMount® brackets, or stand mount accessories.
The AC26 is ideal for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live and dance clubs, sports venues, and themed entertainment spaces where compact, high-quality, and consistent sound reinforcement is required.
Features of AC26
Dual 6.5-inch low-frequency drivers for accurate midrange and bass
25 mm exit compression driver for clear highs
90° x 90° PT™ waveguide for consistent coverage
Ultra-compact 2-way design for space-efficient installation
360 W program power handling for reliable output
Dual Neutrik NL4 connectors plus screw terminals
Multiple suspension points for flexible mounting
Black finish for professional aesthetic integration
Specifications of AC26
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Frequency Response (±3 dB) | 70 Hz – 18 kHz |
| System Power Rating (AES) | 350 W |
| Power Rating (IEC) | 180 W Continuous / 360 W Program / 720 W Peak |
| Nominal Impedance | 8 ohms |
| Coverage Pattern | 90° × 90° |
| Maximum SPL (1m) | 117 dB |
| System Sensitivity (1W @ 1m) | 92 dB SPL |
| LF Driver | 2 × JBL 226J, 165 mm (6.5-inch) SFG™ drivers |
| LF Driver Voice Coil | 50 mm (2-inch), edge-wound |
| HF Driver | 1 × 2414H, 25 mm exit compression driver, 25 mm voice coil |
| Enclosure Material | 12 mm & 15 mm multi-ply hardwood plywood |
| Suspension Attachment | 6 × M8 points; 4 × M6 rear for OmniMount® or MultiMount® |
| Dimensions (H × W × D) | 539.8 × 199.4 × 226.1 mm |
| Net Weight | 11.0 kg |
| Environmental Rating | Mil-Std 810, IPx3 (IEC 529) |
| Finish | Black |
| Country of Origin | Mexico |
