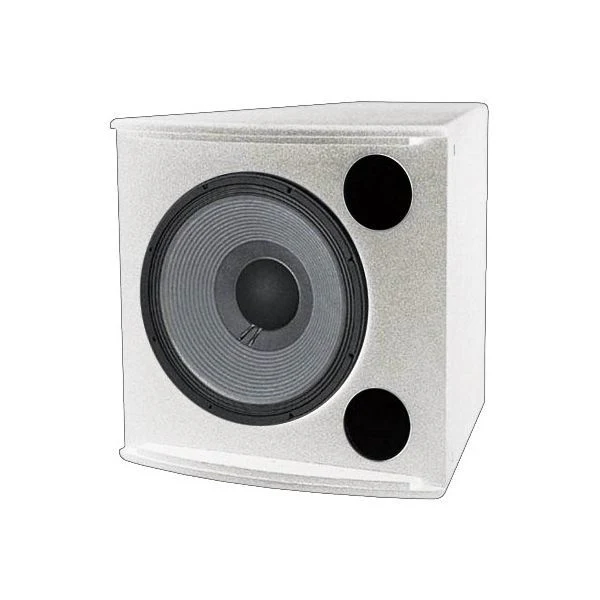

JBL AL7115-WH 15-inch Low Frequency Loudspeaker – White

JBL AL7115 high-power low-frequency loudspeaker in white finish is engineered to deliver strong, controlled bass reinforcement for demanding professional audio applications. As part of JBL’s AE Application Engineered Series, it is designed for seamless integration with compatible mid-high loudspeakers in fixed installation systems. The loudspeaker is manufactured in Mexico and built to meet rigorous performance and durability standards.

The system features a single 380 mm (15-inch) 2265H Differential Drive low-frequency driver housed in a front-loaded, vented enclosure. This advanced driver technology enables high output levels while maintaining low distortion, making it suitable for large venues and performance spaces. The large vent area supports efficient airflow, ensuring consistent low-frequency response even at elevated sound pressure levels.

The trapezoidal enclosure is constructed from 16 mm exterior-grade multi-ply Finnish birch plywood, providing structural strength and acoustic stability. Finished in white, the cabinet is well suited for installations where visual aesthetics are as important as sound performance. A powder-coated perforated steel grille with acoustically transparent foam backing protects the internal components without compromising audio clarity.

Multiple M10 threaded suspension points allow flexible rigging and installation options, including compatibility with pre-engineered array hardware. The AL7115 can be configured in arrays with AE Series mid-high and compact two-way loudspeakers, enabling scalable system designs for theaters, auditoriums, houses of worship, sports venues, and themed entertainment environments.

Features of AL7115

• 380 mm (15 in) Differential Drive low-frequency driver

• High output performance with low distortion

• Front-loaded vented enclosure design

• Large vent area for efficient low-frequency reproduction

• Trapezoidal cabinet for array configurations

• Multiple M10 suspension points for flexible rigging

• Compatible with AE Series array systems

Specifications of AL7115
