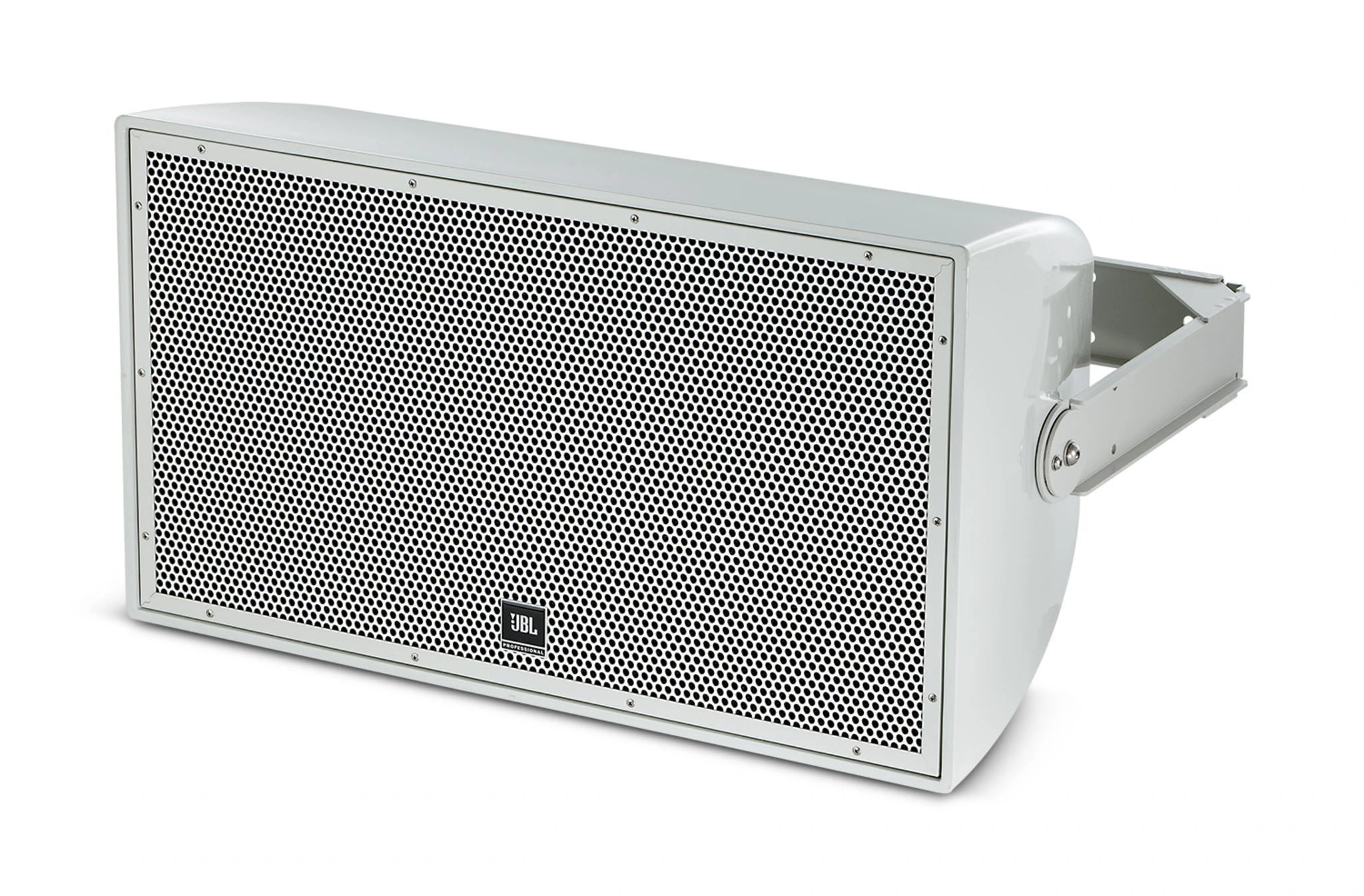

JBL AW266-LS 12″ 2-Way All Weather Loudspeaker with EN54-24 Certification – Gray

JBL AW266-LS High Power 12-inch 2-Way All-Weather Loudspeaker for Life Safety Applications

The JBL AW266-LS is a high-power, lightweight, 2-way full-range loudspeaker specifically engineered for life safety and emergency communication systems. Designed to meet EN 54-24 compliance standards, it is suitable for installations where intelligibility, reliability, and environmental durability are essential. The system forms part of JBL’s AE Series and is optimized for both indoor and outdoor use in demanding public venues.

The loudspeaker features a JBL 2262H 300 mm (12 in) Differential Drive® low-frequency driver with a 75 mm (3 in) dual voice coil and dual magnetic gap design. This configuration ensures high efficiency, excellent power handling, and reduced distortion. High-frequency reproduction is handled by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil, delivering clear and articulate vocal performance critical for emergency messaging.

Sound dispersion is controlled by a large Progressive Transition™ waveguide that provides consistent 60° x 60° coverage, allowing even sound distribution across large areas. The enclosure is constructed from hand-laminated fiberglass with extensive internal bracing to enhance structural strength and acoustic performance. A durable black gelcoat finish offers resistance against moisture, UV exposure, and harsh environmental conditions.

The AW266-LS includes an integrated 400 W 70/100V transformer and a heavy-duty weather-treated U-type mounting bracket, enabling flexible installation in either horizontal or vertical orientation. This loudspeaker is ideal for sports facilities, themed entertainment venues, outdoor entertainment centers, and water parks where life safety compliance is required. Origin of country mexico.

Features of AW266-LS

• EN 54-24 compliant for life safety applications

• 2-way full-range all-weather loudspeaker design

• JBL 2262H 12-inch Differential Drive® low-frequency driver

• JBL 2432H high-frequency compression driver

• Progressive Transition™ waveguide with 60° x 60° coverage

• Hand-laminated fiberglass enclosure with internal bracing

• Integrated 400 W 70/100V transformer

• Durable black gelcoat finish for outdoor environments

• Stainless steel protective grille with foam and mesh backing

• Vertical or horizontal installation capability

• Heavy-duty U-type mounting bracket included

Specifications of AW266-LS
