JBL AW266-LS-BK 12″ 2-Way All Weather Loudspeaker with EN54-24 Certification – Black
The JBL AW266-LS High Power 12-inch 2-Way All-Weather Loudspeaker in black delivers EN 54-24 certified performance with controlled 60° x 60° coverage, ensuring clear and dependable audio for life safety environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 26,226.00 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

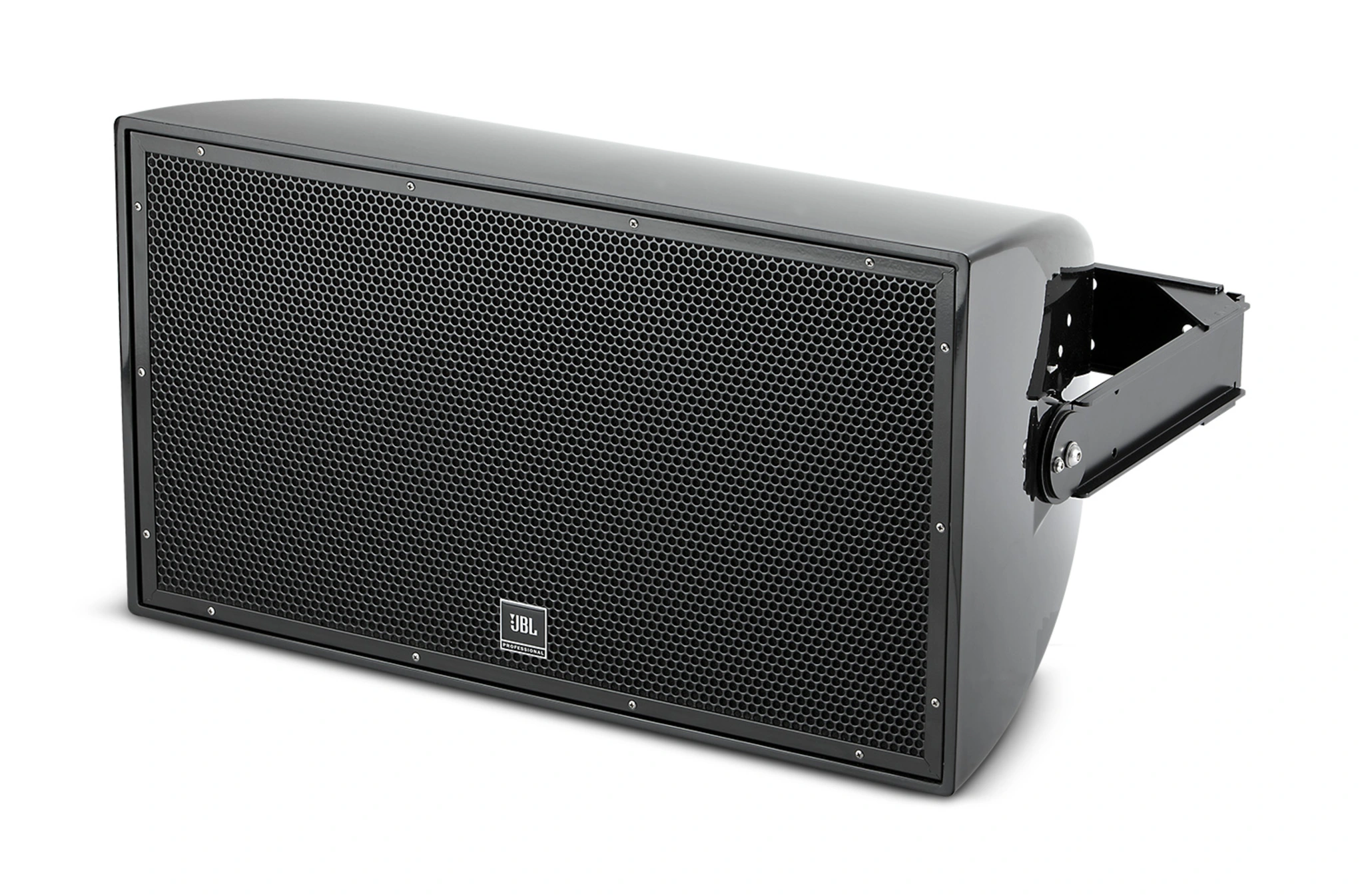

JBL AW266-LS High Power 12-inch 2-Way All-Weather Loudspeaker for Life Safety Applications Black Finish
The JBL AW266-LS is a robust, high-power, 2-way full-range loudspeaker engineered specifically for life safety and emergency communication systems. Designed in compliance with EN 54-24 standards, it ensures consistent speech intelligibility and dependable operation in both indoor and outdoor installations where safety regulations are critical. As part of JBL’s AE Series, it combines durability with professional-grade acoustic performance.
This loudspeaker incorporates the JBL 2262H 300 mm (12 in) Differential Drive® low-frequency transducer, featuring a dual voice coil and dual magnetic gap structure. This advanced design delivers high output capability, improved efficiency, and reduced distortion. High-frequency performance is provided by the JBL 2432H compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil, ensuring precise and articulate reproduction of voice and alert signals.
A large Progressive Transition™ waveguide delivers uniform 60° x 60° coverage, maintaining consistent sound distribution across the listening area. The enclosure is constructed from hand-laminated fiberglass with extensive internal bracing to enhance rigidity and acoustic stability. Finished in durable black gelcoat, the cabinet offers excellent resistance to moisture, UV exposure, and harsh environmental conditions.
The AW266-LS includes an integrated 400 W 70/100V transformer and a heavy-duty weather-treated U-type mounting bracket, allowing flexible horizontal or vertical installation. It is well suited for sports facilities, themed entertainment venues, outdoor entertainment centers, and water parks requiring compliant life safety audio systems. Origin of country mexico.
Features of AW266-LS
EN 54-24 compliant loudspeaker for life safety systems
High-power 2-way full-range all-weather design
JBL 2262H 12-inch Differential Drive® low-frequency driver
JBL 2432H high-frequency compression driver
Progressive Transition™ waveguide with 60° x 60° coverage
Hand-laminated fiberglass enclosure with reinforced structure
Integrated 400 W 70/100V transformer
Durable black gelcoat finish for outdoor use

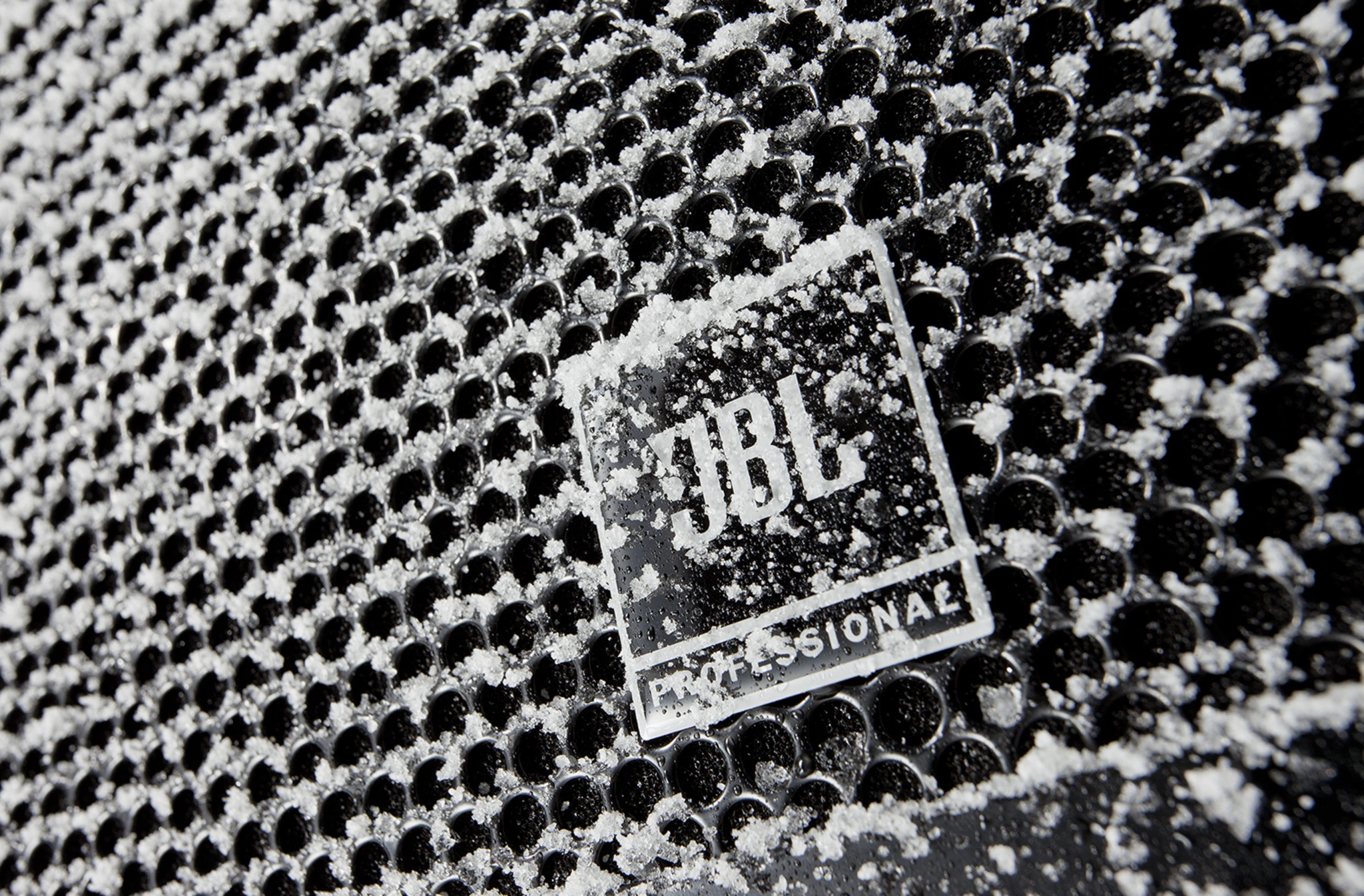

Stainless steel protective grille with foam and mesh backing
Supports vertical or horizontal mounting orientations
Heavy-duty U-type mounting bracket included
Specifications of AW266-LS
| Frequency Range (-10 dB) | 54 Hz – 20 kHz |
| Frequency Response (±3 dB) | 102 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1 m) | 125 dB SPL (131 dB peak) |
| Maximum SPL (4 m) | 112.45 dB SPL |
| System Sensitivity (1 W @ 1 m) | 98 dB SPL |
| Sensitivity (1 W @ 4 m) | 87.16 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
| LF Driver | 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver, 75 mm (3 in) dual voice coil |
| Nominal Impedance | 8 ohms |
| LF Sensitivity | 96 dB SPL, 1 W @ 1 m |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HF Sensitivity | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-laminated fiberglass, black gelcoat |
| Suspension Attachment | 2 x M10 for U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point |
| Grille | Three-layer stainless steel grille with foam and mesh backing |
| Input Connector | CE-compliant covered barrier strip terminals |
| Environmental | IP55C per IEC 529 |
| Dimensions (H x W x D) | 409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in) |
| Net Weight (each) | 25.2 kg (55.5 lb) |
| Origin of Country | Mexico |
