JBL AWC159-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 15″ LF – Black
The JBL AWC159 is a compact, weatherproof 15-inch coaxial 2-way loudspeaker, designed to deliver high-output speech and music for both indoor and outdoor venues.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 11,286.17 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

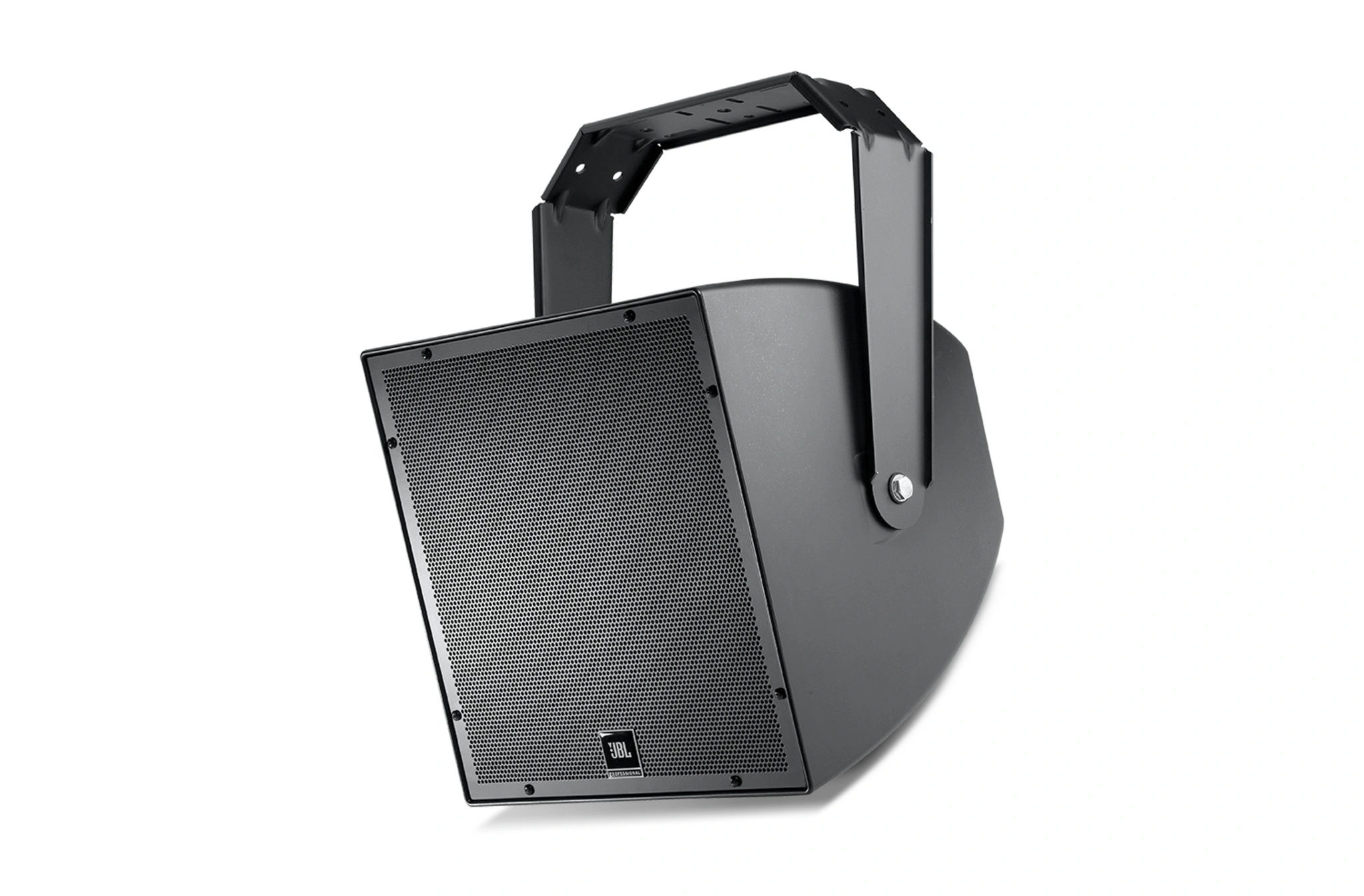

JBL AWC159 15-Inch All-Weather 2-Way Coaxial Loudspeaker System
The JBL AWC159 is a durable, all-weather, coaxial 2-way loudspeaker that combines compact design with full-range sound performance. It is ideal for delivering clear speech and music in challenging environments such as stadiums, racetracks, sports arenas, fairgrounds, skating rinks, water parks, swimming pools, rodeos, themed entertainment venues, and other indoor or outdoor spaces.

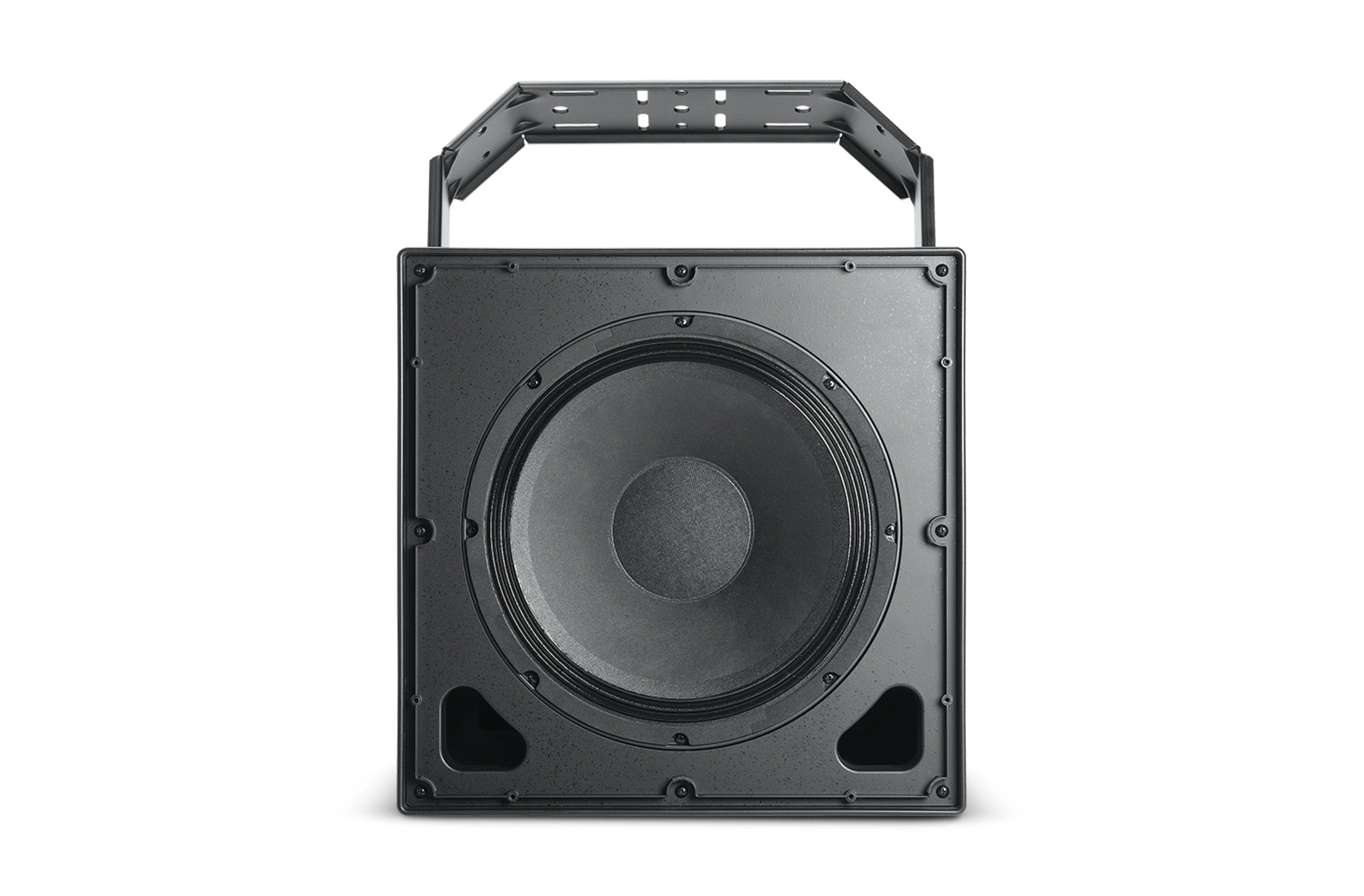

Equipped with a 15-inch Kevlar-reinforced woofer and a 3-inch voice coil, the AWC159 produces strong low-frequency output with excellent reliability. Its high-frequency section features a 1.5-inch compression driver with a high-temperature polymer diaphragm and patented design, offering exceptional clarity and detailed audio reproduction.
The speaker maintains a consistent 90° x 90° coverage pattern, ensuring uniform sound distribution across large areas. The advanced passive crossover network provides smooth, natural midrange performance and balanced frequency response. Rated for 500 watts of continuous power with high sensitivity, it can achieve high SPL levels suitable for large spaces. For flexible system integration, the loudspeaker includes a built-in 70V/100V multi-tap transformer or can operate in direct 8-ohm mode.

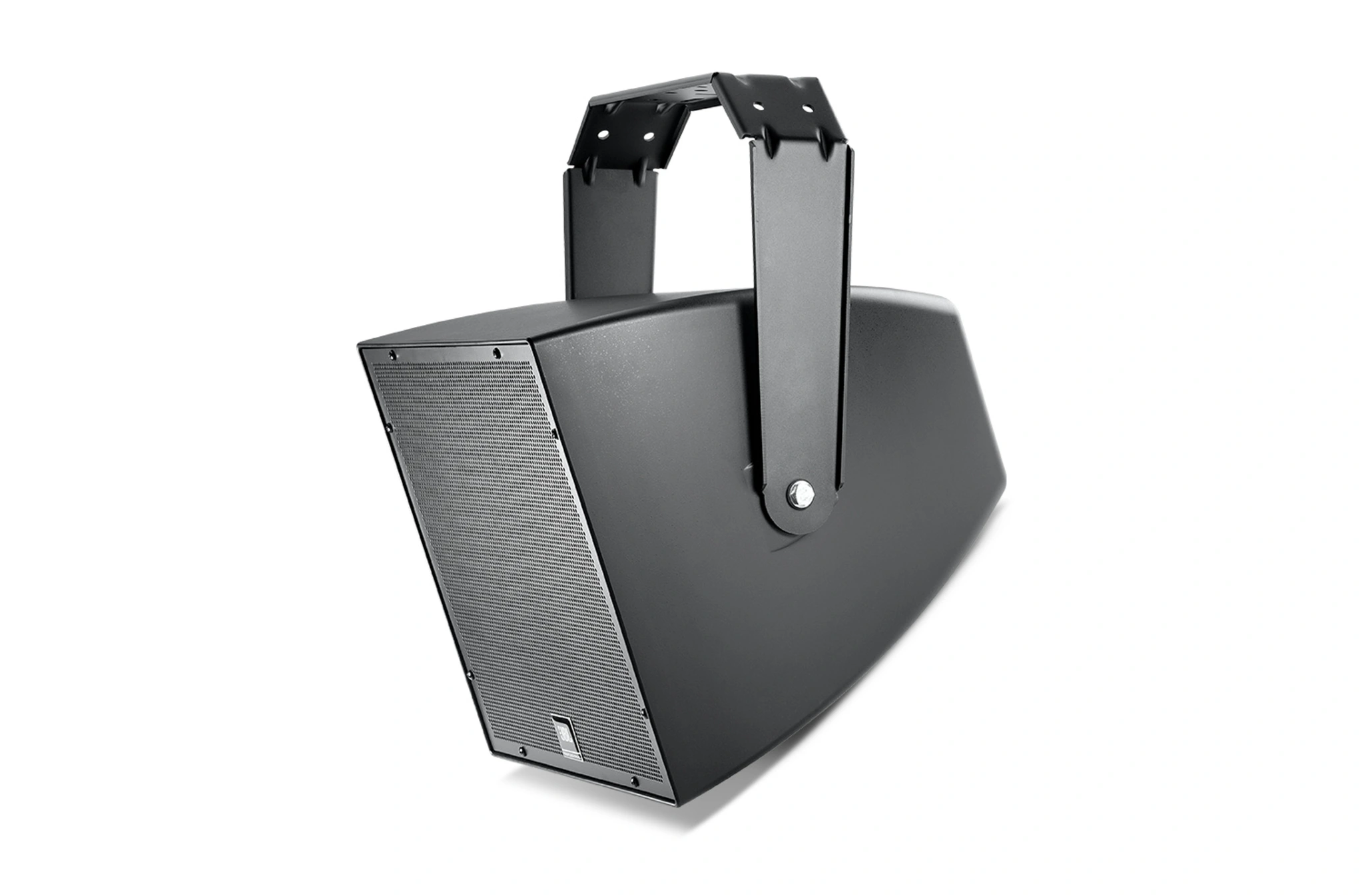

The AWC159 features a rugged, glass-reinforced ABS enclosure that meets IP56 standards for protection against dust and water. The cabinet surpasses military and ASTM requirements for humidity, salt spray, UV, and temperature resistance. A corrosion-resistant, powder-coated steel grille with layered foam and mesh backing safeguards the drivers while preserving optimal sound projection. Mounting is simple with the included color-matched U-bracket and a secondary safety attachment point for secure installation.
Features of JBL AWC159
15-inch Kevlar-treated low-frequency driver with 3-inch voice coil
1.5-inch high-temperature polymer compression driver with patented design
Weather-resistant IP56-rated enclosure
90° x 90° consistent coverage pattern
Wide frequency range: 52 Hz – 20 kHz
500 W continuous power handling with high SPL capability
Built-in 70V/100V multi-tap transformer or direct 8-ohm operation
Advanced passive crossover network for smooth response
SonicGuard™ HF overload protection
Rugged glass-reinforced ABS cabinet
Corrosion-resistant, powder-coated steel grille
Color-matched U-bracket included for safe mounting
Suitable for both indoor and outdoor large-venue applications
Specifications of JBL AWC159
| Model | JBL AWC159 15-Inch All-Weather 2-Way Coaxial Loudspeaker |
| Frequency Range (-10 dB) | 52 Hz – 20 kHz |
| Frequency Response (±3 dB) | 80 Hz – 20 kHz |
| Coverage Pattern | 90° x 90° |
| Directivity Factor (Q) | 11.1 (1 kHz – 16 kHz) |
| Directivity Index (DI) | 9.7 dB (1 kHz – 16 kHz) |
| System Power Rating | 500 W (2000 W peak, 2 hrs); 300 W (1200 W peak, 100 hrs) |
| Sensitivity | 98 dB (2.83V @ 1 m) |
| Maximum SPL | 125 dB (Direct 8Ω), 131 dB peak; 123 dB (300 W tap), 129 dB peak |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 300W, 150W, 75W, 38W; 100V: 300W, 150W, 75W |
| Crossover Frequency | 1.5 kHz, 4th order high-pass / 2nd order low-pass |
| LF Driver | 15-inch Kevlar-reinforced cone, 3-inch voice coil |
| HF Driver | 38 mm (1.5 in) diaphragm, high-temperature polymer, copper-clad aluminum coil, fluid-cooled |
| Enclosure | Glass-reinforced, heavily braced ABS |
| HF Protection | SonicGuard™ overload protection |
| Environmental | IP56, exceeds Mil Spec 810 & ASTM G85 standards |
| Grille | Zinc-rich, powder-coated steel with foam and mesh backing |
| Mounting | Two M10 fine-thread points for U-bracket; M6 secondary safety point |
| Dimensions | 486 x 486 x 479 mm (546 mm including bracket) |
| Net Weight | 20.6 kg (45.5 lbs) |
| Included Accessories | Color-matched U-bracket |
| Available Colors | Gray (Pantone 420C), Black (-BK) |
| Crossover Mode | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Origin of Country | China |
