JBL CBT 50LA-LS Line Array Column Loudspeaker with with Eight 50 mm (2 in) Drivers and EN54:24 Certification – Black
The JBL CBT 50LA-LS black column loudspeaker provides uniform vertical coverage, EN54-24 life safety compliance, and high-quality sound with eight 2-inch drivers for professional speech, music, and safety applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 4,242.07 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

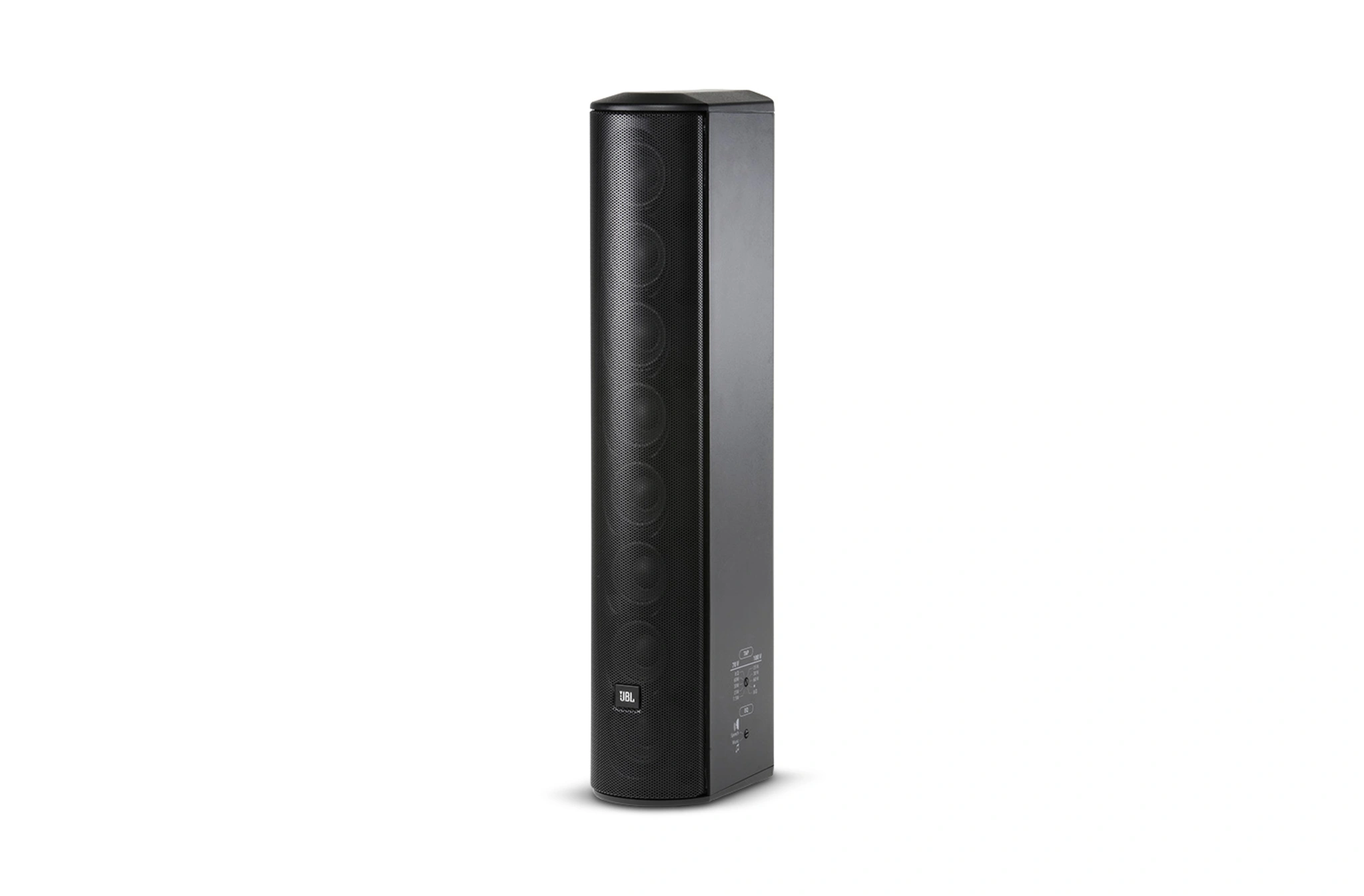

JBL CBT 50LA-LS black column loudspeaker
The JBL CBT 50LA-LS black column loudspeaker utilizes Constant Beamwidth Technology™ to deliver consistent vertical coverage, employing analog delay beamforming and amplitude tapering to avoid narrow vertical beaming and out-of-coverage lobing typical of traditional passive column speakers. This model is EN54-24 certified, making it suitable for life safety use in emergency paging and alarm systems.
Featuring eight 50 mm (2 in) full-range drivers, the CBT 50LA-LS offers wide horizontal coverage while maintaining controlled vertical dispersion. Switchable voicing enables either a flat music response or a mid-range presence boost for speech, ensuring adaptable performance in lecture halls, conference rooms, retail areas, transit spaces, and other professional or life safety environments.
The speaker includes a built-in 70V/100V transformer and supports direct 8-ohm operation. Dynamic SonicGuard™ overload protection ensures reliable, long-term performance. The black fiberglass-reinforced ABS cabinet with painted aluminum grille is durable and suitable for indoor and semi-exposed outdoor applications, with IP55 rating and optional MTC-PC2 panel cover. Included swivel (pan)/tilt wall bracket and ten M6 back panel insert points allow flexible mounting or suspension configurations.
Features of CBT 50LA-LS
Constant Beamwidth Technology™ for uniform vertical coverage
EN54-24 certified for life safety applications (with MTC-PC2 cover)
Switchable voicing for speech or music optimization
Dynamic SonicGuard™ overload protection
Built-in 70V/100V transformer, plus 8-ohm direct input

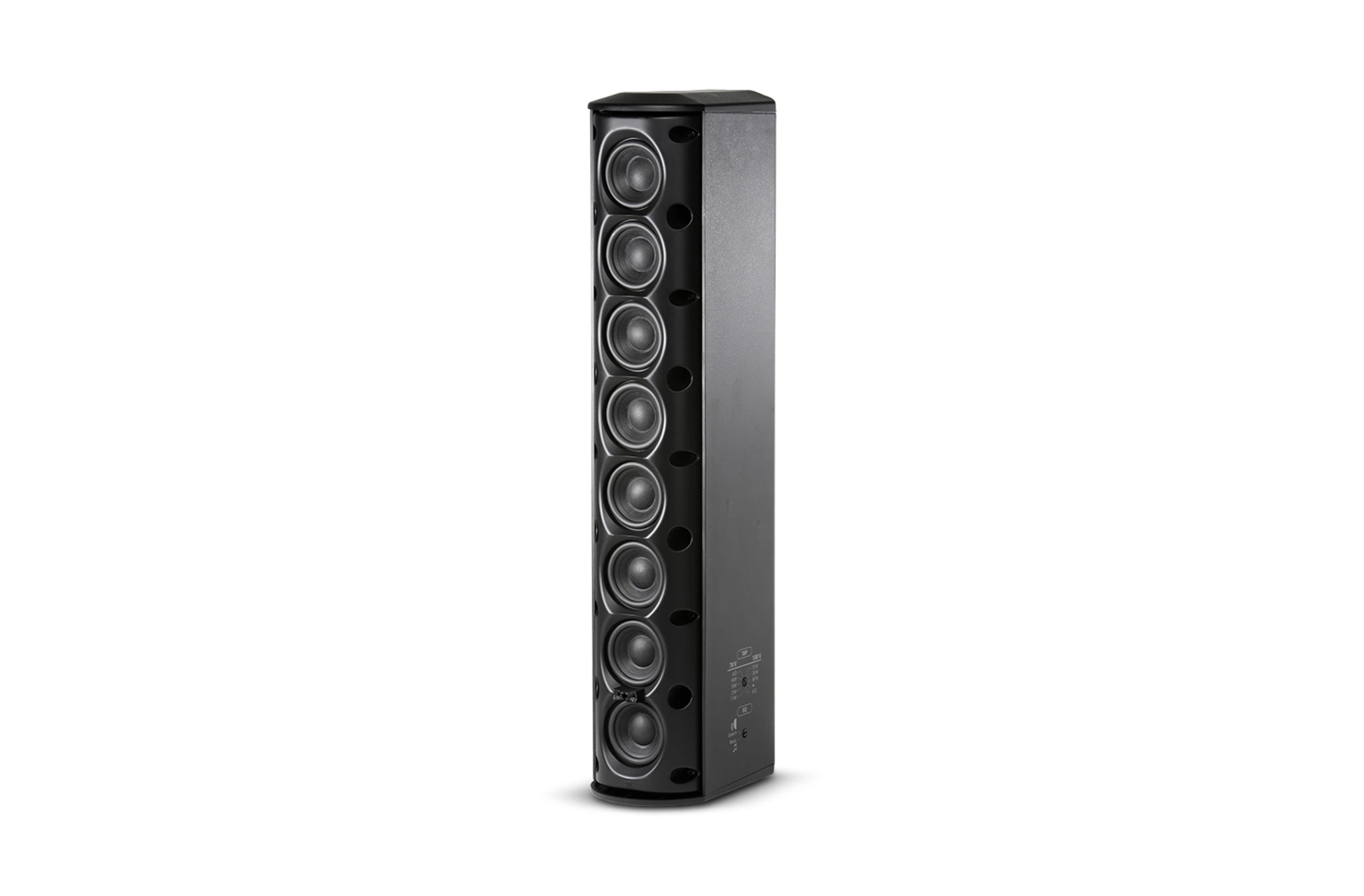

Eight 2-inch (50 mm) full-range drivers
Wide horizontal 150° and controlled vertical 20° coverage
IP55-rated for dust and water resistance (with optional cover)
Fiberglass-reinforced ABS cabinet with painted aluminum grille
Flexible mounting with included swivel/tilt wall bracket
Ten M6 threaded insert points for mounting or suspension
Outdoor-capable with optional MTC-PC2 terminal panel cover
Compact 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) design
Suitable for speech, music, and life safety applications
Specifications of CBT 50LA-LS
| Drivers | Eight 50 mm (2 in) full-range drivers |
| Frequency Range (-10 dB) | 120 Hz – 20 kHz |
| Coverage Pattern | Vertical 20° (1.5 kHz – 16 kHz, ±10°), Horizontal 150° (1 kHz – 4 kHz, ±20°) |
| Coverage by Frequency | 0.5 kHz: H 360°, V 100°; 1 kHz: H 247°, V 55°; 2 kHz: H 194°, V 32°; 4 kHz: H 135°, V 18° |
| Sensitivity (1W/1m) | Speech: 93 dB (2 kHz – 14 kHz), Music: 89 dB (300 Hz – 18 kHz) |
| Sensitivity (1W/4m) | Speech: 78.8 dB SPL (100 Hz – 10 kHz), Music: 76.5 dB SPL (100 Hz – 10 kHz) |
| Nominal Impedance | 8 ? (bypass mode); Tap impedances: 7.5 W @70V = 667 ?, 15 W @70V = 333 ?, 30 W @70V = 167 ?, 60 W @70V = 83 ? |
| Power Rating | 150 W (600 W peak, 2 hrs), 100 W (400 W peak, 100 hrs) |
| Maximum SPL | Speech: 115 dB continuous (121 peak @1m), 103 dB continuous (109 peak @4m); Music: 111 dB continuous (117 peak @1m), 99 dB continuous (105 peak @4m) |
| EN54 Max SPL (@4m) | Speech: 96 dB, Music: 93 dB |
| Transformer Taps | 60 W, 30 W, 15 W (7.5 W at 70V only), 8 ? thru, via switch |
| Enclosure | Fiberglass-reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP55 per IEC529 with optional MTC-PC2 cover; UV, moisture, 200-hr ASTM G85 acid-air/salt-spray resistant |
| Color | Black (CBT 50LA-LS-BK) |
| Insert Points | Ten M6 threaded insert points on back panel |
| Mounting | Included swivel (pan)/tilt wall bracket: ±80° horizontal swivel, ±15° tilt; threaded points compatible with OmniMount® 30.0 and other brackets; suspension capable |
| Safety Agency Rating | EN54-24:2008 certified with MTC-PC2 cover; compliant with IEC60849/EN60849 |
| Dimensions (H x W x D) | 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) |
| Net Weight | 4.1 kg (9.0 lb) |
| Included Accessories | Swivel (pan)/tilt wall bracket, MTC-PC2 terminal panel cover |
| Optional Accessories | MTC-CBT-FM1 flush-mount wall bracket, MTC-CBT-SMB1 stand-mount bracket for 35 mm speaker stand |
| Origin of Country | China |
