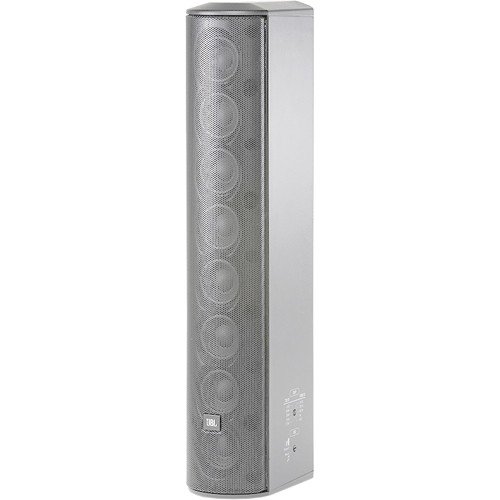

JBL CBT 50LA-LS-WH Line Array Column Loudspeaker with with Eight 50 mm (2 in) Drivers and EN54:24 Certification – White
The JBL CBT 50LA-LS column loudspeaker with Constant Beamwidth Technology delivers precise vertical coverage, EN54-24 life safety compliance, and high-quality sound with eight 2-inch drivers for professional applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 4,242.07 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL CBT 50LA-LS column loudspeaker
The JBL CBT 50LA-LS column loudspeaker features Constant Beamwidth Technology™ for consistent vertical coverage, using analog delay beamforming and amplitude tapering to prevent narrow beaming and out-of-coverage lobing common to standard passive column speakers. This model is EN54-24 certified, making it suitable for life safety applications such as emergency paging and alarm signaling.
Equipped with eight 50 mm (2 in) full-range drivers, the CBT 50LA-LS provides wide horizontal dispersion with controlled vertical coverage. Switchable voicing allows the speaker to deliver a flat response for music or a mid-range presence boost for speech, offering versatile performance across diverse environments including lecture halls, conference rooms, transit spaces, retail areas, and other professional or life safety audio installations.
The speaker features a built-in 70V/100V transformer and supports direct 8-ohm operation. Dynamic SonicGuard™ overload protection ensures reliable operation over time. The fiberglass-reinforced ABS cabinet with painted aluminum grille is durable, while IP55 rating and optional MTC-PC2 panel cover allow use in indoor and semi-exposed outdoor conditions. The included swivel (pan)/tilt wall bracket and ten M6 insert points on the back panel provide flexible mounting or suspension options.
Features of CBT 50LA-LS
Constant Beamwidth Technology™ for consistent vertical coverage
EN54-24 certified for life safety applications (with MTC-PC2 cover)

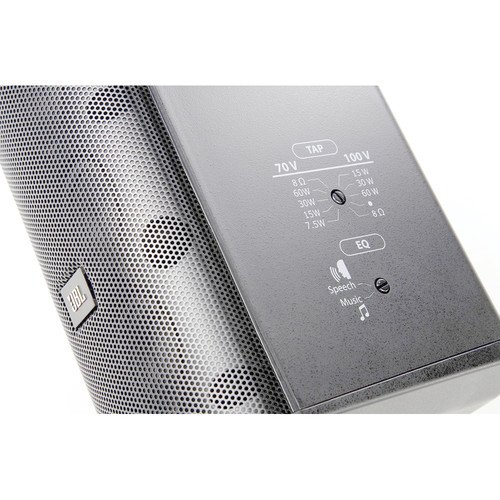

Switchable voicing for music or speech optimization
Dynamic SonicGuard™ overload protection
Built-in 70V/100V transformer, plus 8-ohm direct input

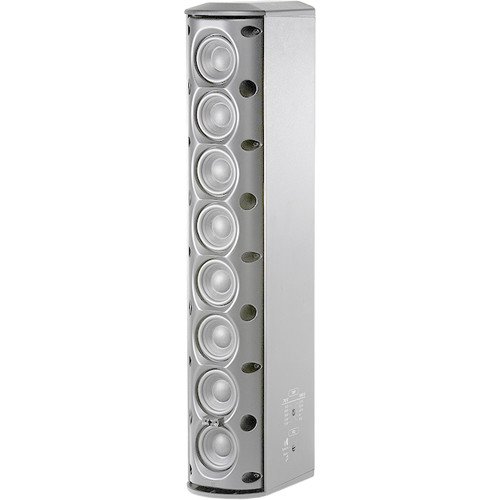

Eight 2-inch (50 mm) full-range drivers
Wide horizontal 150° and controlled vertical 20° coverage
IP55-rated for dust and water resistance (with optional cover)
Fiberglass-reinforced ABS cabinet with painted aluminum grille
Flexible mounting with included swivel/tilt wall bracket
Ten threaded M6 insert points for mounting or suspension
Outdoor-capable with optional MTC-PC2 terminal panel cover
Compact 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) design
Suitable for speech, music, and life safety applications
Specifications of CBT 50LA-LS
| Drivers | Eight 50 mm (2 in) full-range drivers |
| Frequency Range (-10 dB) | 120 Hz – 20 kHz |
| Coverage Pattern | Vertical 20° (1.5 kHz – 16 kHz, ±10°), Horizontal 150° (1 kHz – 4 kHz, ±20°) |
| Coverage by Frequency | 0.5 kHz: H 360°, V 100°; 1 kHz: H 247°, V 55°; 2 kHz: H 194°, V 32°; 4 kHz: H 135°, V 18° |
| Sensitivity (1W/1m) | Speech: 93 dB (2 kHz – 14 kHz), Music: 89 dB (300 Hz – 18 kHz) |
| Sensitivity (1W/4m) | Speech: 78.8 dB SPL (100 Hz – 10 kHz), Music: 76.5 dB SPL (100 Hz – 10 kHz) |
| Nominal Impedance | 8 ? (bypass mode); Tap impedances: 7.5 W @70V = 667 ?, 15 W @70V = 333 ?, 30 W @70V = 167 ?, 60 W @70V = 83 ? |
| Power Rating | 150 W (600 W peak, 2 hrs), 100 W (400 W peak, 100 hrs) |
| Maximum SPL | Speech: 115 dB continuous (121 peak @1m), 103 dB continuous (109 peak @4m); Music: 111 dB continuous (117 peak @1m), 99 dB continuous (105 peak @4m) |
| EN54 Max SPL (@4m) | Speech: 96 dB, Music: 93 dB |
| Transformer Taps | 60 W, 30 W, 15 W (7.5 W at 70V only), 8 ? thru, via switch |
| Enclosure | Fiberglass-reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP55 per IEC529 with optional MTC-PC2 cover; UV, moisture, 200-hr ASTM G85 acid-air/salt-spray resistant |
| Color | Black or White (-WH) |
| Insert Points | Ten M6 threaded insert points on back panel |
| Mounting | Included swivel (pan)/tilt wall bracket: ±80° horizontal swivel, ±15° tilt; threaded points compatible with OmniMount® 30.0 and other brackets; suspension capable |
| Safety Agency Rating | EN54-24:2008 certified with MTC-PC2 cover; compliant with IEC60849/EN60849 |
| Dimensions (H x W x D) | 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) |
| Net Weight | 4.1 kg (9.0 lb) |
| Included Accessories | Swivel (pan)/tilt wall bracket, MTC-PC2 terminal panel cover |
| Optional Accessories | MTC-CBT-FM1 flush-mount wall bracket, MTC-CBT-SMB1 stand-mount bracket for 35 mm speaker stand |
| Origin of Country | China |
