JBL COL800-WH Slim Column Loudspeaker – White

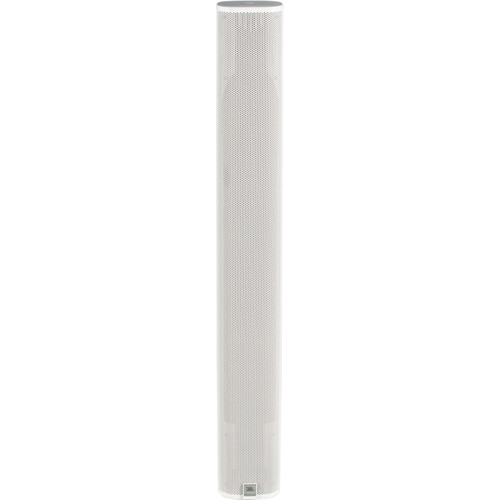

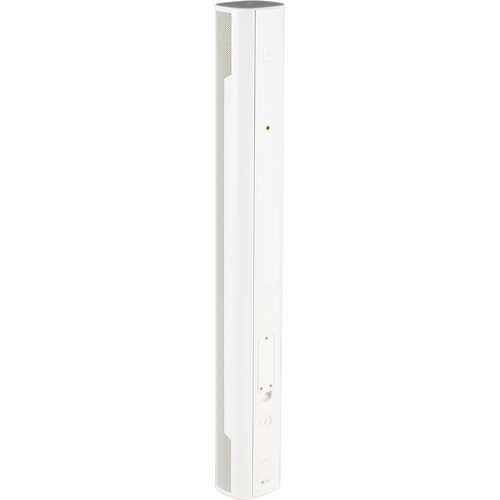

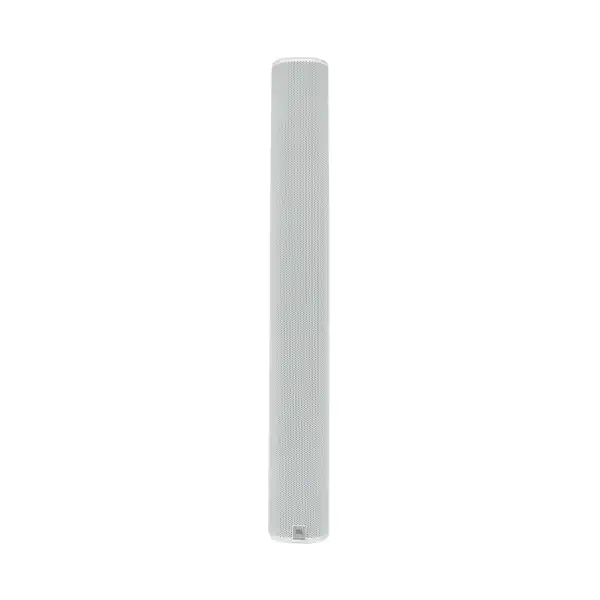

JBL COL800 white slim column loudspeaker

The JBL COL800 white slim column loudspeaker is a 32-inch (800 mm) professional-grade speaker combining award-winning design with high-quality audio performance. Its shallow 3.7-inch (93 mm) cabinet allows for close-to-wall installation while meeting ADA compliance requirements. The built-in 10° downward tilt provides optimum vertical coverage without requiring the speaker to be physically angled, while the wide 160° horizontal dispersion ensures even audio coverage across large listening areas.

Equipped with four 5 x 2.25 inch racetrack woofers and dual 0.8-inch tweeters positioned at the top of the array, the COL800 maximizes sound projection and minimizes obstructions for both speech and music. This makes it ideal for conference rooms, lecture halls, retail spaces, concourses, transit areas, fill applications, and AV systems requiring a slim, high-performance solution.

The integrated 60 W multi-tap transformer allows use on 70V or 100V distributed speaker lines, while a selectable direct 8-ohm input supports 150 W continuous (600 W peak) power handling. Its 85 Hz – 20 kHz frequency range ensures clean, clear sound reproduction. Installation is highly versatile with included low-profile swivel/tilt wall bracket (±95° pan, +0°/-10° tilt) and two L-brackets that can be mounted on either top/bottom or side panels for close-to-wall placement.

The COL800 white features IP54 dust and water protection, water-treated drivers, a protective grille, and input terminal cover for reliable indoor or semi-exposed use. Its sleek design blends seamlessly with architectural interiors while delivering professional audio performance for demanding applications.

Features of COL800

• Four 5 x 2.25 inch racetrack woofers & two 0.8 inch tweeters

• Slim 32-inch tall, 3.7-inch shallow cabinet

• Wide 160° horizontal and focused 60° vertical coverage

• Built-in 10° downward tilt for optimum listening coverage

• 150 W continuous pink noise power handling (600 W peak)

• 85 Hz – 20 kHz frequency range

• Built-in 60 W 70V/100V multi-tap transformer, plus direct 8-ohm input

• 116 dB peak SPL (110 dB continuous)

• Dual tweeters at top for unobstructed coverage

• Versatile mounting included (L-brackets & swivel/tilt wall bracket)

• IP54-rated for dust and water protection

• Water-treated drivers and grille

• Protective cover for input terminals

• Compact, ADA-compliant shallow cabinet

• Award-winning industrial design

• Suitable for conference, lecture halls, retail, and transit spaces
