JBL CBT 50LA-1 Constant Beamwidth Technology Line Array Column Loudspeaker – Black
The JBL CBT 50LA-1 column loudspeaker with Constant Beamwidth Technology delivers consistent vertical coverage, flexible aiming, and high-quality sound with eight 2-inch drivers, suitable for speech and music applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 4,048.65 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

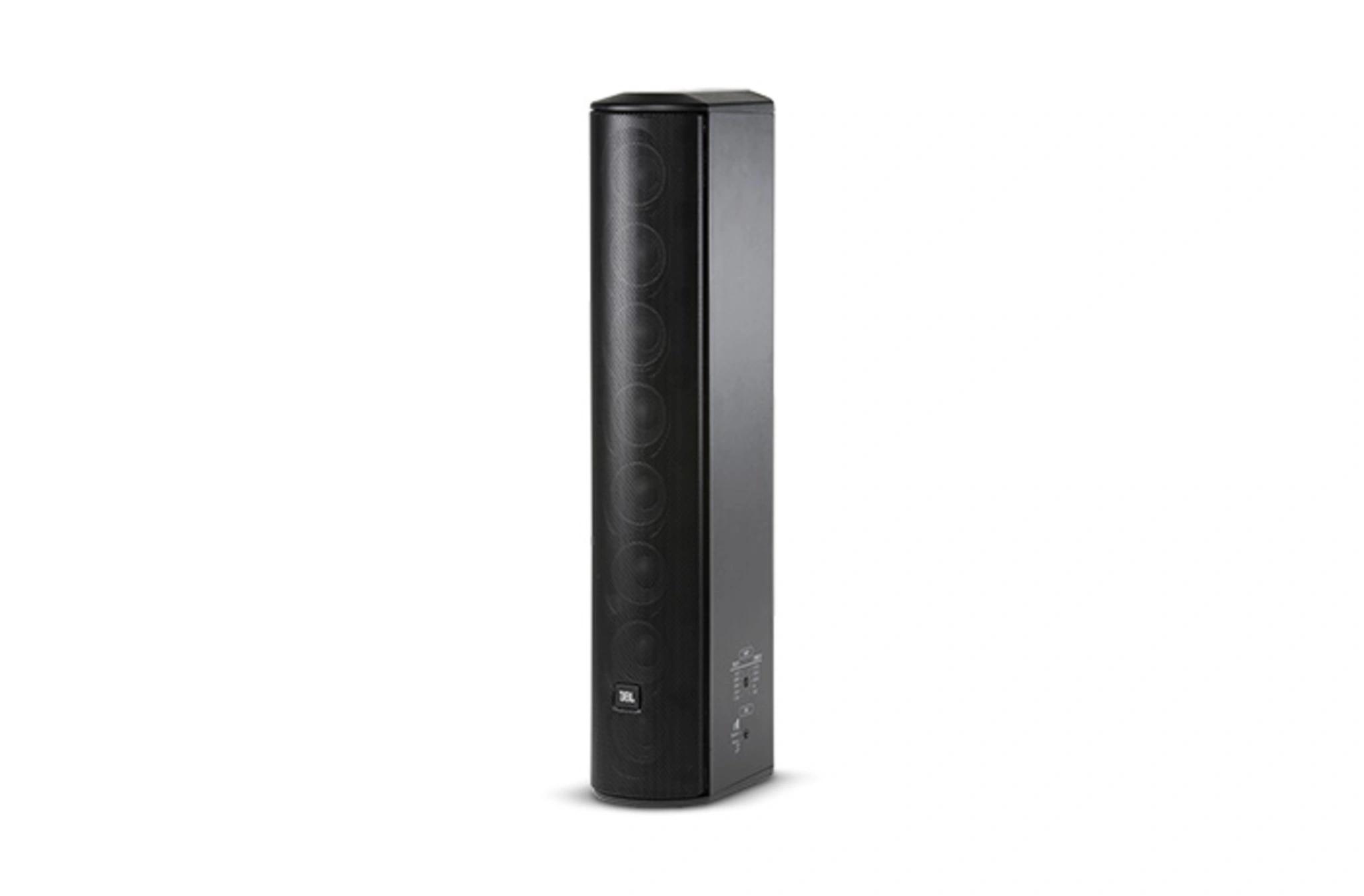

JBL CBT 50LA-1 column loudspeaker
The JBL CBT 50LA-1 column loudspeaker features innovative Constant Beamwidth Technology™ for precise and consistent vertical coverage. Using analog delay beam-forming and amplitude tapering, it avoids the narrow vertical beaming and out-of-coverage lobing typical of conventional passive column speakers. This ensures clear, intelligible sound across the entire listening area for both speech and music applications.
Equipped with eight 50 mm (2 in) full-range drivers, the CBT 50LA-1 provides wide horizontal dispersion and controlled vertical coverage, making it ideal for conference rooms, lecture halls, houses of worship, retail environments, and other professional audio installations. Switchable voicing allows the speaker to be optimized for flat music response or mid-range presence for speech, offering versatile performance for diverse applications.
The speaker includes a built-in 70V/100V transformer while also supporting 8-ohm direct operation. Dynamic SonicGuard™ protection safeguards the drivers from overload, ensuring reliable long-term operation. Its fiberglass-reinforced ABS cabinet and painted aluminum grille provide durability, while IP55 rating and optional protective covers allow safe use in outdoor or semi-exposed installations. The included swivel (pan) / tilt wall bracket provides flexible aiming, and ten M6 insert points on the back panel allow additional mounting or suspension options.
Features of CBT 50LA-1
Constant Beamwidth Technology™ for consistent vertical coverage
Switchable voicing for music or speech optimization
Dynamic SonicGuard™ overload protection
Built-in 70V/100V transformer, plus 8-ohm direct input

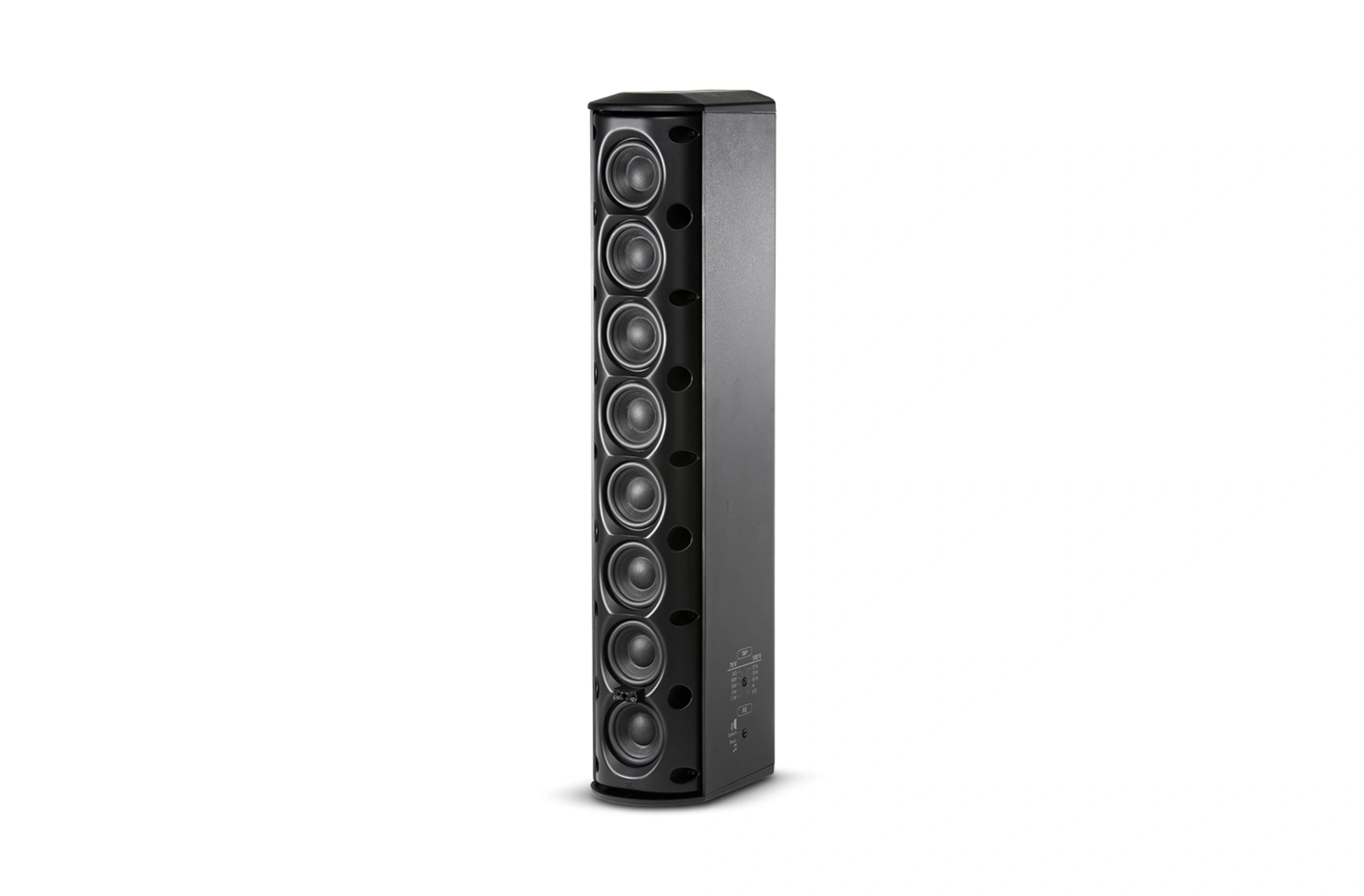

Eight 2-inch (50 mm) full-range drivers
Wide horizontal 150° and controlled vertical 20° coverage
IP55-rated for dust and water resistance (with optional cover)
Fiberglass-reinforced ABS cabinet with painted aluminum grille
Versatile mounting with included swivel/tilt wall bracket
Ten threaded M6 insert points for additional mounting or suspension
Outdoor-capable with optional MTC-PC2 terminal panel cover
Compact 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) design
Reliable performance for speech and music applications
Specifications of CBT 50LA-1
| Drivers | Eight 50 mm (2 in) full-range drivers |
| Frequency Range (-10 dB) | 80 Hz – 20 kHz |
| Coverage Angle | Vertical 20° (1.5 kHz – 16 kHz, ±10°), Horizontal 150° (1 kHz – 4 kHz, ±20°) |
| Sensitivity | 93 dB (speech mode, 2 kHz – 14 kHz), 89 dB (music mode, 300 Hz – 18 kHz) |
| Impedance | 8 ? |
| Power Rating | 150 W (600 W peak, 2 hrs), 100 W (400 W peak, 100 hrs) |
| Maximum SPL (1 m) | Speech mode: 115 dB continuous (121 peak), Music mode: 111 dB continuous (117 peak) |

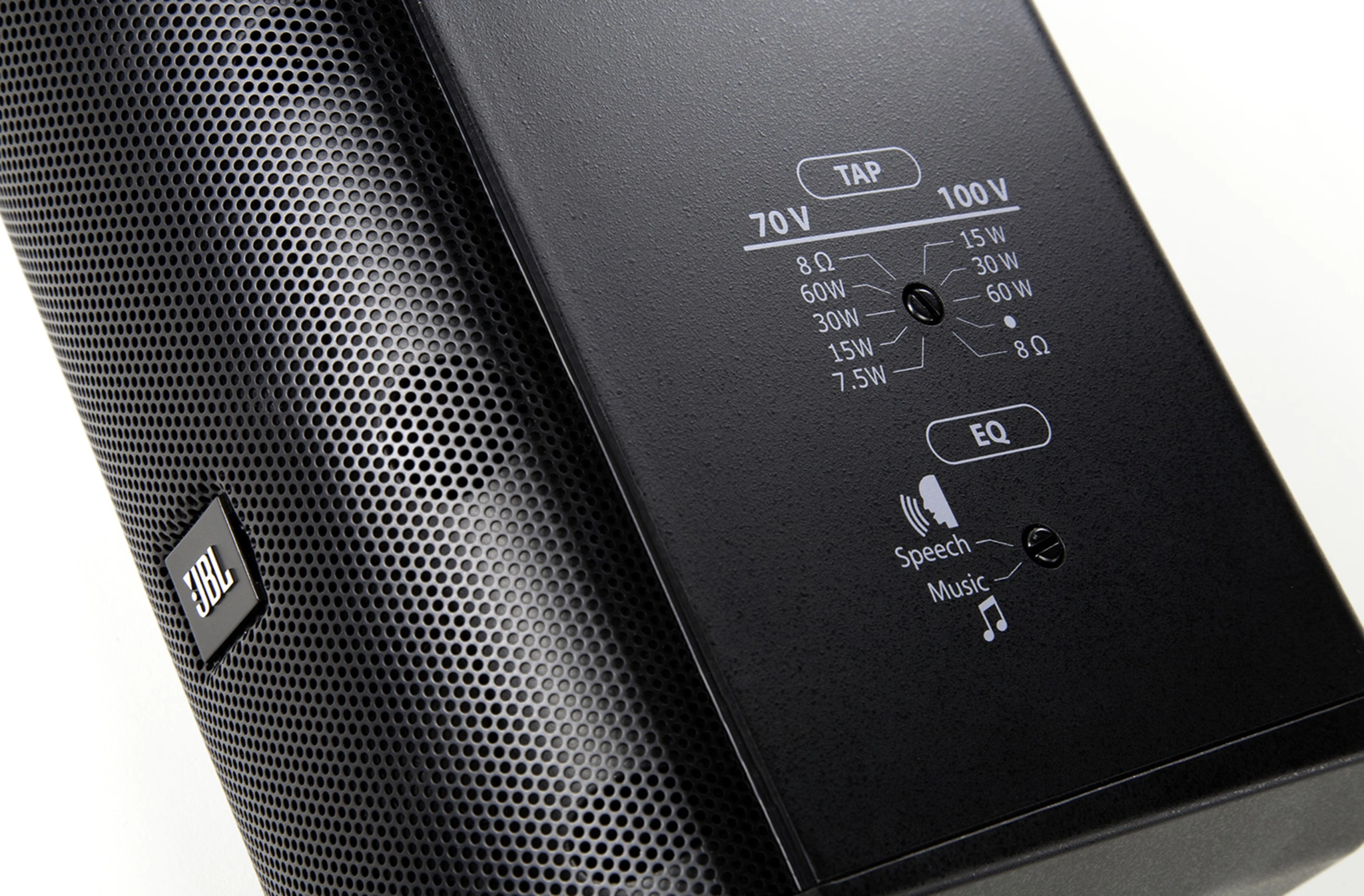

| Transformer Taps | 60 W, 30 W, 15 W (7.5 W at 70V only), 8 ? thru, selectable via switch |
| Enclosure | Fiberglass-reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP55 per IEC529 with optional MTC-PC2 cover; UV, moisture, and 200-hr ASTM G85 acid-air/salt-spray resistant |
| Color | Black or White (-WH) |
| Insert Points | Ten M6 threaded insert points on back panel |
| Mounting | Included swivel (pan)/tilt wall bracket: ±80° horizontal swivel, ±15° tilt; threaded mounting points compatible with OmniMount® 30.0 and other brackets; suspension capable |
| Dimensions (H x W x D) | 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) |
| Net Weight | 4.1 kg (9.0 lb) |
| Included Accessories | Swivel (pan)/tilt wall bracket |
| Optional Accessories | MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount wall bracket, MTC-CBT-SMB1 stand-mount bracket for 35 mm speaker stands |
| Origin of Country | China |
