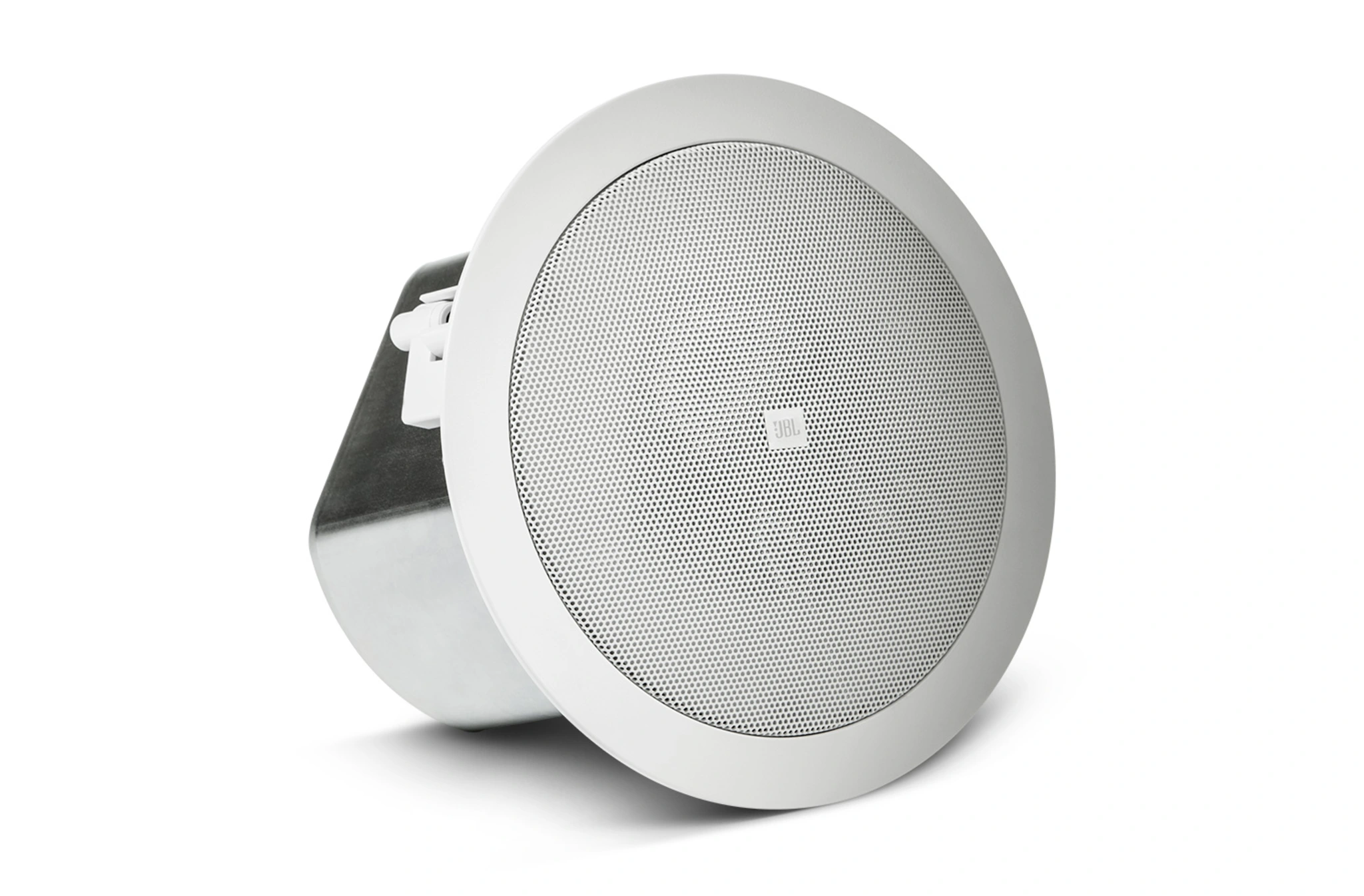

JBL Control 12C/T 76 mm (3″) Full-Range Compact Ceiling Speaker
The JBL Control 12C/T is a compact in-ceiling loudspeaker engineered for high-quality background or foreground music applications. Featuring a 76 mm (3 in) full-range driver with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, and high-temperature aluminum coupling ring, it delivers clear, low-distortion sound across a wide 130° conical coverage. Origin of country China.
Its integrated zinc-plated steel backcan and ABS baffle with UL94-V0 and UL94-5VB flame rating ensure safety and plenum compatibility. The speaker supports combined 70V/100V multi-tap transformer operation or low-impedance 8Ω direct input, providing flexible deployment for diverse audio systems. The shallow design allows quick, repeatable installation in ceilings up to 35 mm (1.4 in) thick using the included dog-ears, while optional thick-ceiling accessories extend mounting up to 55 mm (2.2 in).
The Control 12C/T is delivered with a full-face grille, C-ring support plate, tile rails, paint shield, cutout template, and removable locking 4-pin connector for fast and secure installation. Its high-quality components, wide frequency response, and low distortion make it ideal for professional offices, retail, and hospitality environments where premium sound and reliability are essential.
Features of Control 12C/T
76 mm (3 in) full-range driver with polypropylene cone and butyl rubber surround
Integrated zinc-plated steel backcan for quick installation
Combined 70V/100V multi-tap and 8Ω low-impedance operation
130° conical coverage for broad sound dispersion
ABS baffle with UL94-V0 and UL94-5VB fire rating, paintable
Shallow 138 mm (5.4 in) depth for easy ceiling integration
Top surface seismic attachment point for safety
Packaged with grille, backcan, tile rails, C-ring support, cutout template, paint shield, and multi-pin connector
Plenum rated for air-handling spaces
Specifications of Control 12C/T
| Frequency Range (-10 dB) | 68 Hz – 17 kHz |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Power Rating | 40 W Continuous Program Power; 20 W Continuous Pink Noise (80 W peak), 100 hrs |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9 W; 100V: 15 W, 7.5 W, 3.8 W |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1m) | 97 dB (8Ω), 103 dB peak; 96 dB (top 70V/100V tap) |
| Impedance | 8 Ω (direct/bypass) |
| Low-Frequency Driver | 76 mm (3 in) with polypropylene cone, butyl rubber surround, high-temp Kapton voice coil, aluminum coupling ring |
| High-Frequency Driver | Integrated full-range driver |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals (max wire 12 AWG / 2.5 mm²) |
| Strain Relief | Two cables or flex conduits via clamping mechanism |
| Materials | ABS baffle UL94-V0 & UL94-5VB, zinc-plated steel backcan |
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed; Transformer UL registered per UL1876; ROHS, CE, IEC60849/EN60849 compliant |
| Dimensions | 196 mm diameter x 138 mm depth (7.7 x 5.4 in) |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter (cardboard template included) |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) stock dog-ears; optional thick-ceiling dog-ears up to 55 mm (2.2 in) |
| Included Accessories | C-ring support plate, 2 tile rails (2 ft / 600 mm span), paint shield, cutout template, grille, removable multi-pin connector |
| Optional Accessories | MTC-24NC new construction bracket, MTC-24MR mud-ring bracket, MTC-TCD thick-ceiling dog-ears, MTC-48TR tile rail for 1200 mm / 4 ft tiles |
| Color | White or Black (-BK) |
| Backcan | Zinc-plated steel, integrated |
| Baffle/Rim | ABS with UL94-V0 & UL94-5VB flame rating |
| Plenum Usage | Yes, backcan included |
| Origin of Country | China |
